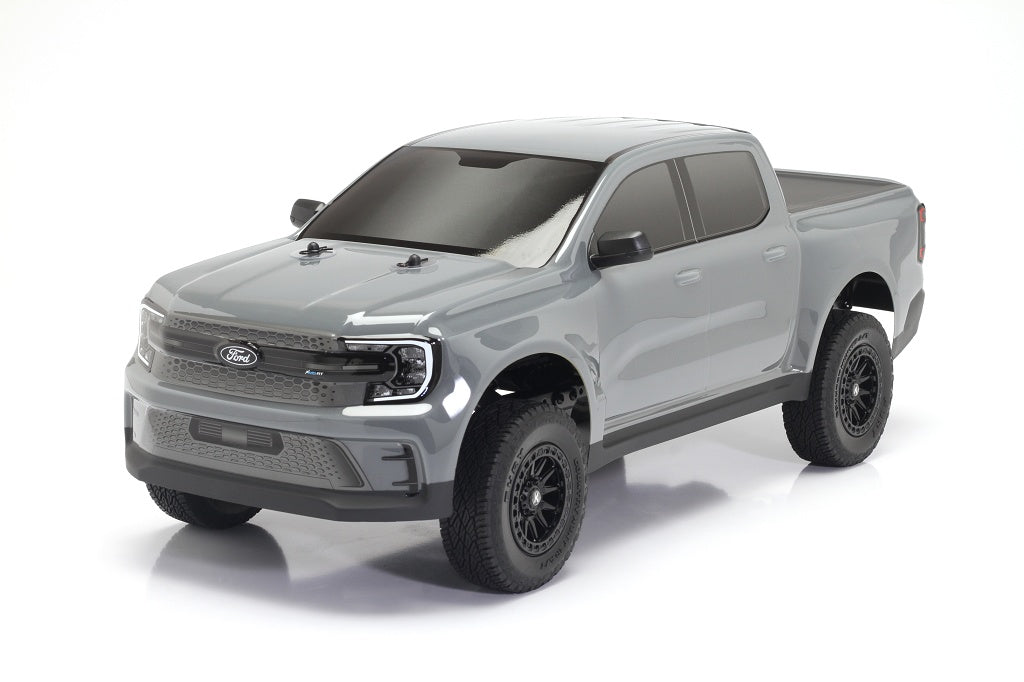

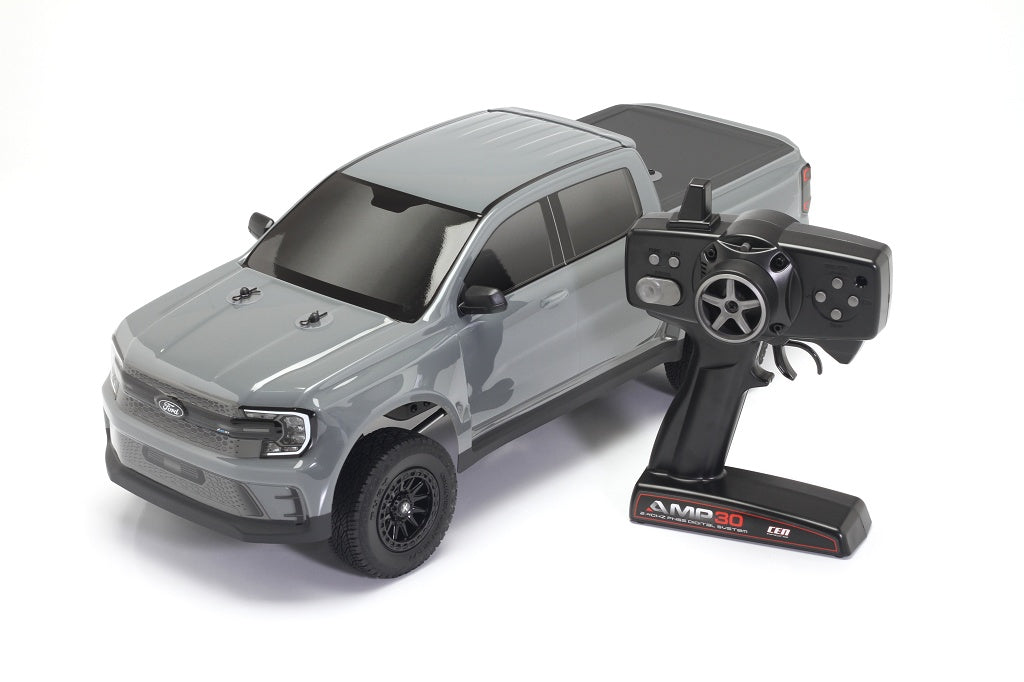

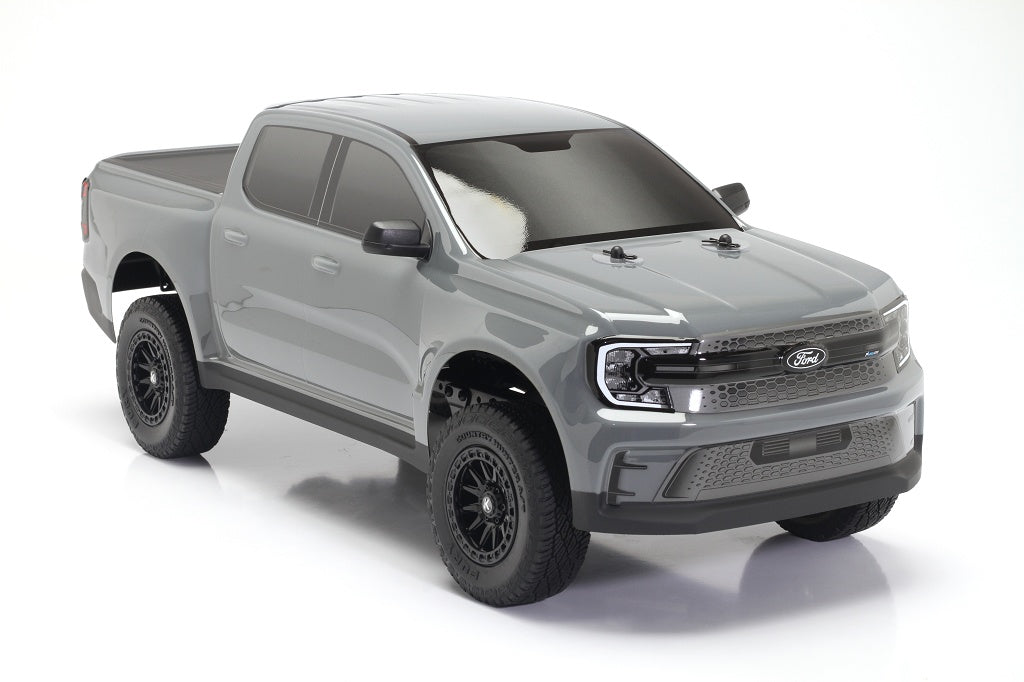

8972 CEN Racing official Licensed MS-RT FORD Ranger 1/10 RTR Custom On Road Truck (Cool Grey) DL-Series.
True 1/10 scale RTR
Item Number: 8972 (Cool Grey)
Ford Ranger MS-RT 1/10 Scale 4 wheels Drive Truck
Length: 21.65 inches (550mm)
Width: 9.1 inches (230mm)
Wheelbase: 12.95 inches (329mm)
Ground Clearance: 2.2inches (55mm).
Weight: 4.7 lb. 2.15 kg.
Available in two colors
Item: 8972 - MS-RT Cool Grey
Item: 8973 - MS-RT Fast Blue
* KG1 FORGED K0105F Adrenaline wheel. 52mm x 26mm
* 78mm Big Bore Oil Filled Adjustable Coil Over Shocks
* 60A WP-1060-Brushed ( HobbyWing)

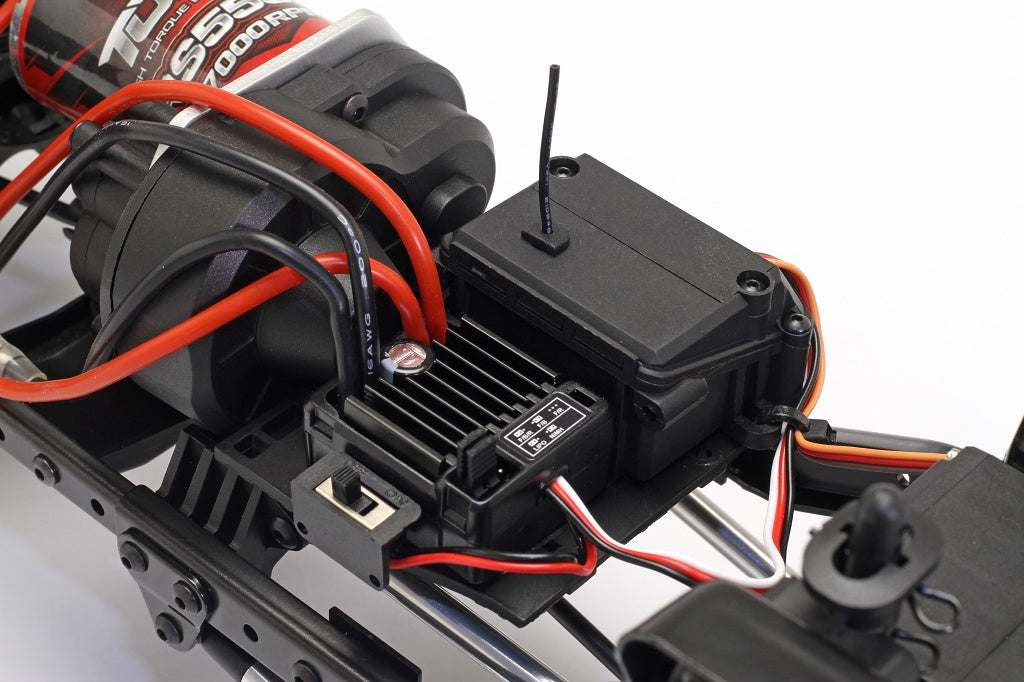

ESC-60A WP-1060-Brushed (Powered by HobbyWing):
- Water-proof and dust-proof for all weather
- Built-In Capacitor Module
- Automatic throttle range calibration
- Low voltage cut-off protection for Li-Po (lithium polymer) and NiMH battery
- Over-Heat protection and throttle signal loss protection
- Easily programmed with jumpers

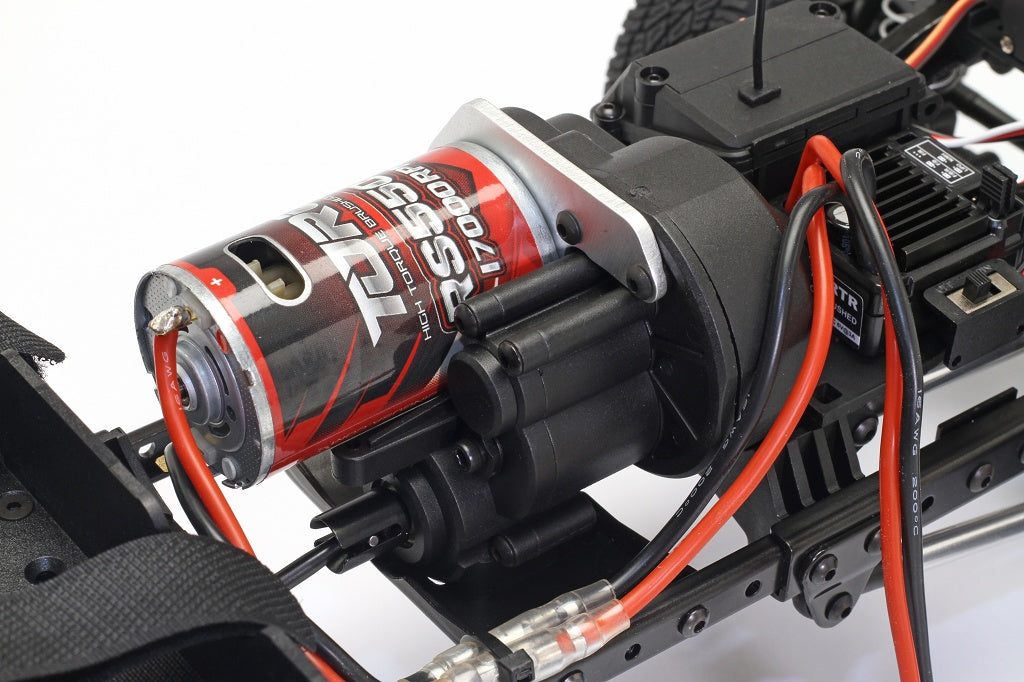

Motor-RS-550 high Torque Motor - Power By Mabuchi Motor

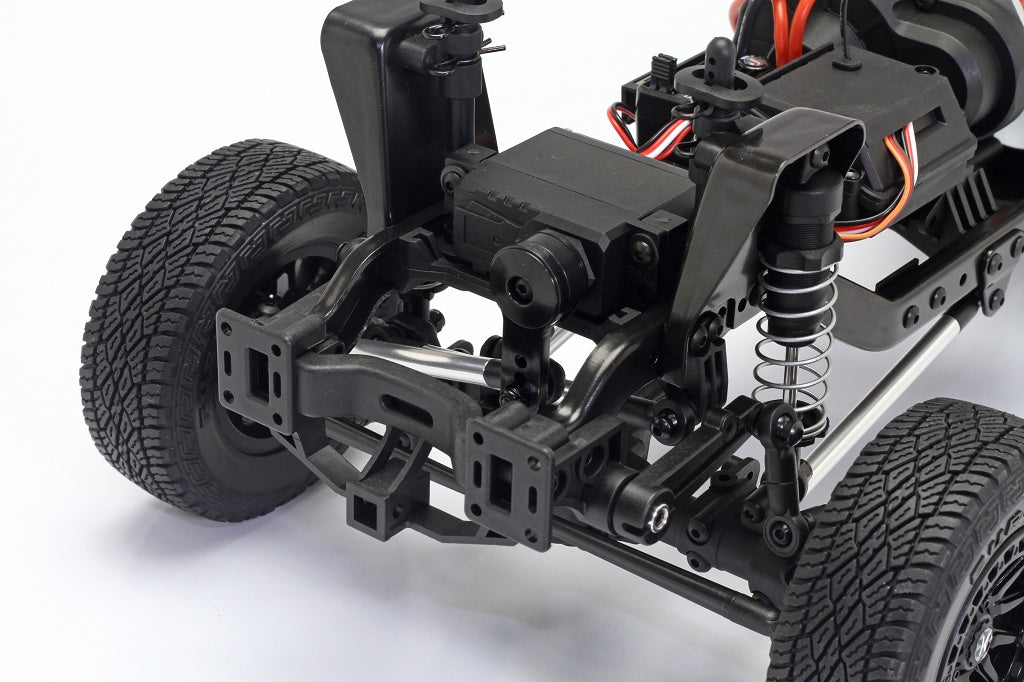

Servo -12Kg Servo O.E.M. by Savox:
- 4.8V 0.26 sec/60deg 10.0 kg-cm
- 6.0V 0.23 sec/60deg 12.0 kg-cm
- 25T Horn Gear Spline
Radio System:

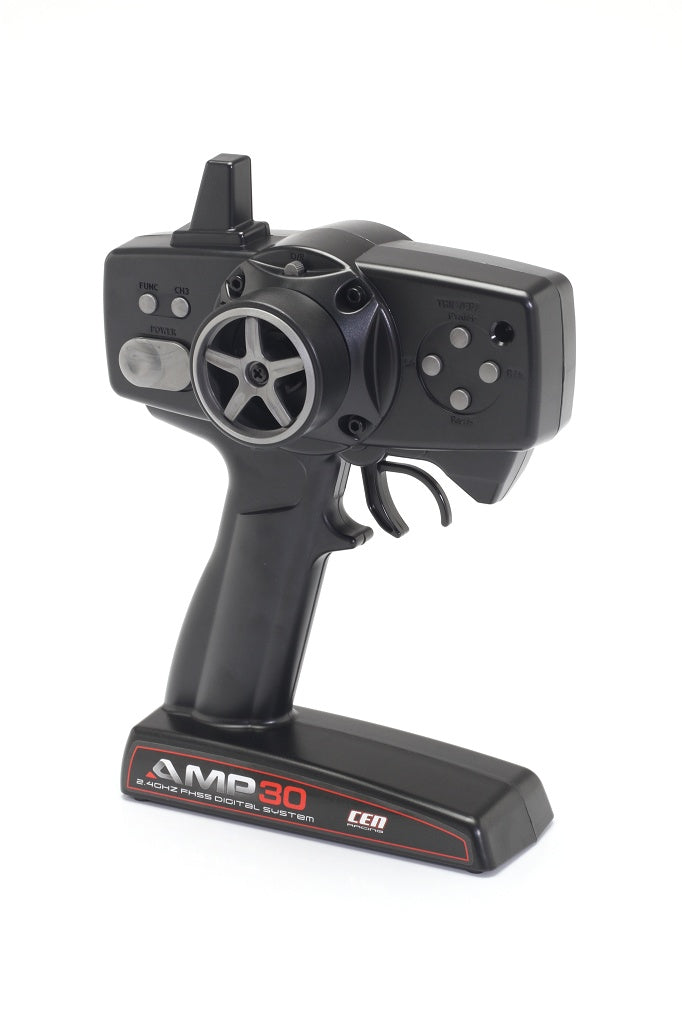

- Pistol-Grip AMP 30 3 Channel Transmitter
- Digital Trimming
- Steering Dual-Rate (ST D/R) Adjustment
- End Point Adjustment (EPA)
- Built in Failsafe

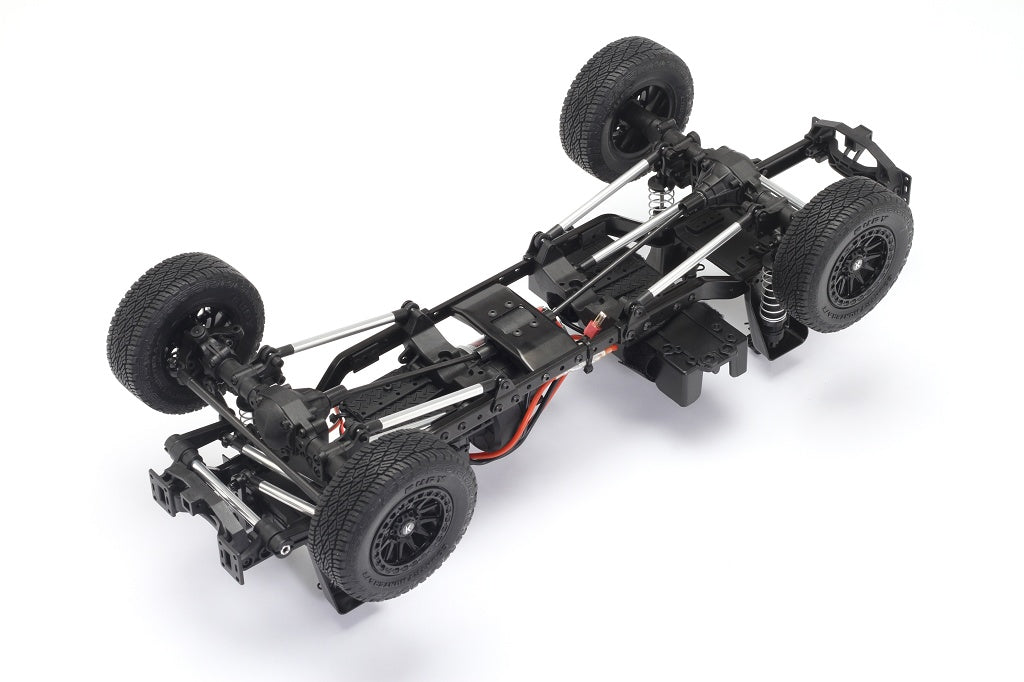

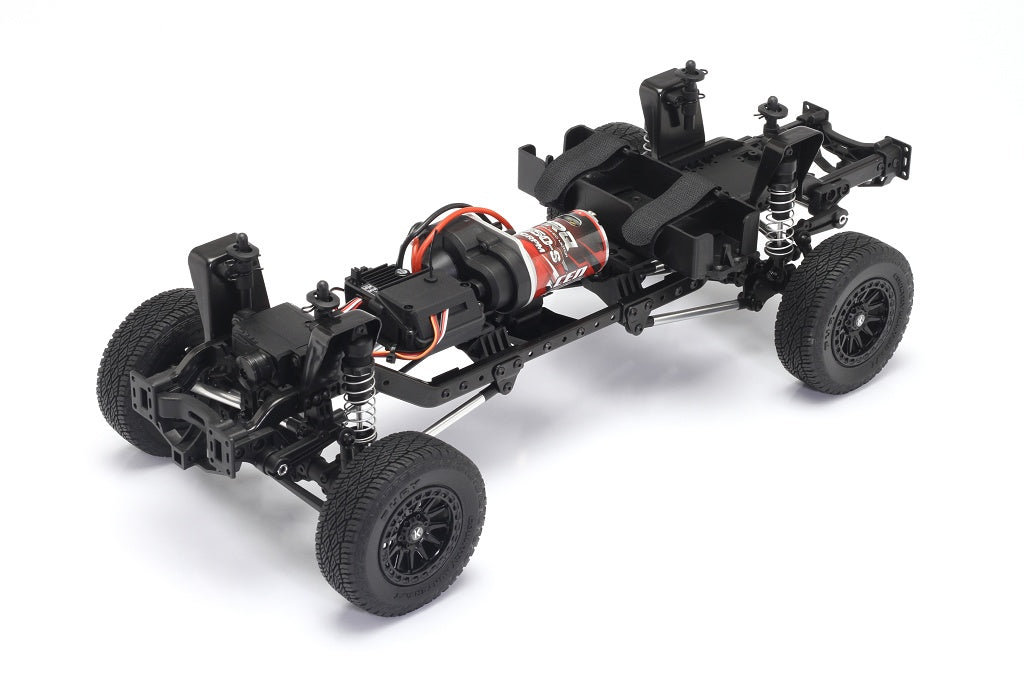

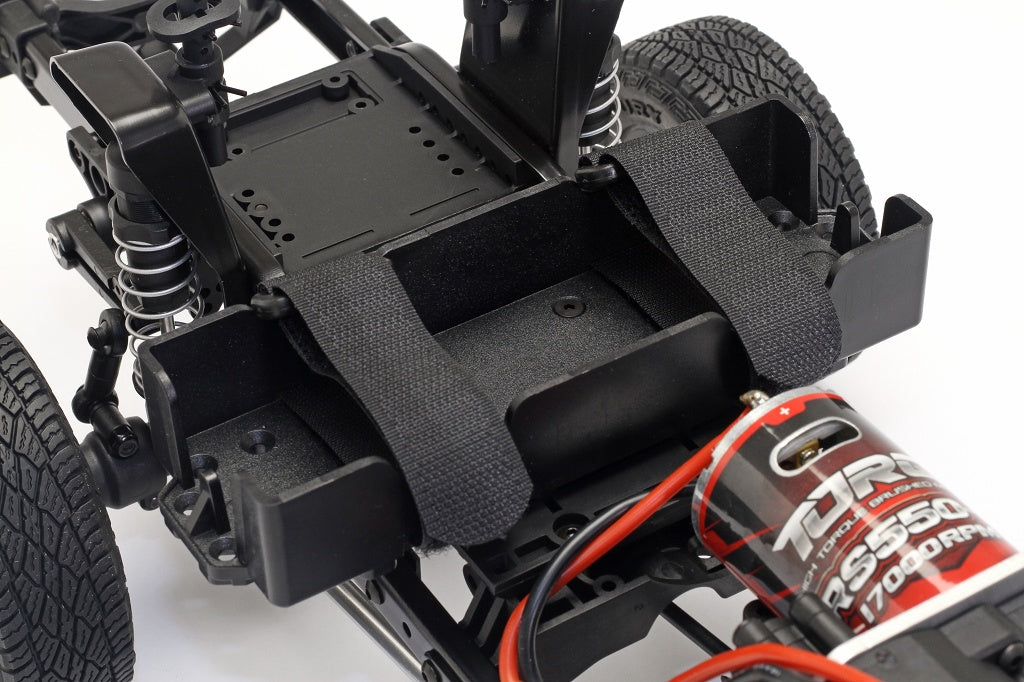

Chassis:
- Steel Frame
- CMS (Chassis Mounted Servo) Chassis Design
- Stamped Steel Shock Hoops
- Steel Skid Plate.
- Full Precision Ball Bearing Support
- Adjustable Turnbuckles
- Steel skid Plate

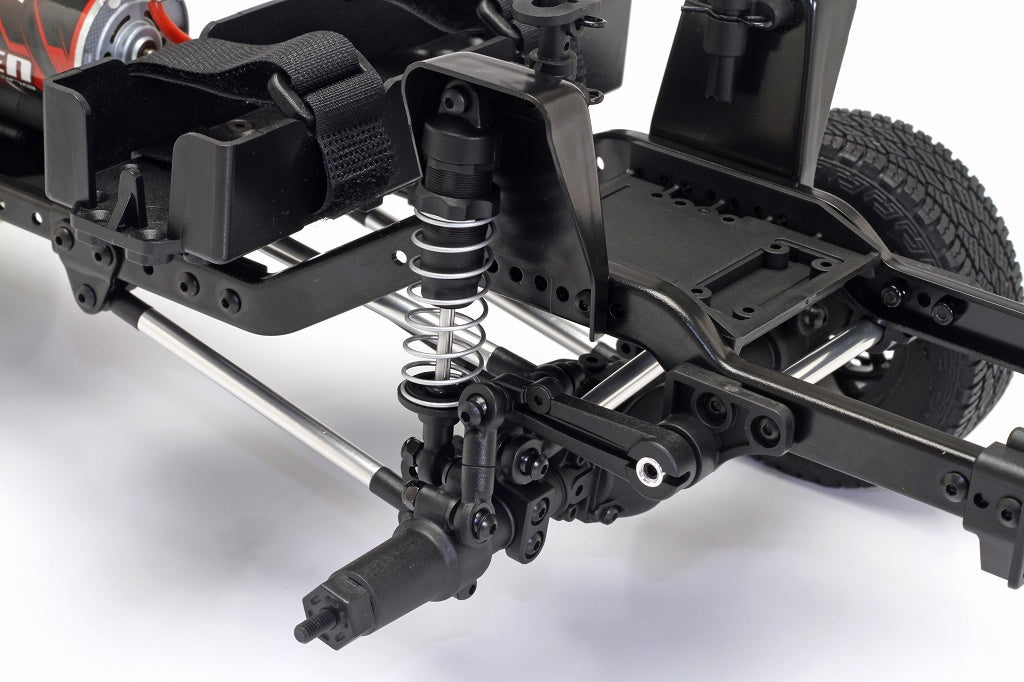

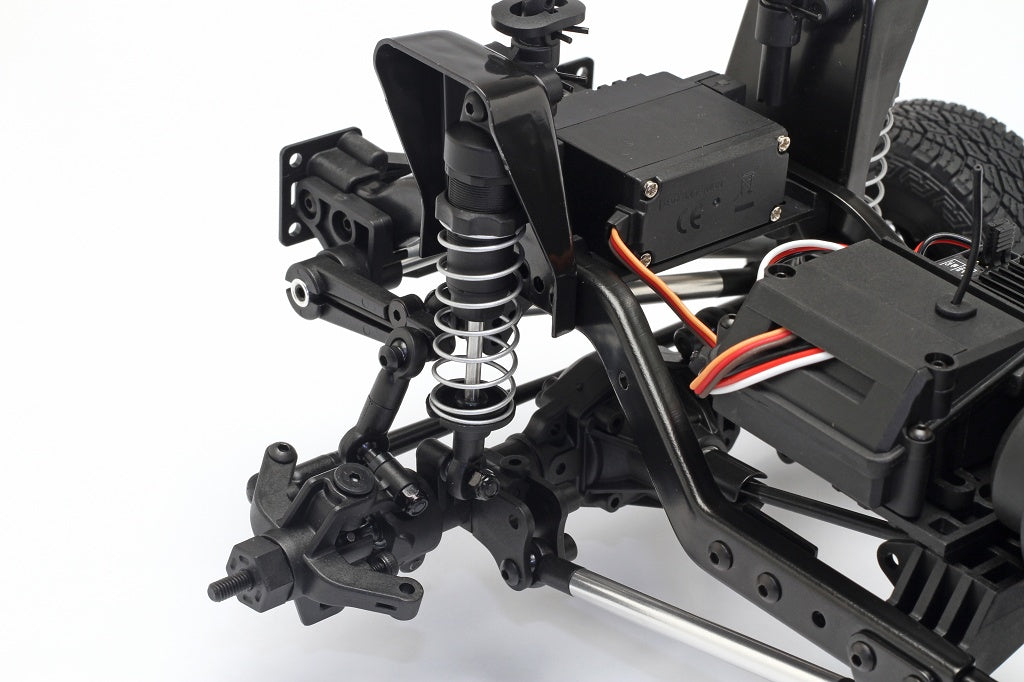

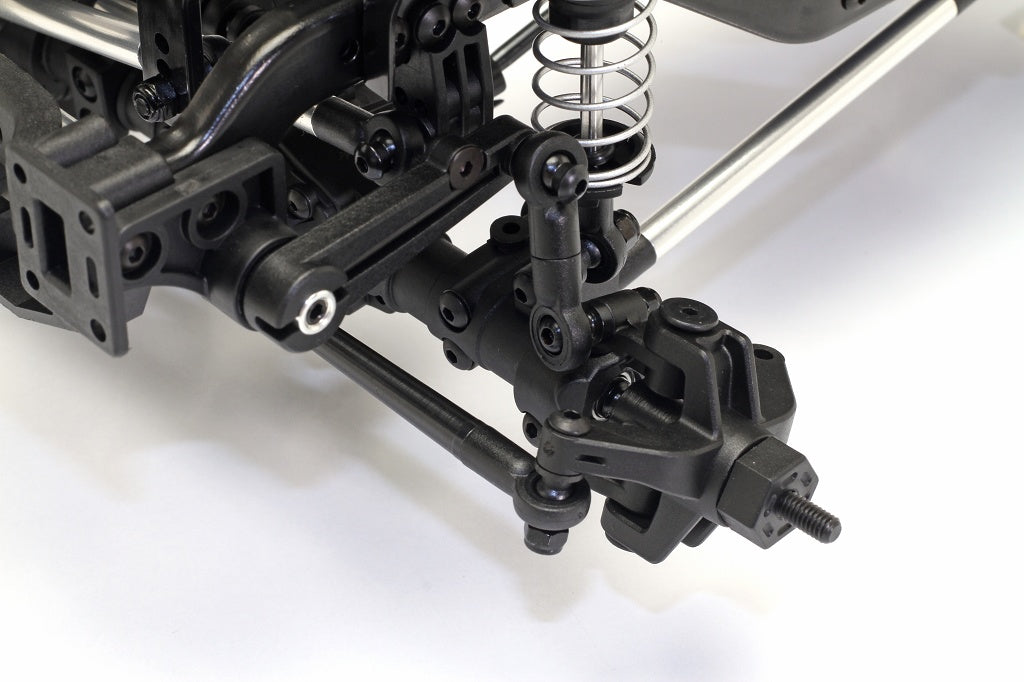

Suspension:

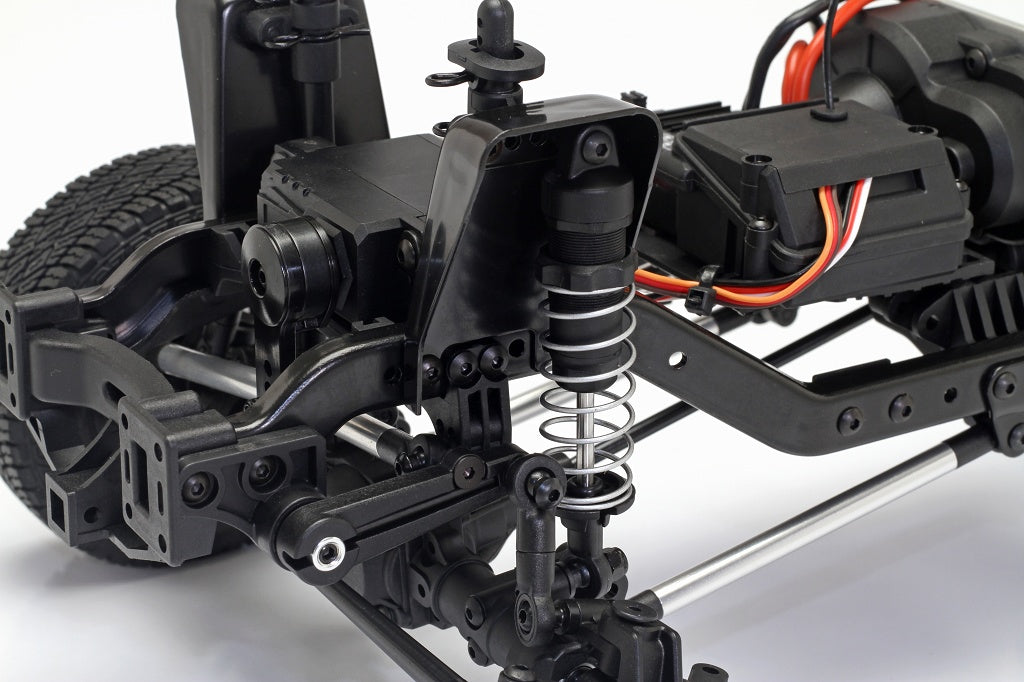

- 78mm Big Bore Oil Filled Adjustable Coil Over Shocks.
- 12mm over size shock body with 3mm Hardened Steel Polished Shaft.
- Harden Steel Steering Drag Link.
- CNC Machined 6mm Aluminum Linkage.
- Front / Rear Sway Bar.

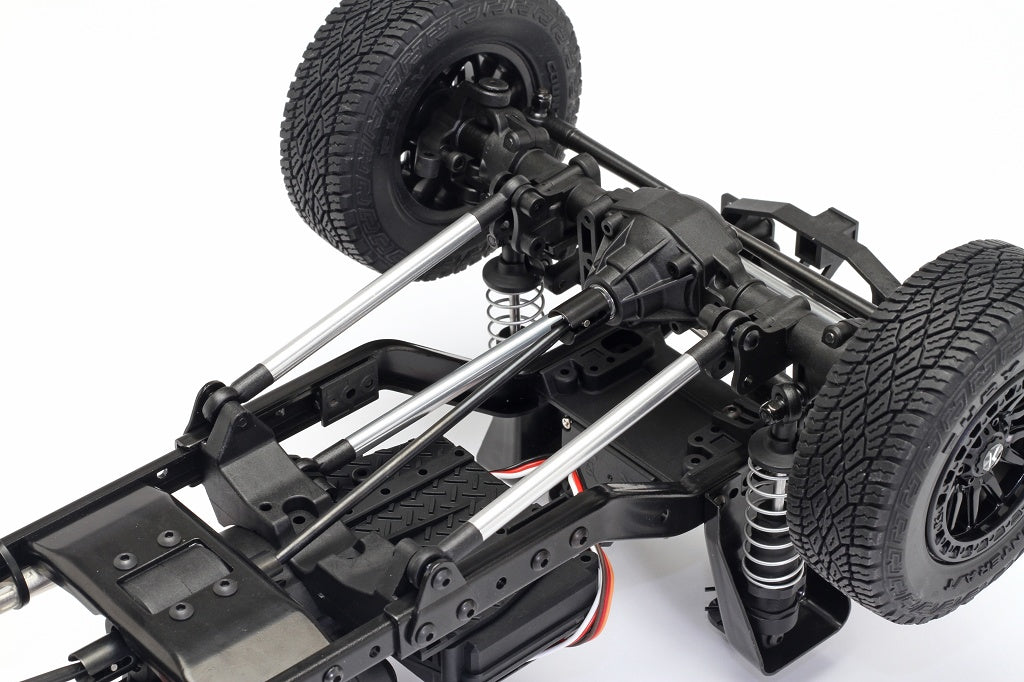

Drivetrain:
- Sway bar included
- 4 Wheel Drive
- Center Shaft Drive Train for more power transferred to the wheels
- Highly Efficient Transmission System
- Wide Range Easy Changeable Gear Box Design
- Sealed transmission eliminates dirt and dust
- Sealed Axle housing
- Sealed Transmission Case
- 5mm Hardened Steel Axle shaft
- Differential Center Locker Front/Rear Planetary Gear Type
- Metal Transmission Gears
- Planetary Gear type Differential
Specs:
Length: 21.65 inch (550mm)
Width: 9.1 inch (230mm)
Wheelbase: 12.95 inch (329mm)
Ground Clearance: 2.2 inch (55mm)
Weight: 4.7 lb. 2.15kg
Gear Ratio:
- Hi / Speed Ratio 1.56:1
- Hi / Torque Ratio 2.8:1
- Spur / Pinion Gear 32p85/32p10T
- Ring & Pinion Gear30/15T 2:1

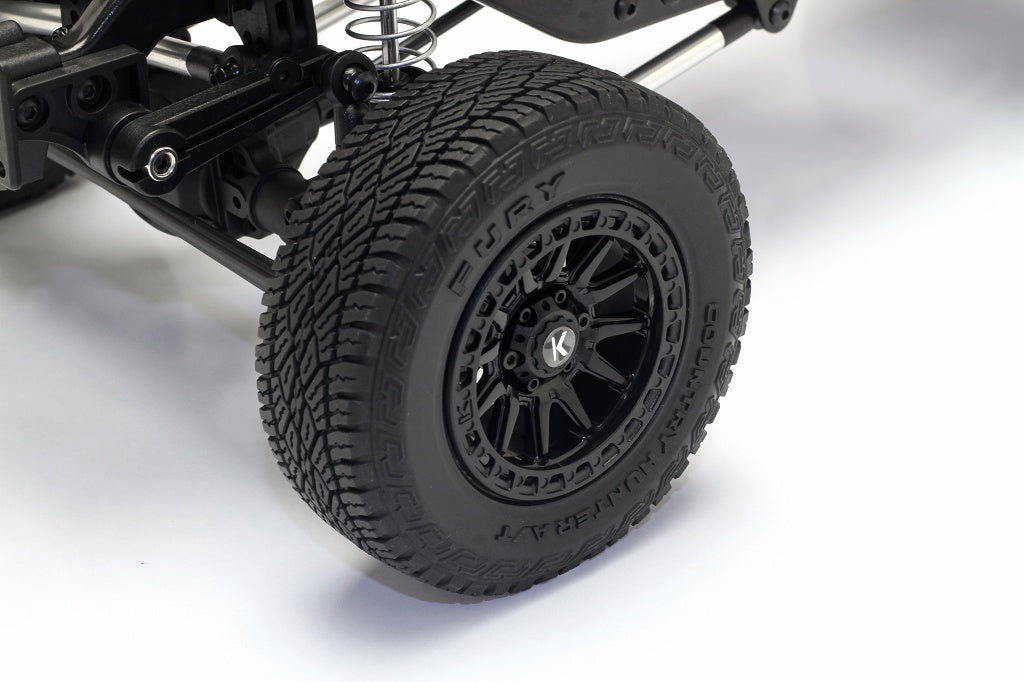

Tires:
Official Licensed Fury Tires
- Country Hunter R/T Tire
- 46mm x 91mm x 31mm

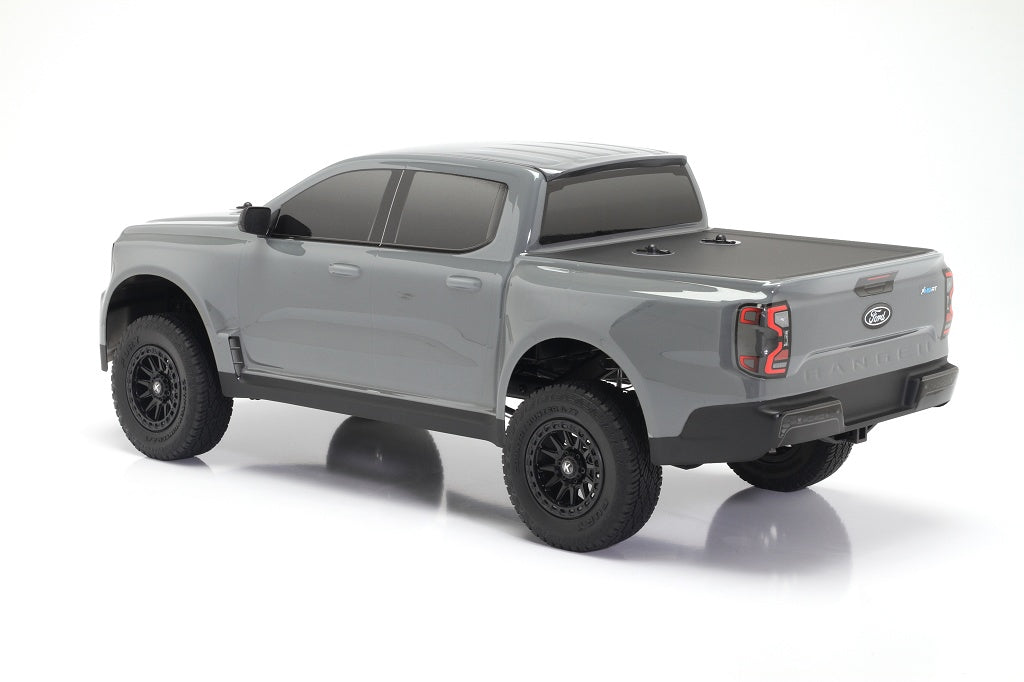

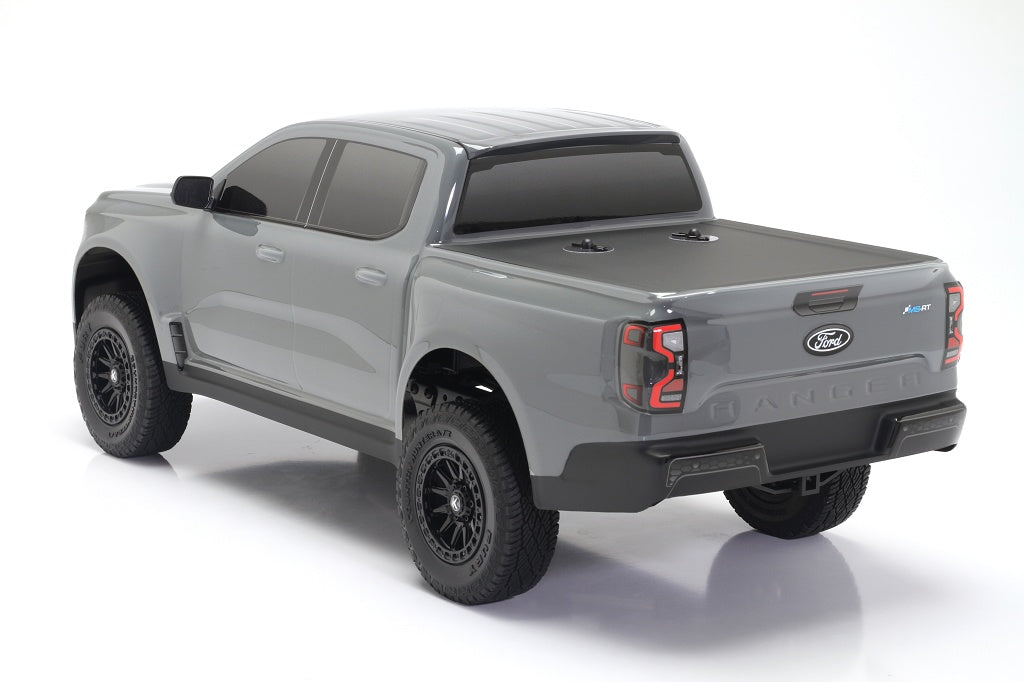

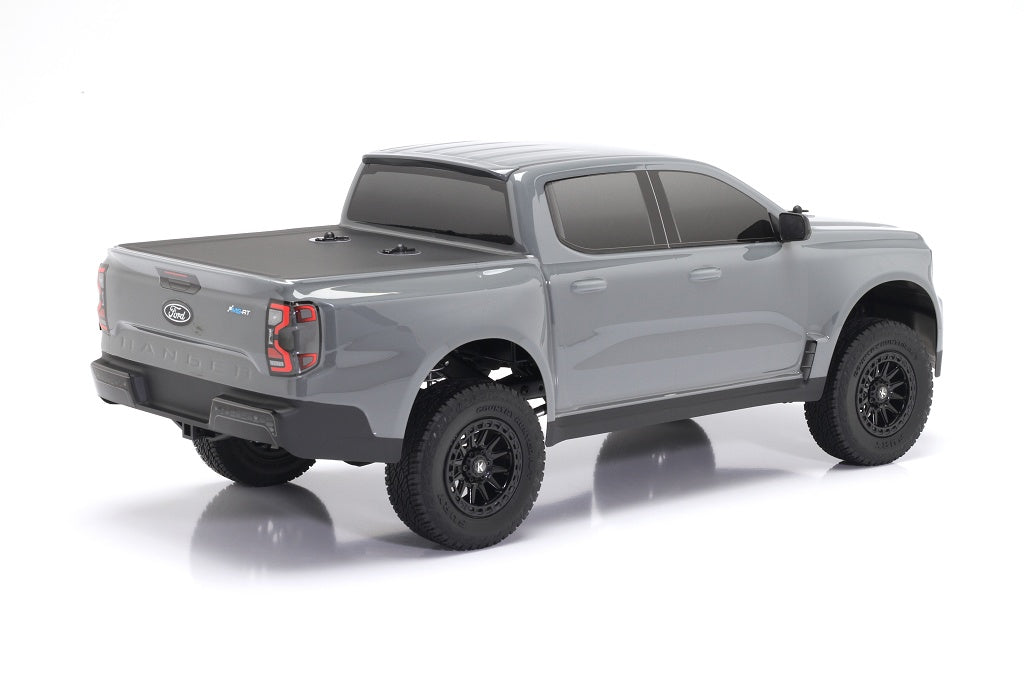

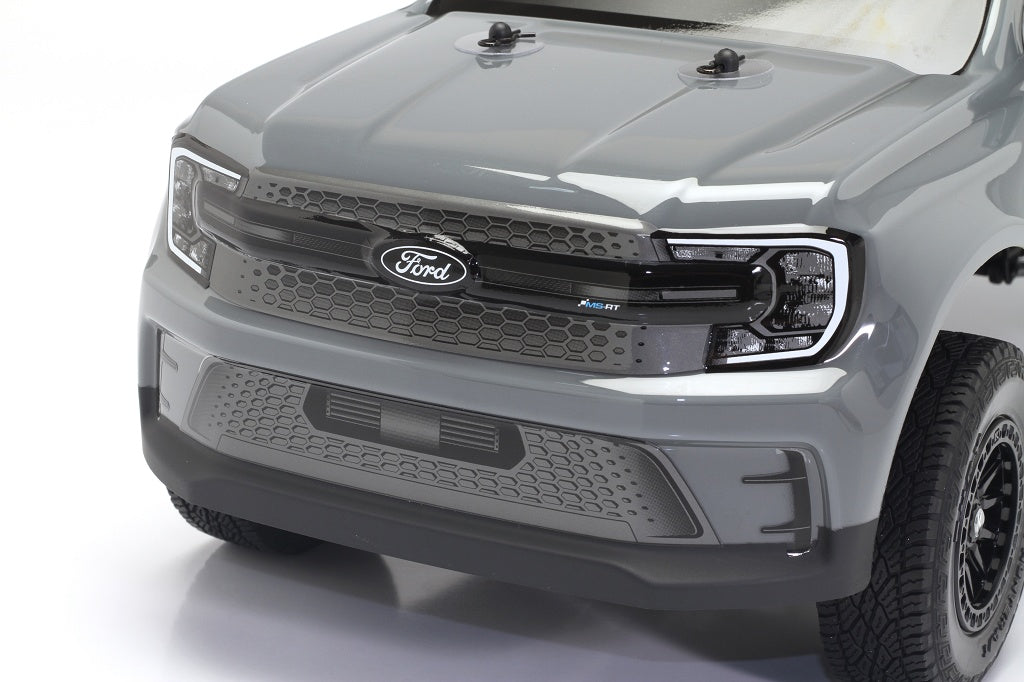

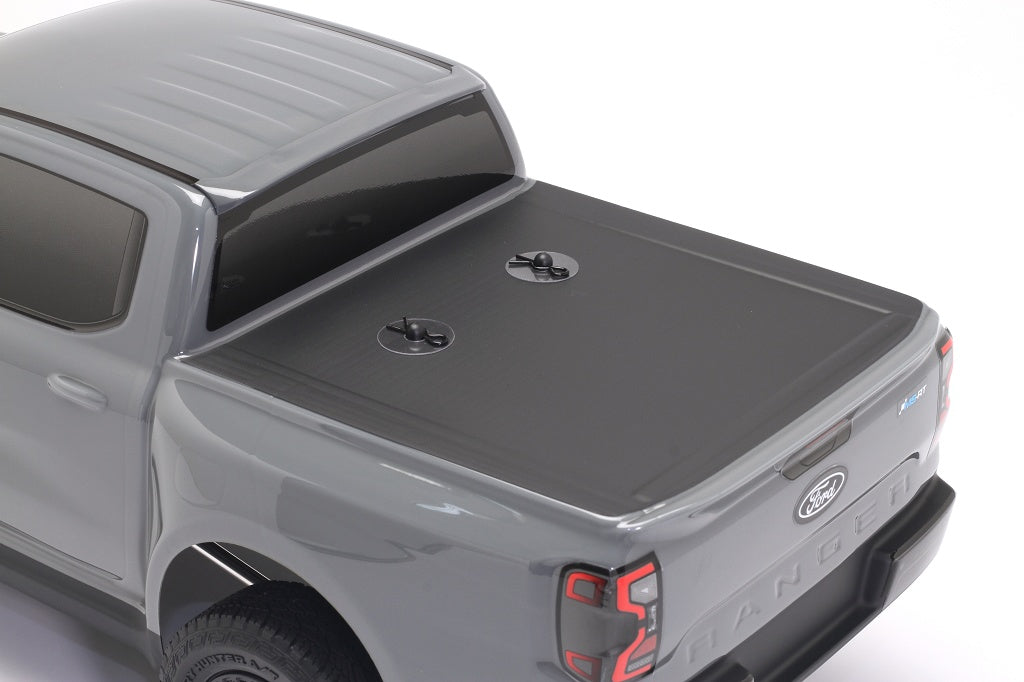

Body:
Official Licensed by Ford Motor
- Ford Ranger MS-RT
- Scale Body Details

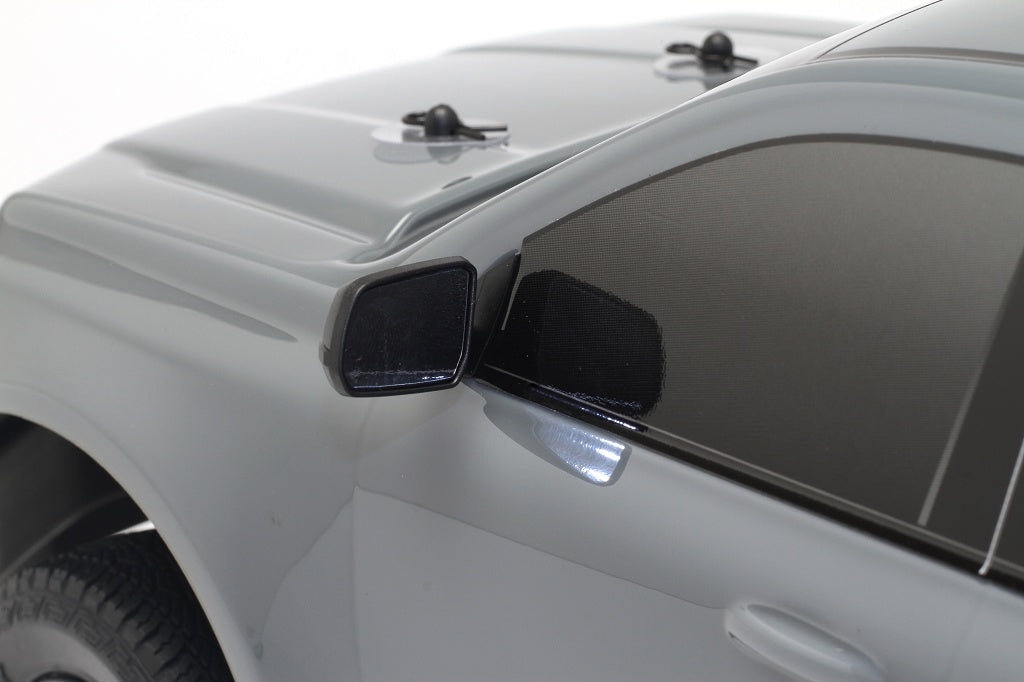

- Injection Molding Mirror and Roof Spoiler
Battery:
Battery and Charger not included
