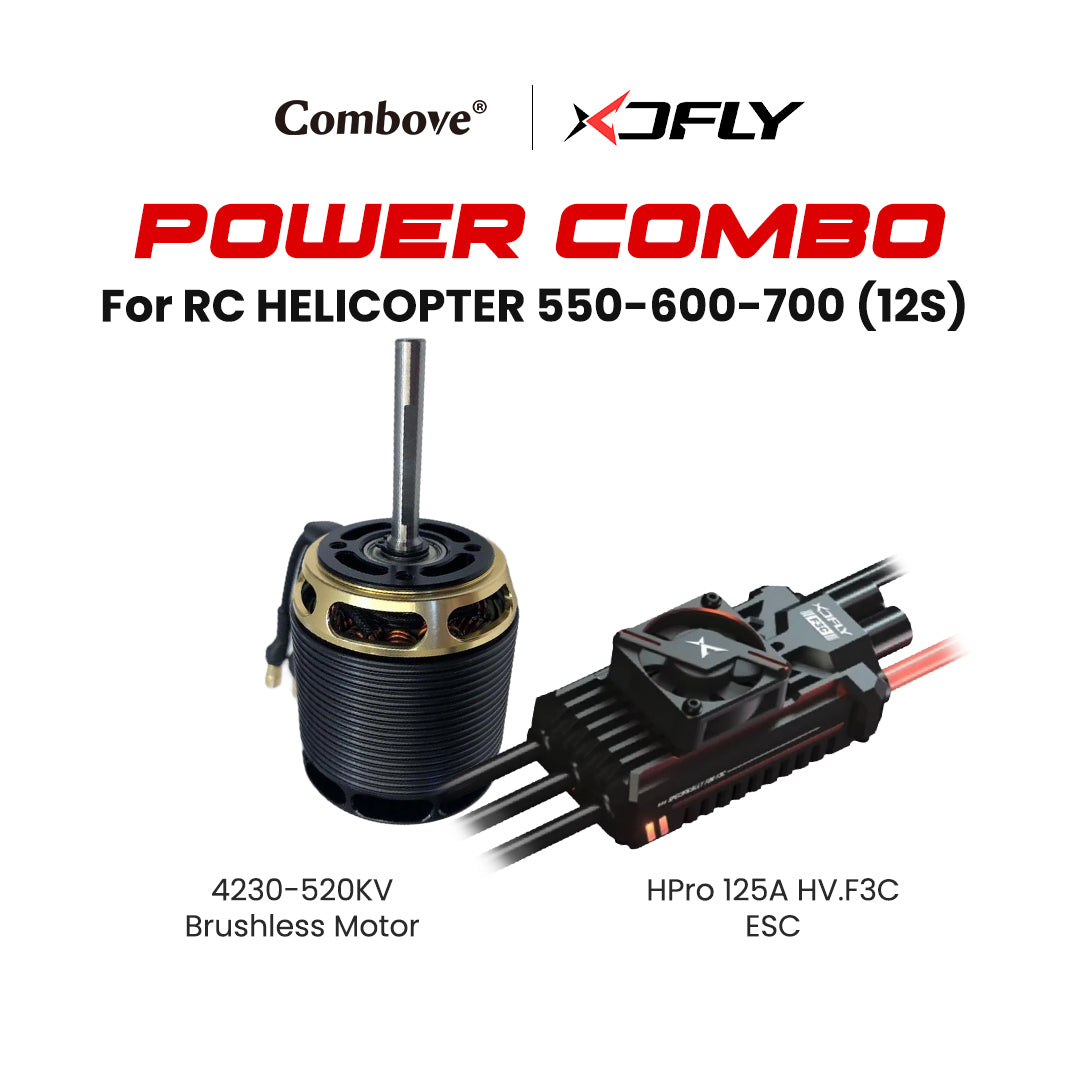

Combo XDFly HPro 125A HV ESC & Combove 4230-520KV Brushless Motor For RC Helicopter 550-600 (12S)

1. XDFly HPro 125A HV 6-14S SBEC ESC (F3C Edition):
* Product Specification:
- Model: HPro 125A HV SBEC
- Continuous/Peak Current: 125A/170A
- Input voltage: 6-14S Lipo Battery
- BEC Output: 6-12V adjustable;
- Current cont. 10A, Peak 30A
- Size: 90x43x25mm
- Weight: 166g
- Programming Way: XDFly Android&iOS APP /VBCT/E/RF2/Jeti
- Telemetry: Mikado VBCT/E/RF2/Futaba SBUS2 /Jeti/MSH Brain/iKon
- Applications: F3C module & 600-700 class electric helicoptersor fixed-wing aircraft

2. Combove Type II 4230-520KV Brushless Motor:
*** Specifications:
Stator Diameter: 42 mm
Stator Thickness:    30 mm
No. of Stator Arms:    12
No. of Stator Poles:    10
Motor Wind:    5T+5T Delta
Motor Wire: 1-Strand 1.2 mm
Motor Kv: 520KV RPM/Volt
No-Load Current (IO/10v):    0.95 Amps
Motor Resistance (RM):    0.0185 Ohms
Max Continuous Current: 100 Amp
Max Continuous Power: 4400 Watts
Weight: 430 Grams
Outside Diameter: 52.5 mm
Shaft Diameter: 6 mm
Body Length:     59.5 mm
Overall Shaft Length: 95 mm
Max Lipo Cell: 12s
Peak Continuous Current: 138A (3 seconds)
Peak Continuous Power: 5750 Watts (3 seconds)
Motor Timing: 5deg
Drive Frequency:     8kHz to 32kHz
