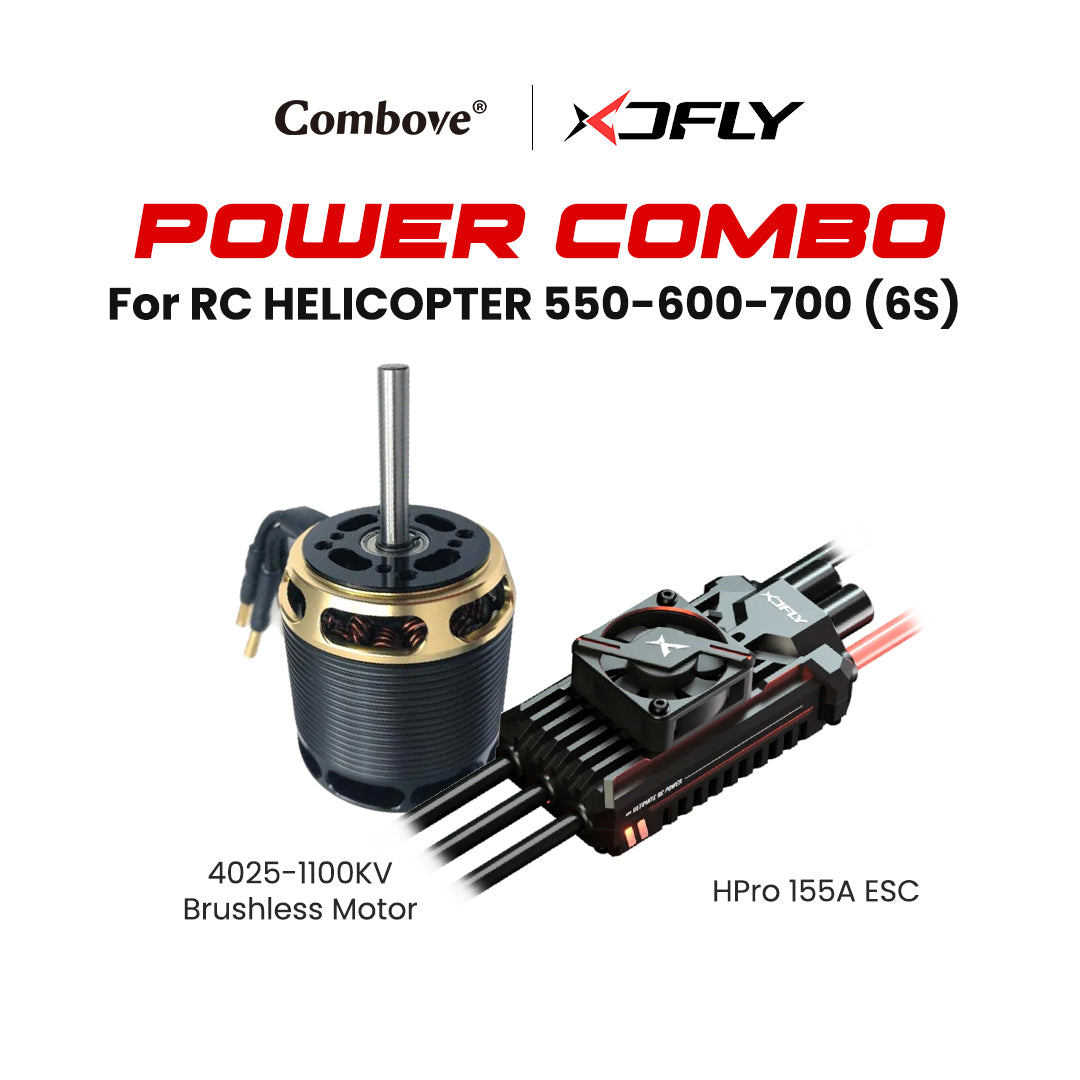

Combo XDFly HPro 155A ESC & Combove 4025-1100KV Brushless Motor For RC Helicopter 550-600 (6S)

1. XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class:
*** Description:
We(XDFly) have released HPRO 155A ESC 3-8S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 550-580 Helicopter.
*** Key Features:
- Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
- Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
- Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
- The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
- The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.
- With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
- Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
- The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
- With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
- Equipped with colorful LED lights including five optional colors for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.
- Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.
*** Specification:
- Model: HPRO 155A 3-8S SBEC
- Continuous Current(A): 155A
- Burst Current(A): 260A
- Input Voltage: 3-8S Lipo
- BEC Output: 6-12V Adjustable; Current Cont.10A, Peak 35A
- Size: 90x43x25mm
- Weight: 178g
- Power Wire: 10 Gauge 145mm Red/Black
- Motor Wire: 10 Gauge 150mm Black
- Programming Way: XDFly Android&iOS APP/VBCT/E/RF2/Jeti
- Telemetry: VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
- Applications: 550-580 Class electric helicopters or fixed-wing aircrafts

2. Combove Type IV 4025-1100KV 36mm Shaft 6mm Brushless Motor:
*** Specifications:
Stator Diameter:    40 mm
Stator Thickness:    25 mm
No. of Stator Arms:    12
Magnet Poles:    10
Motor Wind:    4+3 Turn Delta
Motor Wire:    2-Strand 1.0 mm
Motor Kv:    1100KV RPM/Volt
No-Load Current (IO/10v):    4.19 Amps
Motor Resistance (RM):    0.006 Ohms
Max Continuous Current:    100 Amp
Max Continuous Power:    2400 Watt
Weight:    350 Grams
Outside Diameter:    50.8 mm
Shaft Diameter:    6 mm
Body Length:    54.5 mm
Overall Shaft Length:    90 mm
Max Lipo Cell:    6s
Peak Continuous Current:    130 Amps (5 seconds)
Peak Continuous Power:    2920 Watts (5 seconds)
Motor Timing:    5deg
Drive Frequency:    8kHz~32khz
