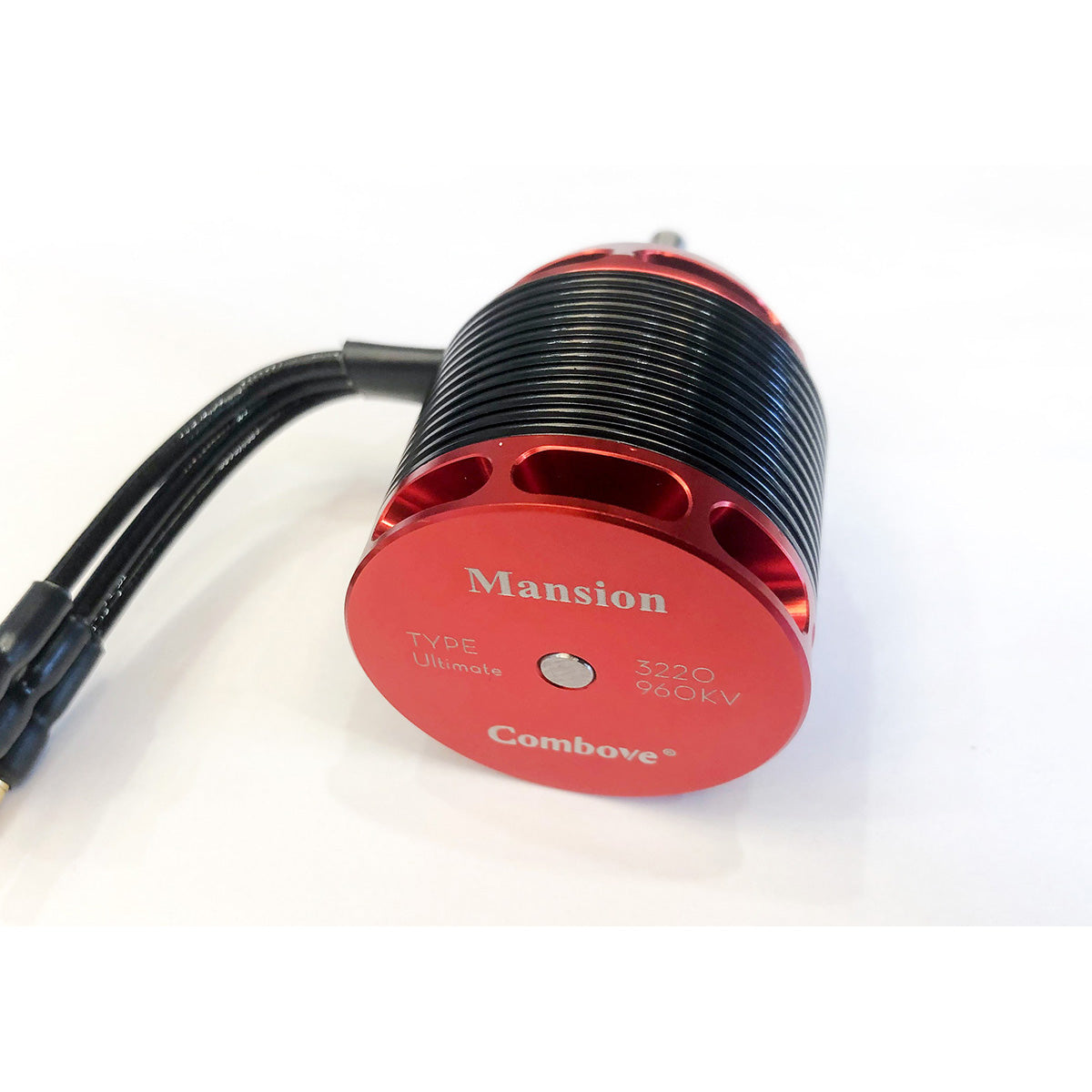

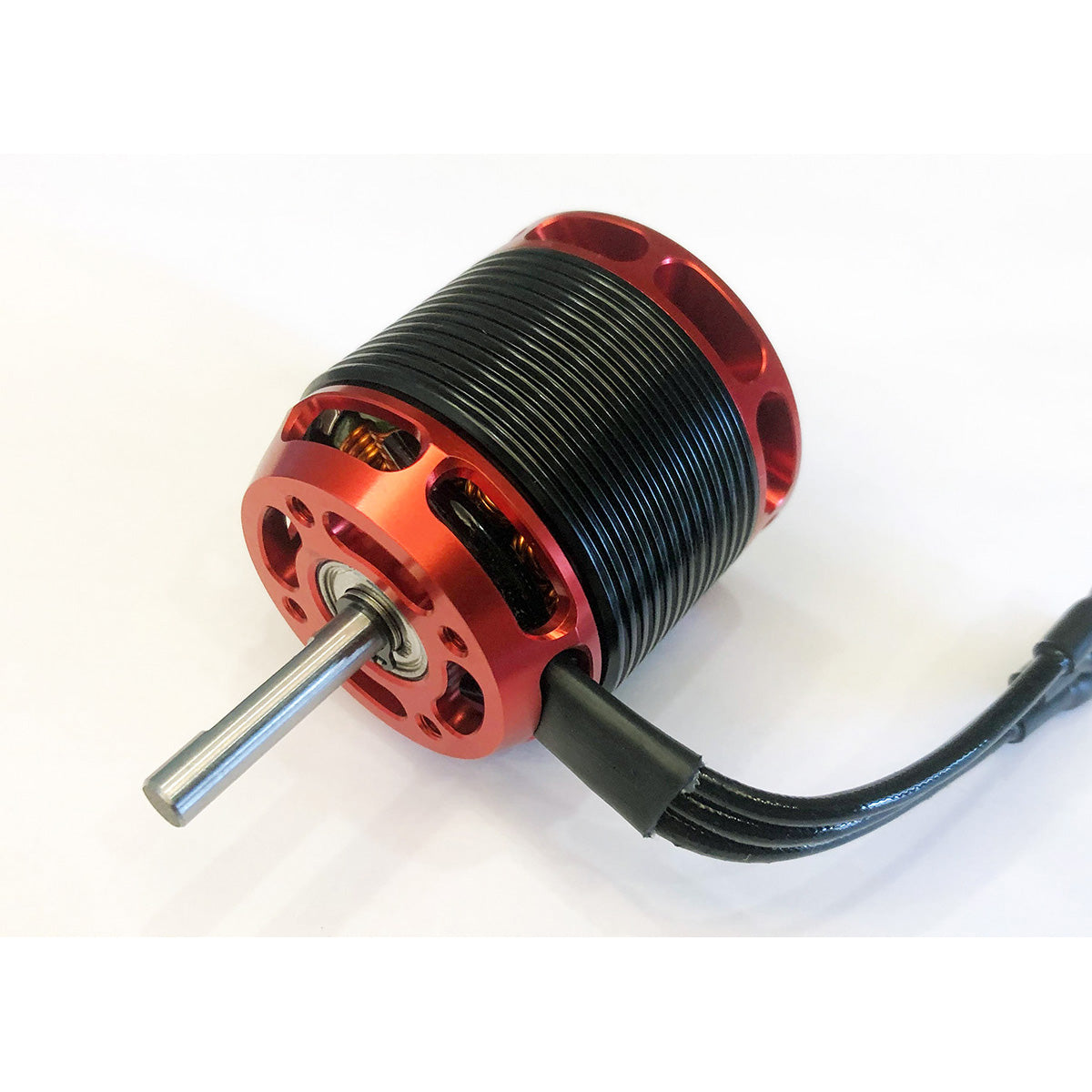

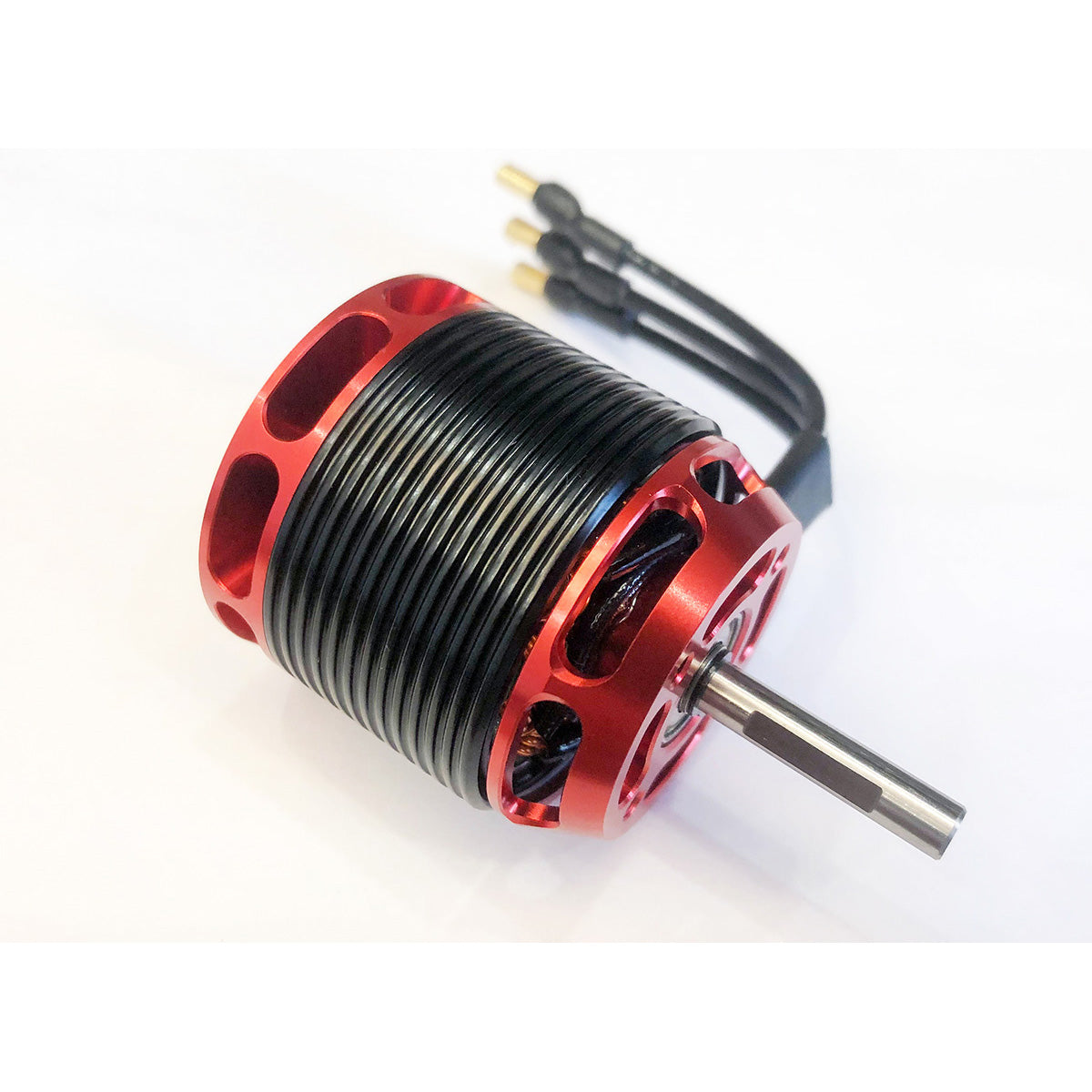

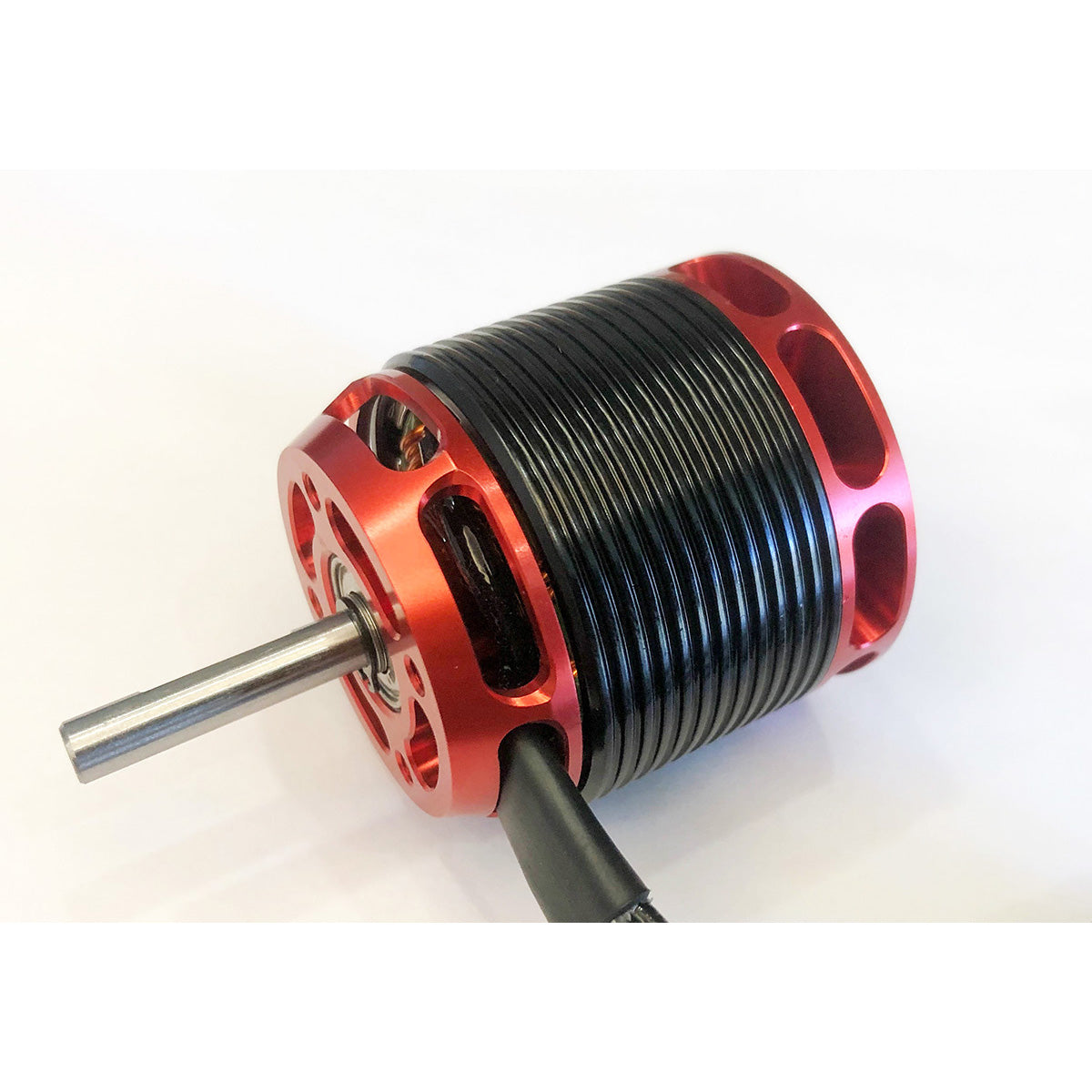

Combove Type 3220-960KV Brushless Motor

Specifications:

• Motor shaft diameter: 5mm
• Motor shaft length: 21mm
• Stator Diameter: 32mm
• Stator Thickness: 20mm
• No. of Stator Arms: 8mm
• Number of slots/poles: 10N/10P
• Motor Wind5+3 Turn Delta
• Motor wire diameter: 0.86mm
• Motor Kv: 960KV RPM/Volt
• No-Load Current: (10/10v) Amps
• Max Continuous Current: 85 Amp
• Max Continuous Power: 1750 Watt
• Weight: 172 Grams
• Outside Diameter: 40.8 mm
• Shaft Diameter: 5 mm
• Body Length: 54.5 mm
• Overall Shaft Length: 90 mm
• Max Lipo Cell: 6s
• Peak Continuous Current: 105 Amps (5seconds)
• Peak Continuous Power: 2260 Watts (5 seconds)
• Motor Timing: 5deg~12deg
• Drive Frequency: 8kHz~32khz
