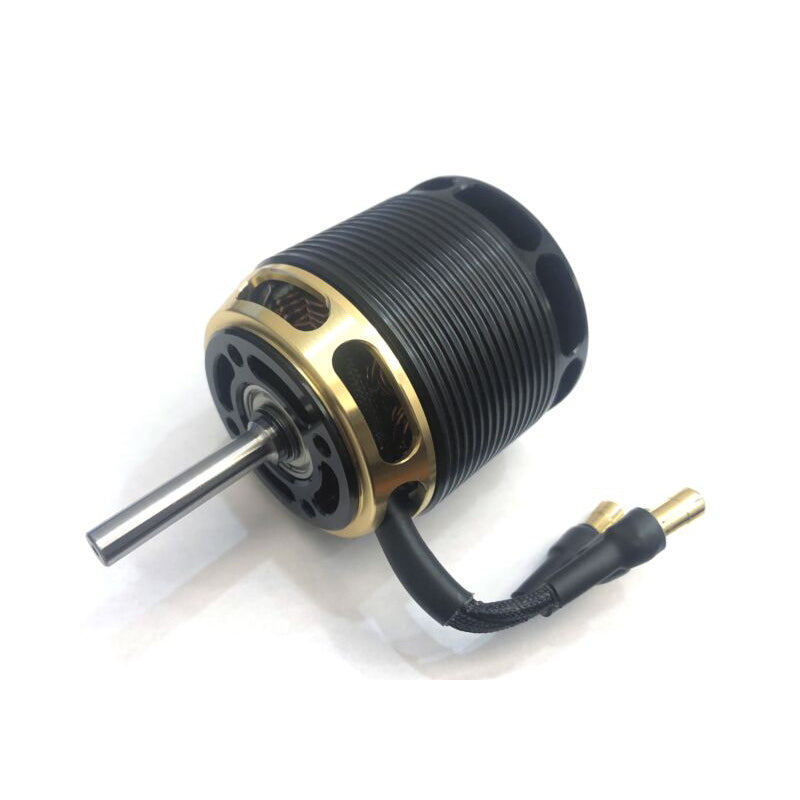

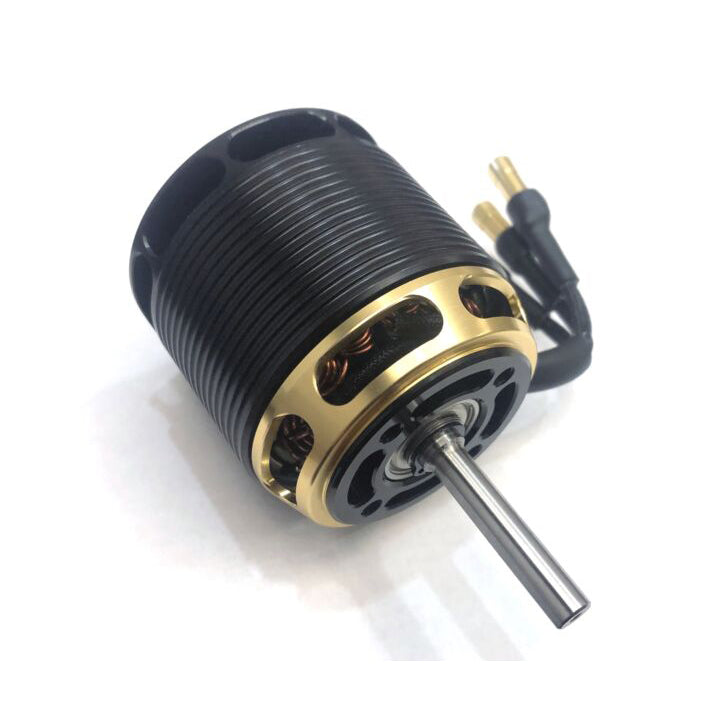

Combove Type III 4225-550KV Brushless Motor
Combove Type III 4225-550KV Brushless Motor

Combove Type III 4225-550KV Brushless Motor

Vendor: Combove
|
SKU: CB-4225-550KV
Availability: Back-Order
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Price Match Guarantee
$220.00
$220.00
The order quantity exceeds the stock!
Combove Type III 4225-550KV Brushless Motor

Combove Type III 4225-550KV Brushless Motor

$220.00
Combove Type III 4225-550KV Brushless Motor
Combove Type III 4225-550KV Brushless Motor

Combove Type III 4225-550KV Brushless Motor

$220.00

Related Products

Description

Specifications

Stator Diameter 42 mm
Stator Thickness 25 mm
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind 6T+5T Delta
Motor Wire 1-Strand 1.2 mm
Motor Kv 550KV RPM/Volt
No-Load Current (Io/10V) 0.89 Amps
Motor Resistance (RM) 0.018 Ohms
Max Continuous Current 90 Amps
Max Continuous Power 3750 Watts
Weight 370 Grams
Outside Diameter 52.5 mm
Shaft Diameter 6 mm
Body Length 54.5 mm
Overall Shaft Length 95 mm
Max Lipo Cell 12s
Max Peak Current 130A (3 seconds)
Max Peak Power 5700 Watts (3 seconds)
Motor Timing 5deg to 15 deg
Drive Frequency 8kHz to 32kHz
Read More
Additional Information
Vendor: Combove
SKU: CB-4225-550KV
Barcode: CB-4225-550KV
Availability: Out Of Stock
Product Type: Heli Motors
Weight: 2.1 lb
