Combove Type III 4730-520KV 1.6MM P2 36mm Shaft 6mm Brushless Motor

Vendor: Combove
|
SKU: CB1.6-4730-520KV-36
Availability: Back-Order
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Price Match Guarantee
$221.00
$260.00
$221.00
The order quantity exceeds the stock!
Combove Type III 4730-520KV 1.6MM P2 36mm Shaft 6mm Brushless Motor

Combove Type III 4730-520KV 1.6MM P2 36mm Shaft 6mm Brushless Motor

$260.00 $221.00

Combove Type III 4730-520KV 1.6MM P2 36mm Shaft 6mm Brushless Motor

$260.00 $221.00

Related Products

Specifications


Stator Diameter 47 mm
Stator Thickness 30 mm
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 5+5Turn Delta
Motor Wire 1-Strand 1.6 mm
Motor Kv 540 KV RPM / Volt
No-Load Current (Io/10V) 2.15 Amps
Motor Resistance (Rm) 0.015 Ohms
Max Continuous Current 135 Amps
Max Continuous Power 5750 Watts
Weight 580 Grams
Outside Diameter 58.8 mm
Shaft Diameter 6 mm
Body Length 62.5 mm
Overall Shaft Length 112.5 mm
Max Lipo Cell 12s
Max Peak Current 250 A (2 seconds)
Max Peak Power 12800 Watts (2 seconds)
Motor Timing 5deg-8deg
Drive Frequency 8kHz-32khz
Vendor: Combove
SKU: CB1.6-4730-520KV-36
Barcode: CB1.6-4730-520KV-36
Availability: Out Of Stock
Product Type: Electronics
Weight: 2.5 lb

You may also like

Recently Viewed Products

  • 5 stars: 2 (67%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 1 (33%)
  • 1 star: 0 (0%)
D
Dboozerjr
Combove 4730-520kv

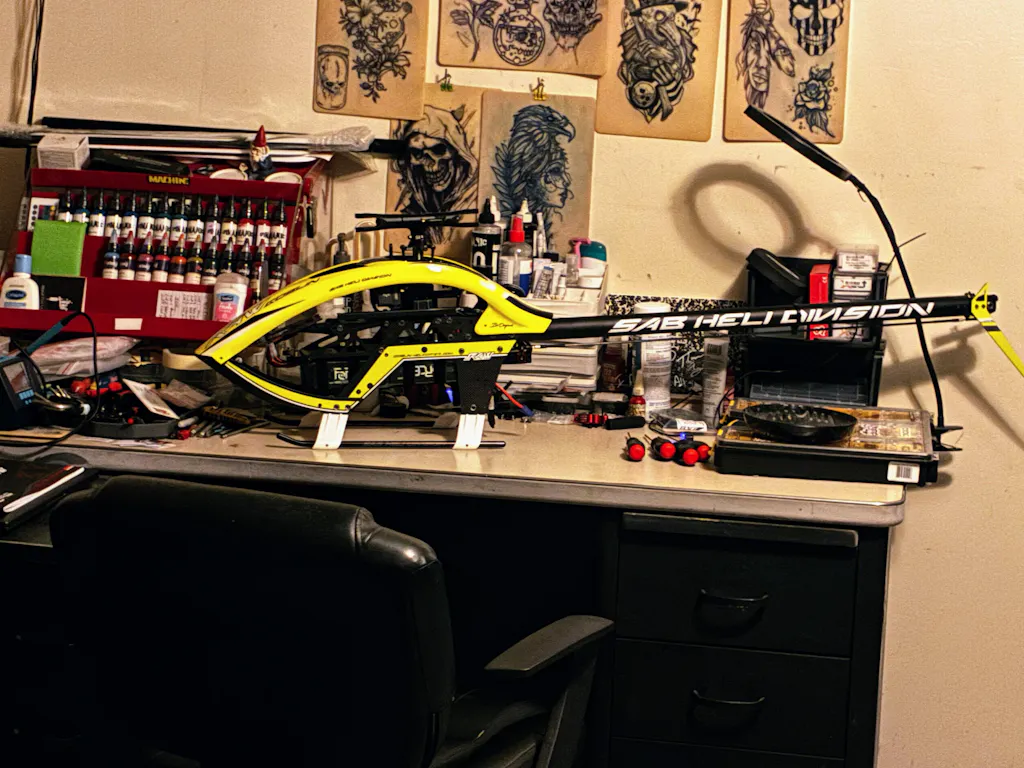

Haven’t had a chance to maiden this motor yet. I installed in a newly built raw 700. Quality is very nice and seems like will be a strong motor. Only spooled up for test purposes. Running on a sequre 14200 pro esc also purchased from Heli direct and am very happy with decision so far. Running on a frsky rf007 tandem flight controller with a tandem x20s radiio and couldn’t be happier with everything. The Heli hobby has sure come a long, long way. Looking forward to some better weather to get this Heli in the air. As always Heli direct rocks and have always had a good expierience with them.

m
maitaro600
1.6MM?

It arrived without any issues, but why is "1.5mm" stamped on the motor itself?

M
Michael P.
Looks & Feels Sturdy

This Combove motor looks & feels genuinely like great quality. With 520kv and power output up to 12,800 watts, it’s a torque monster and a powerhouse of a motor. This motor should be able to swing large blades of most sizes for any 700 class heli. I got it for my GooSky RS7 Legend to see how the motor performs. For the price, you will be hard pressed to find something with this kind of power and performance.
