Features:
With the great success of our 2nd Generation 50 Series motors in the field of drones, we decided to launch the 12N10P structure 50 Series motors to meet the needs of the market.
We have carried out a lot of lightweight designs for 12N10P structure 50 series motors, almost the lightest 50 series motor in the world. The standard version of 5025-530KV motor weighs only 565 grams (including 5.5mm gold plug).
The 50 series motor with 12N10P structure also has huge advantages in temperature rise, not only strong power, but also excellent in rotational inertia.
Dimensional drawing：
Specifications：
|
Stator Diameter |
50 mm |
|
Stator Thickness |
25 mm |
|
Motor Kv |
530KV RPM/Volt |
|
Weight |
565 Grams (including 5.5mm gold plug) |
|
Motor Body Dimensions |
61.8 mm x 60.5mm |
|
External Shaft Dimensions |
6mm/8mm |
|
Continuous Current |
130 Amps |
|
Continuous Power |
6020 Watts |
|
Peak Current |
275A (2 seconds) |
|
Peak Power |
12500 Watts (2 seconds) |
|
Max Lipo Cell |
12s-14s |
| Vendor: | Combove |
| SKU: | CB-5025-530KV-36 |
| Barcode: | CB-5025-530KV-36 |
| Availability: | In Stock |
| Product Type: | Electronics |
| Weight: | 2.5 lb |
You may also like
Recently Viewed Products
P
This replace a egodrift 4535 HT where I was super happy. after flight à friend goosky ultra with the 5025 and I loved I decided to give a try on a xlpower ultimate. overall decent power governor hold well but not better than my egodrift the motor get very hot I tweak timing, governor but is not there yet I start thinking to try to use 12t pinion but is more likely it get hotter so is possible I put the old Egodrift back and if I get an ultra rs7 use it
A
Very quiet, runs cool, and pulls less amps than the Scorpion HKII that was on my 700 before.
t

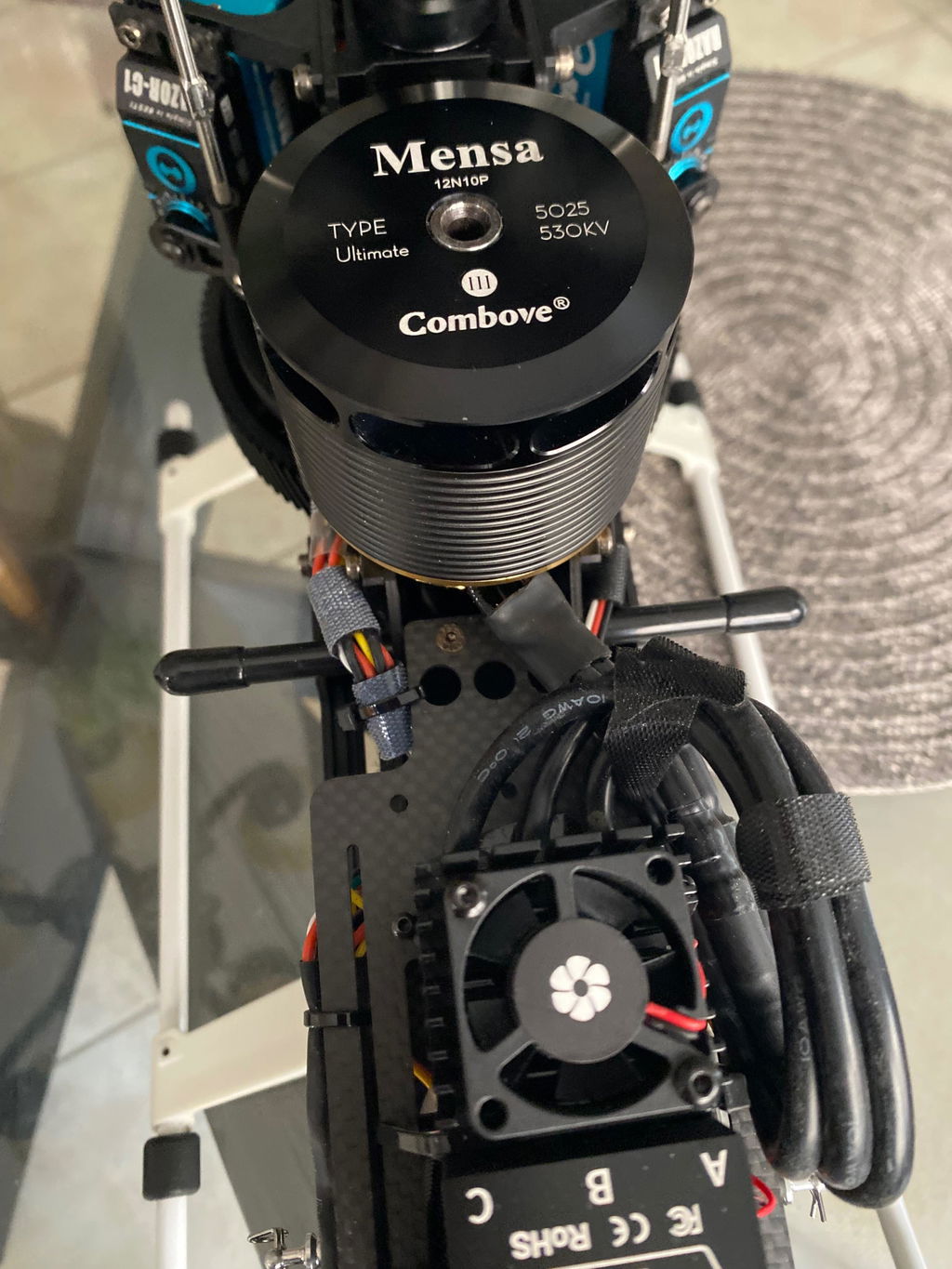

I replaced an old Eflite 700 motor on my Goosky RS7 Legend. This motor is a beast! It does come down hot at 2250 rpm (I’m dropping back to 2150) on a 100 degree day. I need to reduce the timing to help with this as well. You can’t beat the price for the power you get with this motor. Hobbywing 260 esc.
F
Top
S
Works as expected
