DASMIKRO FUTABA T-FHSS NANO 4CH RECEIVER

Description

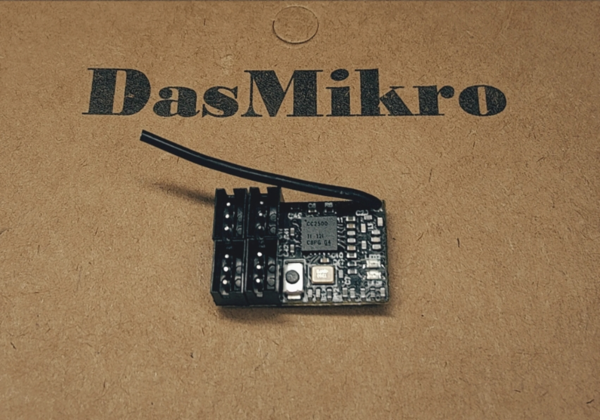

FUTABA T-FHSS NANO 4CH ANTENNA RECEIVER

Description:

This RC receiver unit is FUTABA T-FHSS compatible. It offers full 4-channel support in ultra-light weight and micro size.

Features:

1. Futaba 2.4GHz T-FHSS compatible

2. High performance CPU enhance precision control feeling

3. 4 channel support

4. Nano size (19mm x 12mm)

5. Added failsafe function

6. Operating Voltage 3.5V – 12V

7. Weight: 3g

Link Procedure:

Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with the ID code of the transmitter with which it is being paired. Once the link is made the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter.

1-Place the transmitter and the receiver close to each other within half (0.5) meter.

2-Place the transmitter into the linking mode and turn on the receiver

3-During countdown, push the receiver tact switch for approximately 2 seconds. The LED will begin to blink red. After the receiver LED switches from blinking red to green – red steady light, If the transmitter and receiver are linked normally, set the power switch to the OFF position and then turn on the PWR ON position. If the receiver LED lights green, linking was succeeded. Actually check servo operation.

Normal mode / High Speed mode:

The‘Normal mode’accepts any type of servos or the peripheral. The “High Speed mode” only accepts the digital servos, including BLS series, and most peripheral equipment such as the brushless ESCs. Please pay special attention to the information contained within this manual and transmitter manual in order to have a pleasant running experience.

Compatible Transmitters:

FUTABA 10PX

FUTABA 4PM

FUTABA 7PXR

FUTABA 7PX

FUTABA 4PXR

FUTABA 4PX

FUTABA 4PLS

FUTABA 7XC

FUTABA 4GRS

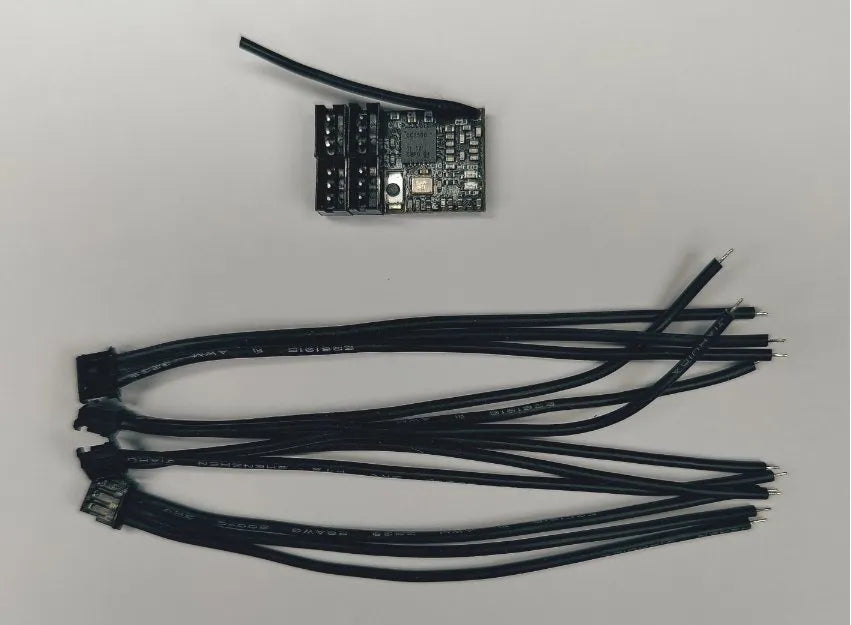

Package Included:

1 x Receiver

4 x 1.5mm 3P JST plug with high quality silicon cable
