DLE-61 61cc Gas Engine with Electronic Ignition and Muffler
$519.99
$0.00( / )
Electronic ignition delivers smooth idle, easy starting and powerful throttle transition, spiral wire wrap eliminates interference Muffler designed for optimized power delivery Enlarged crankshaft ball bearings Two petal reed valve induction system Airplane specific carburetor with manual choke Lightweight piston for fast acceleration, excellent compression and low vibration Product Detail ...
- Electronic ignition delivers smooth idle, easy starting and powerful throttle transition, spiral wire wrap eliminates interference
- Muffler designed for optimized power delivery
- Enlarged crankshaft ball bearings
- Two petal reed valve induction system
- Airplane specific carburetor with manual choke
- Lightweight piston for fast acceleration, excellent compression and low vibration
Product Detail

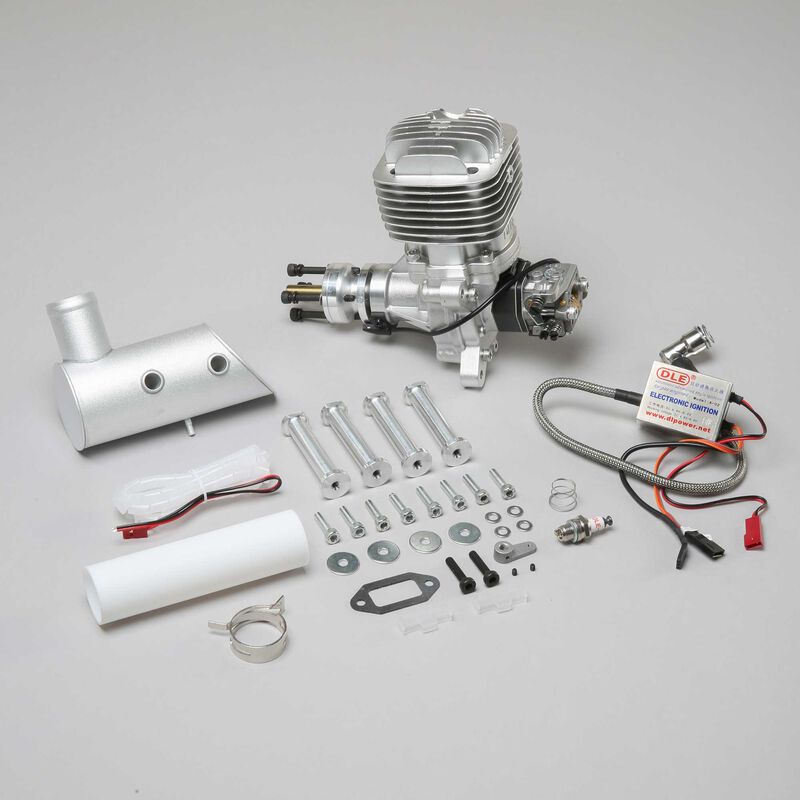

In The Box
- (1) DLE-61 Gasoline Engine with Electronic Ignition
- (1) NGK CM6 Spark Plug
- (1) Muffler
- (4) 2.7" (68mm) Standoffs
- (1) Product manua
Needed to Complete
- 87 octane gasoline
- 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
- 4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition (separate receiver style pack can be used)
- **NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case**
- Propeller: 22x10, 23x8, 23x10, 24x8
- Field Equipment
More power at lighter weight
Innovation is excellence; so, when DLE added innovations like magnesium alloy crankcases, improved crankshaft bearings, and a better piston/cylinder fit to their engines, serious R/C pilots got very excited. The DLE-61 weighs four pounds and cranks out over six horsepower from a durable and long-lasting engine. Extras like an airplane-specific carburetor, muffler, standoffs and electronic ignition boost performance even further. It's a solid 60cc engine at the best price you’ll find.
- Efficient, light design for high power-to-weight ratio
- Light piston for fast acceleration, excellent compression and low vibration
- CNC-machined parts for high performance and long life
- Enlarged crankshaft bearings
- Two petal reed valve carburetor
- Muffler included for optimized power
- Spark plugs
- Spiral wire wrap
Electronic ignition delivers ultra-smooth idle, easy starting and awesome throttle transition.
The DLE-61 includes a muffler, electronic ignition gear, spark plugs, spiral wire wrap and connector safety clips.
Product Specifications
| Manufacturer # | 667300800619 |
| Cylinders | Single |
| Product Width | 3.54" (90mm) between center of upper mounting holes |
| Total Weight | 7.8 lbs (3532 g) |
| Engine (Only) Weight | 3.02 lbs (1370g) |
| Muffler Type | 2-piece aluminum |
| Displacement | 3.7 cu in (61.0cc) |
| Oil Type & Content | 30:1 2-cycle oil mixture |
| Product Length | 6.8" (172mm) |
| Bore | 1.85" (47mm) |
| Crankshaft Type | Threaded |
| Power Type | Gas |
| Plug Type | NGK CM6 |
| Stroke | .98" (35mm) |
| Product Height | 4.96" (126mm) from center of crankshaft to top of cylinder head |
| Prop Range | 22 x 10 - 24 x 8 |
| Starter Type | Hand Held Starter |
| Ignition Weight | 3.9 oz (110g) |
| Muffler Weight | 3.9 oz (110 g) |
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
DLEG0061 |
| Weight: |
7.5 lb |
