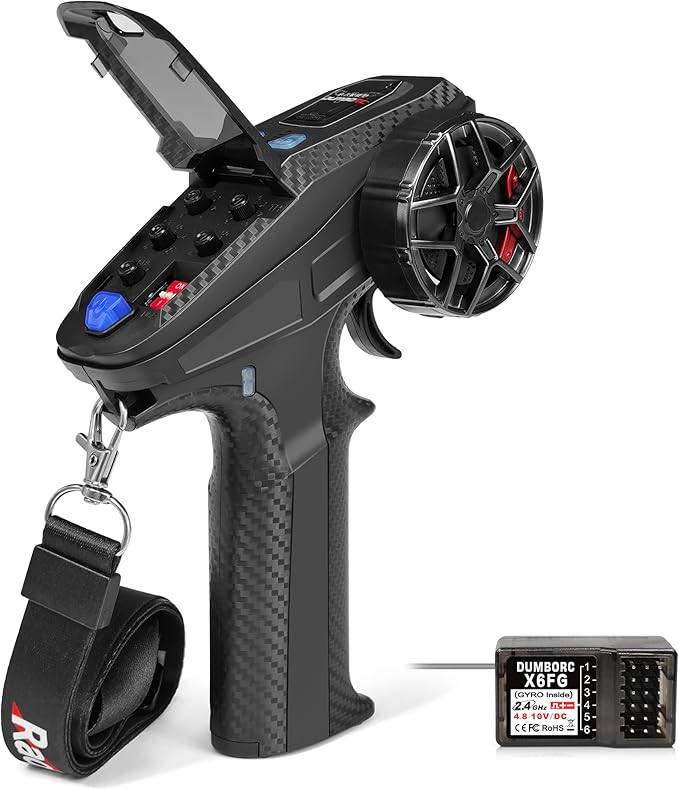

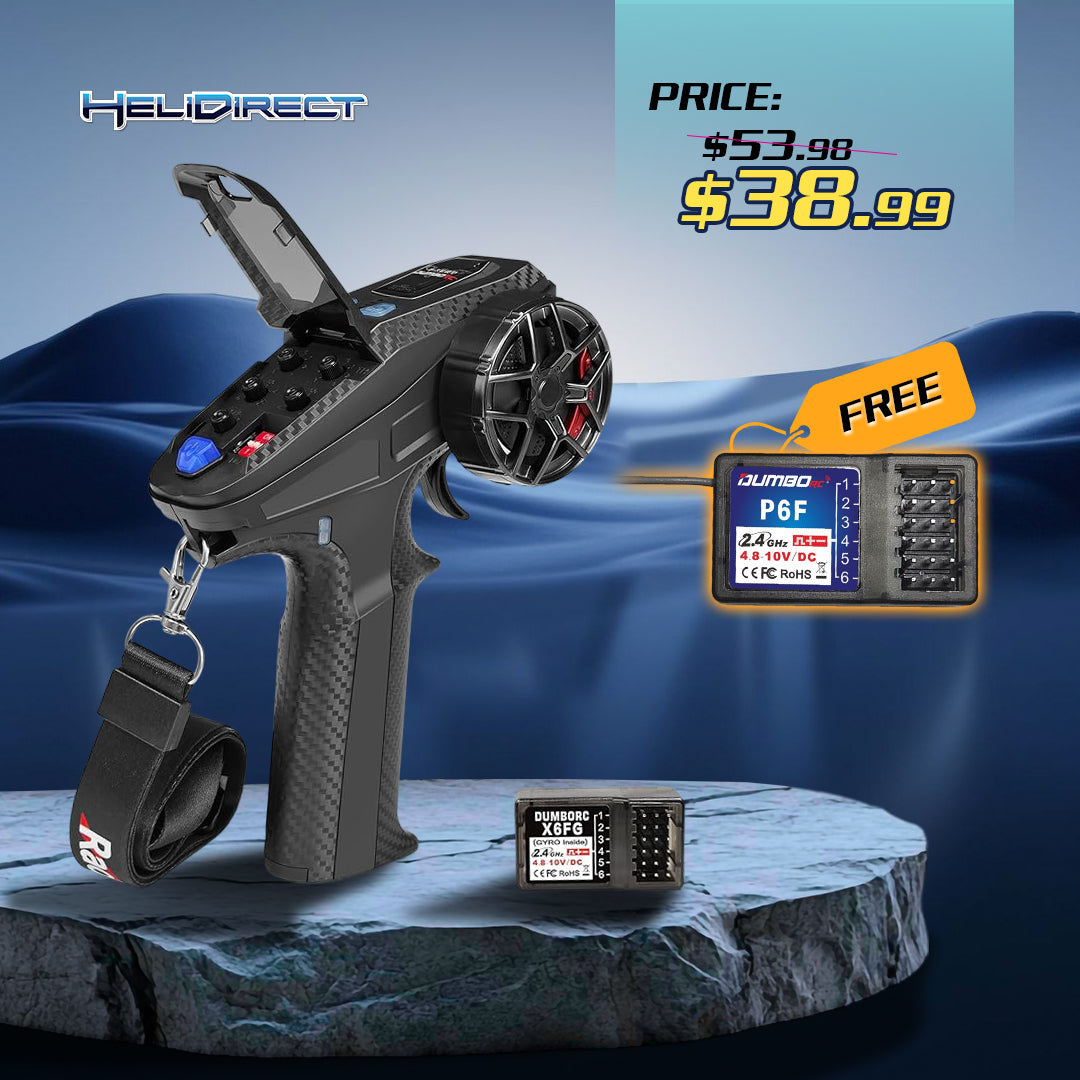

DUMBORC X6PM 2.4GHz 6CH Surface Radio with P6FG Gyro & P6F 6 Channels 2.4GHz RC Receiver

TIPS: When you use our Dumborc X6PM-350 Transmitter, if the Throtthe or Steering does not work, just need to adjust the "Sub-trim for Steering/Throttle" to "0" and the "EPA for Steering /Throttle" at 80.

DUMBORC X6FG Gyro Receiver Specifications:

• Channel: 6
• Gyro: Built-in Gyro, 2 working modes
• Control Distance: More than 400 meters

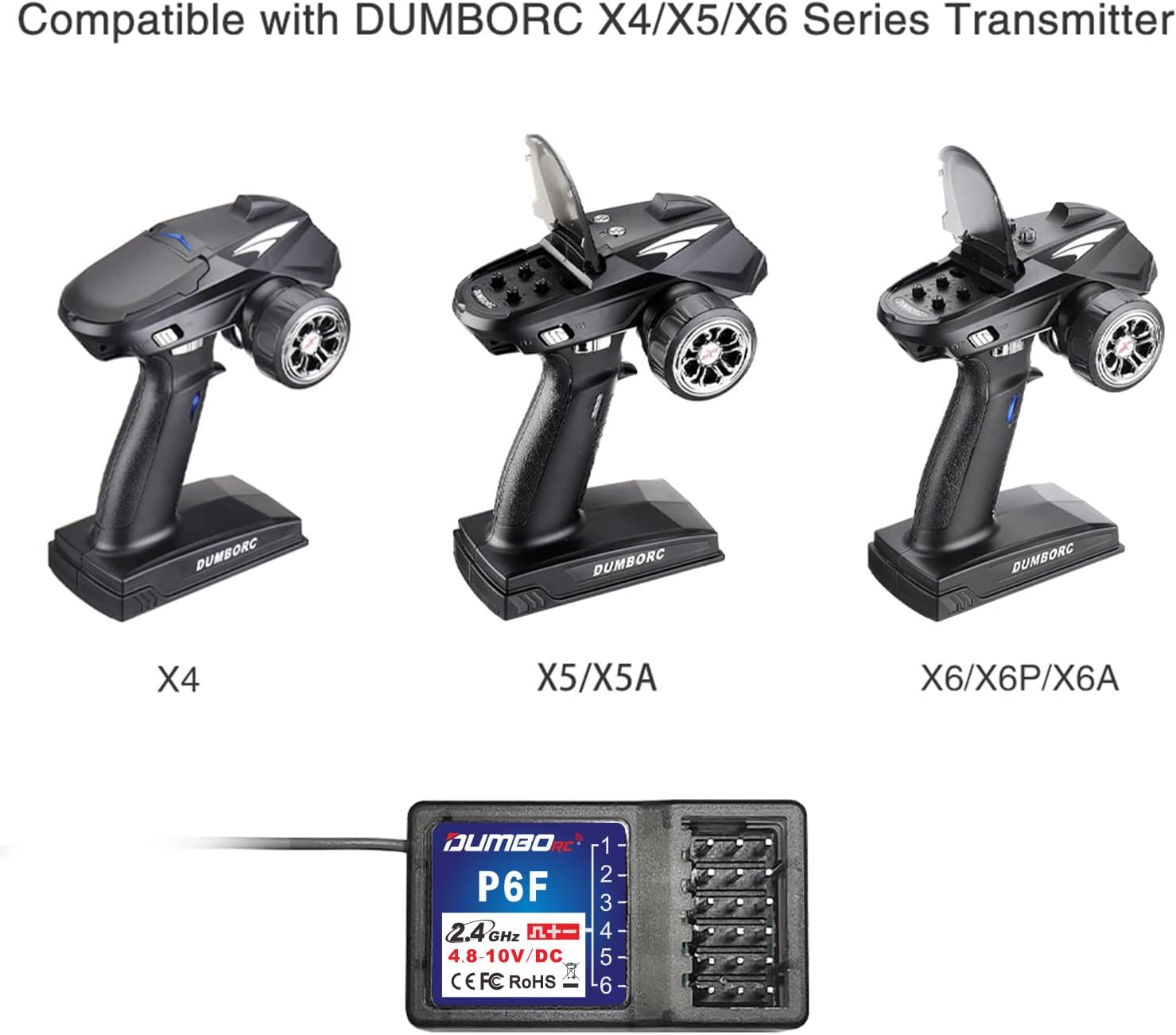

• Compatible Transmitter: DUMBORC X4/X5/X6
• Applicable Model: Cars/boats/Tanks/trucks/Crawlers/Buggies and so on

Easy to Bind:

• Bind to Radio: Long press the binding button, the green LED changes from fast flashing to always on, binding is completed.

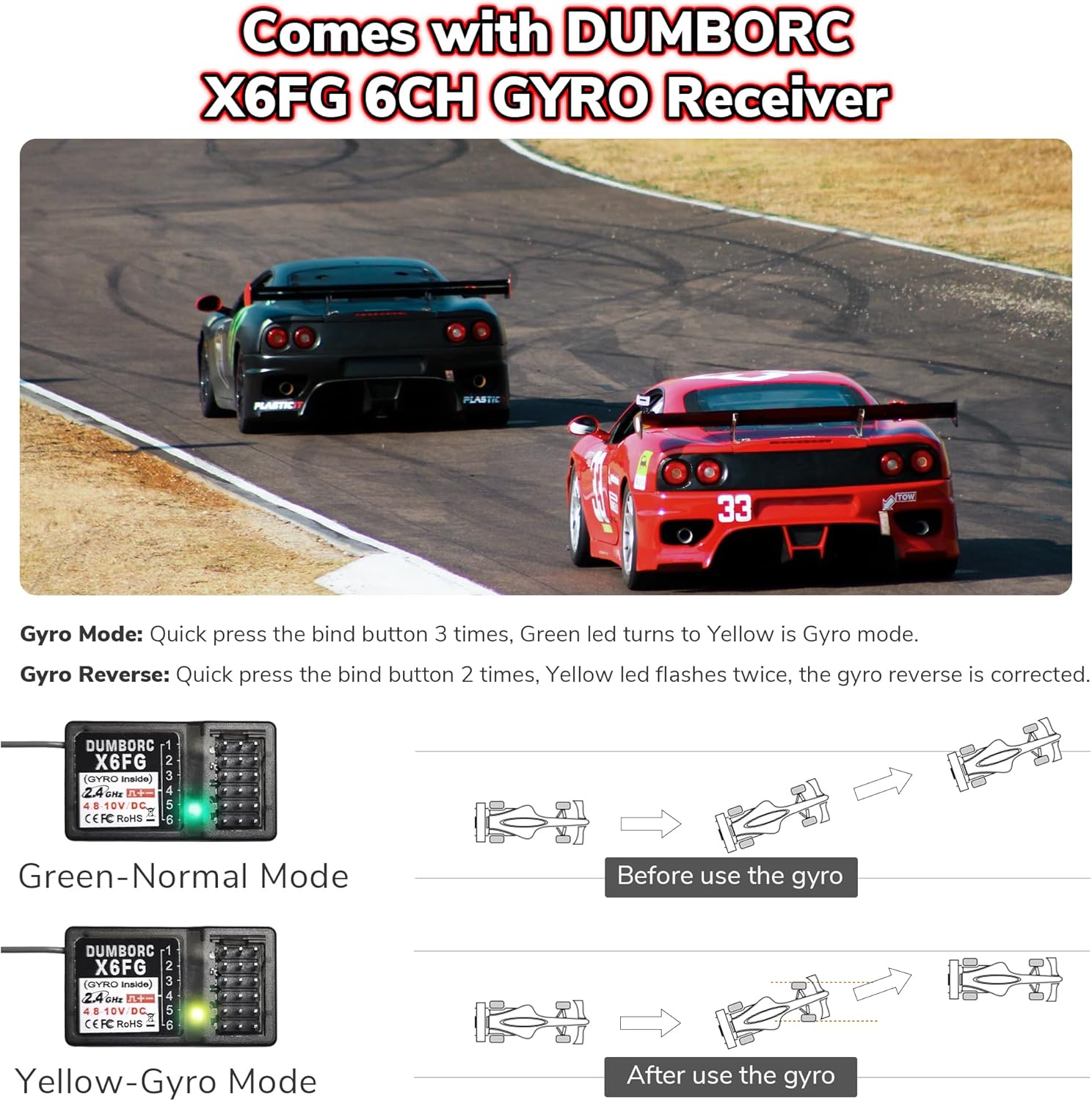

• Switch to Gyro Mode: Short press the biding button 3 times within 1 second to switch mode, green LED turns to yellow is Gyro mode.
• Gyro Reverse: Short press the binding button twice, the yellow LED flashes twice, the gyro reverse is corrected.

UMBORC X6FG Gyro Receiver Specifications:

• Channel: 6
• Gyro: Built-in Gyro, 2 working modes
• Control Distance: More than 400 meters
• Compatible Transmitter: DUMBORC X4/X5/X6
• Applicable Model: Cars/boats/Tanks/trucks/Crawlers/Buggies and so on

Small Size Fits Most RC Cars:

• Power Supply: 4.8~10.0V DC
• Work Current: 30mA
• Size: 1.37*0.79*0.51in
• Weight: 6g

Unique Throttle Speed Limit Adjustment

Perfect for beginners and kids to practice at a safe speed!

Upgraded Mix Control

Not only supports Mixed Control of CH1 and CH2 but supports Mixed Control of CH3 and CH4

Reverse for CH1 CH2 CH3 CH4

Go and enjoy the freest RC experience!

Simulator&5V Power Supply Support

Simulator Port: Support play online game with RC simulator(Need to buy dongle separately)

USB Port: Support upgrade firmware and power supply by USB cable

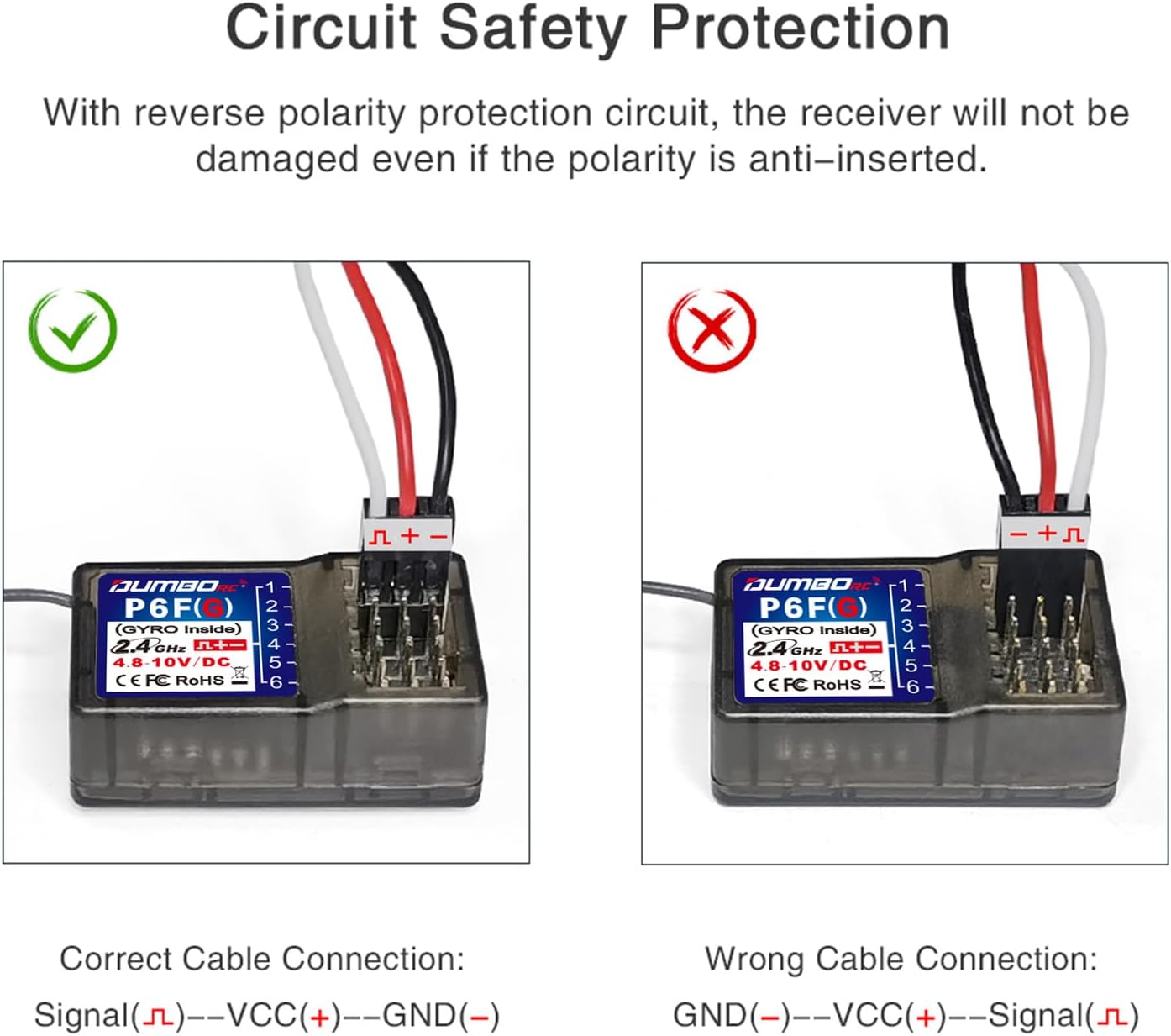

Reverse Polarity Protection Circuit

Battery interface with reverse polarity protection circuit.

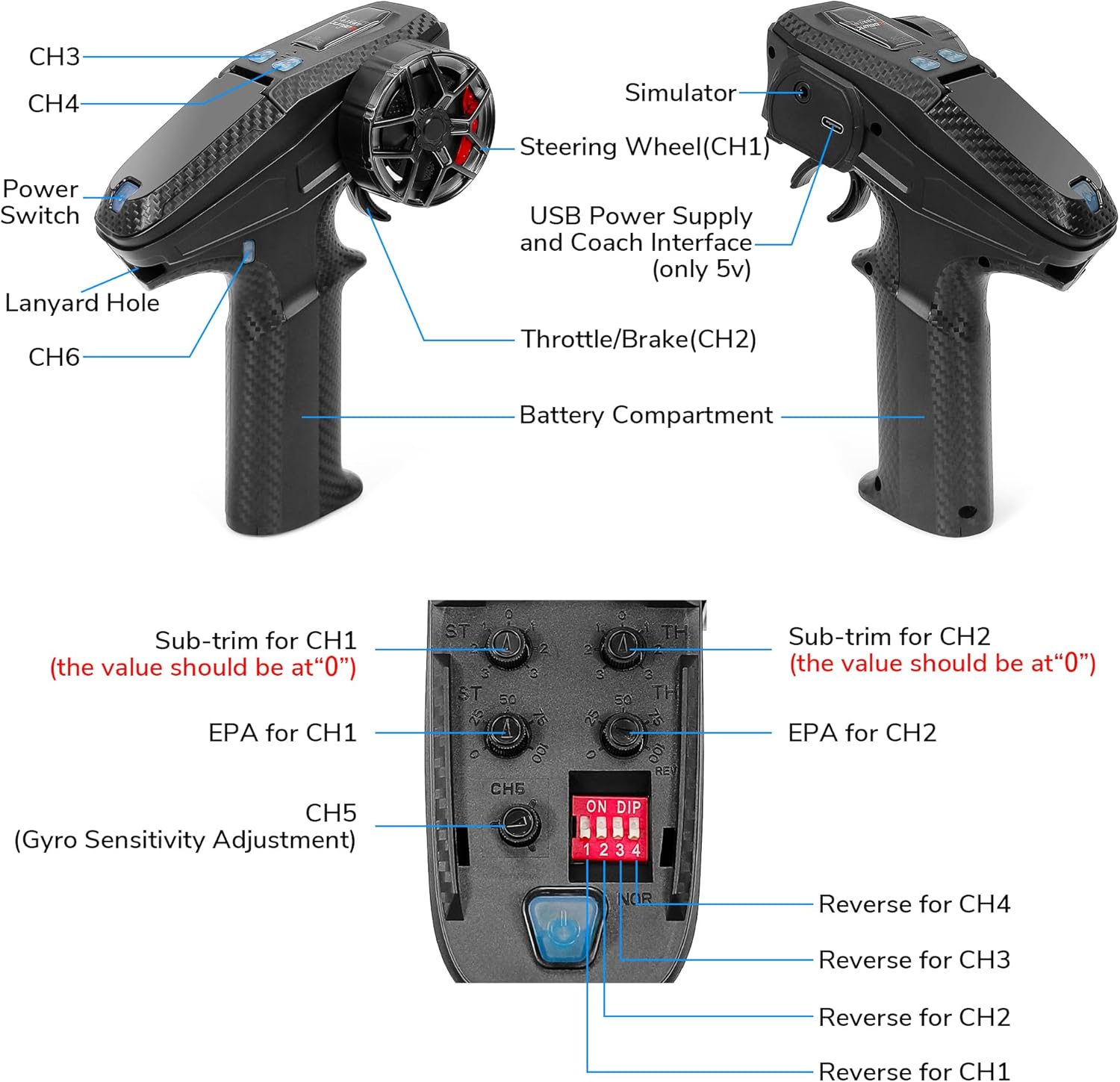

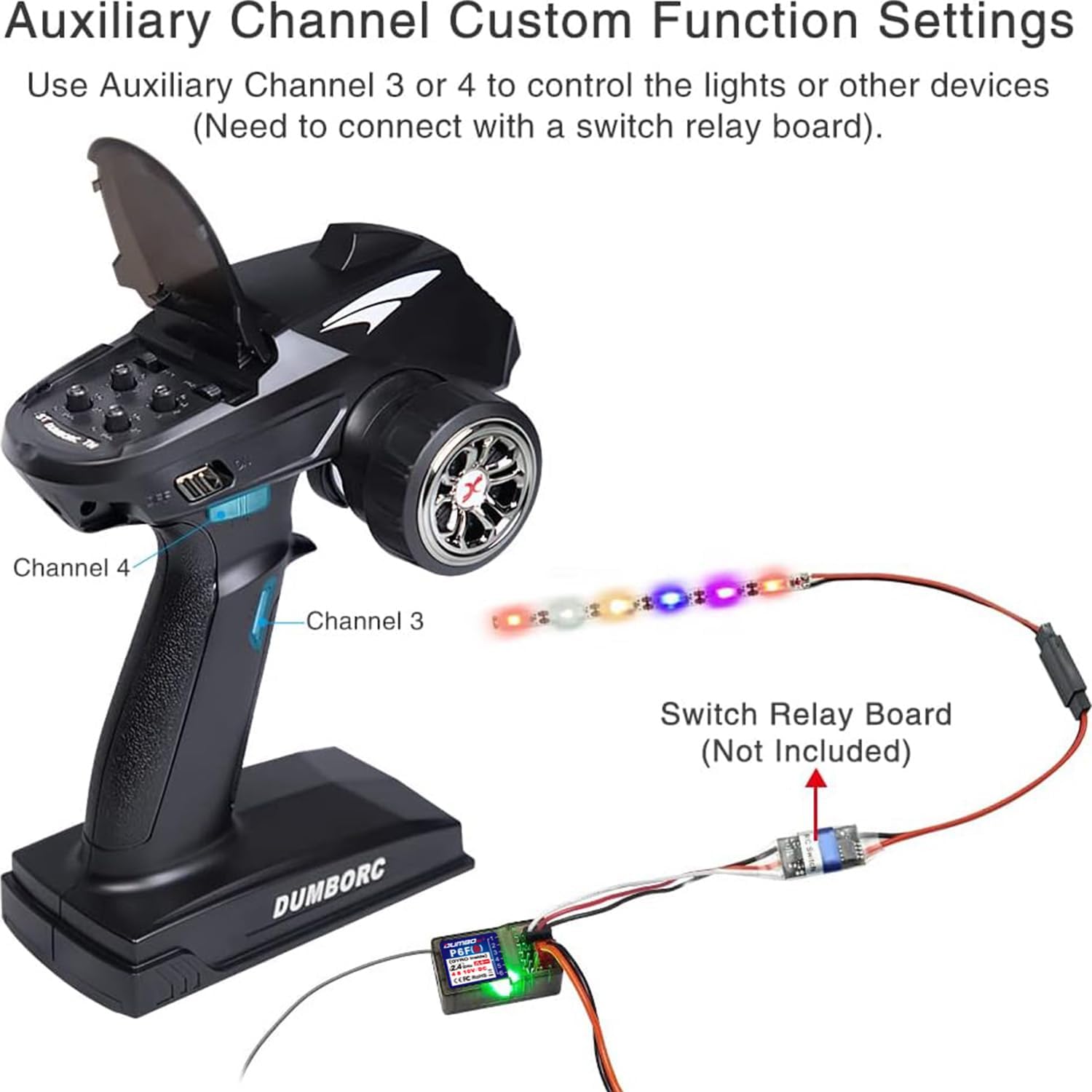

Supports Independent Setting of CH1-CH6

Supports independent setting of servo direction and travel for channels 1 to 4 and CH6, providing more DIY fun to your models!

MIXED MODE SETTING

Product Description

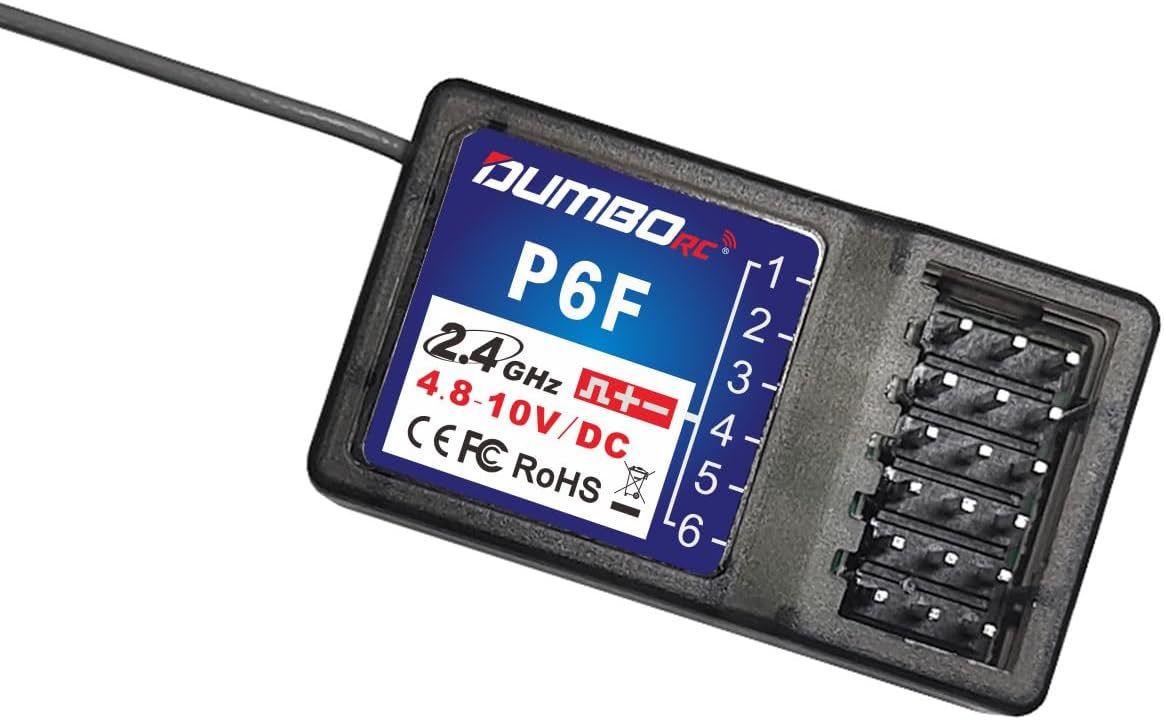

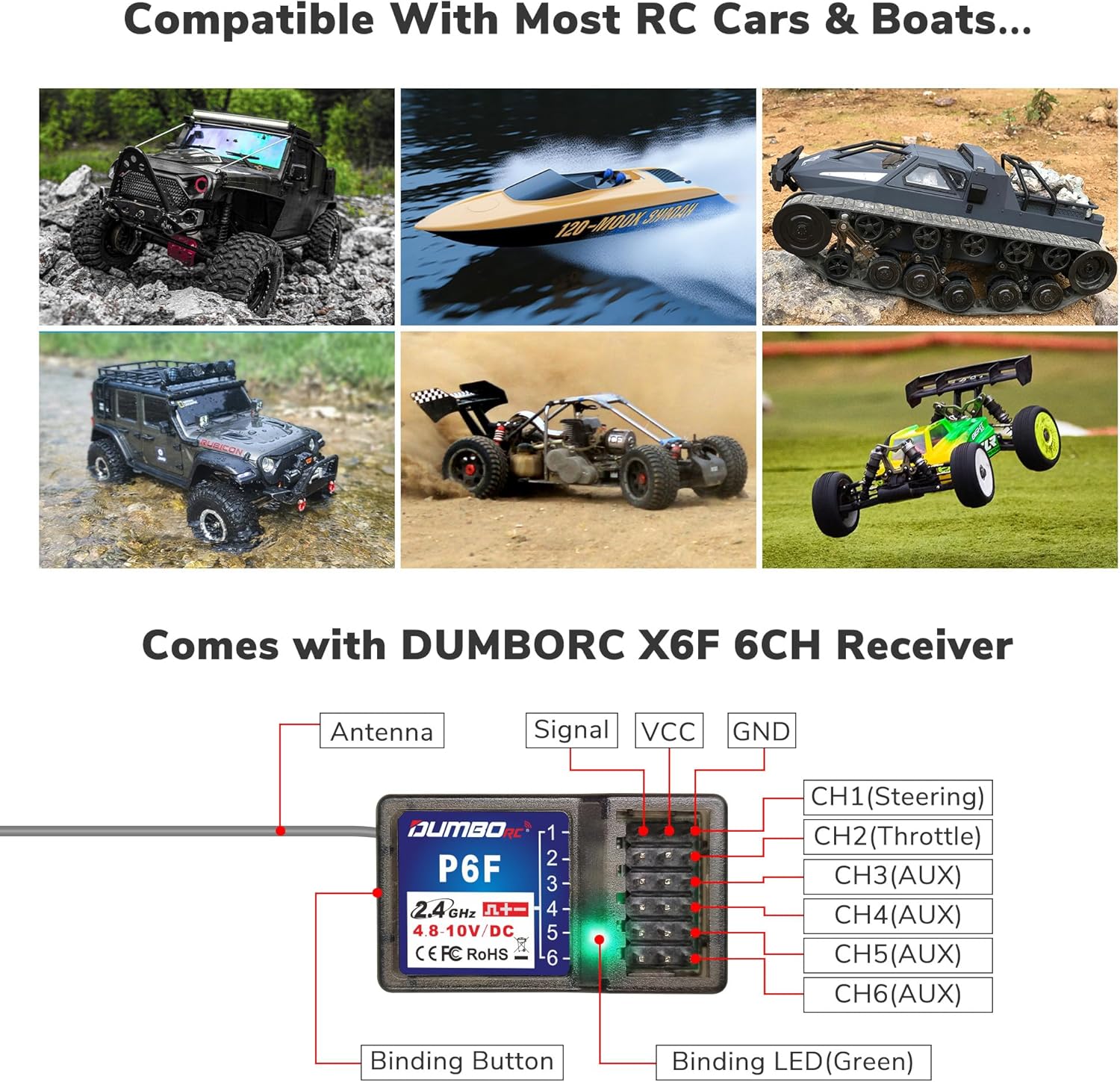

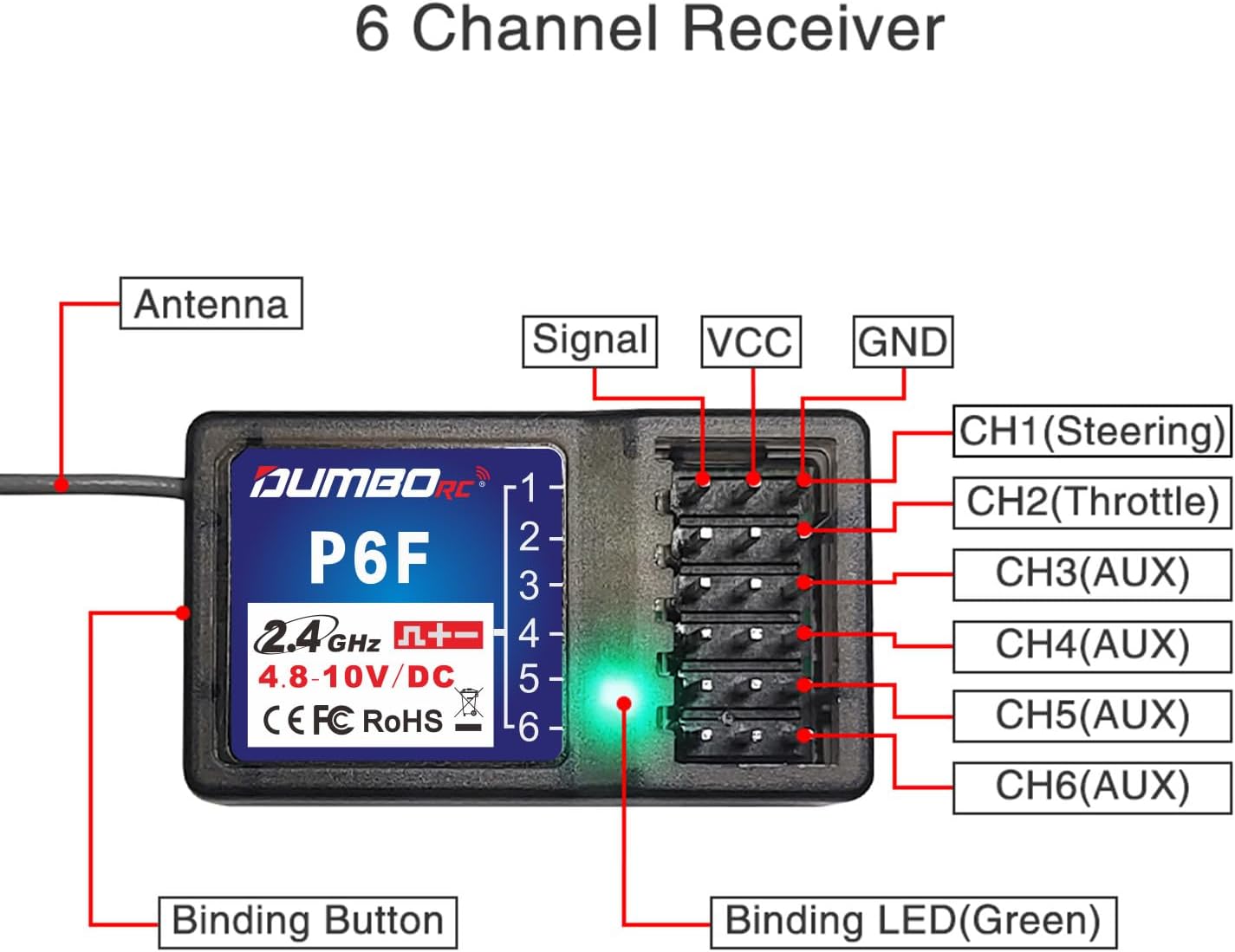

If the Receiver you get is P6F, please don't worry, P6F is the upgraded version of X6F.

Servo Mode Setting (for P6F Receiver)

Press the binding button 4 times quickly, and the servo signal output by the P6F receiver will switch between the digital servo and the analog servo. When the servo signal output by the receiver is inconsistent with the model of the servo, the servo will make a "squeaking" sound, vibrate and be accompanied by heat generation. At this time, it is necessary to switch to the correct servo mode.

Specifications:

• Channel: 6
• Gyro supported: NO
• Signal Output: PWM
• Model type: Most RC car/boat
• Control distance: More than 1300 Feet
• Working Voltage: .4.8~10V DC
• Channel Resolution: 4096
• Frequency: 2.4GHz ISM
• RF Power: <10dbm
• Size: 1.37*0.79*0.51in(35*20*13mm)
• Weight: 6g(0.21oz)
• Package included: 1 * X6F Receiver
