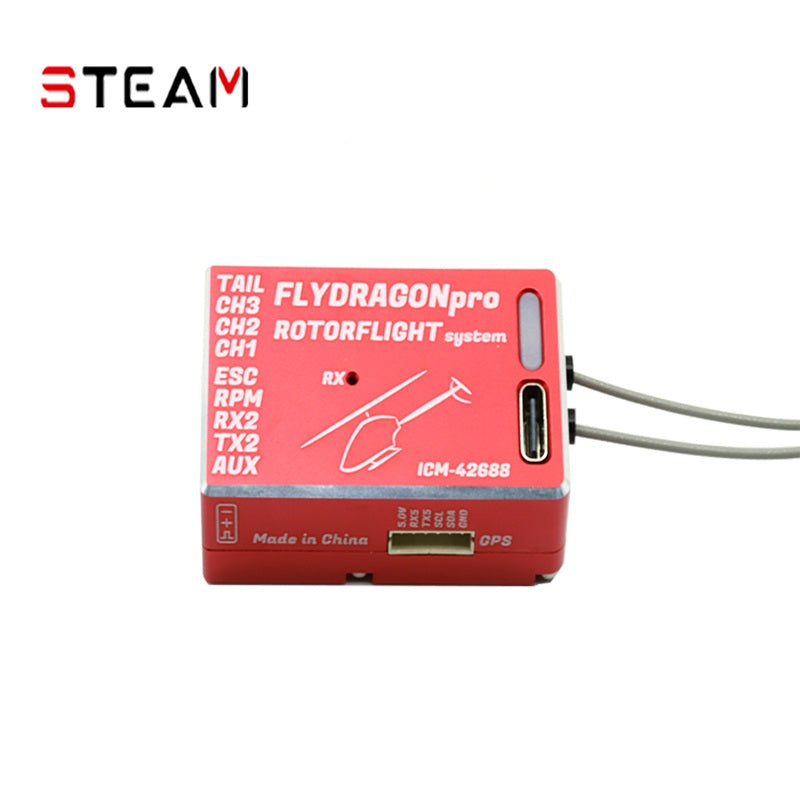

FlyDragonPRO-RotorFlight Flybarless System with Built-in ELRS Receiver - Red

RotorFlight Website (for Configurator and Tutorial): https://www.rotorflight.org/

About: The FLYDRAGONpro gyroscope uses the open source Rotorflight firmware, which is based on Betaflight 4.5 and enjoys all the power of the Betaflight platform, as well as many new features added to the helicopter, Rotorflight also borrows ideas and code from Heliflight3D.

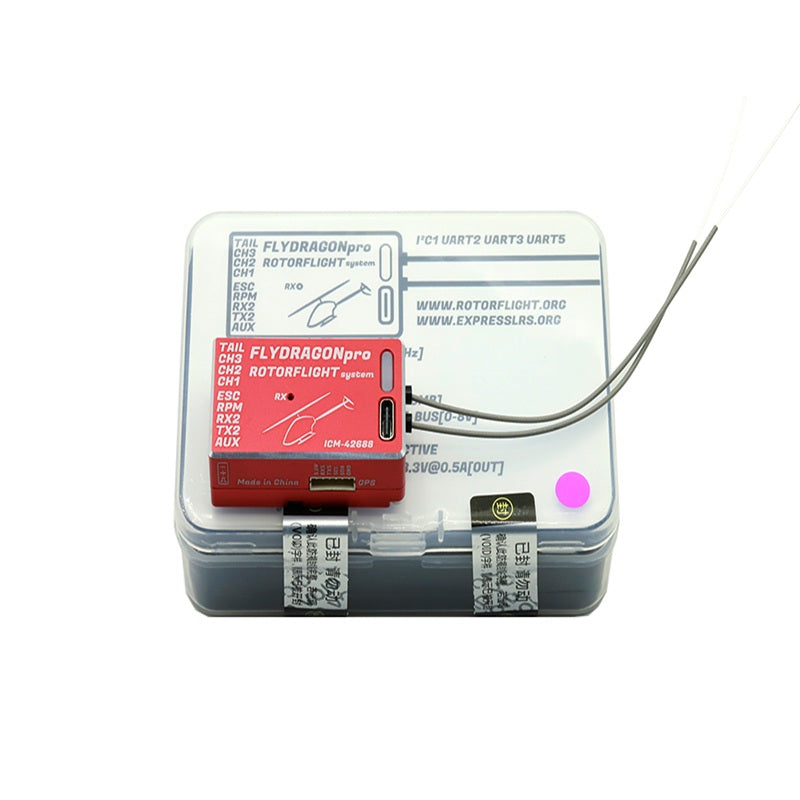

Package Includes:

• FlyDragon PRO RotorFlight Unit * 1pc
• Connectors for UART ports * 1 set
• Gyro Double Side Mount Tape * 2pcs

Specifications:

• MCU:  STM32F722RET6 [216MHz]
• IMU:  ICM-42688-P
• BARO:  SPLO6-001
• BLACKBOX:  W25N01GVZEIG [128MB]
• ADC:  BAT [0-62V]  BEC [0-30V]  BUS [0-8V]
• RX: ExpressLRS [2.4GHz]
• LED: WS2812B
• BUZZER: 5V ACTIVE
• DC: 5-18V [IN]   5V@2A [OUT]   3.3V@0.5A [OUT]
• Dimentions: 45x27x14.5mm
• Weight: 27.5g
• USB：Type-C
• Serial ports: UART2, UART3, UART5
• External receivers: CRSF, S.BUS, F.PORT, F.BUS, GHOST, SUMD, SUMH, IBUS, XBUS, XBUS/RJ01, EXBUS, PPM, MSP, DSM (with its own BEC step-down 3.3V power module)
• ESC protocols: PWM, ONESHOT125, ONESHOT42, MULTISHOT, BRUSHED, DSHOT150, DSHOT300, DSHOT600, PROSHOT

Disclaimer:

Rotorflight is open-sourced software, no warranty or implied as to the quality and reliability of this firmware, it is supported by the users themselves as a community. Rotorflight is under GPLv3 license. If handled incorrectly, RC models can cause serious injury or even death, and you are solely responsible for your model if you decide to use Rotorflight firmware. Any injury or damage caused by the use of Rotorflight firmware is not the responsibility of the authors of Rotorflight, the designers of RF gyroscopes, or the distributors, so please use with caution.
