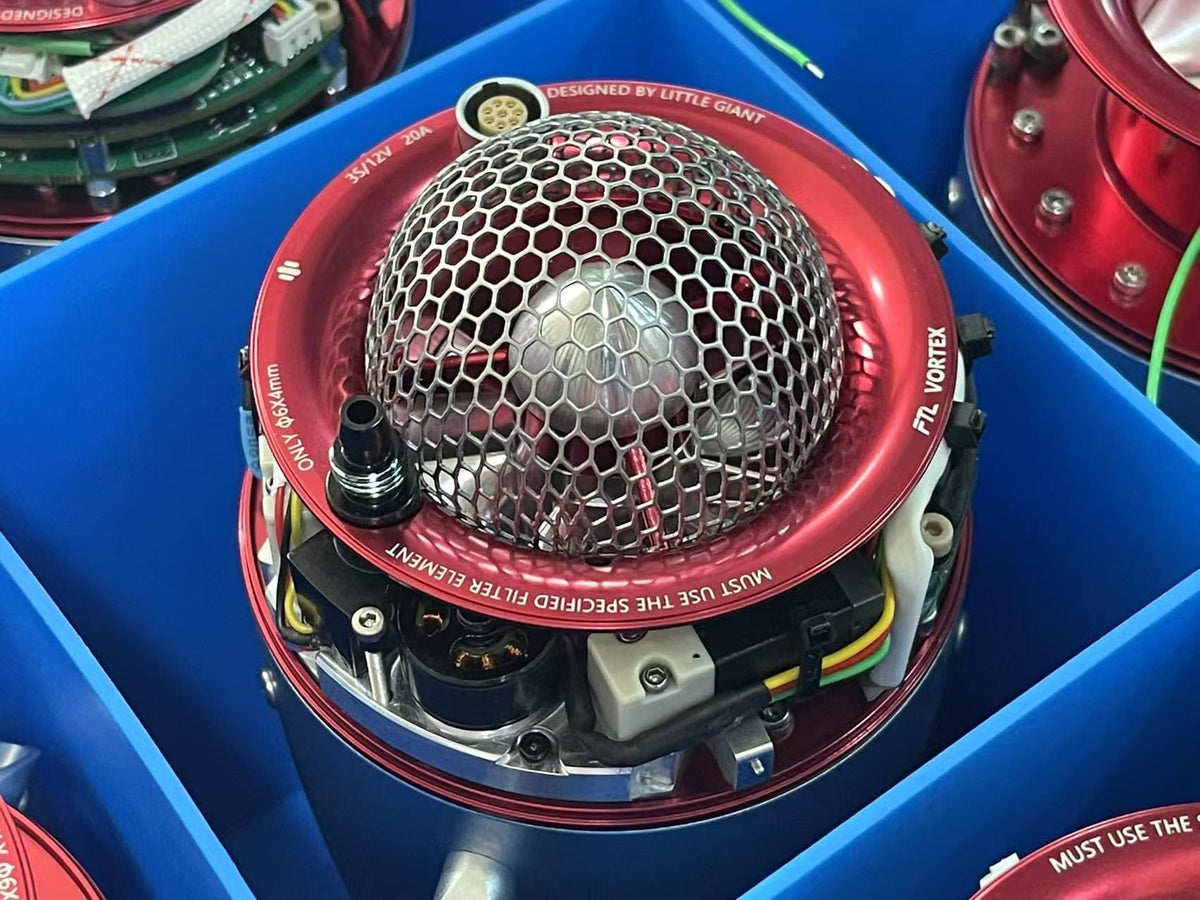

FTL Vortex M10PRO

DOWNLOAD MANUAL HERE

A highly unique turbine offering that has great power and extremely simple set up making it the easiest turbine to install and use in the industry. With sleek and very stylish external design this turbine range will really turn some heads in the jet flying community.

FULL SPECIFICATIONS

Idle speed - 52,000RPM

Max speed - 150,000RPM

Idle Thrust - 6N

Max Thrust - 105N

Exhaust Temp - 695°C

Compression Ratio - 3.7

Air Flow - 0.242 kg/s

Maximum exhaust velocity - 430 m/s

Equivalent power - 22KW

Idle fuel consumption 80ml/min

Maximum fuel consumption 380 ml/min

Flight Weight - 995g

Diameter - 91mm

Length - 171mm

Battery type - 3s lipo

Fuel type - Kerosene / Petroleum

ECU - Built in

Pump - Built in

Starter Motor - Built in

Maintenance cycle - 25 hours

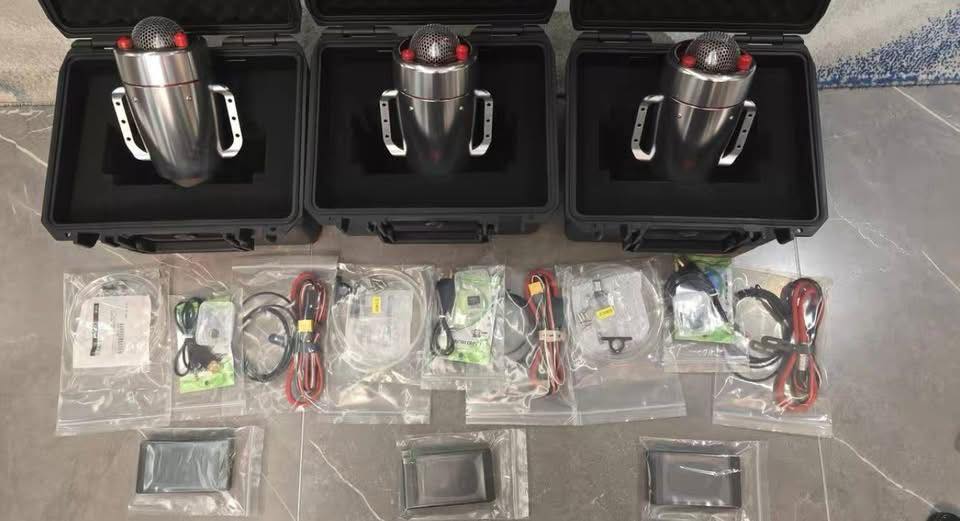

Package Contents

1 x Vortex M10 Turbine

1X Fuel line

1 x Fuel filter

1x Power cable

1x Display screen

1 x stop valve
