FURITEK CEDAR 1825 3456KV INRUNNER BRUSHLESS MOTOR WITH 15T STEEL PINION FOR FURY WAGON FX118

Furitek
|
FUR-2355
You will earn 49.99 points for buying this product
Price Match Guarantee
$49.99 $0.00( / )
FURITEK CEDAR 1825 3456KV INRUNNER BRUSHLESS MOTOR with Steel Pinion for FURY WAGON FX118FURITEK team in the past 2 years have been designed and produced several outrunner brushless motors for mini crawlers with famous KOMODO line of motors.  They together with FURITEK FOC-technology escs, have been changing the games for the...

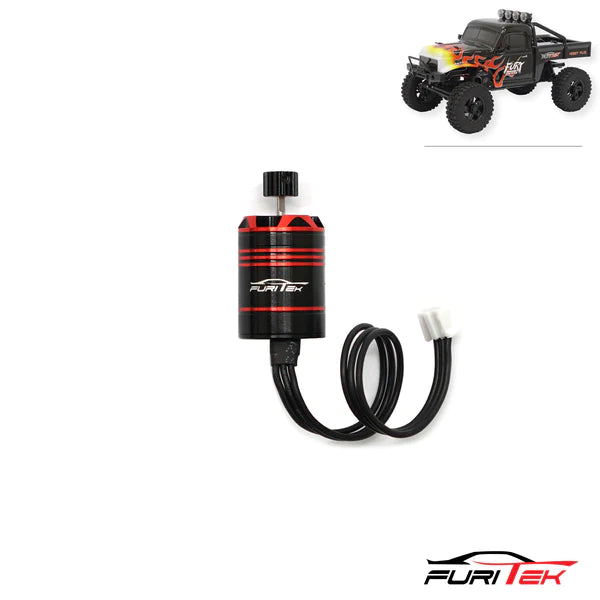

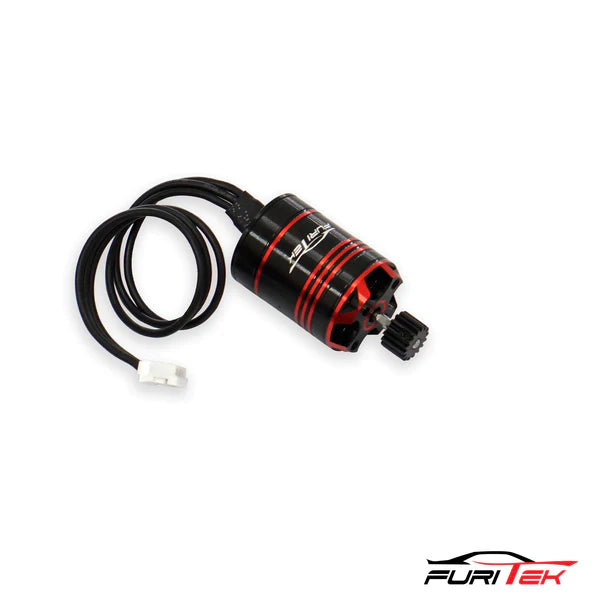

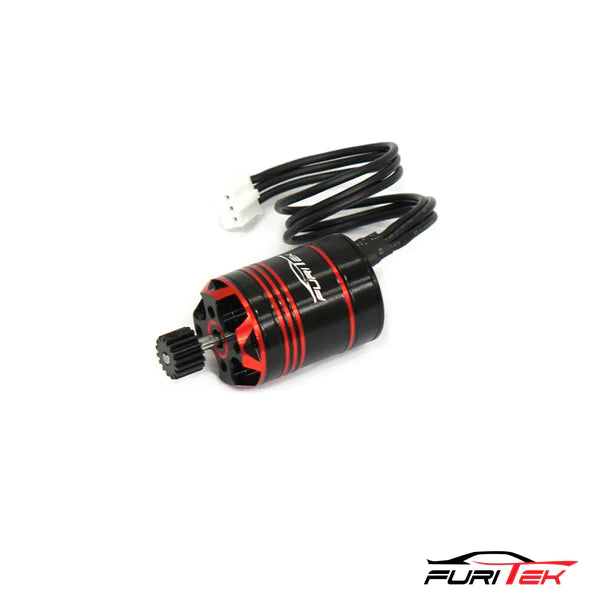

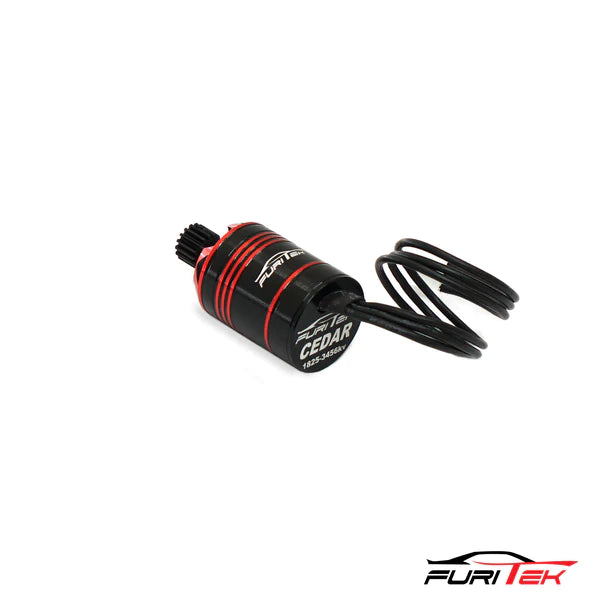

FURITEK CEDAR 1825 3456KV INRUNNER BRUSHLESS MOTOR with Steel Pinion for FURY WAGON FX118

FURITEK team in the past 2 years have been designed and produced several outrunner brushless motors for mini crawlers with famous KOMODO line of motors.  They together with FURITEK FOC-technology escs, have been changing the games for the mini crawlers.  They are super quiet, butter smooth and amazingly powerful.

However the team is not stopping; after over 6 months of testing and designing, a new patent-pending inrunner brushless motors for mini crawlers is released.  Introducing the new FURITEK inrunner CEDAR 1825 3456KV brushless motors that incorporate the awesome features above of the outrunner motors but in the form of a sealed can version making it dust proof and waterproof.  We no longer have to worry about the outside of the motor needing clearance to spin anymore.   It is easy to be stuck in any frame without worrying touching wires or parts like the counterpart outrunner motors.

This CEDAR motor version comes with a steel pinion preinstalled that is designed for FURY WAGON FX118 crawlers.

Features:

- Special designed 12-Pole Inrunner brushless motor for most efficiency

- Waterproof design

- Dustproof design

- Small, compact, easy to be installed in tight spaces

- Stylish with aluminum case, anodized with red and black

- Super quiet, high torque, powerful and super slow speed yet tons of wheel speeds when needed

- Steel pinion included for FURY WAGON FX118 crawlers

- High purity and higher temperature copper windings -lower copper losses, very good heat dissipating-maximizes efficiency.

- Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency. High RPM ABEC5 bearings.

- Precision balanced rotor, smoothness for best reliability, and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.

- Precision engineered for maximum energy conversion

- All hardware included

Specifications:

- Motor type: Inrunner

- KV: 3456KV­­

- No-load current @10V: 07A

- Power: 120W

- Battery: 2-3S Lipo

- Resistance: 0.17Ohm

- Slot/Pole: 12-Pole

- Motor size: 18x25mm diameter (0.7 x 1inch)

- Weight: 20g (0.7oz)

Type:

Car Electronics

Vendor:

Furitek

SKU:

FUR-2355

Weight:

0.5 lb


Product Spare Parts

Customer Reviews

Based on 8 reviews
88%
(7)
0%
(0)
0%
(0)
0%
(0)
13%
(1)
B
Brett
Excellent motor

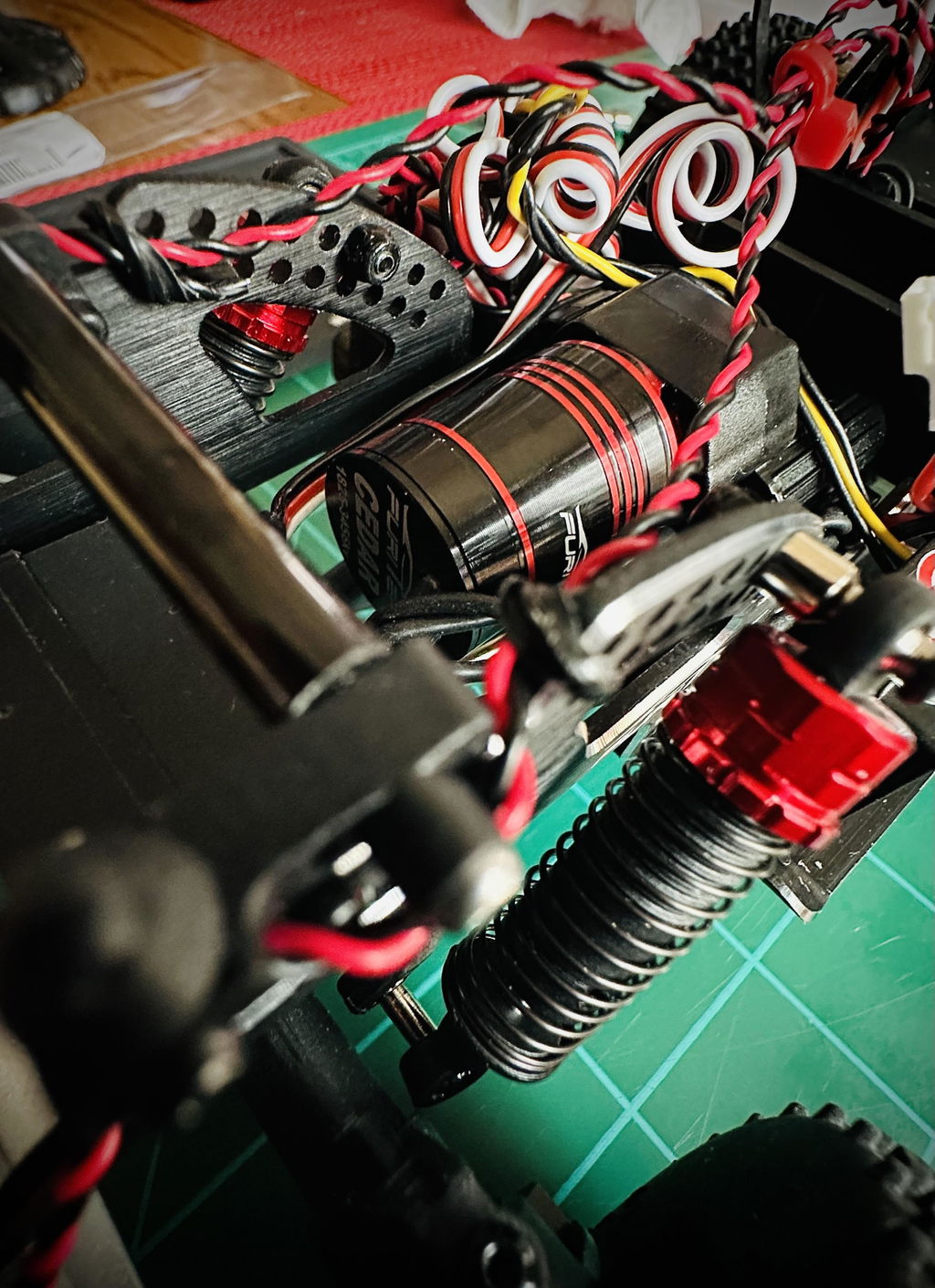

I've used this motor in a few builds and it is very powerful, smooth with plenty of low down power. Just thinking of a new build as I have one sitting in my tool case now waiting to go into a new rig.

D
Dan W.
Great upgrade over the Venom FX118 motor

This motor is a great upgrade over the stock Venom outboard motor that comes with the FX118 Fury Wagon. It is also water proof which is great for water crossings.

K
Kitchentable R.
Great bolt on!

Great motor upgrade for the FX118. Bolts right in without taking apart the entire gearbox. Correct pinion is already pressed on. Now I have flexibility to use 3s and not have to worry about clearance issues that comes with an out runner. While I don’t see extra power band compared to the venom, I’ve noticed the can dissipates heat better. Would recommend.

J
Jerry
Awesome power

Flawless powerful performance, as usual from Furitek

D
Danny G.
Décevant

C'est la dernière fois que je commande quoi que ce soit chez furitek pas pour les produits MAIS POUR LE SERVICE APRÈS VENTE INEXISTANT!

S
Steven m.
Power!!

This Motor is so powerful for its size. A great addition to the wagon.

S
Shane T.
Love The Cedar

Super smooth, easy to install, great power and control.

T
TIMMY S.
Cedar motor

A little bit smoother than venom,plus it waterproof.
