Furitek TRI-UNITY FOC 3-in-1 Drive System for Axial SCX24

Product Description

Upgrade your Axial SCX24 1/24 scale crawler with the Furitek TRI-UNITY FOC 3-in-1 Drive System. This integrated drivetrain combines a brushless motor, precision transmission, and FOC electronic speed controller (ESC) into one compact unit for smooth power delivery, precise low-speed control, and improved crawling performance.

Designed for technical terrain, rock crawling, and custom SCX24 builds, the TRI-UNITY system delivers strong low-end torque, responsive throttle control, and a clean installation with fewer wires and no separate ESC mounting required.

The integrated FOC technology helps provide smooth startup, efficient motor control, and precise throttle response at low speeds. The built-in BEC offers selectable 5.5V or 7.4V output with up to 5A continuous current to power compatible servos and onboard electronics.

With built-in Wi-Fi and Furicar App compatibility, users can adjust throttle settings, tune drag brake performance, configure parameters, and update firmware directly from a mobile device.

Key Features

• Integrated 3-in-1 Design: Combines a brushless motor, precision transmission, and FOC ESC in one compact system.

• Smooth FOC Control: Provides refined throttle response and precise low-speed crawling control.

• Powerful Crawling Performance: Delivers strong low-end torque for climbing, rock crawling, and technical trails.

• Compact Installation: Reduces wiring clutter and eliminates the need to mount a separate ESC.

• Built-in BEC: Selectable 5.5V/7.4V output with 5A continuous current for compatible electronics.

• Furicar App Support: Built-in Wi-Fi enables tuning, parameter adjustments, and firmware updates through the app.

• Designed for Axial SCX24: Engineered for compatible SCX24 crawler builds.

Available Versions

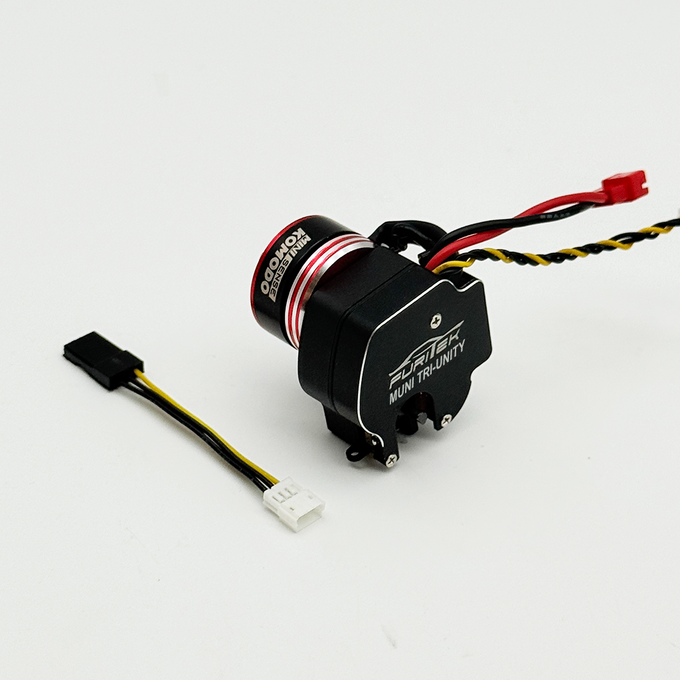

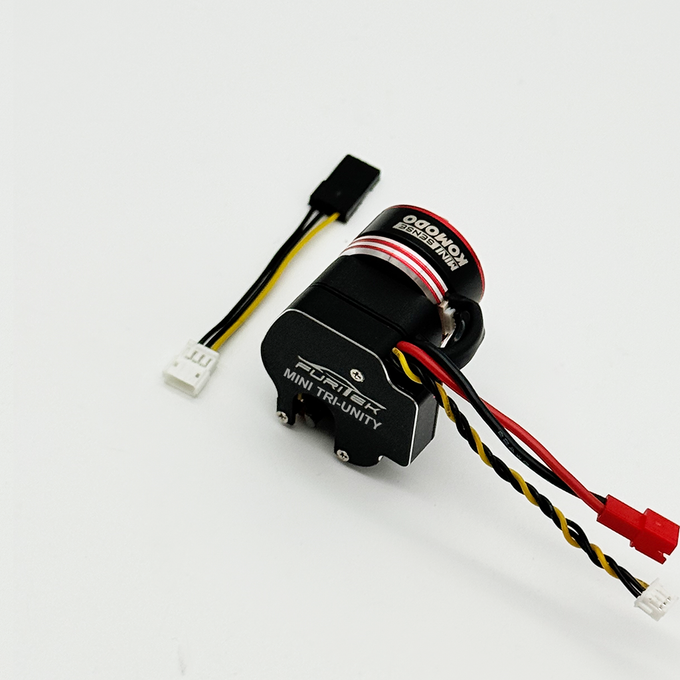

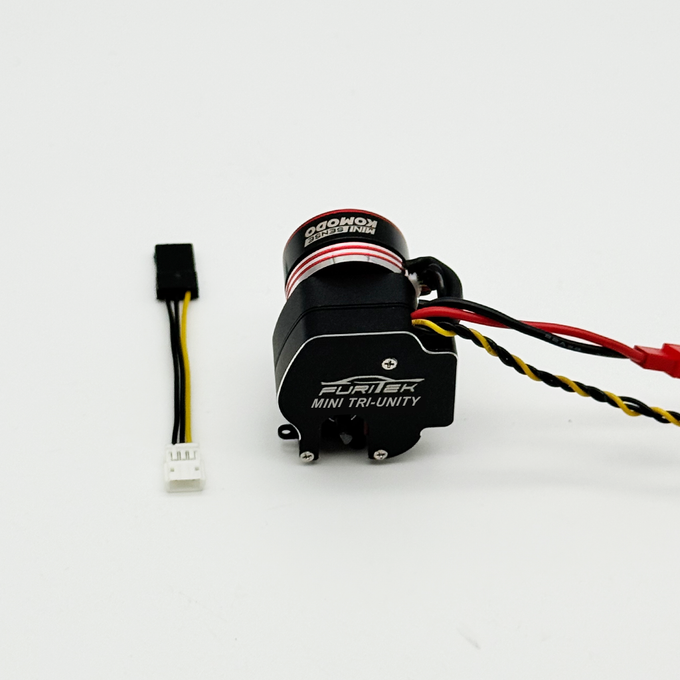

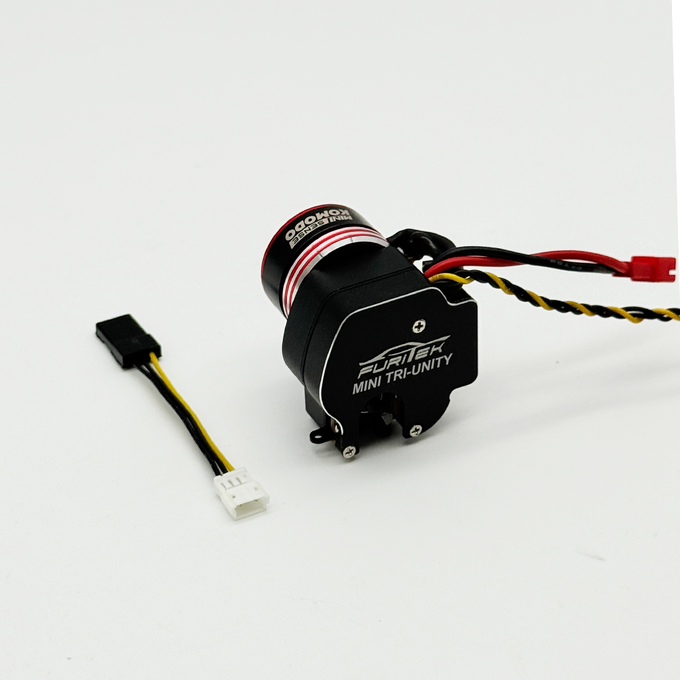

1. Mini TRI-UNITY PRO SENSORED FOC — FUR-2773

Features a Mini Komodo sensored brushless motor, precision transmission, and sensored FOC ESC. The sensored system provides enhanced motor feedback for smoother startup and more precise throttle control at very low speeds.

2. Micro TRI-UNITY PRO LCG SENSORED FOC — FUR-2775

Features a Micro Komodo sensored brushless motor, Micro Stellar LCG transmission, and sensored FOC ESC. Its low-center-of-gravity design positions the motor lower and more centrally in the chassis to improve climbing stability, side-hilling capability, and overall balance.

3. Micro TRI-UNITY LCG FOC — FUR-2776

Combines a Micro Komodo brushless motor, Micro Stellar LCG transmission, and FOC ESC. Its low-center-of-gravity drivetrain layout helps improve stability and crawling control while maintaining a compact, integrated design.

4. Mini TRI-UNITY FOC — FUR-2779

Combines a Mini Komodo brushless motor, precision transmission, and FOC ESC. It offers integrated brushless performance, smooth throttle response, and strong crawling torque in a compact package.

Important Installation Notes

• The stock SCX24 skid plate may have minor fitment interference with TRI-UNITY Micro and Mini systems. The drivetrain can still function normally, but the Furitek FLEX LCG Aluminum Skid Plate for SCX24 TRI-UNITY is recommended for improved fitment and lower-CG performance.

• When mounting the motor facing forward, the driveshaft may need to be approximately 2 mm longer than stock. Alternatively, reversing the skid plate orientation and facing the motor toward the rear may allow the use of the stock driveshaft length.

• Check the selected version and chassis configuration before installation.

Compatibility: Axial SCX24 1/24 Scale RC Crawlers

⚠️ Installation Notice

When installing the TRI-UNITY drivetrain system with the motor positioned facing forward, the driveshaft length will require approximately 2mm longer than the stock driveshaft configuration. Users are recommended to install a slightly longer driveshaft for proper fitment.

Alternatively, users may reverse the skid orientation and install the motor facing toward the rear of the chassis to maintain compatibility with the stock driveshaft length configuration.
