FURITEK MONSTER BRUSHLESS POWER SYSTEM FOR FCX24 SMASHER

Furitek
|
FUR-2346
You will earn 99.99 points for buying this product
Price Match Guarantee
$99.99 $0.00( / )
FURITEK MONSTER BRUSHLESS POWER SYSTEM FOR FMS FCX24 SMASHER Introducing the Furitek MONSTER brushless power system for FMS FCX24 SMASHER, the system includes the FURITEK Greyhound 1410 7500kv with small size yet very powerful and fast and a Lizard Pro esc. The motor is designed with high power for the...

FURITEK MONSTER BRUSHLESS POWER SYSTEM FOR FMS FCX24 SMASHER

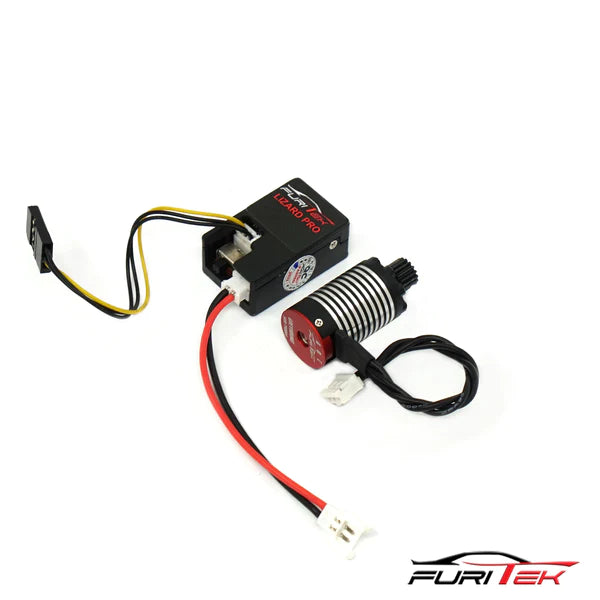

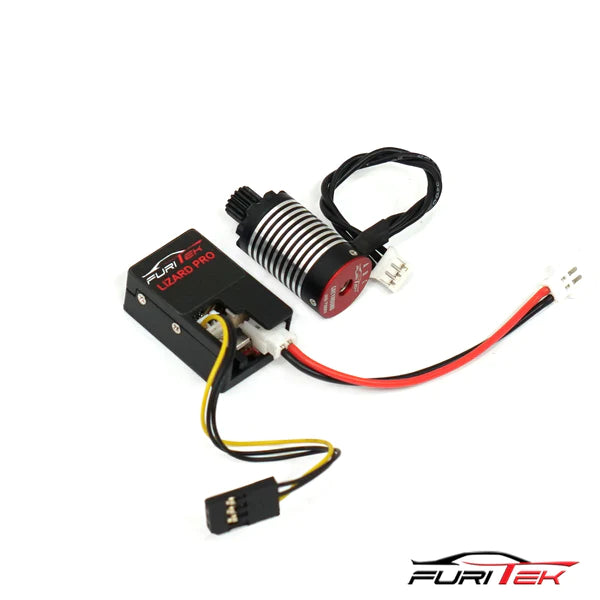

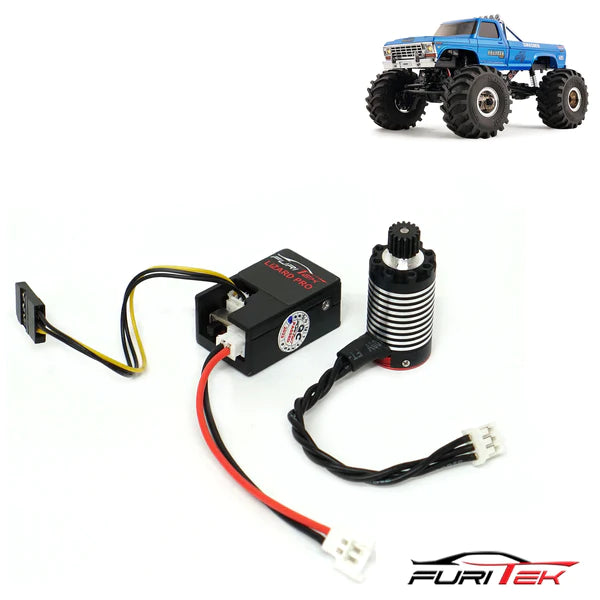

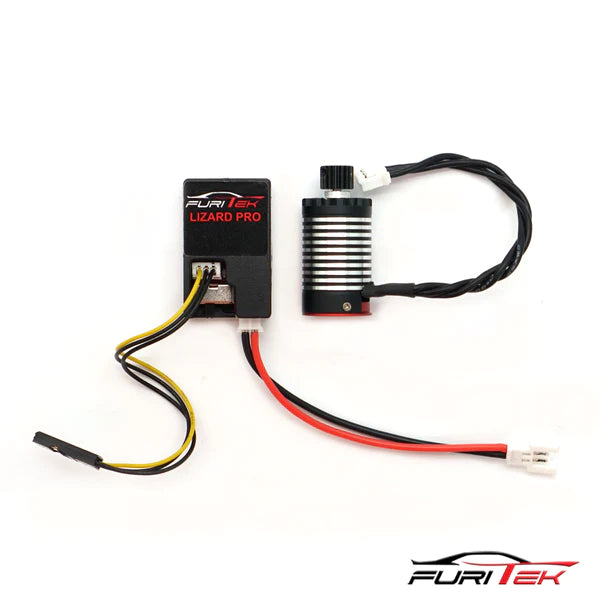

Introducing the Furitek MONSTER brushless power system for FMS FCX24 SMASHER, the system includes the FURITEK Greyhound 1410 7500kv with small size yet very powerful and fast and a Lizard Pro esc. The motor is designed with high power for the monster truck with a special firmware from the Lizard Pro ESC. This power system is a complete drop-in combo for FMS FCX24 SMASHER.
With Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.

Features:
- A small yet powerful GREYHOUND 1410 7500KV
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module built-in for wireless connection
- Precision CNC steel pinion for long-lasting operation
- Lifetime FREE firmware upgrade!

Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR FCX24 SMASHER WITH FOC TECHNOLOGY with enclosing plastic case
- 1 x built-in Bluetooth module
- 1 x GREYHOUND 1410 7500KV brushless motor
- 1 x CNC Steel Pinion

Motor Features and Specs
Features:
- Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
- Japansese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses,
very good heat dissipating, maximizes efficiency.

Specifications:
- KV (RPM/Motor) – 7500
- No-load current @7.4V – 0.3A
- Watt – 80W
- Battery – 2-3S
- Resistance – 0.7 Ohms
- Max Current – 9A
- Slot/Pole – 2P
- Motor size (mm) – 15.5x25
- Weight (g) – 17g

ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for FMS FCX24 SMASHER monster truck
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery
- Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available
- Real-time telemetry up to 10Hz

Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in bluetooth module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram

Extra requirements:
- A new two-channel radio system is required
Type:

Car Electronics

Vendor:

Furitek

SKU:

FUR-2346

Weight:

0.13 lb
