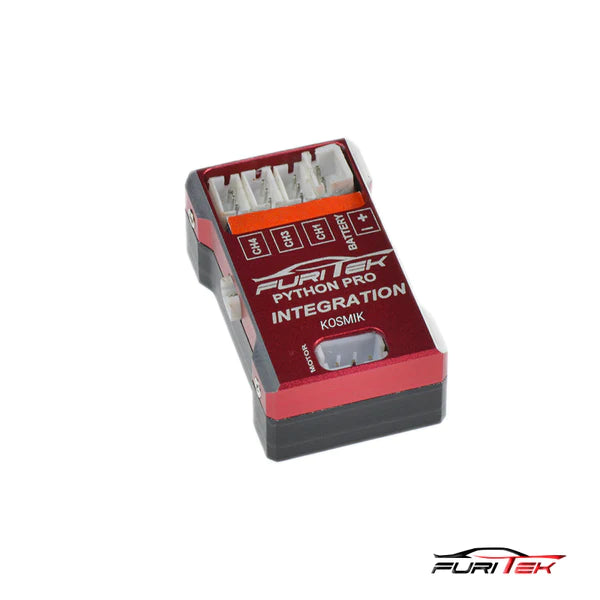

FURITEK PYTHON RXF 40A/70A BRUSHLESS ESC W/ RX INTEGRATION WITH KOSMIK TX
FURITEK PYTHON RXF 40A/70A Brushless Esc w/ RX Integration KOSMIK version and KOSMIK TX
Introducing our cutting-edge Electronic Speed Controller (ESC) designed specifically for RC crawlers, where space optimization is crucial for peak performance. This innovative ESC seamlessly integrates a wiresless communication module and a built-in receiver, offering a compact and efficient solution for your remote-controlled crawling adventures. The PYTHON RXF has all the advanced features of the PYTHON PRO esc but now with 4CH receiver built-in that helps reduce significant and valuable space for brushless setup.
Engineered with a focus on space efficiency, our ESC eliminates the need for additional components by incorporating a wiresless communication module and a receiver directly into its compact design. It allows fast and convenient adjustment and fine tuning electronic parameters on the fly via user-friendly Furicar mobile app. It’s time to say goodbye to external receivers taking up valuable space on your crawler and streamlining the installation process and reducing clutter while maintaining a high level of responsiveness.
We provide all neccessary power cables that are compatible with SCX24, JST and TRX-4M batteries so almost any battery can be compatible with.
This combo includes the PYTHON RXF with FURITEK KOSMIK TX to allow easy drop-in brushless conversion for most of rc mini crawler trucks.
Features:
- FOC (Field-Orientated control technology)
- BIG BEC for power-hungry servos
- Waterproof and dustproof with an enclosing CNC aluminum case
- Integration 4-channels Receiver with Furitek KOSMIK Transmiter
- Live tunning on Furicar app
- Super slow and ridiculously smooth throttle control
- New firmware algorithm to consistently smooth up the start up to FOC stage
- Work with Brushed/Brushless motors (config via app, default is brushless)
- Mini size and light weight
- Super easy programming via App on both Android and iOS
- Real-time telemetry up to 10Hz
- Current protection
- FREE lifetime firmware updates
Specifications:
- Supports 2-4S lipo batteries plug and play with Axial SCX24, Axial AX24, Traxxas TRX4M
- BEC: 5.5V/7.4V/8.4V 5A
- Constant current: 40A
- Burst current: 70A

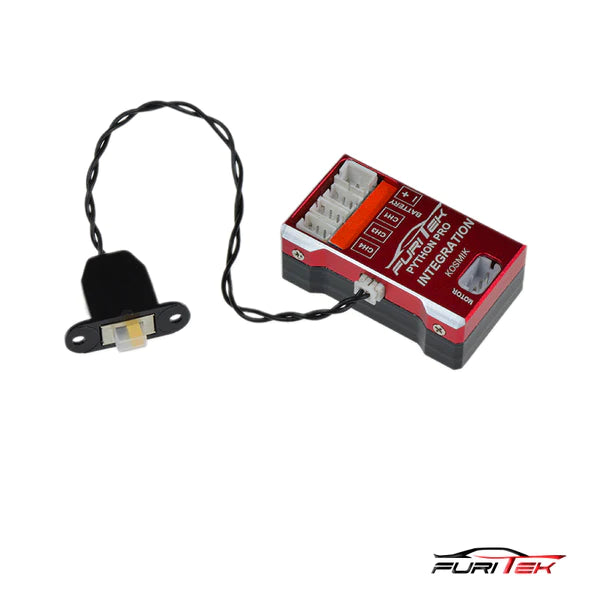

- Removable ON/OF switch (Always ON when remove)
- Support: Axial SCX24, Axial AX24, Traxxas TRX4M, Furitek FX118, FMS24, FMS18...
- Dimensions: 0.87x 1.5x 0.6 (inch), 22x38x15 (mm)
- Weight: 5.7g (0.2oz)

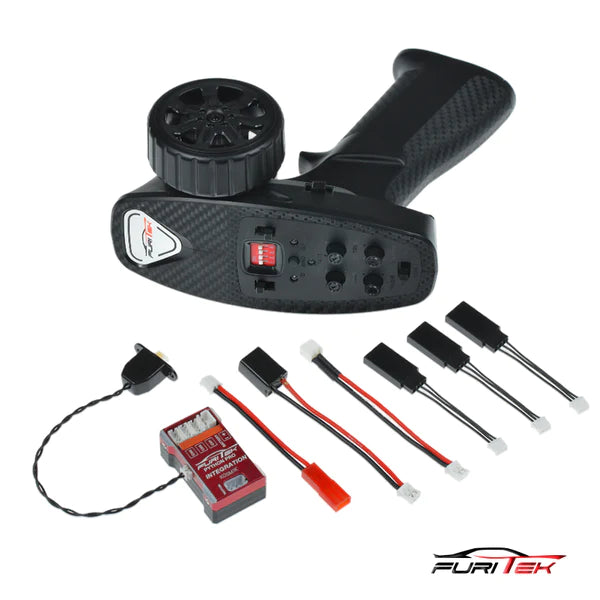

Package includes:
- 1 x FURITEK PYTHON RXF ESC + RX
- 1 x FURITEK KOSMIK TX
- 1 x HIGH QUALITY MALE SCX24 TO 2-PIN JST-PH CABLE
- 1 x HIGH QUALITY MALE TRX-4M TO 2-PIN JST-PH CABLE
- 1 x HIGH QUALITY MALE JST-RCY TO 2-PIN JST-PH CABLE
- 3 x HIGH QUALITY Servo Extension cable
- 1 x HIGH QUALITY Water proof power switch
