FURITEK STARTER 2S BRUSHLESS POWER SYSTEM FOR SCX24
FURITEK STATER 2S BRUSHLESS POWER SYSTEM FOR SCX24
SUPPORT 2S LIPO only
Introducing the Furitek STATER brushless power system for SCX24, the system includes the VENOM 1212 3450kv with lighter and smaller size yet very powerful at low speed but also more powerful and fast at high speed. The motor is designed with high torque at low speed crawling and with a special firmware from the Lizard Pro ESC, this motor is super smooth without any cogging at both low and high speed operation.
With Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.
Features:
- A smaller and lighter brushless motor Micro Komodo for low C.G. setup same like stock
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module for wireless connection
- Precision CNC aluminum motor mount for better holding motor in place.
- Precision CNC brass pinion for long-lasting operation
- Powerful at low speed but also more powerful and fast at high speed
- High torque at low speed crawling
- Super smooth without any cogging at both low and high speed operation
- Lifetime FREE firmware upgrade!

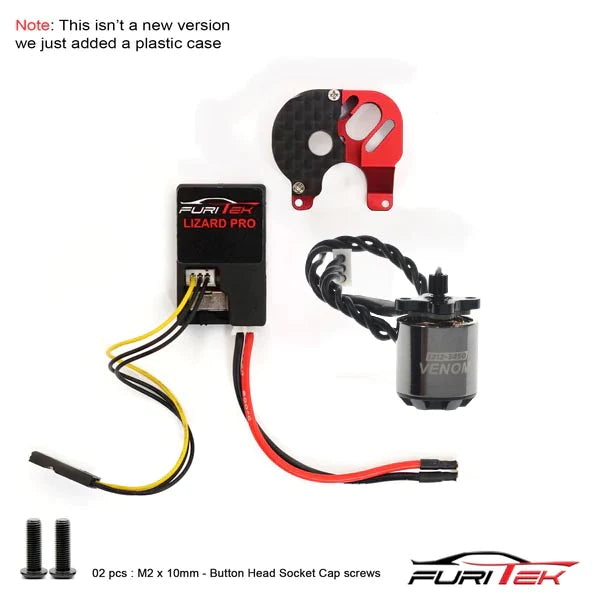

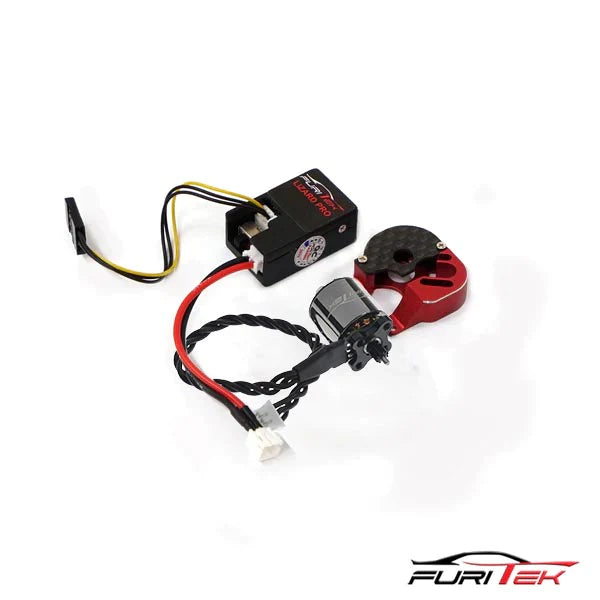

Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR AXIAL SCX24 WITH FOC TECHNOLOGY
- 1 x Bluetooth module
- 1 x VENOM 1212 3450KV brushless motor
- 1 x 11T 0.3M CNC Brass Pinion
- 1 x CNC aluminum motor mount
Motor Specifications:
- KV (RPM/Motor) – 3450
- No-load current @10V – 0.7A
- Watt – 120W
- Battery – 2S
- Resistance – 0.16 Ohms
- Max Current – 10A
- Slot/Pole – 12
- Motor size (mm) – 15.5x20.6
- Shaft (mm) – 1.5x6
- Weight (g) – 17.5
ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for AXIAL SCX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX
Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (Don’t need external BEC if use big Servo)
- Constant current: 30A
- Burst current: 50A
- Built-in Switch power
- Dimension (mm): 28(L)x 15.5(W)
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
FUR-2426 |
| Weight: |
0.19 lb |
Product Spare Parts
Customer Reviews
i had to pay fees to DHL, i dont know why, beside that its ok
So I got this thinking it's a cheap way to get into brushless on some rigs. First rig, it ripped the transmission off the mount. Ok, so yes the screws were already stripped but funny to mention none the less. Already had a new trans on the way. The Venom is a pretty powerful motor. I can't imagine needing more power. The slow crawl is amazing once you set it up correctly. A problem I hear many have is the setup on the app. The app was a mostly pleasant experiance. Easy to use but for one hitch. It kept asking for center throttle but wouldn't save it. Then freezing the app. Found out it wasn't the app but rather the Bluetooth was losing connection from my rig during setup. I waited a few minutes, reset the app and ESC, and everything worked just fine. Guys, this is plenty powerful even for your comps... unless you're into racing your crawlers...sadface. Easy install with no modifications. I hear some are having issues with the carbon fiber gear cover. Mine fit perfect but a little filing will do for those having trouble with that.
Awesome product. Will buy again and again
Great love it
Fit and function is spot on! The Venom motor is stronger than expected. Being able to tune the setup on the app is next level. I will buy more from Furitek.
Works awesome
Best on the market!
This brushless motors and esc is the greatness since Micro Komodo! It has everything you need, especially with a 2S system. You definitely can't go wrong with this setup! It's worth every penny!
I've read other reviews that the motor mount would never mesh correctly and I found that to be true for me as well. I ditched the motor mount and used a furitek mini komodo mount which worked perfect for the venom motor
Works good out of the box, no complaints.
