FURITEK STINGER BRUSHLESS POWER SYSTEM FOR SCX24
With the incredible successful release of Komodo brushless motor and Lizard Pro brushless ESC for SCX24 in 2021, Furitek team has listened to customer’s feedbacks and has developed a smaller motor yet powerful and smooth to further improve the performance of the SCX24.
Introducing the Furitek STINGER brushless power system for SCX24, the system includes the Micro Komodo 1212 3450kv with lighter and smaller size yet very powerful at low speed but also more powerful and fast at high speed. The motor is designed with high torque at low speed crawling and with a special firmware from the Lizard Pro ESC, this motor is super smooth without any cogging at both low and high speed operation.
With Furitek FURICAR mobile phone app and Bluetooth module, users can setup any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.
Features:
- A smaller and lighter brushless motor Micro Komodo for low C.G. setup same like stock
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module for wireless connection
- Precision CNC aluminum motor mount for better holding motor in place.
- Precision CNC brass pinion for long lasting operation
- Powerful at low speed but also more powerful and fast at high speed
- High torque at low speed crawling
- Super smooth without any cogging at both low and high speed operation
- Lifetime FREE firmware upgrade!

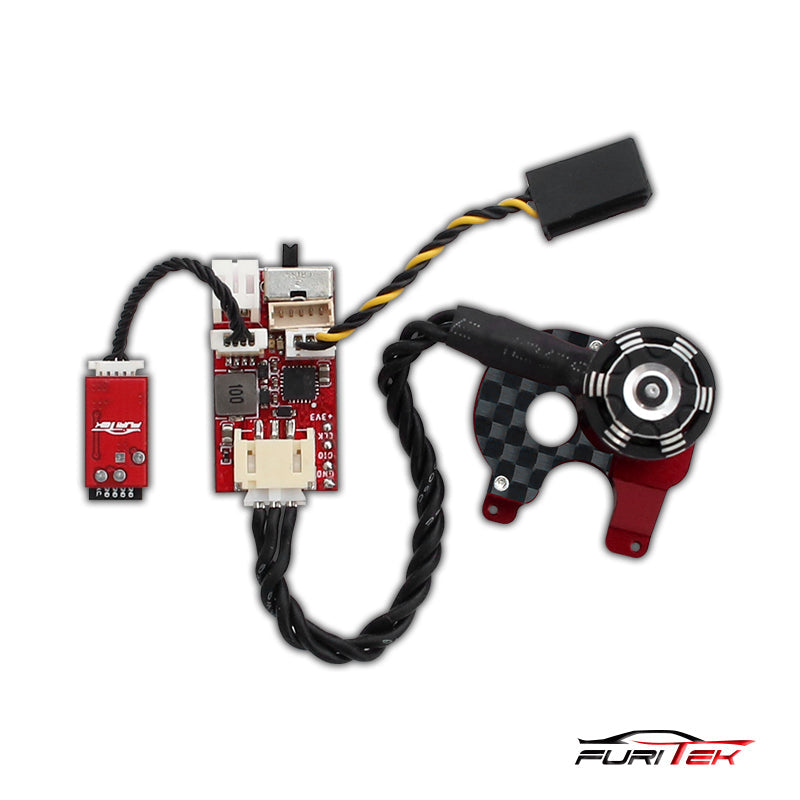

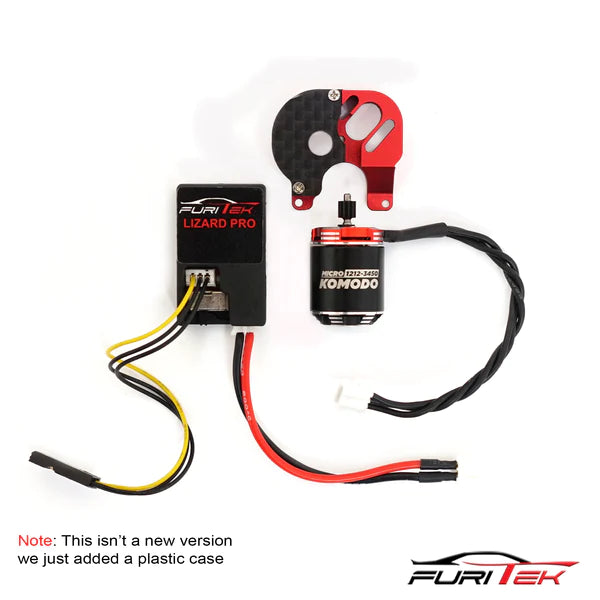

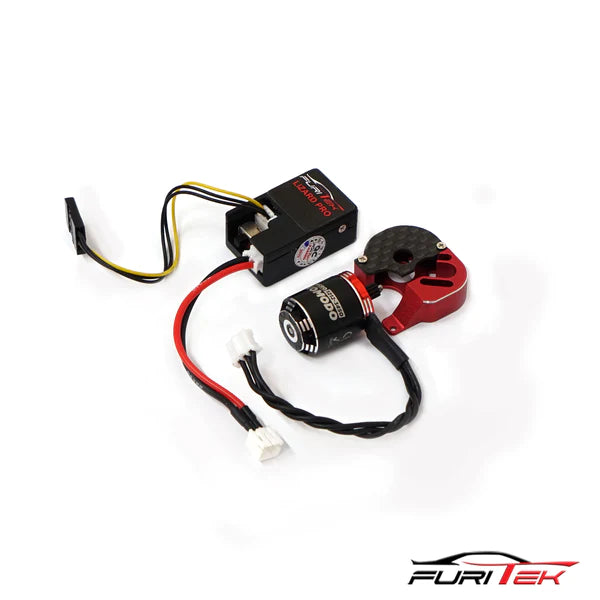

Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR AXIAL SCX24 WITH FOC TECHNOLOGY
- 1 x Bluetooth module

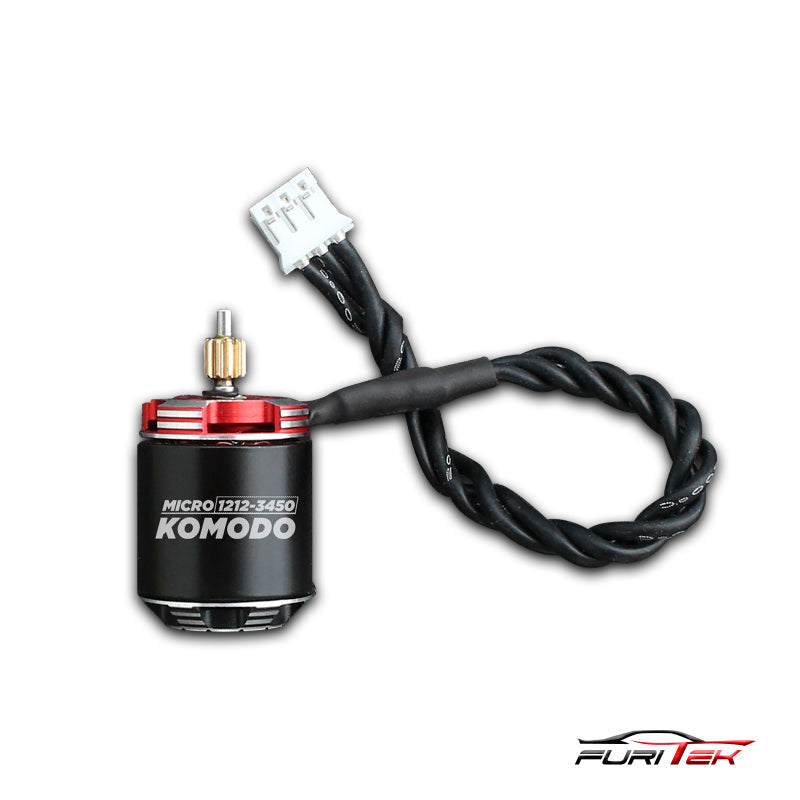

- 1 x Micro Komodo 1212 3450KV brushless motor
- 1 x 11T 0.3M CNC Brass Pinion

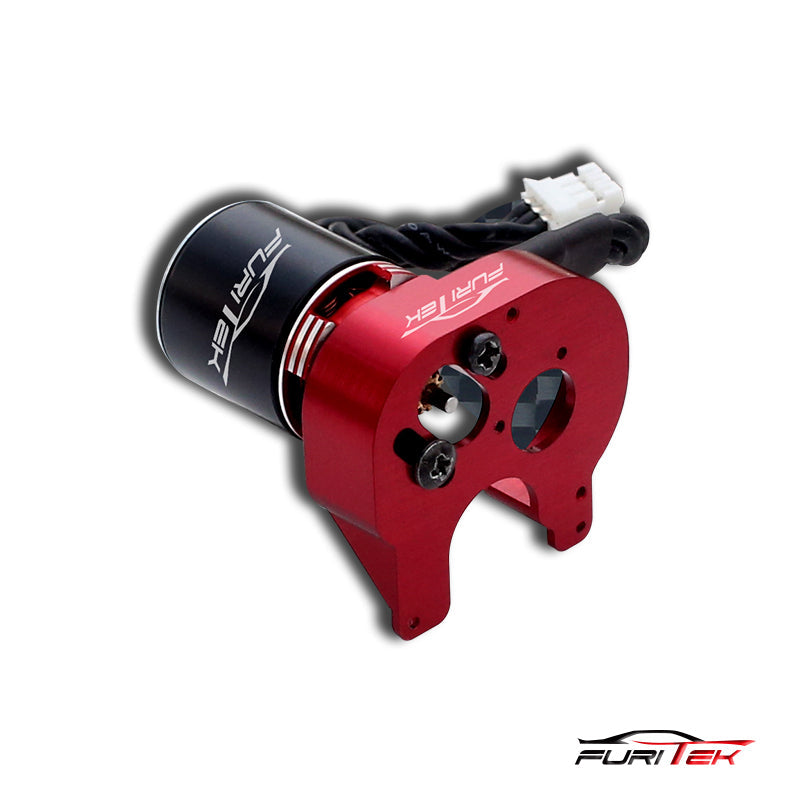

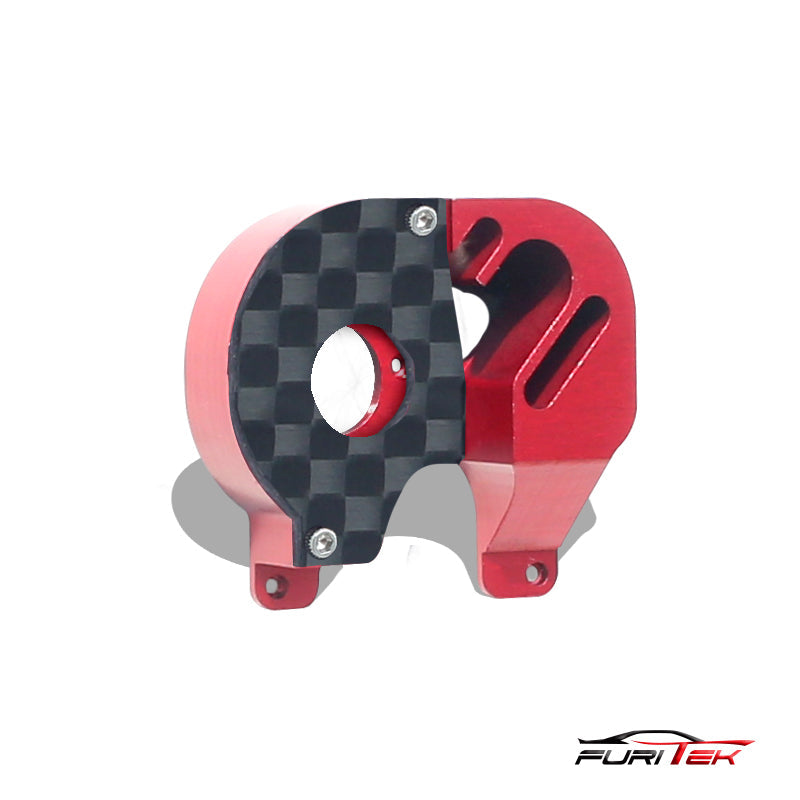

- 1 x CNC aluminum motor mount
Motor Features and Specs
Features:
12 Pole hi-torque motor design.
Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
Japansese NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.
High purity and higher temperature single copper windings ---lower copper losses,
very good heat dissipating--maximizes efficiency.
Specifications:
- KV (RPM/Motor) – 3450
- No-load current @10V – 0.7A
- Watt – 120W
- Battery – 2-3S
- Resistance – 0.16 Ohms
- Max Current – 10A
- Slot/Pole – 12
- Motor size (mm) – 15.5x20.6
- Shaft (mm) – 1.5x6
- Weight (g) – 17.5
ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for AXIAL SCX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX
Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (Don’t need external BEC if use big Servo)
- Constant current: 30A
- Burst current: 50A
- Built-in Switch power
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
FUR-2102 |
| Weight: |
0.1 lb |
Product Spare Parts
Customer Reviews
FURITEK STINGER Brushless Power System for SCX24
This is the third stinger combo that I have purchased. I love this combo.
Super quick to install, runs great, no issues
Best item to customize your motors operation for crawler driving. Plenty of torque with the mini Komodo. A winning purchase.
Very happy with my purchase of the Stinger system for the scx24. The slow speed control with this new setup is absolutely incredible. I am able to take lines now that were near impossible before. I would recommend this system to anyone looking for a solid upgrade.
Overall pretty happy with this set up. Great low end torque and slow speed control, with plenty of punch. It does make a sort of grindy/gritty noise, when I change direction slowly, but it goes away after continuing in the new direction. Kinda weird but otherwise, it’s great.

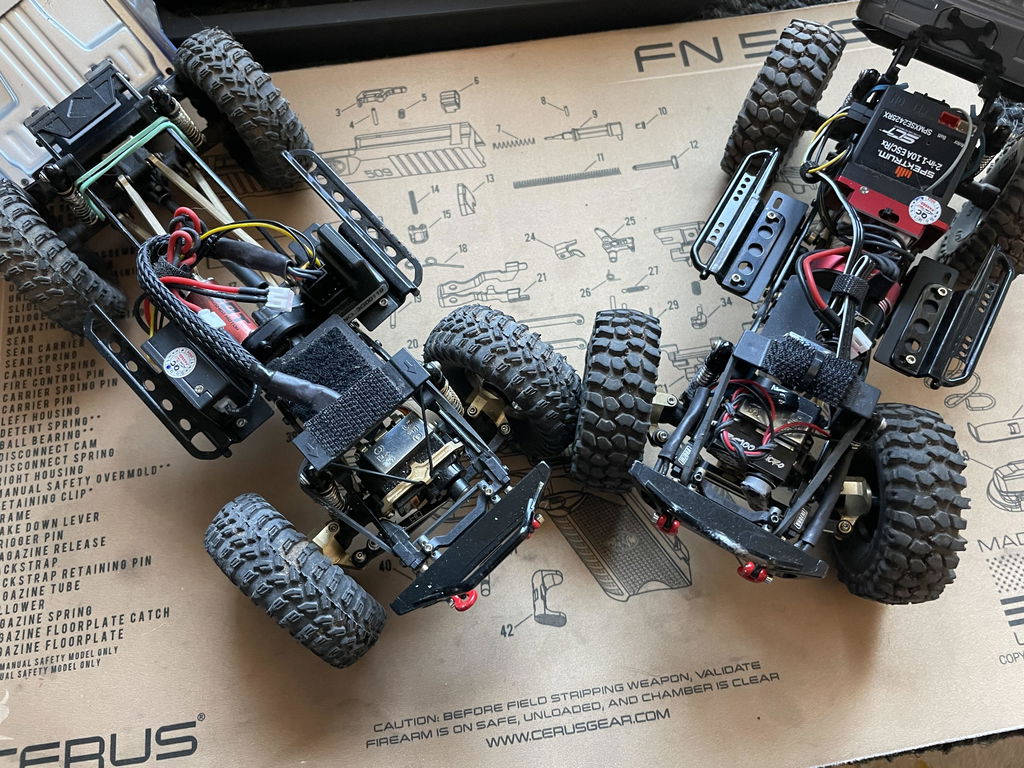

Bought the full set up for a 1/24 custom build and this motor is amazing, super tiny size which is great for tight builds, but very smooth running with an ultra slow crawl and some top end speed as well. I wish the motor mount also came with a transmission case and full set of gears for convenience, would gladly pay for that, but figuring out how to build the tiny transmission and fit all the transmission components together and get it running smooth was also a valuable learning experience. Had a question about binding the avatar rx and tx and customer service was quick and knowledgeable, helped solve my issue in less than 24 hours.
Absolutely love it so far
Awesome combo of the lizard pro and micro komodo!
Havent used this kit as the rest of the parts havent showed up for my new project but have bought the same thing before and loved it enough to buy it again
Customer Reviews
FURITEK STINGER Brushless Power System for SCX24
This is the third stinger combo that I have purchased. I love this combo.
Super quick to install, runs great, no issues
Best item to customize your motors operation for crawler driving. Plenty of torque with the mini Komodo. A winning purchase.
Very happy with my purchase of the Stinger system for the scx24. The slow speed control with this new setup is absolutely incredible. I am able to take lines now that were near impossible before. I would recommend this system to anyone looking for a solid upgrade.
Overall pretty happy with this set up. Great low end torque and slow speed control, with plenty of punch. It does make a sort of grindy/gritty noise, when I change direction slowly, but it goes away after continuing in the new direction. Kinda weird but otherwise, it’s great.
Bought the full set up for a 1/24 custom build and this motor is amazing, super tiny size which is great for tight builds, but very smooth running with an ultra slow crawl and some top end speed as well. I wish the motor mount also came with a transmission case and full set of gears for convenience, would gladly pay for that, but figuring out how to build the tiny transmission and fit all the transmission components together and get it running smooth was also a valuable learning experience. Had a question about binding the avatar rx and tx and customer service was quick and knowledgeable, helped solve my issue in less than 24 hours.
Absolutely love it so far
Awesome combo of the lizard pro and micro komodo!
Havent used this kit as the rest of the parts havent showed up for my new project but have bought the same thing before and loved it enough to buy it again
