Futaba T26SZ 26-Channel FASSTest 2.4 GHz System Heli Radio w/ R7208SB Receiver

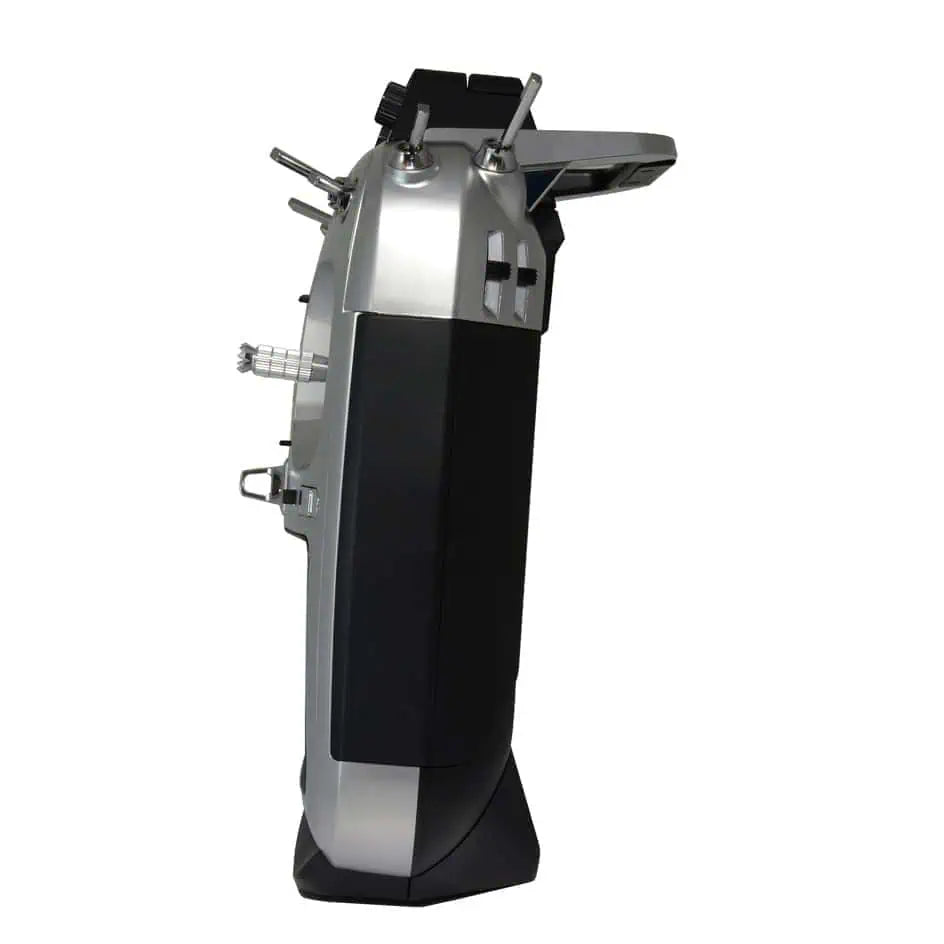

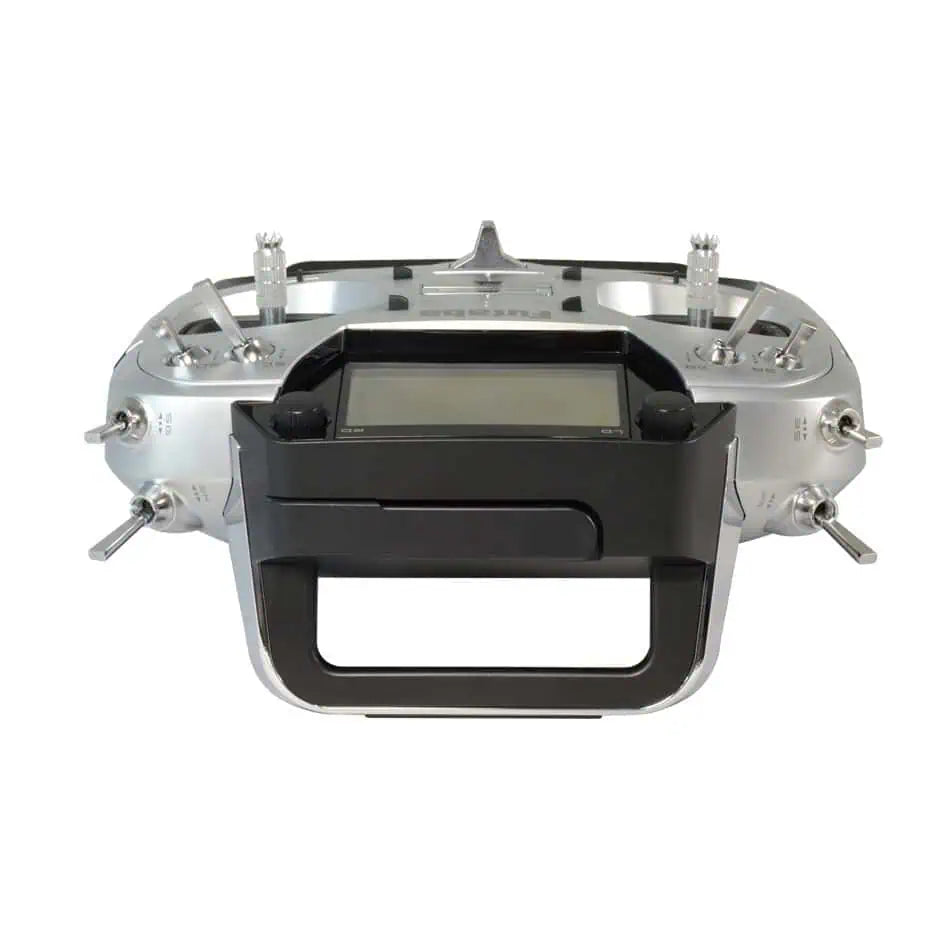

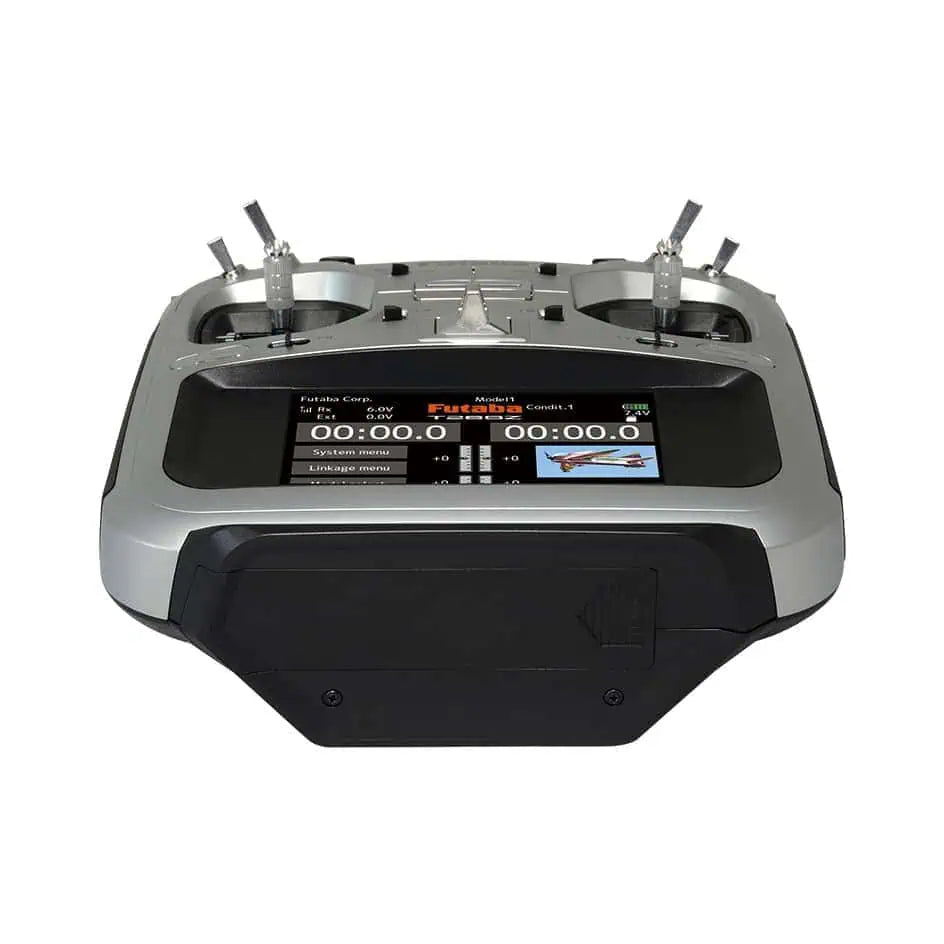

26SZ Transmitter – 26-Channel Digital Proportional RC System
2-Stick, 26-Channel, FASSTest 2.4 GHz System
FEATURES
FASSTEST SYSTEM:
The 26SZ transmitter has adopted the bidirectional communication system “FASSTest.” Data from the receiver can be checked in your transmitter. FASSTest is a dedicated system with a maximum of 26 channels and 2.4 GHz.
COLOR TOUCH SCREEN LCD:

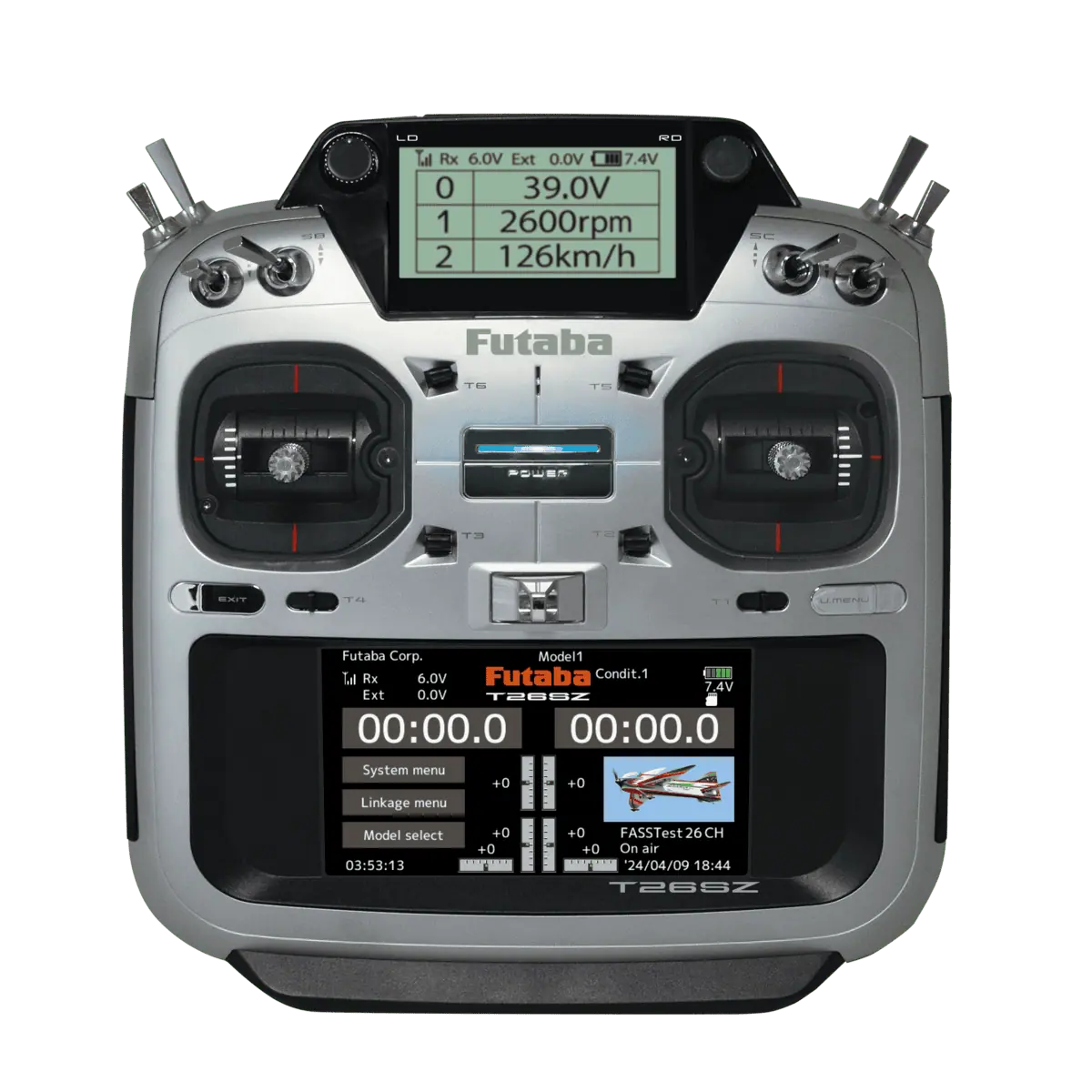

T26SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
S.BUS2 SYSTEM:
Using the S.Bus2 system, multiple servos, gyros, and telemetry sensors can be easily installed with a minimum of cables.
MODEL TYPES:
Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.
LIFE BATTERY:
The 26SZ is operated by a 6.6 V/2,100 mAh Lithium Ferrite battery.
SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED:
Model data can be saved to an SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T26SZ transmitter software files are released, the software can be updated by using an SD card update.
EDIT BUTTON:
Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.
VIBRATION FUNCTION:
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.
SPEECH FUNCTION:
A function is equipped to allow the system to provide audible telemetry data. This function can also be utilized with commercially available earphones.
TRANSMITTER SPECS
TRANSMITTER FREQUENCY:
2.4 GHz band
SYSTEM:
FASSTest26CH, FASSTest18CH, FASSTest12CH, T-FHSS, S-FHSS, switchable
POWER SUPPLY:
7.5V FT2F2100BV2 LiPo battery
FREQUENCY BAND:
2.4 GHz
RF POWER OUTPUT:
100mW EIRP
RECEIVER SPECS

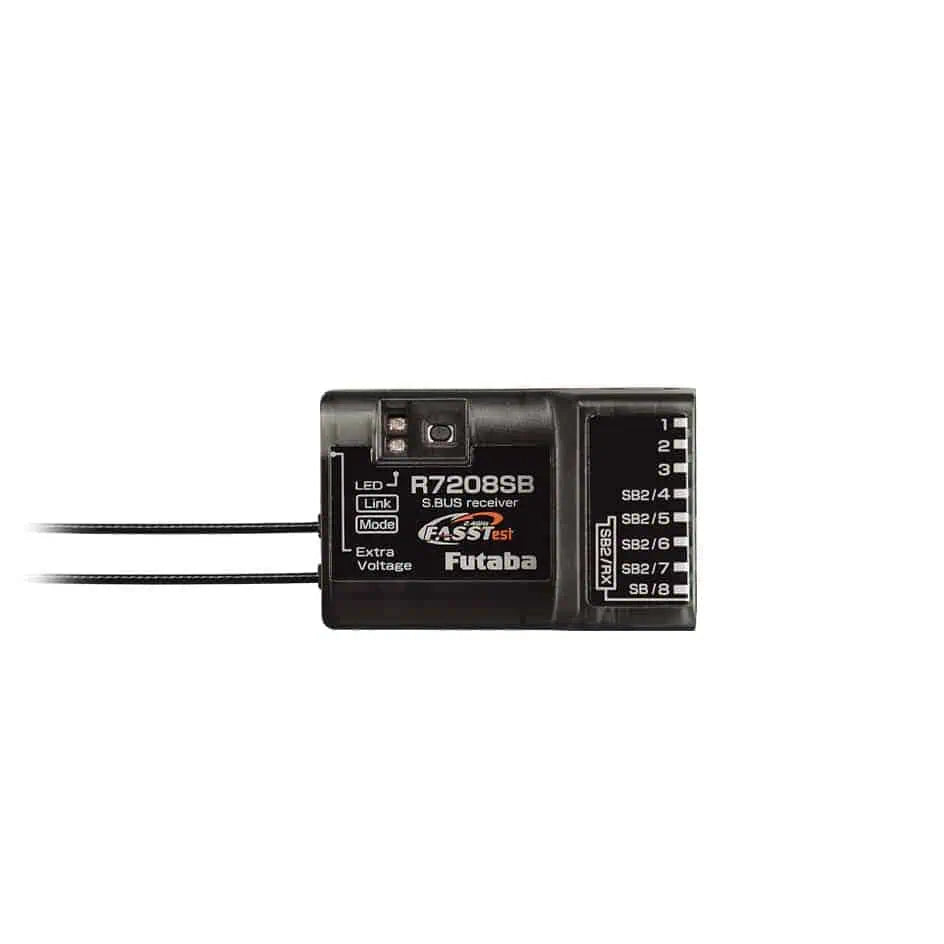

R7208SB
SIZE:
24.9 x 47.3 x 14.3 mm
0.98 x 1.86 x 0.56 in
WEIGHT:
12.0 g
0.42 oz
POWER REQUIREMENTS:
7.4 V LiPo Battery
CURRENT DRAIN:
75 mA
RF POWER OUTPUT:
25 mW EIRP
CONTENTS
YOUR T26SZ INCLUDES THE FOLLOWING COMPONENTS:
- T26SZ Transmitter
– Helicopter Version includes smooth throttle - R7208SB or R7214SB receiver
- LT2F2000 Battery
- Switch Harness
- Mini Driver
*NOTE: The battery in the T26SZ transmitter does not arrive already attached to the battery connector. Please connect the battery connector before use.
