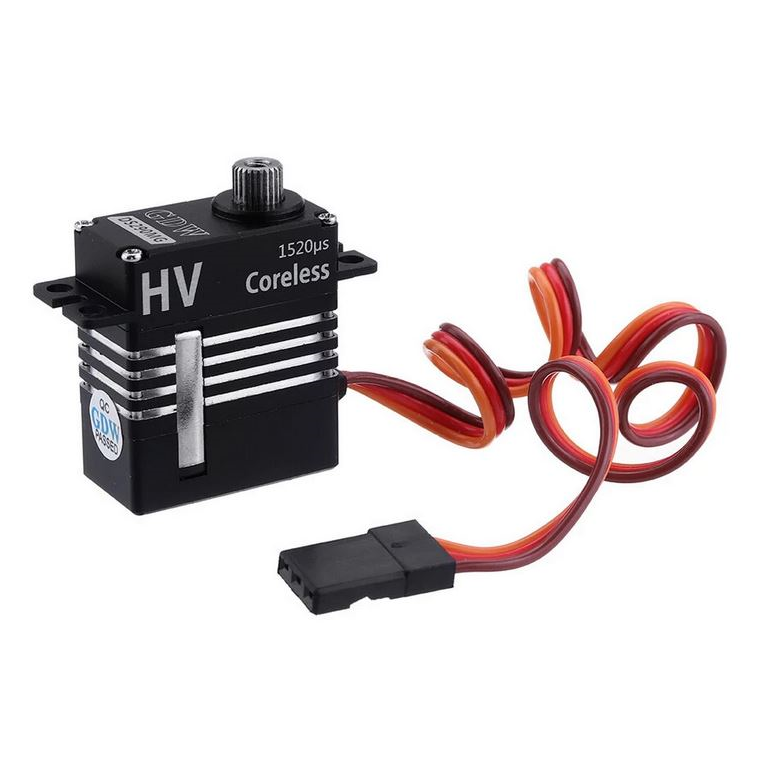

GDW DS290MG 5.6Kg Micro Metal HV Digital Cyclic Coreless Servo

Specifications:

• Working Frequency: 1520us/333Hz
• Operating voltage range: 4.8V – 8.4V
• Motor: Coreless
• Dimensions: 23mm (32mm) x 12mm x 27.3mm
• Motor type: Coreless motor 12mm
• Horn gear spline: 25T ⌀ 4.9mm
• Wire diameter: 0.15mm²
• Number of wire cores: 30
• Weight: 21g ± 1g

Speed:

• 0.052sec/60 @ 8.4V
• 0.065sec/60 @ 7.4V
• 0.072sec/60 @ 6.0V

Torque:

• 5.6Kg/cm @ 8.4V
• 4.8Kg/cm 7.4V
• 4.1Kg/cm 6.0V

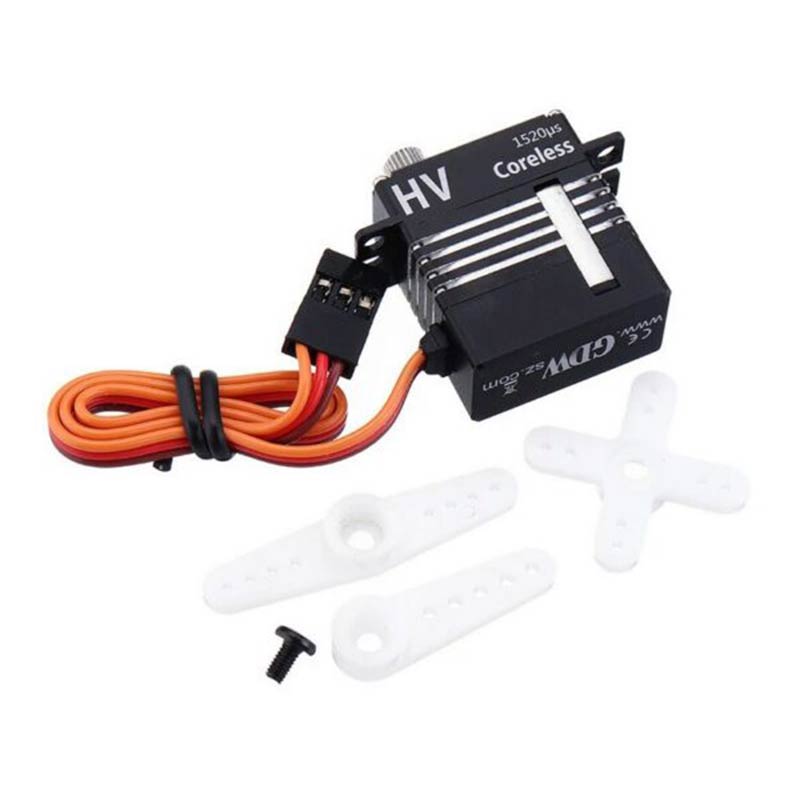

Package Includes:

• 1 x GDW DS290MG Digital Servo
• 1 x Servo horn set
