Description:

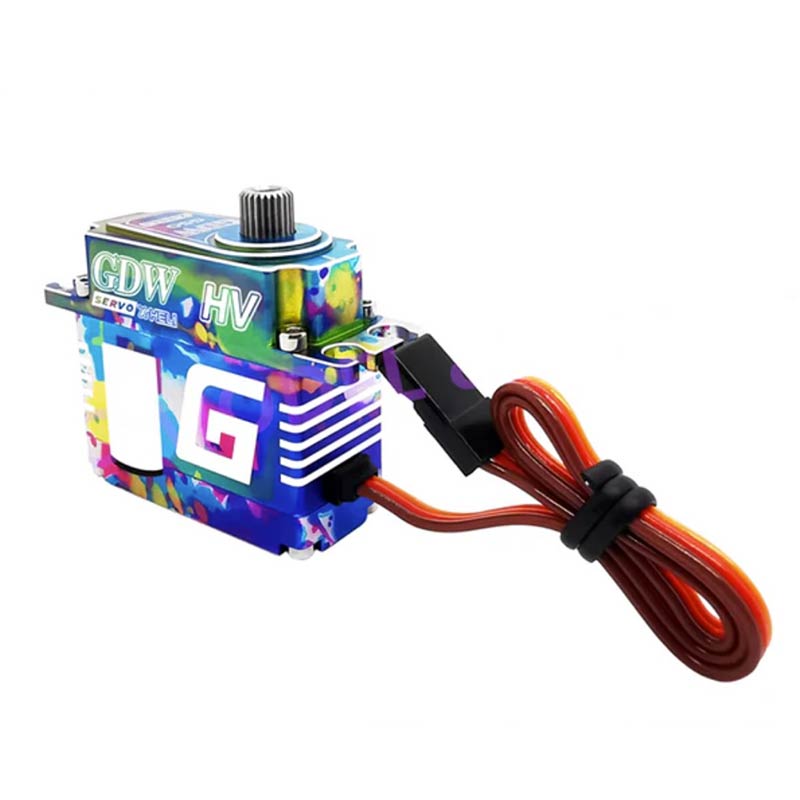

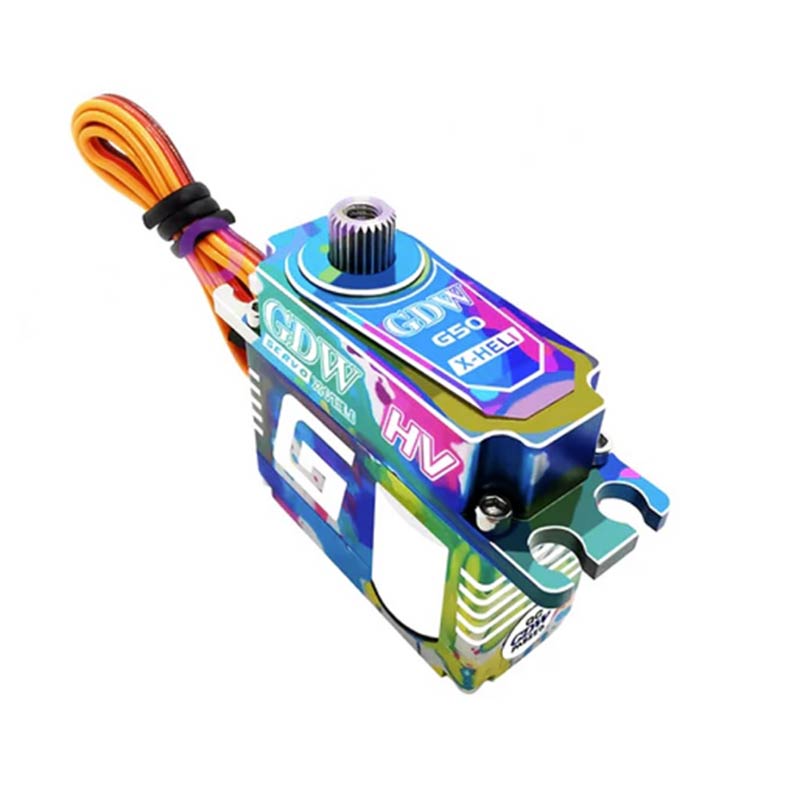

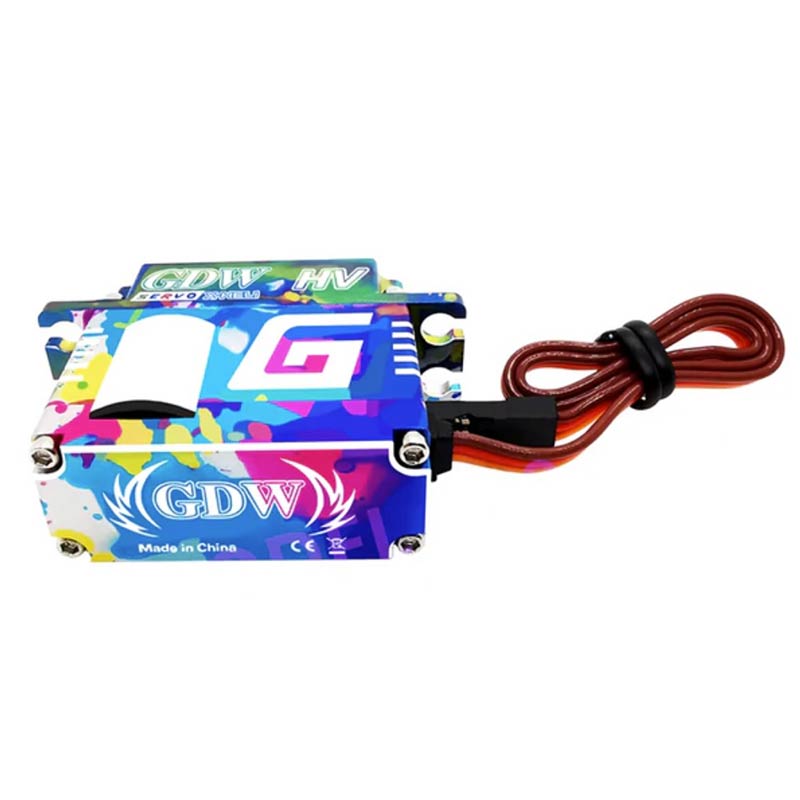

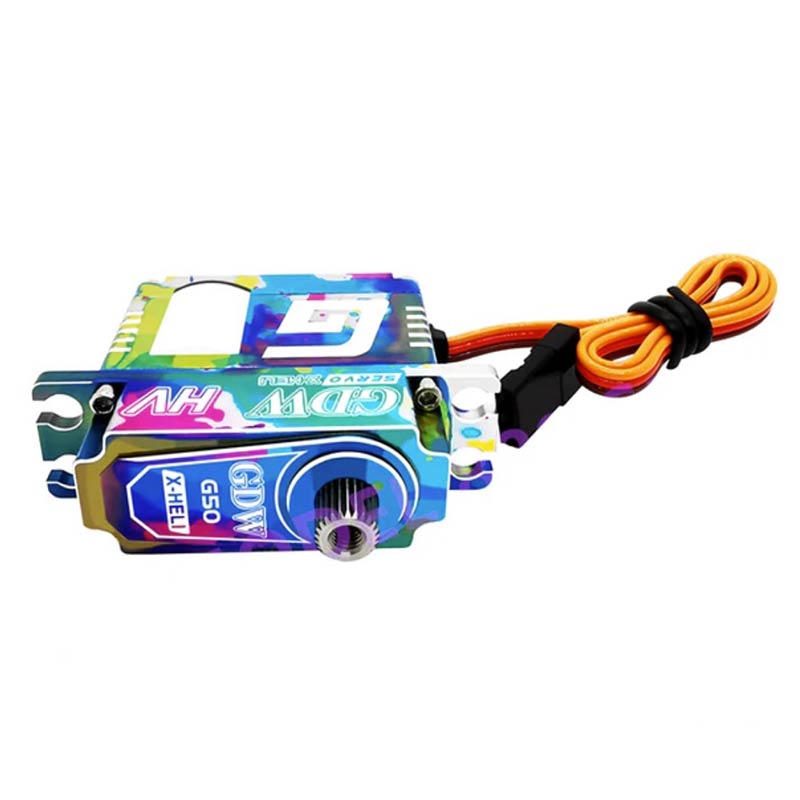

GDW G50 HV Digital Servo
Mini Size Servo
Operating voltage range: 4.8V - 8.4V
Working frequency: 1520µs / 333Hz
Dimensions: 36mm (48mm) x 15mm x 32mm
Weight: 47g ± 1g
Bench test values:
9.0kg.cm/0.09sec/60°@6.0V
10.0kg.cm/0.08sec/60°@7.4V
11.0kg.cm/0.07sec/60°@8.4V
Dead band: 2µs
Motor type: Brushless motor 17mm x 15mm
Horn gear spline: 25T ⌀ 5.9mm
Wire length: 220mm ± 5mm
Wire diameter: 0.15mm2
Number of wire cores: 30
Application: For SAB505 XL520 ALZRC 500X RC Helicopter, 50E/70E RC Airplane, other RC Models.
| Vendor: | GDW Servo |
| SKU: | GDW-G50 |
| Barcode: | GDW-G50 |
| Availability: | Out Of Stock |
| Product Type: | Heli Servo |
| Weight: | 8.0 oz |
