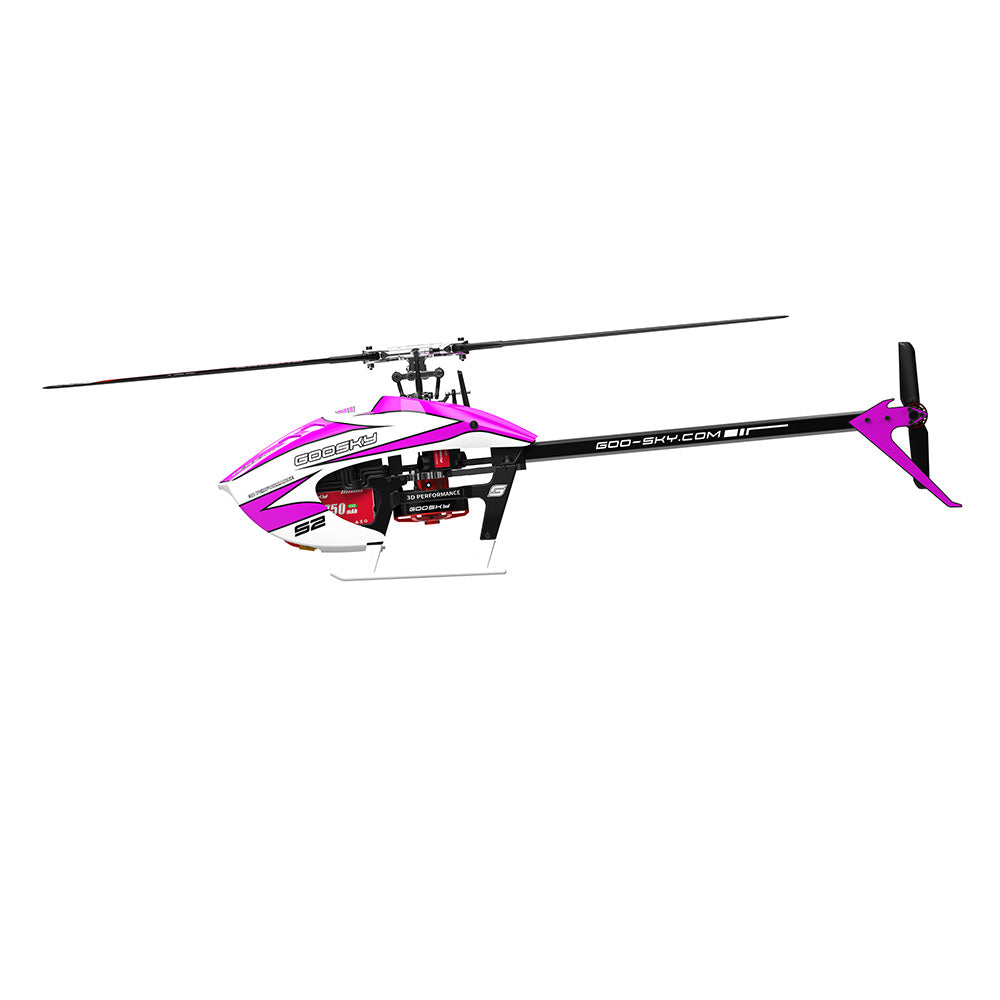

GOOSKY S2 MAX

REDEFINE THE FLIGHT EXPERIENCE

- BNF Version -

SEAMLESS CONTROL, STUNNING IN MOTION AND STILLNESS, PERFORMS BRILLIANTLY ANYWHERE, ANYTIME.

The S2 Max arrives with brand-new features after three years of refinement, delivering a stunning flying experience! Newly developed brushless direct-drive motor for more efficient power transfer and easier maintenance; Independent flight controller and ESC units for precise, reliable control and seamless expandability; New main and tail rotor designs surpass the previous generation in shape and craftsmanship. offering unparalleled performance.

The redesigned airframe stack reduces screws by 30%, making assembly and disassembly easier and more reliable.

The streamlined canopy features GOOSKY's latest family design aesthetic while retaining the classic, tool-free battery replacement for ease during flight.

Product Parameters

• Length: 440mm
• Height: 138mm
• Width: 74mm
• Main Rotor Length: 195mm
• Main Rotor Diameter: 444mm
• Tail Rotor Diameter: 88.5mm
• Takeoff Weight: About 360g
• Battery: 11.1V 750mAh 8.325wh
• Flight Time: About 10 minutes (regular), 4 minutes (aggressive)

Features

Main Rotor

From blade design to manufacturing craftsmanship, it surpasses the previous generation in every aspect. Its unparalleled performance takes your flying experience to a whole new level.

Tail Rotor

The all-new tail rotor, specially designed for the S2Max, delivers significantly improved performance and efficiency, with noticeably reduced noise, enhanced safety, and greater reliability.

Brand-New Flight Control Design

The brand-new flight control design offers a 50% increase in resolution and supports ELRS protocol telemetry.

Built-in S-FHSS protocol, compatible with S-BUS, PPM, DSM-X interface

ESC

Split-Type ESC

High Power Density Motor

Newly designed high-power density motor delivers a 20% increase in power output.

Reduced Screw Count

The total number of screws has been reduced by 30% for a shorter maintenance time.

BEC

Upgraded from 5V to 7.4V.

Side Panel

Integrated carbon-plastic fuselage side panel.

ESC Terminals

Brand-new integrated ESC terminals: more stable and easier to maintain.

Landing skid

Newly designed landing skid.

Various Colours Available:

Purple, Blue, Orange

Package Includes

• 1pc Helicopter
• 1pc EPP box
• 1pc Battery
• Some spare screw
• 3pcs spare servo arms
• 1pc spare main shaft
• 1pc spare horizontal axis
• 1pc Bluetooth Module

Recommended ELRS Configurations by Nick Wisdom:

Receiver: Goosky ExpressLRS Receiver GT000132

Channel Map:

• Ch 1: Aileron
• Ch 2: Elevator
• Ch 3: Throttle
• Ch 4: Rudder
• Ch 5: Auto Level (red light blinking = off)
• Ch 6: Collective Pitch
  There is no arming channel so be sure and setup a throttle cut.

Telemetry Configurations:

• Elrs Rate: 333
• Telemetry Rate: Standard
