HobbyPlus CR-18P EVO PRO FURITEK STARTER BRUSHLESS POWER SYSTEM WITH RECEIVER FOR HOBBY PLUS EVO PRO

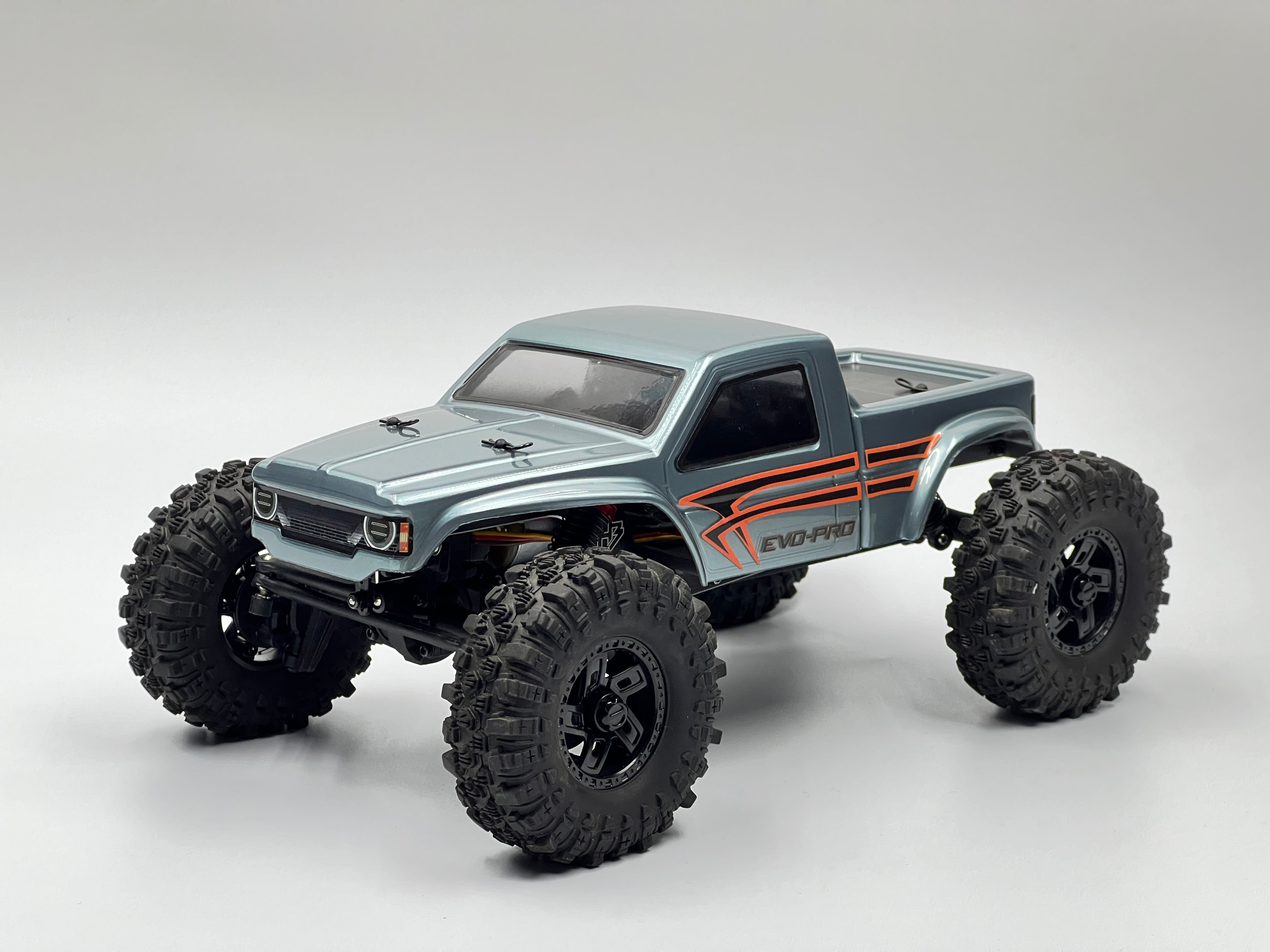

Introducing CR-18P EVO-PRO

HobbyPlus RC started with micro crawlers in 2018 and made the world’s first hobby-grade
scale crawler in 2019. A few years down the road, we have introduced the CR-18, the
CR-18P and CR-18P EVO series. With feedback from dealers and users, we have
learned that performance is of the utmost importance with small-scale crawlers. The
userbase in this category is growing very fast.
The expectation of users nowadays is different. They wish to have a small-scale RC that
can be enjoyed not only on the tabletop indoors but also outdoors under extreme
conditions.

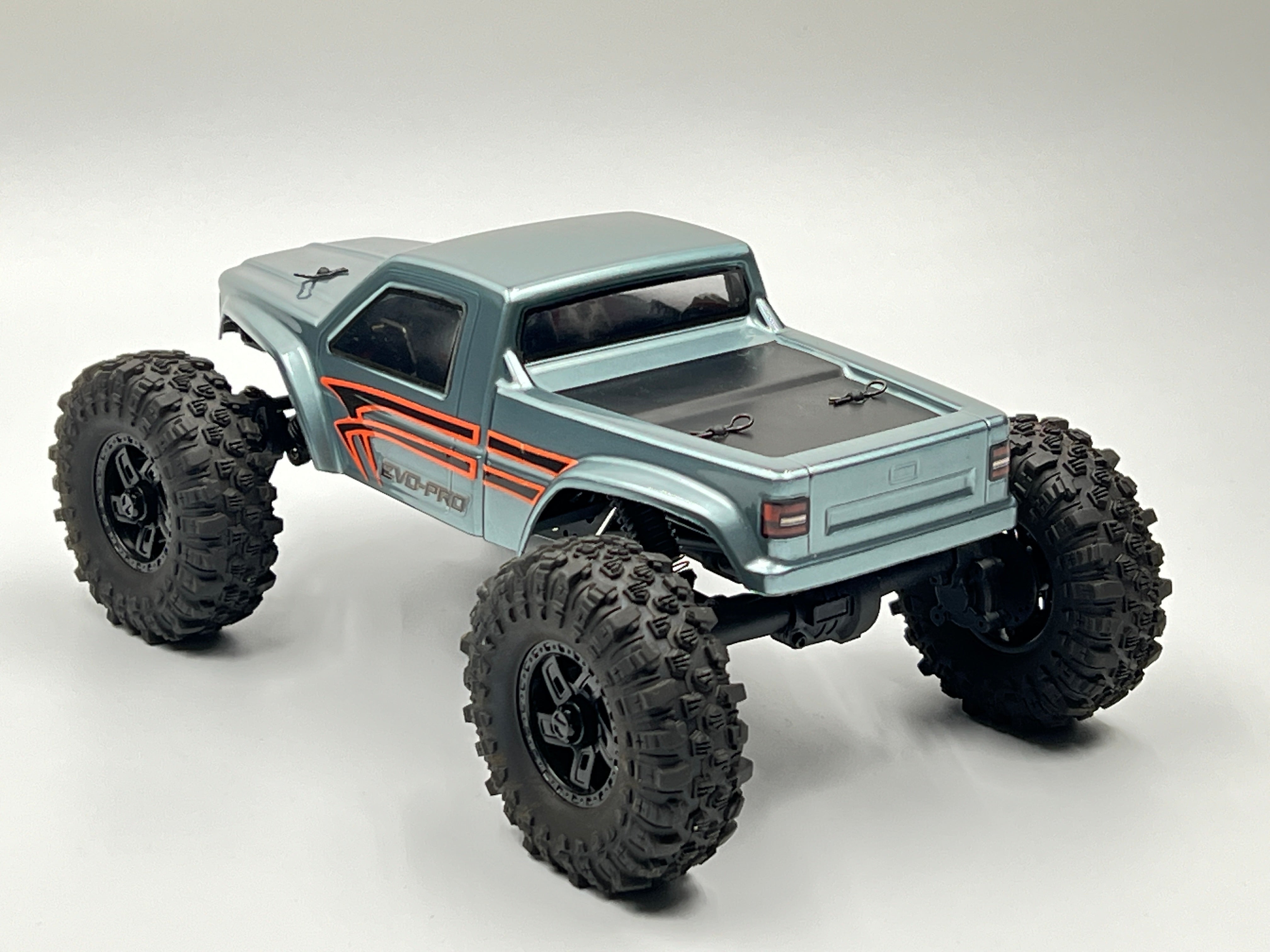

This brings us to our latest creation, the new EVO-PRO. The new PRO version is
designed for those looking for a small scaler that has comp-level performance and
durability. It is designed with a new LCG-concept chassis frame, and revised shock
geometry with big-bore oil shocks for better articulation while crawling.
New servo-on-axle (SOA) setup has been designed for sharper steering, and will be aided
by sticky oversize tires, giving users maximum traction on all terrain. The layout of the
chassis has also been redesigned with better weight bias, and a more powerful 280 size
big-block motor has been included to make sure users get the best crawling experience.
To accommodate the new motor, we have designed a new heavy duty driveshaft for the
EVO-PRO!

Vehicle Spec

Shock: oiled-filled Coil spring Wheel: Internal bead lock
Tire: 68mm competition-spec Super Soft Rubber
Electronics
Transmitter TX: 2.4ghz 4channel
RX: 4ch (PPX4 grade water resistant)

Features
- New angle motor LCG aluminum chassis frame
- New servo on axle (SOA) design
- New Big Block 280size brushed motor
- New big-bore oil shocks with aluminum caps
- New electronics layout design
- New ultra-lightweight pinched LCG body
- New 68mm high-performance comp-spec tires
- New heavy-duty plastic driveshaft
- Full metal gears in transmission gearbox and axles
- 2-speed transmission gearbox
- More track width (10mm wider than CR18P EVO)

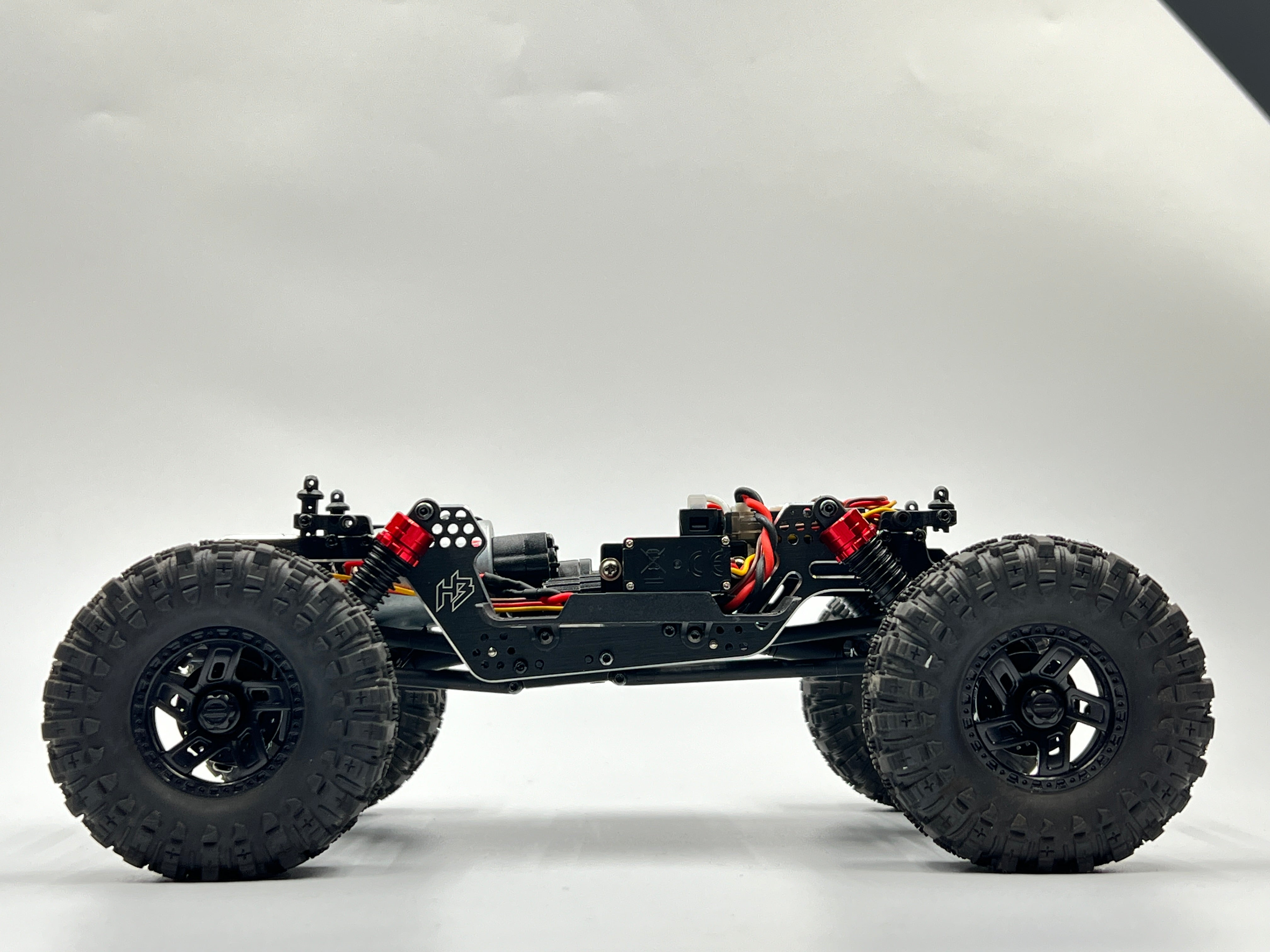

New LCG Chassis frame

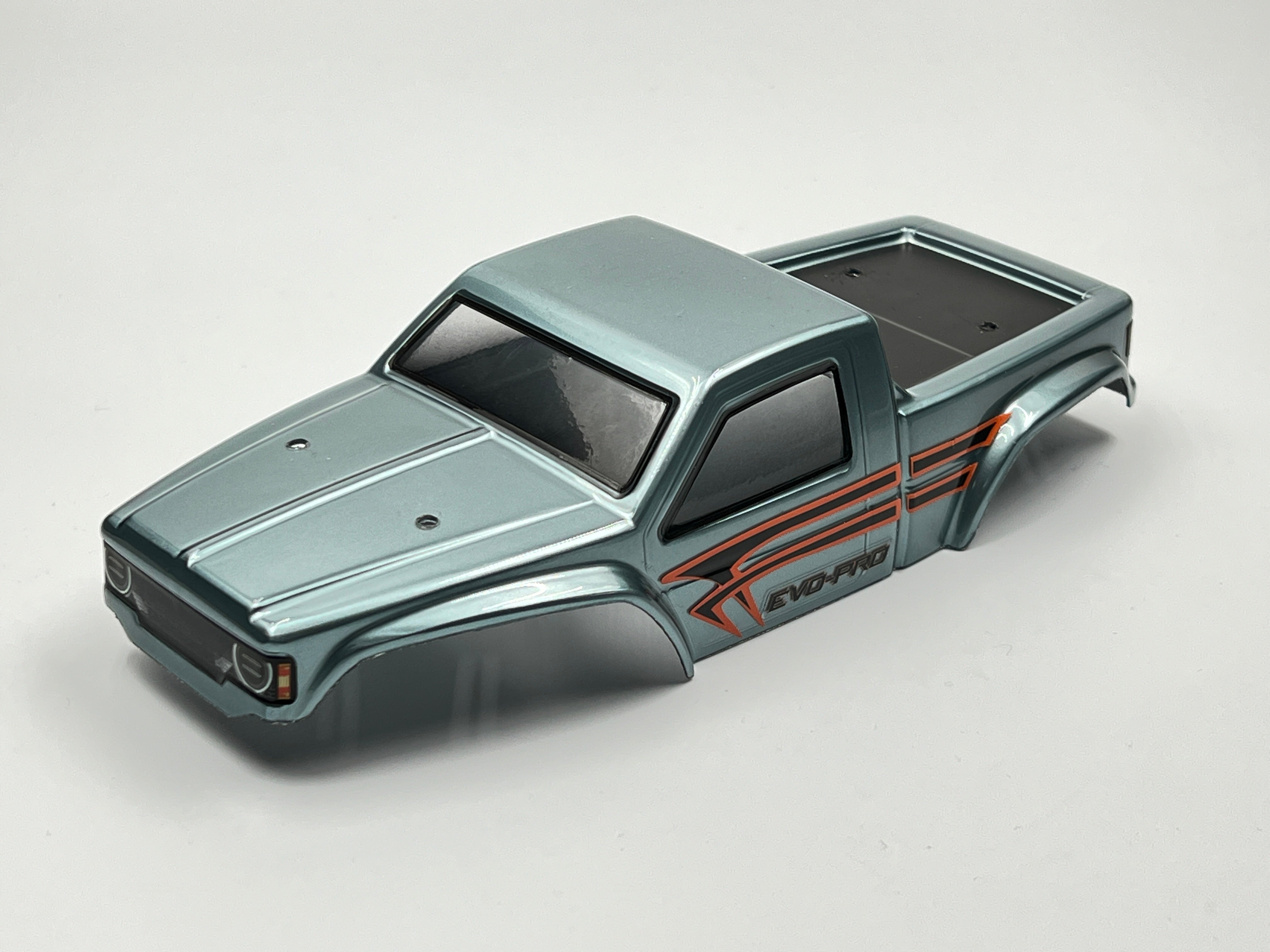

New ultra-light weight LCG pinched body

New super sticky compound 1.2inch tire (68mm OD, 23.5mm width )

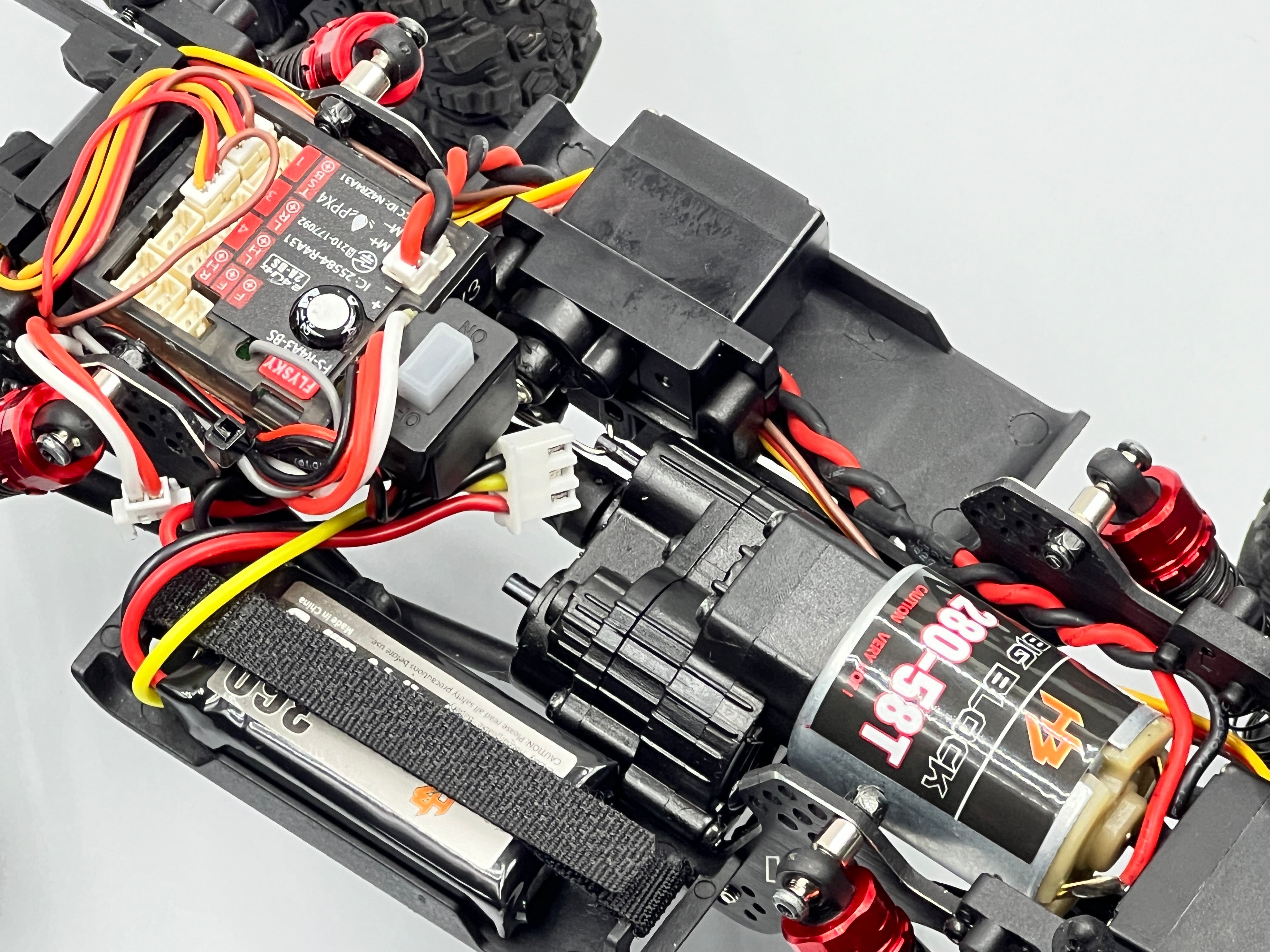

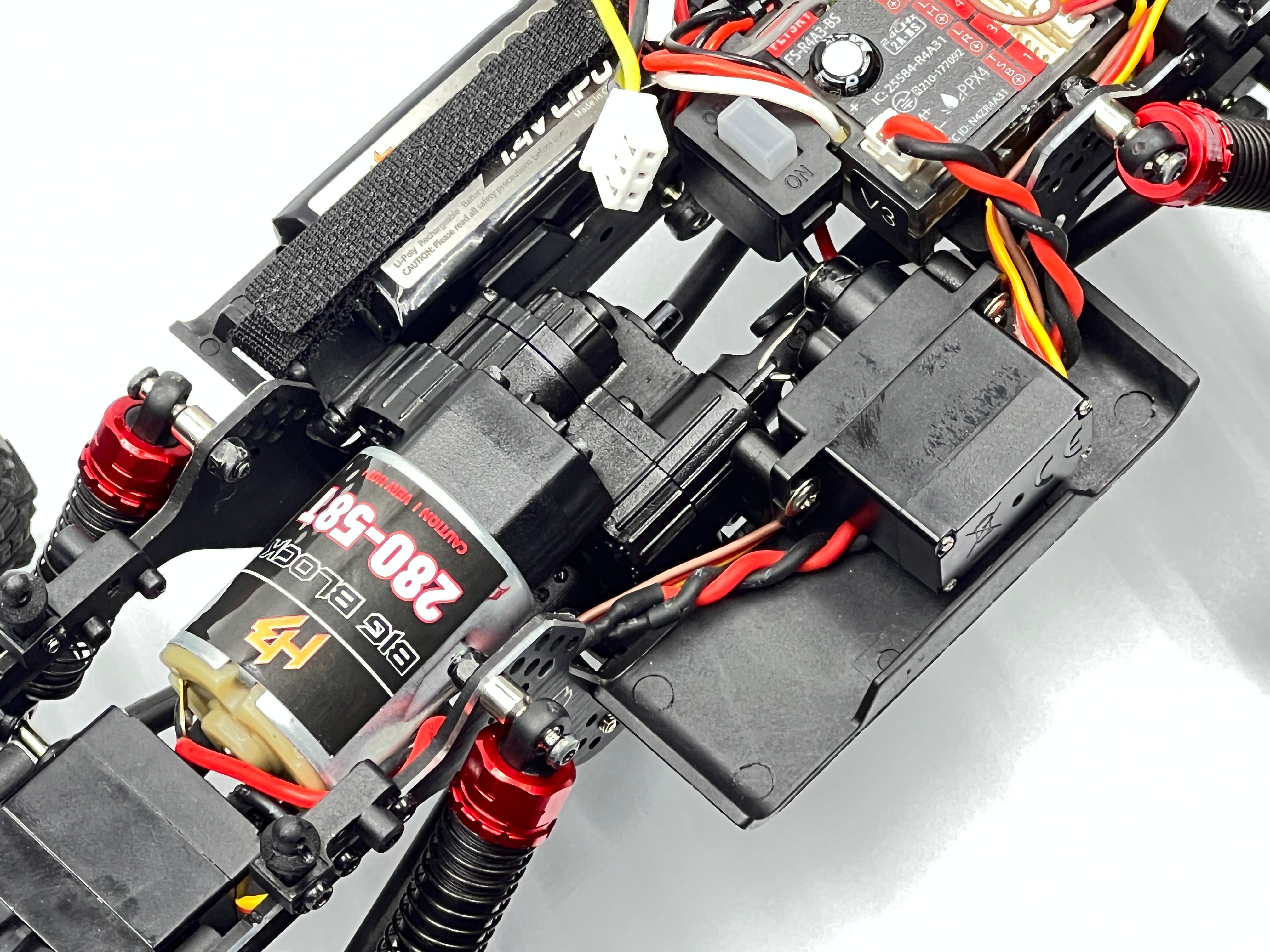

New electronics layout for better weight bias ( Front/Rear/Left/Right 50:50 )

New LCG chassis angle ( more rear clearance and lower motor CG )

New high volume big bore oil shocks with aluminum cap and retainer

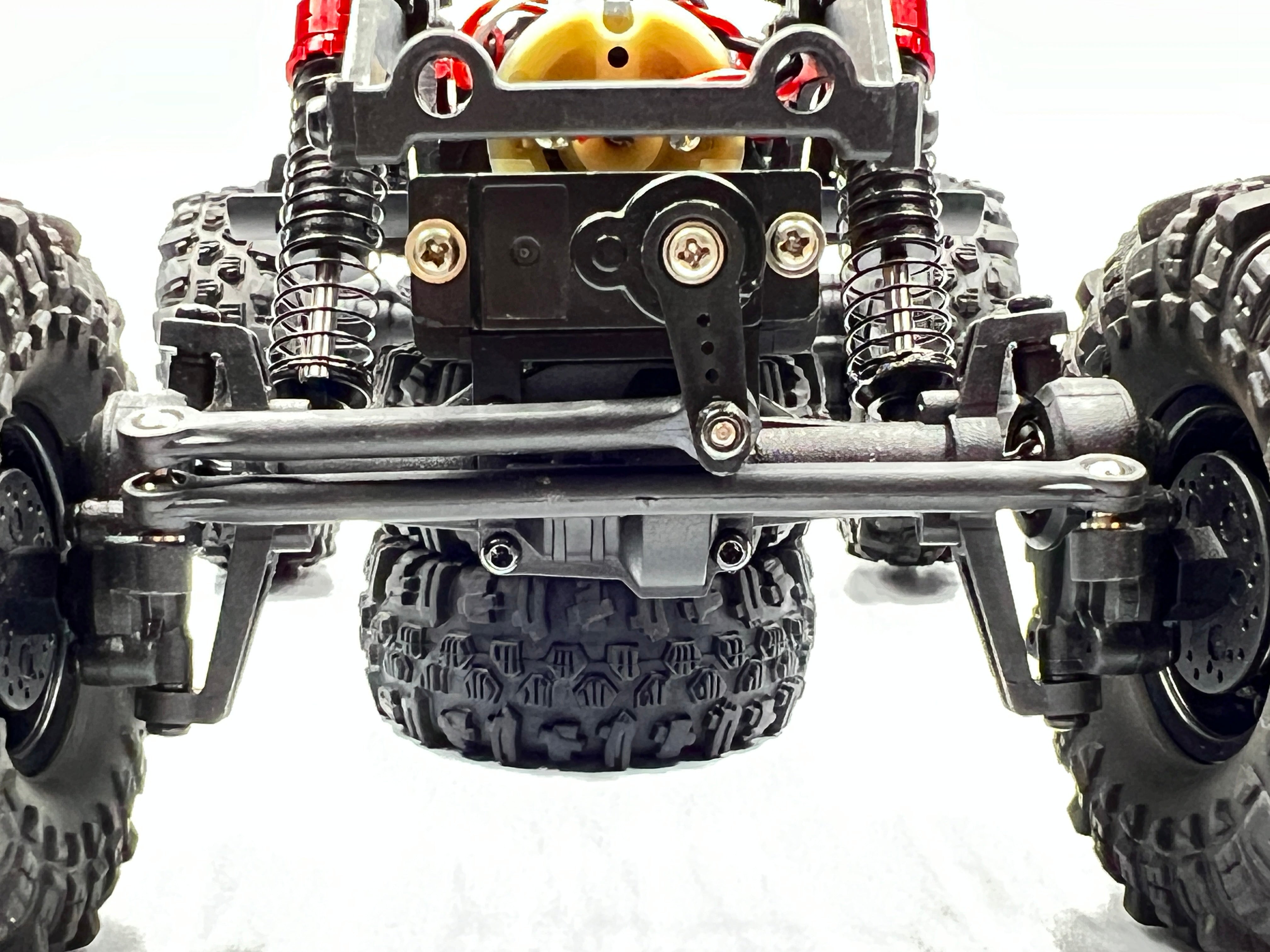

New servo-on-axle setup ( SOA )

Newly developed heavy-duty drive shaft

New 58T 280 Big-Block High-Power Motor

Track width increase of 10mm

FURITEK STARTER BRUSHLESS POWER SYSTEM WITH RECEIVER FOR HOBBYPLUS EVO PRO

SUPPORT 2S LIPO only

Introducing the Furitek STARTER brushless power system for Hobby Plus Evo Pro, the system includes the VENOM 1212 3450kv with lighter and smaller size yet very powerful at low speed but also more powerful and fast at high speed, a Lizard Pro esc. The motor is designed with high torque at low speed crawling and with a special firmware from the Lizard Pro ESC, this motor is super smooth without any cogging at both low and high speed operation. This power system is a complete drop-in combo for Evo Pro even compatible with stock battery. With Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.

Features:
- A smaller and lighter brushless motor VENOM for low C.G. setup same like stock
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Wireless module for wireless connection
- Precision CNC brass pinion for long-lasting operation
- Powerful at low speed but also more powerful and fast at high speed
- High torque at low speed crawling
- Super smooth without any cogging at both low and high speed operation¬
- Compatible with stock battery
- Lifetime FREE firmware upgrade!

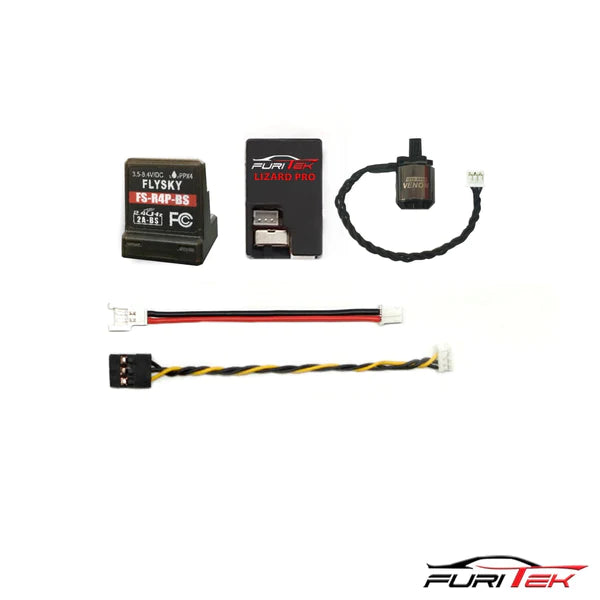

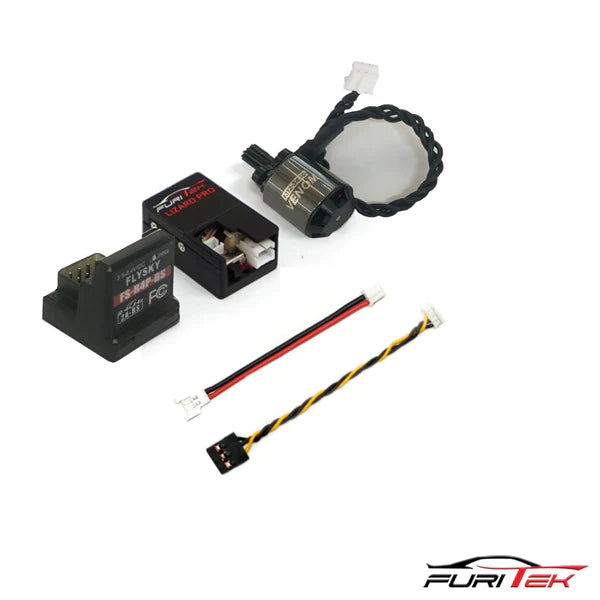

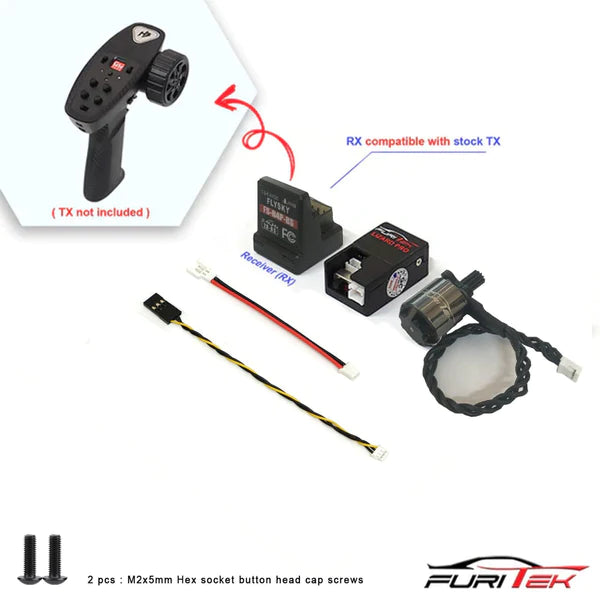

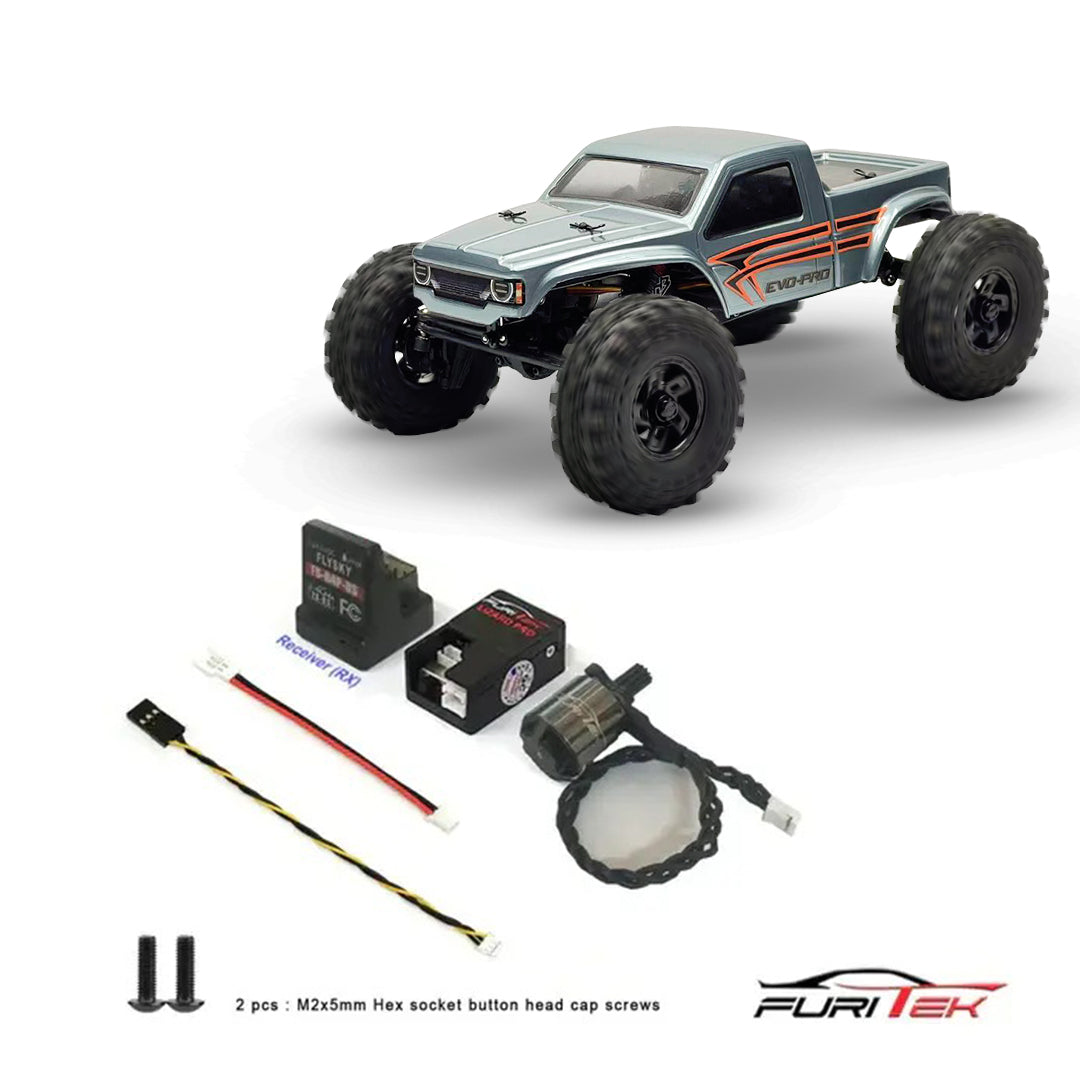

Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR FCX24 WITH FOC  TECHNOLOGY with enclosing plastic case
- 1 x built-in Wireless module
- 1 x VENOM 1212 3450KV brushless motor
- 1 x 11T CNC Steel Pinion
- 1 x Furitek Receiver 4CH

Motor Features and Specs
Features:
- 12 Pole hi-torque motor design.
- Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
- Japansese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses,
very good heat dissipating, maximizes efficiency.

Specifications:
- KV (RPM/Motor) – 3450
- No-load current @10V – 0.7A
- Watt – 120W
- Battery – 2S
- Resistance – 0.16 Ohms
- Max Current – 10A
- Slot/Pole – 12
- Motor size (mm) – 15.5x20.6
- Shaft (mm) – 2x6
- Weight (g) – 17.5

ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for FMS FCX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz

Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in bluetooth module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram
