HobbyPlus CR-18P EVO PRO With TORQ MLS-1024 Premium DIRECT-MOUNT Servo

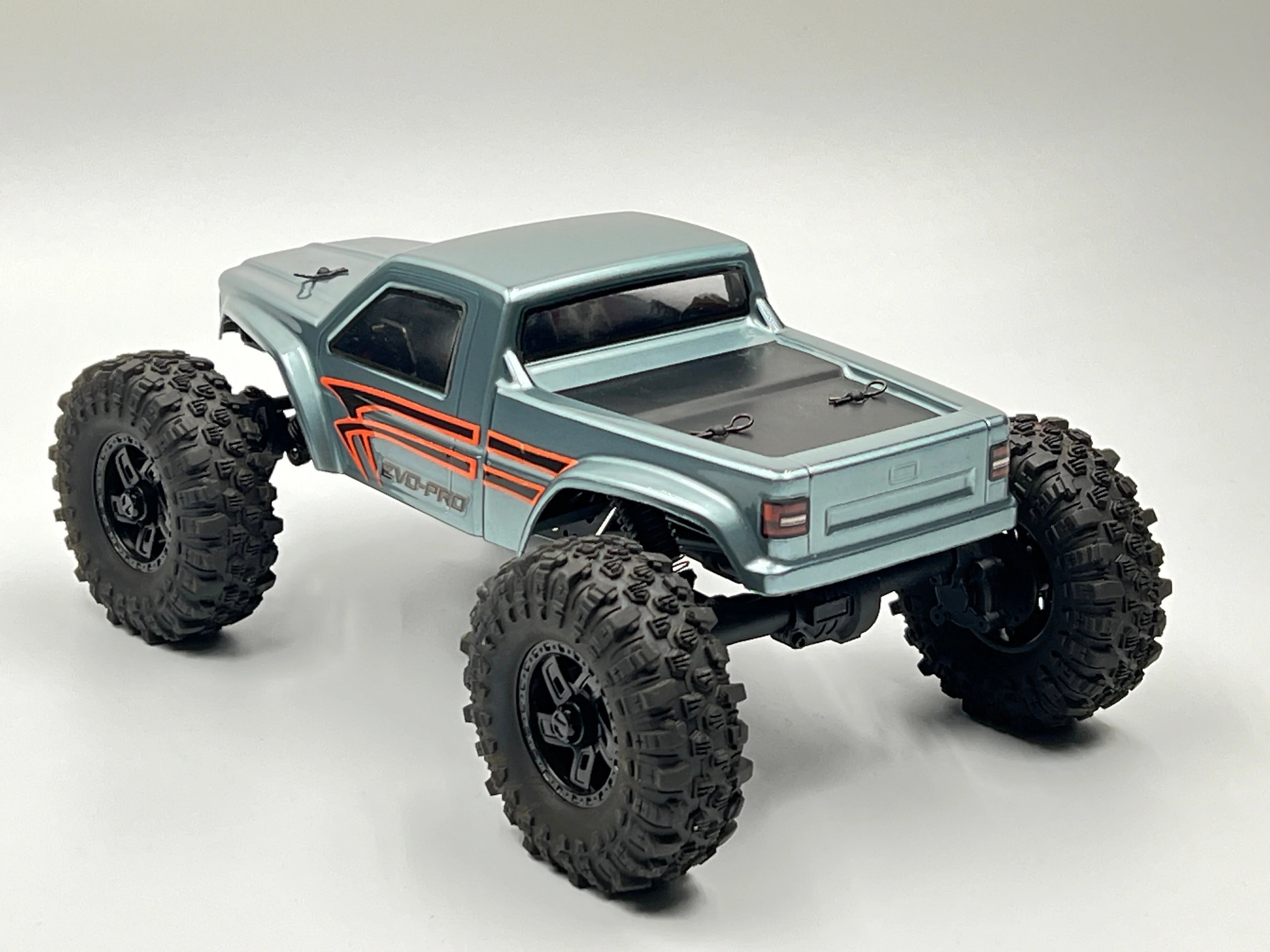

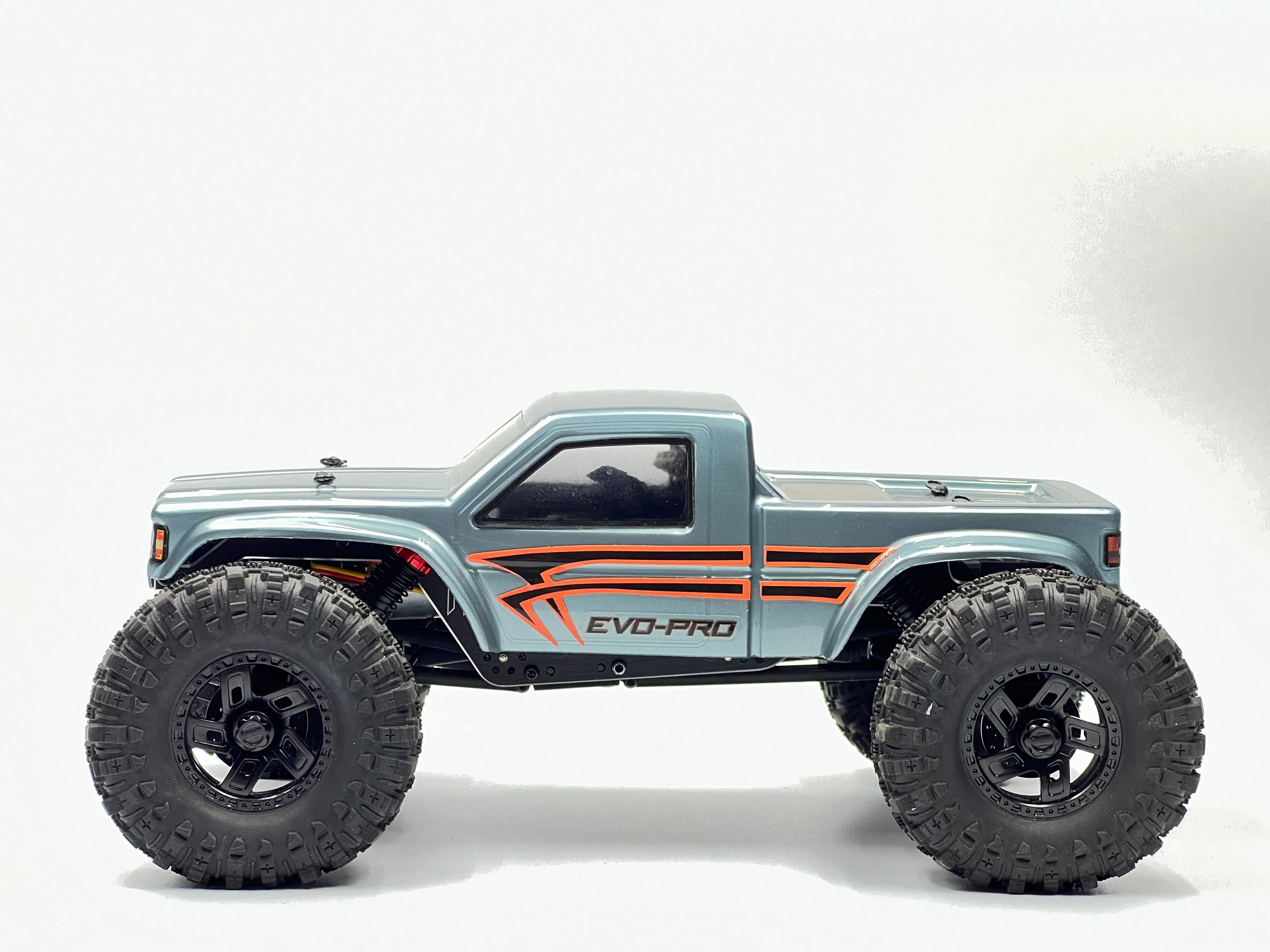

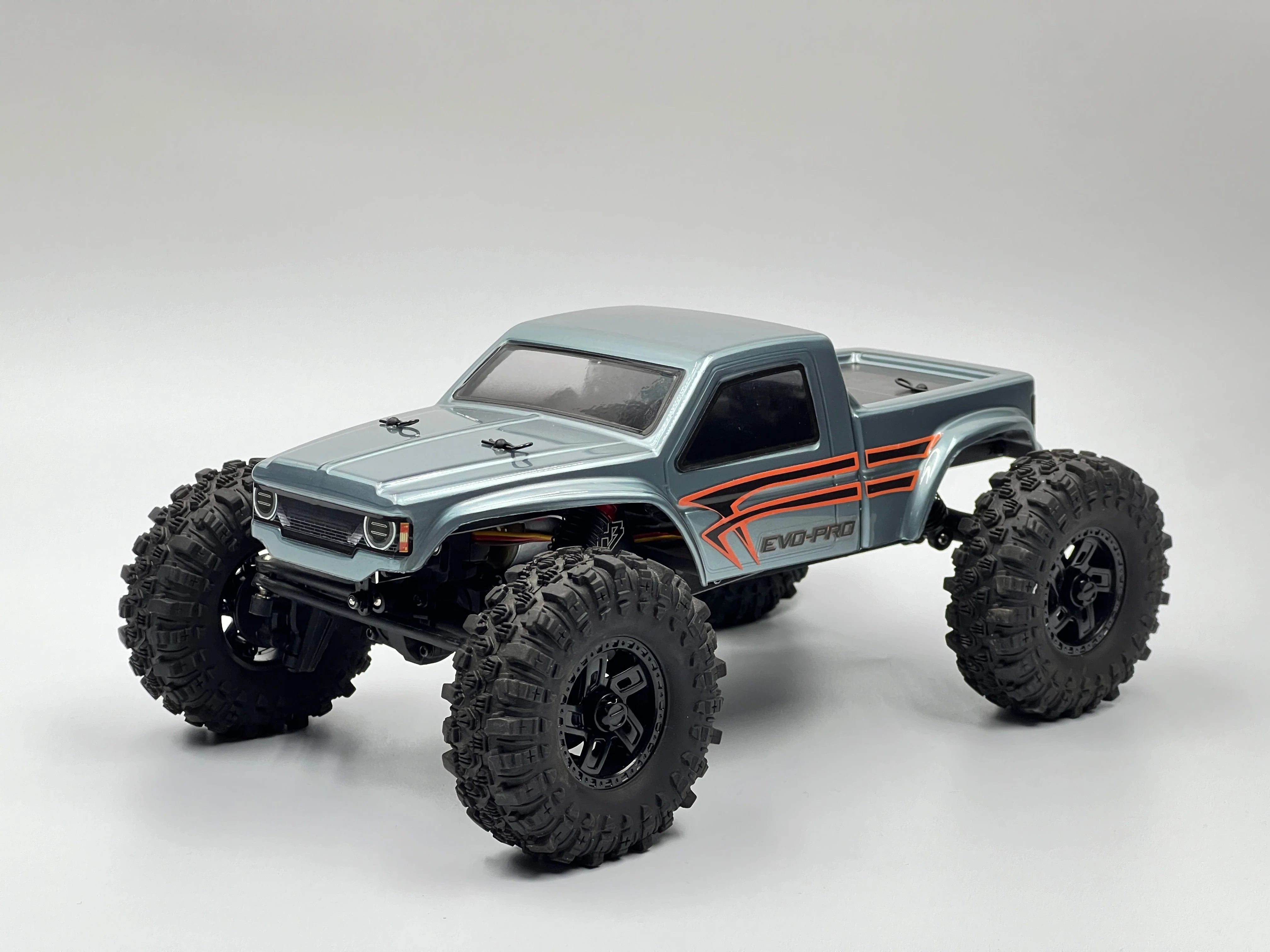

Introducing CR-18P EVO-PRO

HobbyPlus RC started with micro crawlers in 2018 and made the world’s first hobby-grade
scale crawler in 2019. A few years down the road, we have introduced the CR-18, the
CR-18P and CR-18P EVO series. With feedback from dealers and users, we have
learned that performance is of the utmost importance with small-scale crawlers. The
userbase in this category is growing very fast.
The expectation of users nowadays is different. They wish to have a small-scale RC that
can be enjoyed not only on the tabletop indoors but also outdoors under extreme
conditions.
This brings us to our latest creation, the new EVO-PRO. The new PRO version is
designed for those looking for a small scaler that has comp-level performance and
durability. It is designed with a new LCG-concept chassis frame, and revised shock
geometry with big-bore oil shocks for better articulation while crawling.
New servo-on-axle (SOA) setup has been designed for sharper steering, and will be aided
by sticky oversize tires, giving users maximum traction on all terrain. The layout of the
chassis has also been redesigned with better weight bias, and a more powerful 280 size
big-block motor has been included to make sure users get the best crawling experience.
To accommodate the new motor, we have designed a new heavy duty driveshaft for the
EVO-PRO!

Vehicle Spec

Shock: oiled-filled Coil spring Wheel: Internal bead lock
Tire: 68mm competition-spec Super Soft Rubber
Electronics
Transmitter TX: 2.4ghz 4channel
RX: 4ch (PPX4 grade water resistant)

Features
- New angle motor LCG aluminum chassis frame
- New servo on axle (SOA) design
- New Big Block 280size brushed motor
- New big-bore oil shocks with aluminum caps
- New electronics layout design
- New ultra-lightweight pinched LCG body
- New 68mm high-performance comp-spec tires
- New heavy-duty plastic driveshaft
- Full metal gears in transmission gearbox and axles
- 2-speed transmission gearbox
- More track width (10mm wider than CR18P EVO)

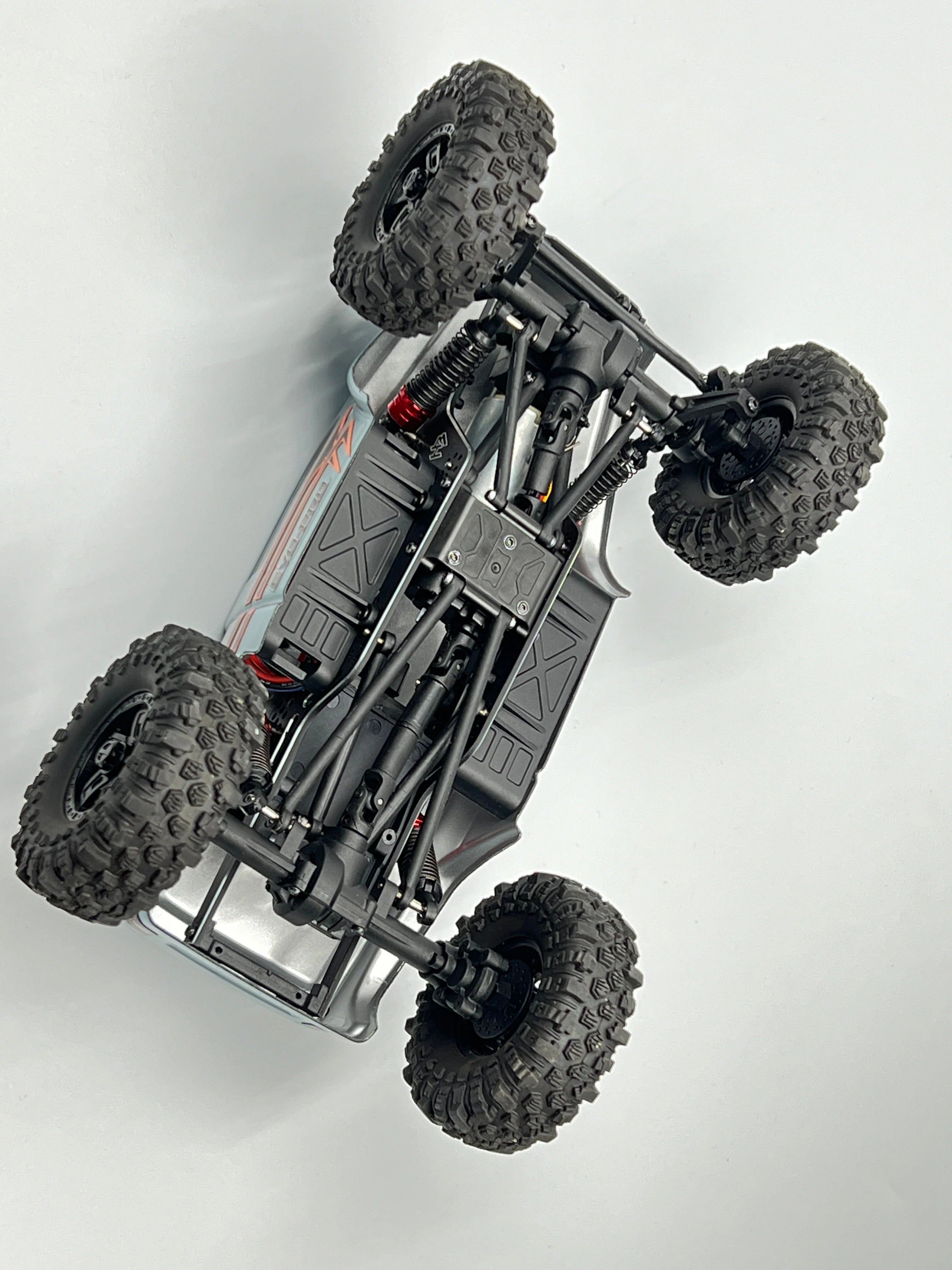

New LCG Chassis frame

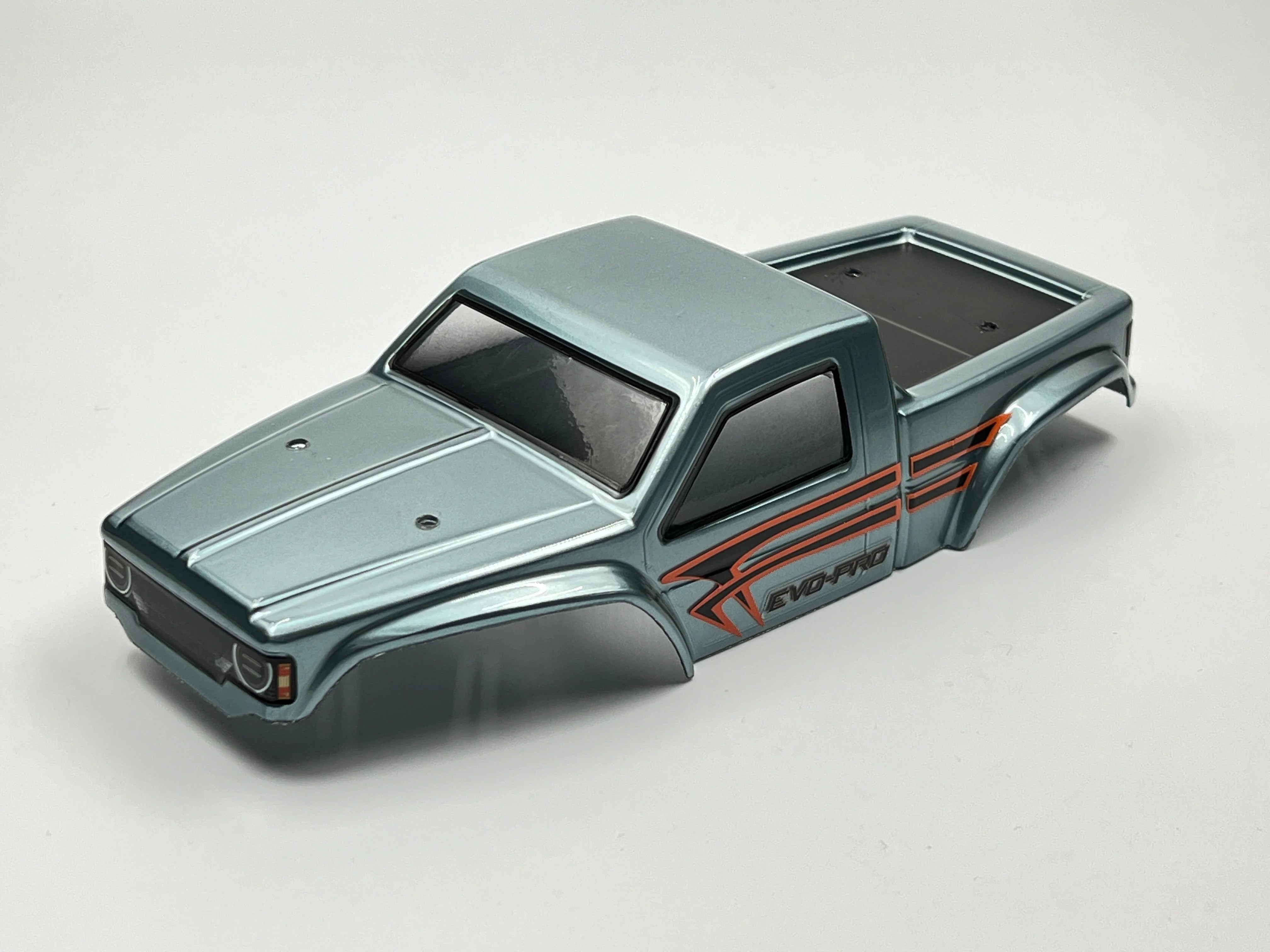

New ultra-light weight LCG pinched body

New super sticky compound 1.2inch tire (68mm OD, 23.5mm width )

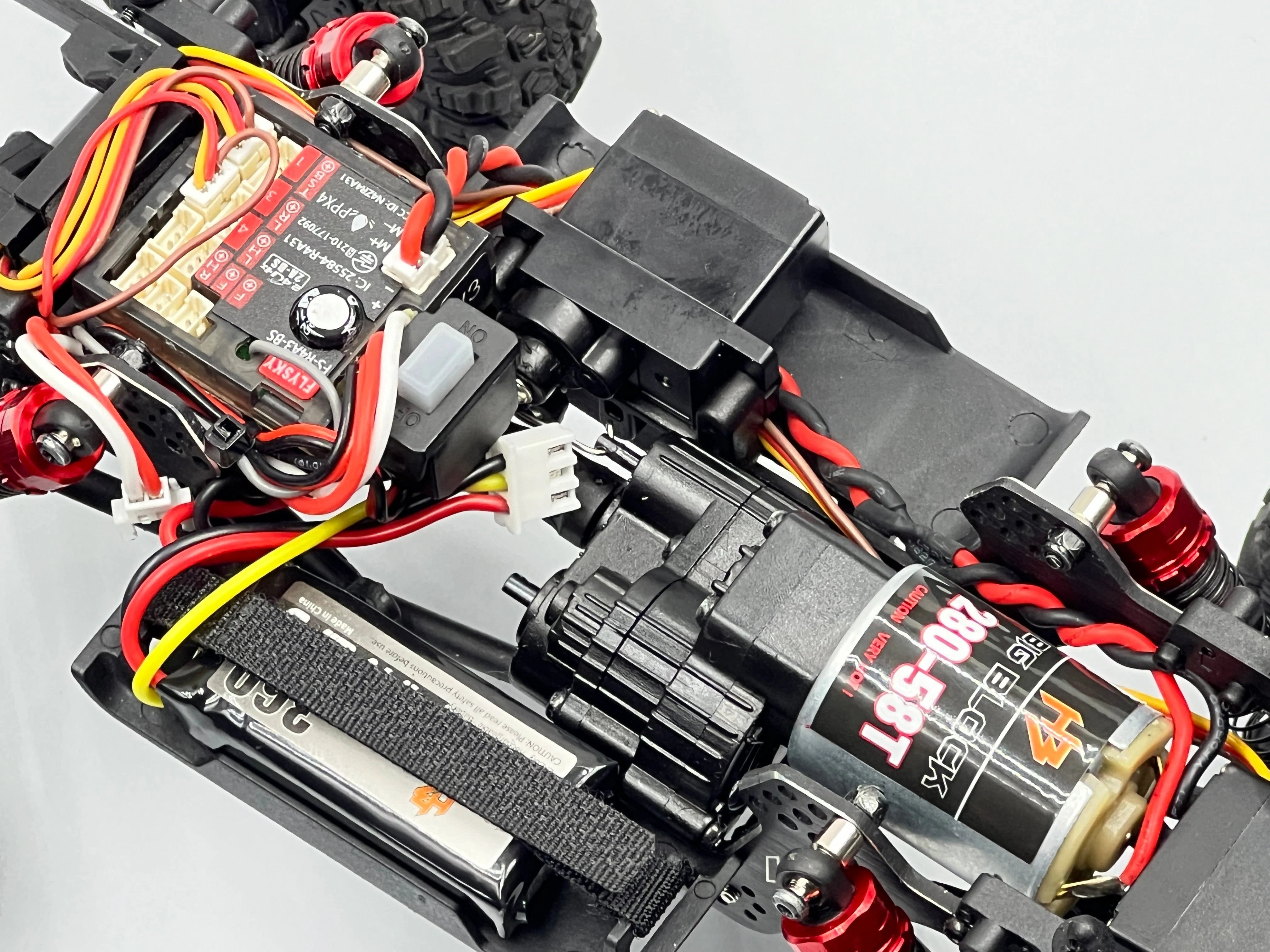

New electronics layout for better weight bias ( Front/Rear/Left/Right 50:50 )

New LCG chassis angle ( more rear clearance and lower motor CG )

New high volume big bore oil shocks with aluminum cap and retainer

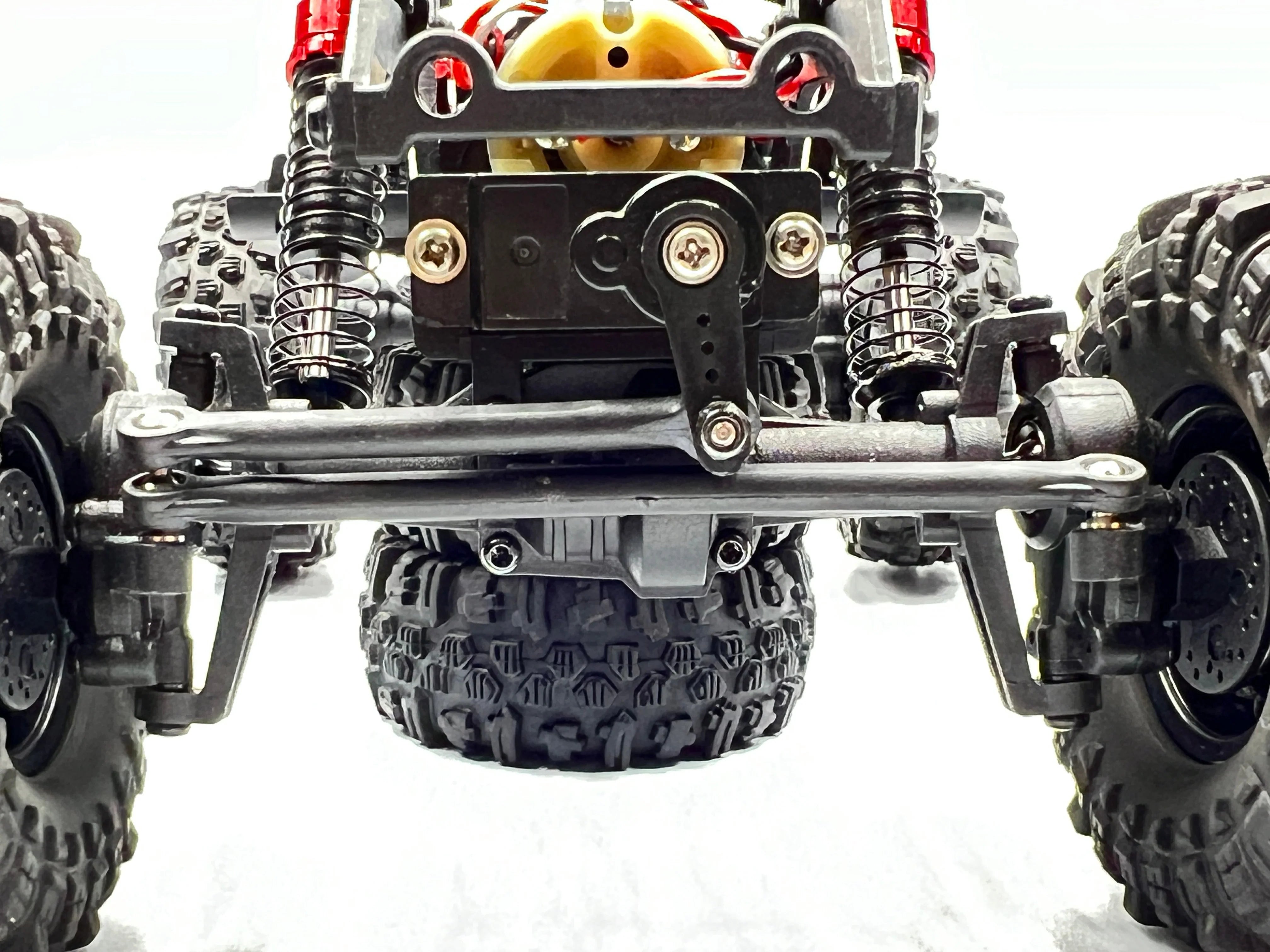

New servo-on-axle setup ( SOA )

Newly developed heavy-duty drive shaft

New 58T 280 Big-Block High-Power Motor

Track width increase of 10mm

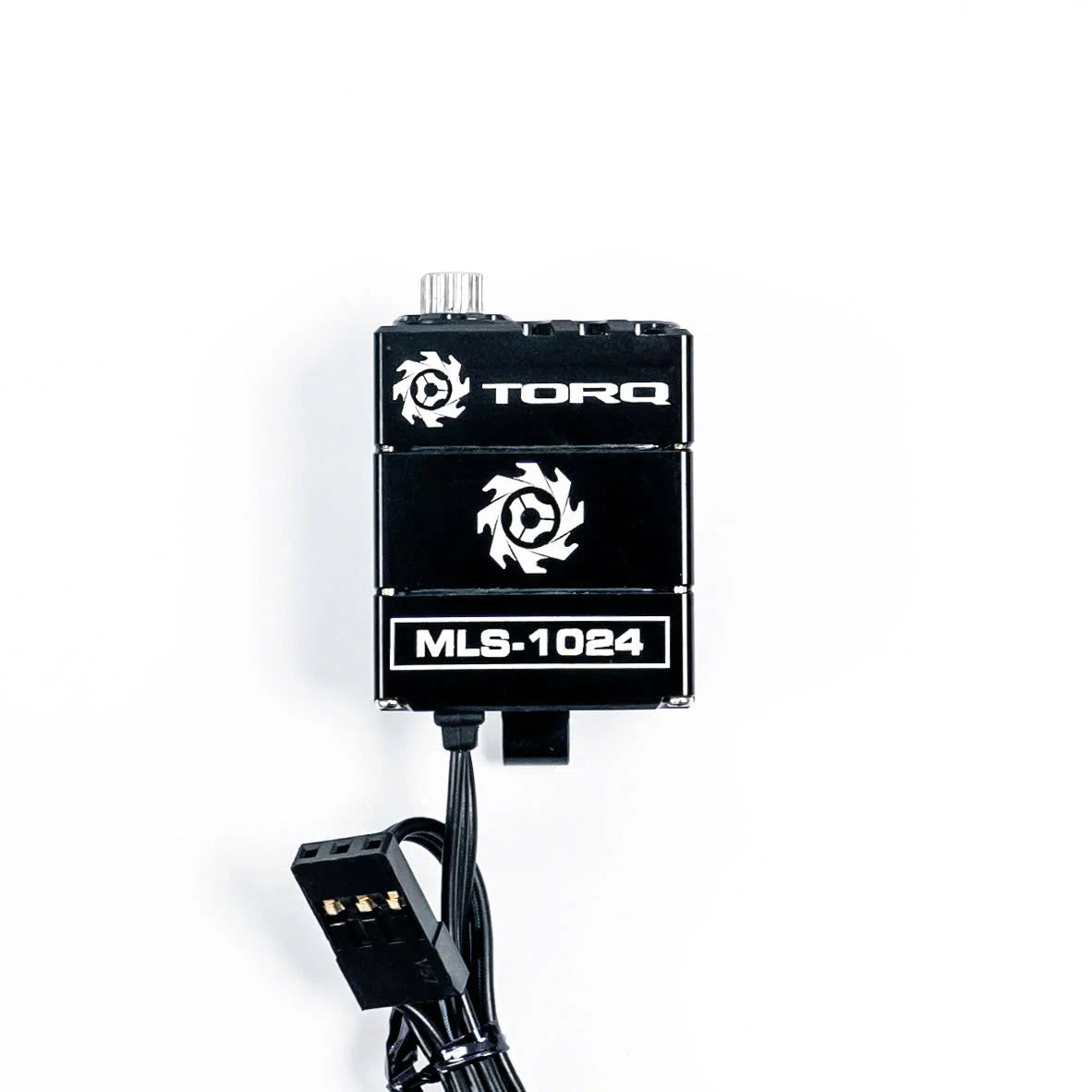

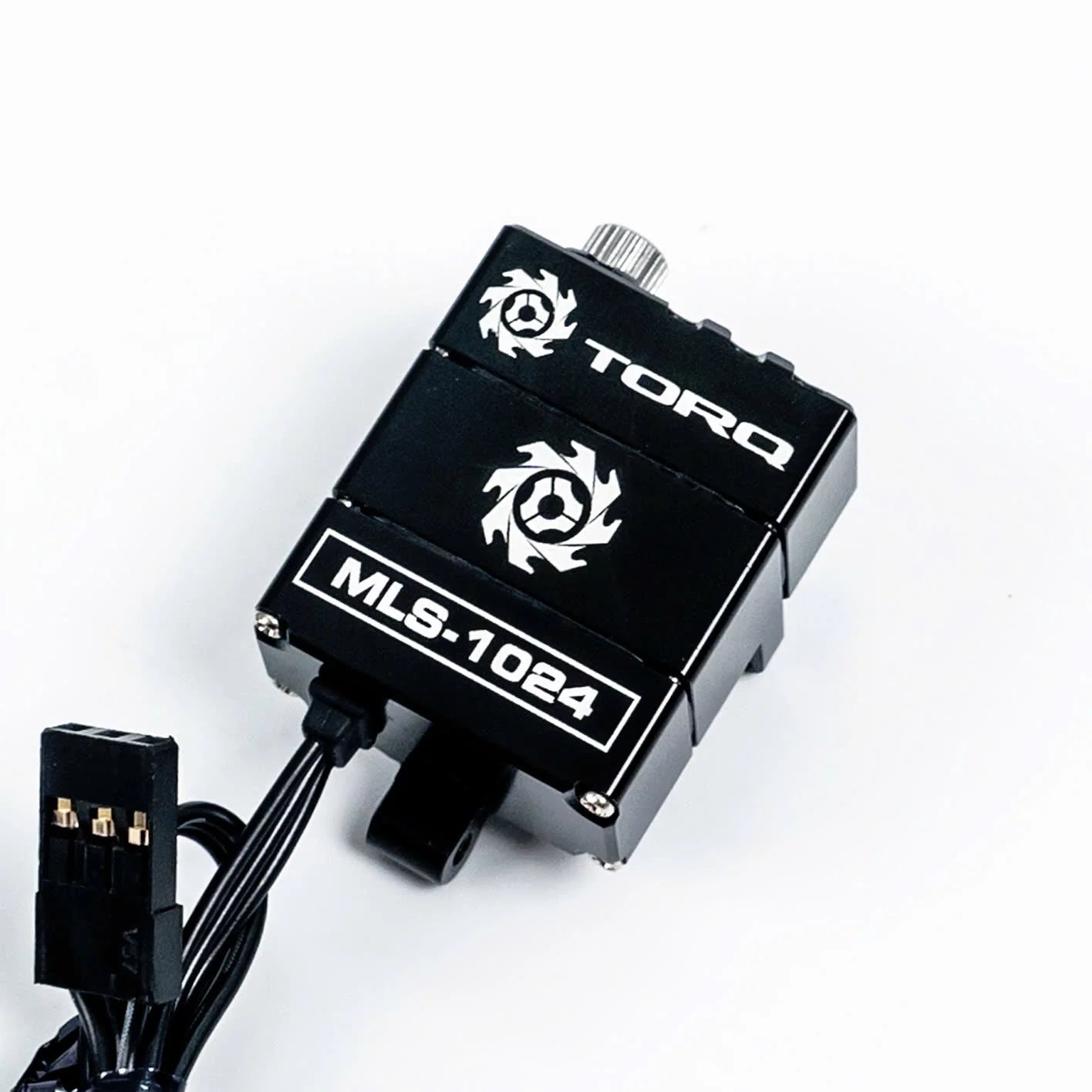

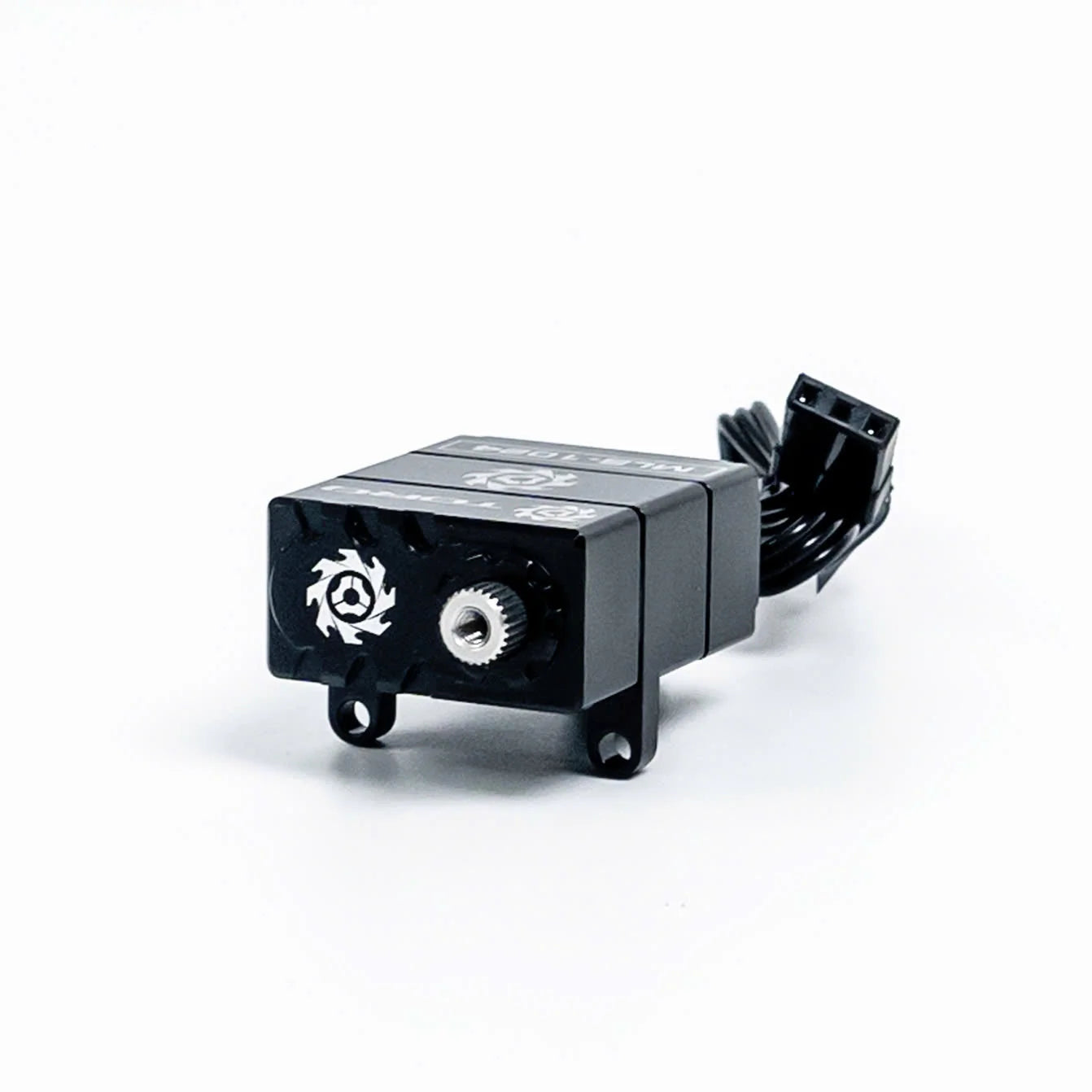

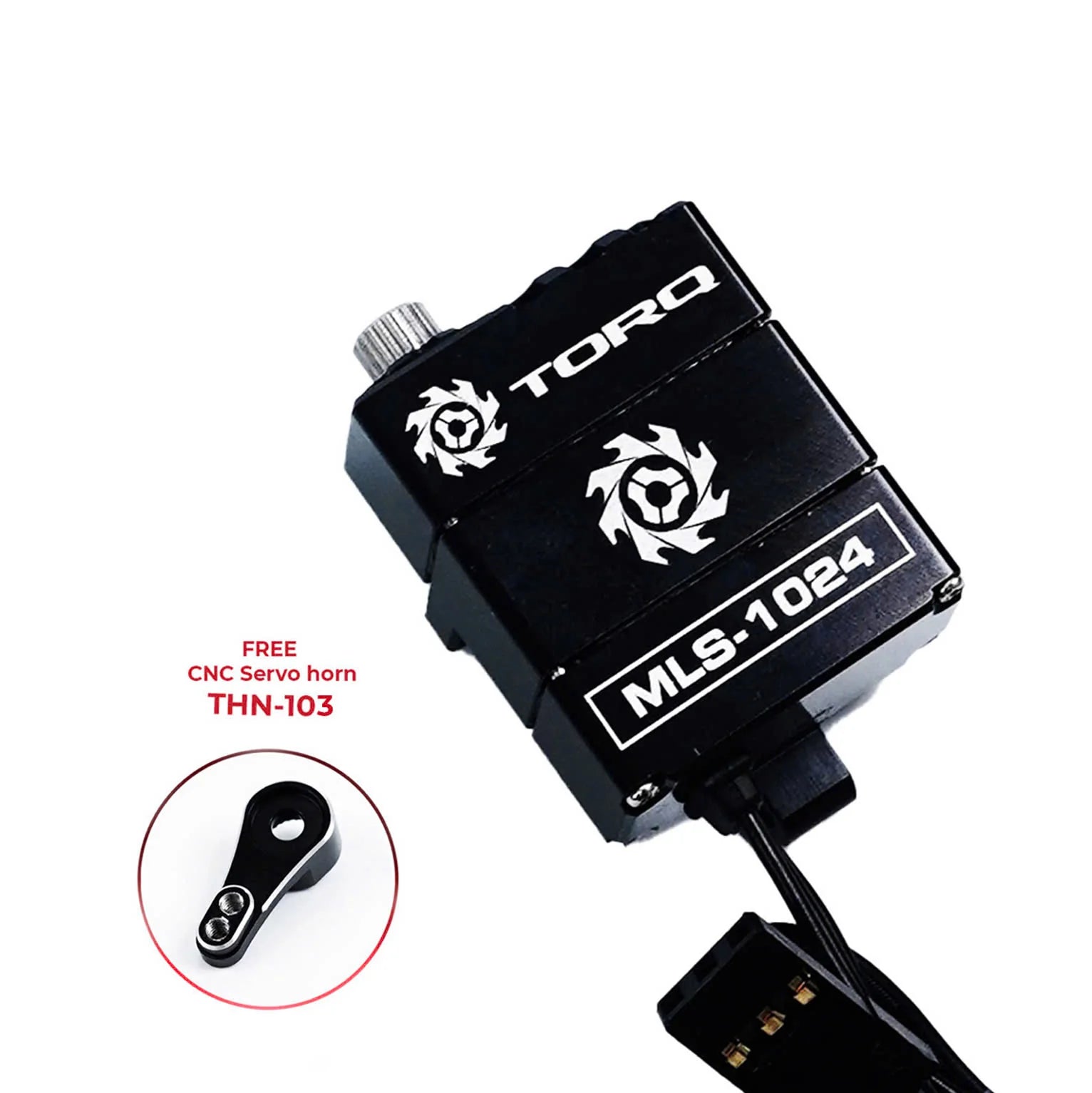

TORQ MLS-1024 Premium DIRECT-MOUNT Servo for FURITEK FX118, CR-18P 2024, HobbyPlus ARKTOS, CR-18P Pro Juice Up, CR-18P V3 Brushless and HPI Venture 18

The TORQ MLS-1024 Premium DIRECT-MOUNT Servo is expertly engineered to cater to the needs of small-scale crawlers. This innovative servo design eliminates traditional servo ears, providing ample clearance between the servo and the frame rails, ensuring smooth and unobstructed suspension movement. The MLS-1024’s unique configuration also eliminates the necessity for a separate servo mount, simplifying the installation process.

Key features include rear exit wires, further ensuring that suspension travel remains unhindered. This servo is designed for ultimate clearance all around, making it a standout choice for crawler enthusiasts. The design is patent-pending, showcasing its unique and innovative nature.

FULL Precision CNC Aluminum Case with black anodizing colors.

FREE CNC Servo Horn THN-103 – $14.99 Value

Features

• High Torque Output: Delivers powerful performance for small-scale crawlers.
• Mountless Design: Eliminates the need for a separate servo mount, reducing the overall cost.
• No Servo Ears: Provides ample clearance between the servo and frame rails, ensuring smooth suspension movement.
• Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.
• Simplified Installation: Easy to mount due to its unique design.
• Enhanced Clearance: Designed for ultimate clearance around the servo.
• CNC Servo Horn Included: Limited time offer includes a free CNC servo horn.
• Full precision CNC Metal Gears
• Full precision CNC Aluminum Case with black anodizing color.
• Waterproof
• Patent Pending: The innovative design is currently under patent protection.

Specifications

-          Dead Bandwidth: 3μs

-          Working Frequency: 1520μs / 330Hz

-          Operating Voltage: 5.0V - 8.4V

-          Motor Type: Coreless Motor

-          Operating Speed:

        ·       At 5.0V: 0.10 sec/60°

        ·       At 6.0V: 0.09 sec/60°

        ·       At 7.4V: 0.07 sec/60°

        ·       At 8.4V: 0.055 sec/60°

-          Stall Torque:

        ·       At 5.0V: 9 kg-cm (125 oz-in)

        ·       At 6.0V: 11.5 kg-cm (160 oz-in)

        ·       At 7.4V: 12.8 kg-cm (177 oz-in)

        ·       At 8.4V: 14.5 kg-cm (200 oz-in)

-          Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)

-          Weight: 22.0 g (0.78 oz)

-          Connector Wire Length: JR 170 mm (6.7 inches)

-          Output Gear Spline: 25T

Benefits

-          Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.

-          Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms.

-          Performance Enhancement: Unhindered suspension movement leads to better crawler performance.

-          Ease of Installation: Simplifies the mounting process, saving time and effort.

-          The TORQ MLS-1024 Premium Torque Micro Servo is an excellent choice for crawler enthusiasts looking for a high-performance, easy-to-install, and cost-effective servo solution.
