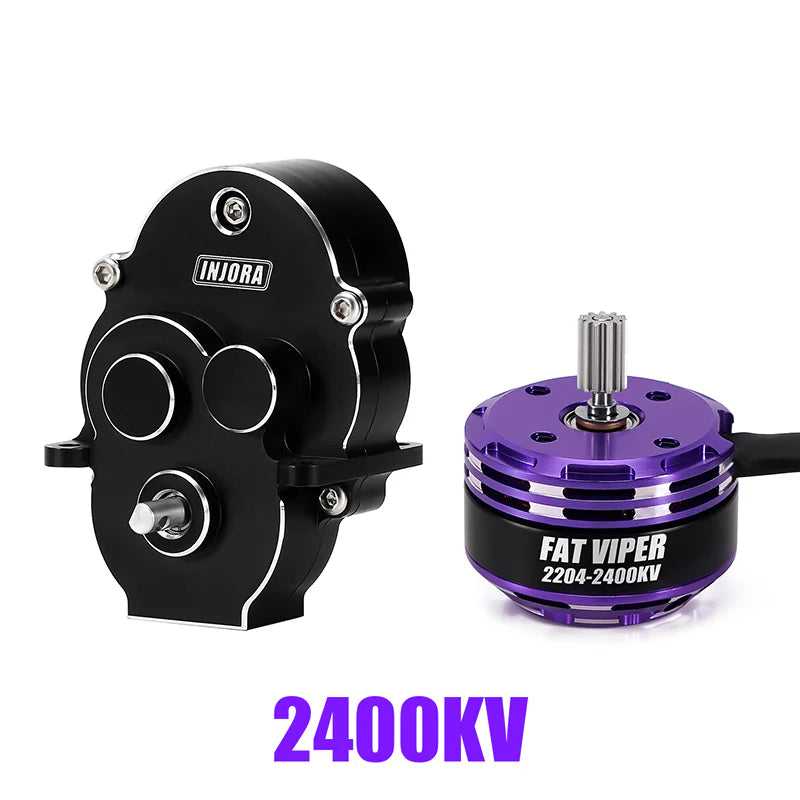

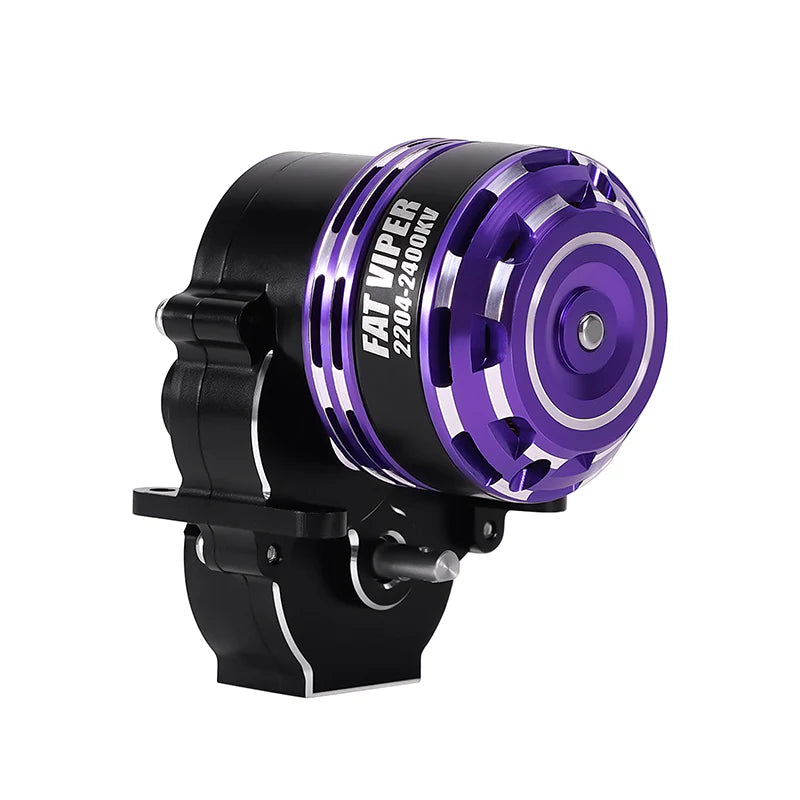

INJORA Fat Viper 2204 Brushless Outrunner 2400 KV Motor & Transmission For 1/18 TRX4M

INJORA Fat Viper 2204 Brushless Outrunner 2400 KV Motor & Transmission For 1/18 TRX4M

Note:

• Compatible with INJORA 370 transmissiom. Not compatible with stock transmission!
• Compatible with INJORA MBL32 brushless ESC. Not compatible with stock ESC!
• Please be sure to adjust the MBL32 ESC settings according to the parameters of the 2204 motor as detailed in our Programming Tutorial
• 3S batteries are highly recommended for high torque

Features:

• Smooth and linear at low speeds, powerful and aggressive at high speeds.

• Runs more quietly than brushed systems, producing virtually no noise.

• 2204 Fat Viper Outrunner Motor will give your car a better driving performance.

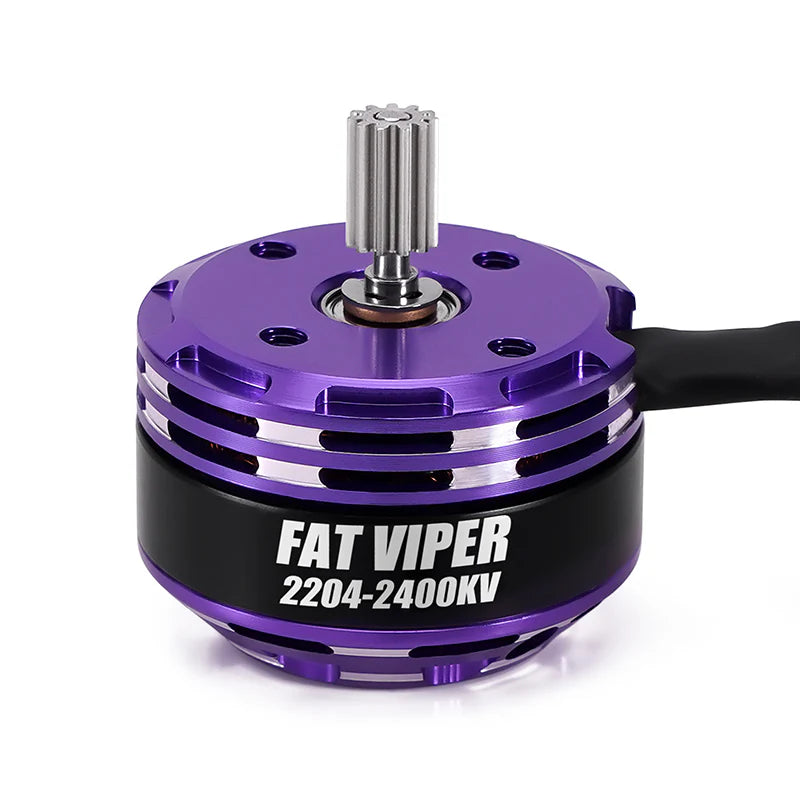

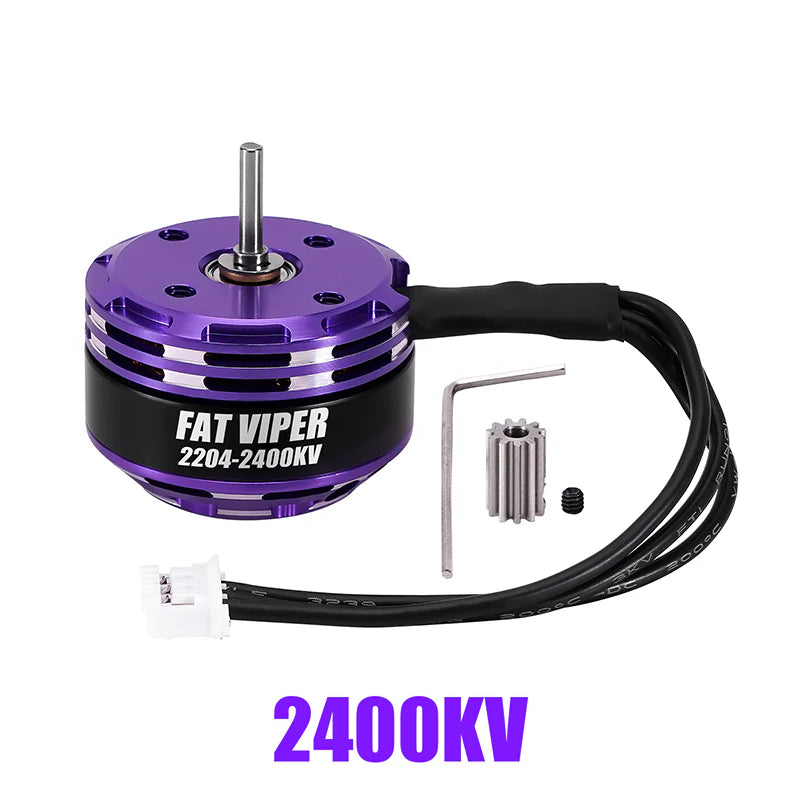

2400KV Motor Specifications:

• Model Number: 2204

• Motor Type: Sensorless Brushless Outrunner

• RPM/Volt: 2400KV

• Motor Poles: 14

• Sine Mode Power: 7

• Max Power: 2500W

• No-Load Current: 0.7A

• Max Peak Current: 50A

• Motor Connectors: PH2.0 3Pin

• Dimensions: Φ28*19.2mm

• Motor Qutput Shaft: Φ2mm

• Motor Pinion: 0.4mod 11T

• Weight: 28g
• Waterproof: Yes

Transmission Specifications:

• Housing Material: Aluminum

• Gears Material: Stainless Steel

• Internal Gears: 24.4:1 gear set, underdrive 32%
