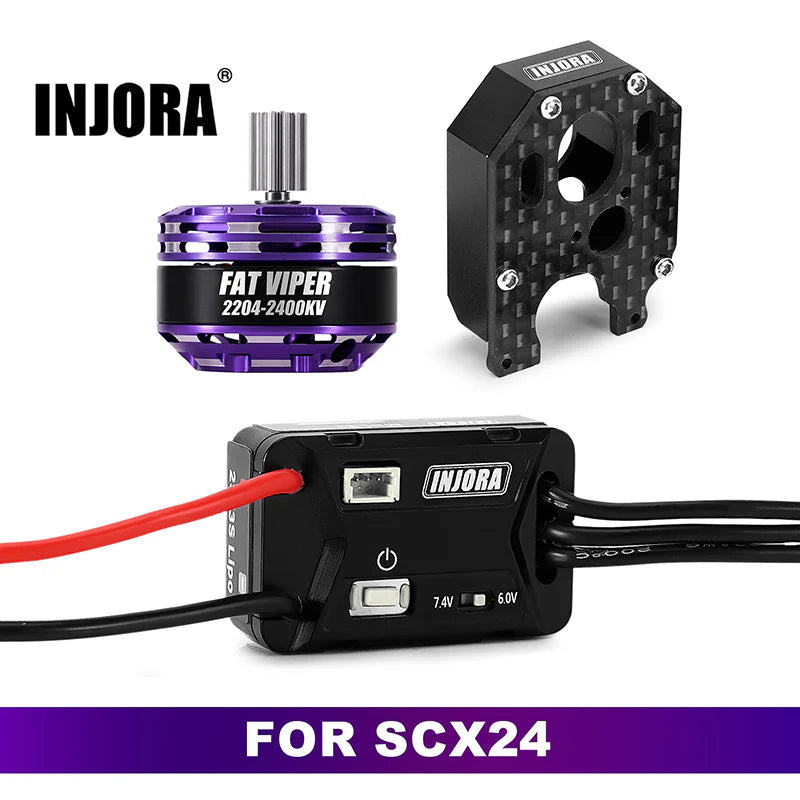

INJORA MBL32 G2 Waterproof Brushless ESC & 2204 Fat Viper Motor for 1/24 SCX24

INJORA MBL32 G2 Waterproof Brushless ESC & 2204 Fat Viper Outrunner Motor for 1/24 Axial SCX24

Compatibility Notice:

• Transmission:  Only compatible with stock SCX24 transmission and INJORA metal transmission
• Chassis: Compatible with INJROA SCX24 LCG carbon fiber chassis. For stock SCX24 chassis, the ESC tray must be trimmed to fit the motor.


Features:

• The INJORA MBL32 G2, based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
• Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise.
• MBL32 G2 features a built-in BEC with adjustable output: 6V/7.4V
• Waterproof Design for all-weather performance.
• Supports PC Programming via USB programmer card. Factory settings are optimized for INJORA 1721/2204 motors—adjustments are not recommended.
• Multiple Protections: Low-voltage, fail-safe, and rotor lock protection.
• 2204 Fat Viper Outrunner Motor will give your car a better driving performance.

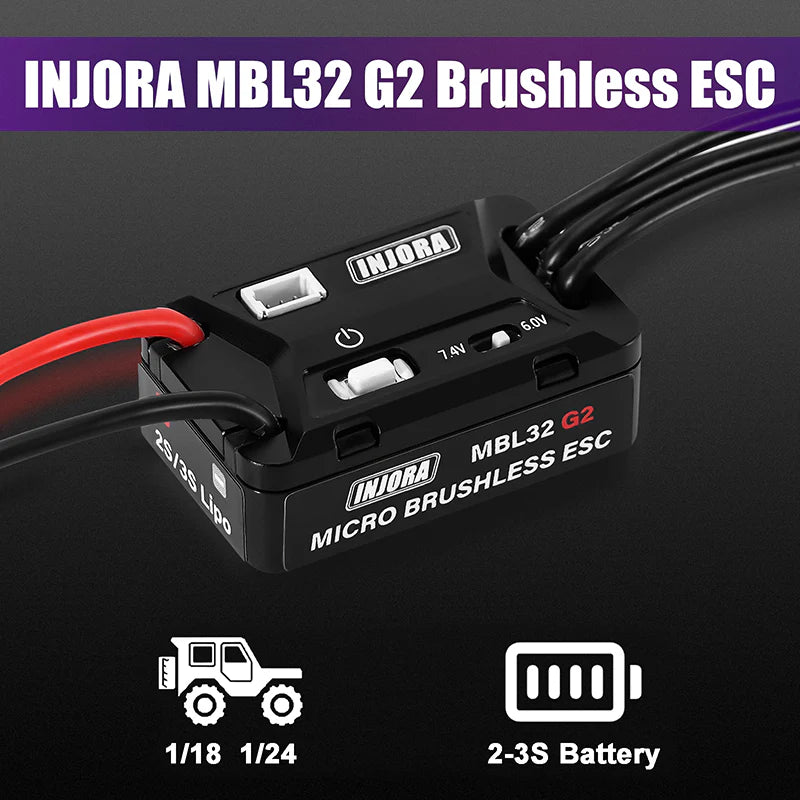

ESC Specifications:

• Part Number: MBL32 G2
• LiPo Cells: 2-3S
• Continuous Current: 25A
• Peak Current: 60A
• BEC Output: 6.0V/7.4V adjustable
• BEC Current: 3A

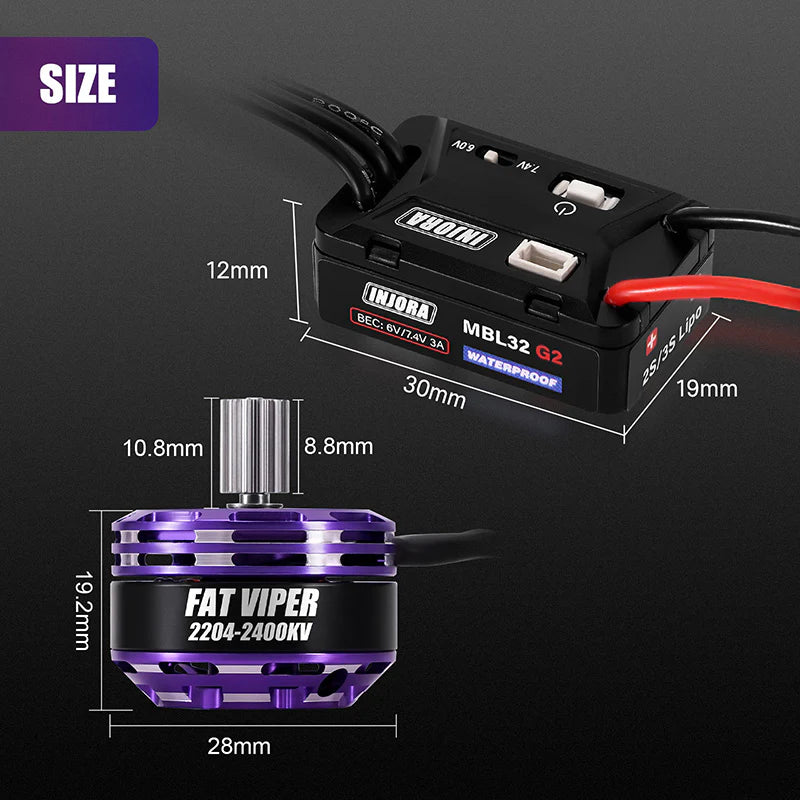

• Dimensions (L*W*H): 30*19*12mm
• Waterproof: Yes
• App Tuning: Not Supported
• Weight: 0.45oz (13g)

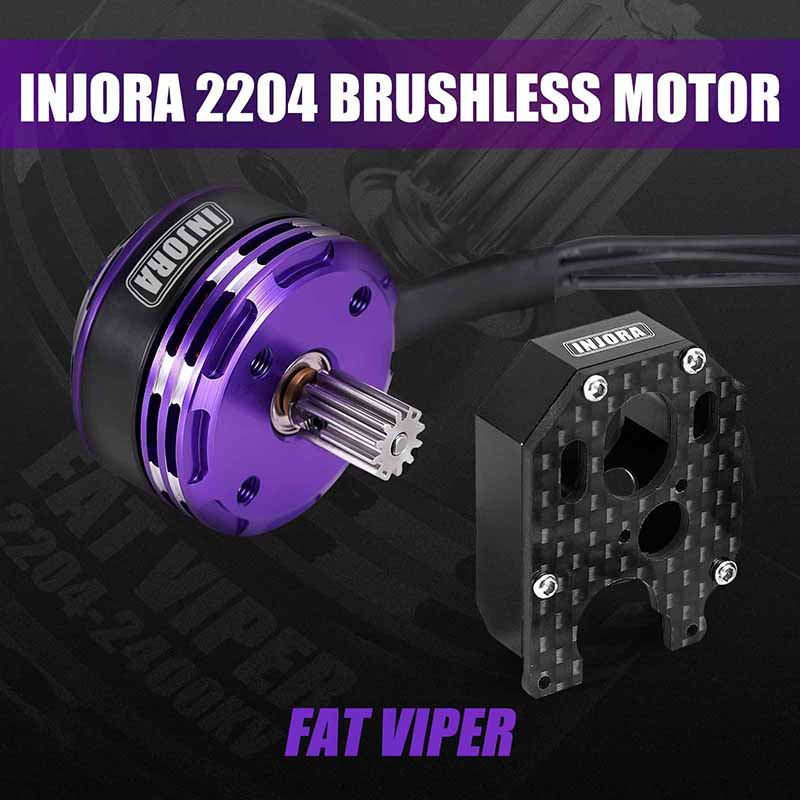

Motor Specifications:

• Model Number: 2204
• Motor Type: Sensorless Brushless Outrunner
• RPM/Volt: 2400KV
• Motor Poles: 14
• Sine Mode Power: 7
• Max Power: 2500W
• No-Load Current: 0.7A
• Max Peak Current: 50A
• Motor Connectors: PH2.0 3Pin
• Dimensions: Φ28*19.2mm
• Motor Qutput Shaft: Φ2mm
• Motor Pinion: 0.5mod 12T
• Weight: 28g

Motor Mount Specifications:

• Housing Material: Aluminum, Carbon Fibre
• Gears Material: Stainless Steel
• Internal Gears: 0.5mod 32T

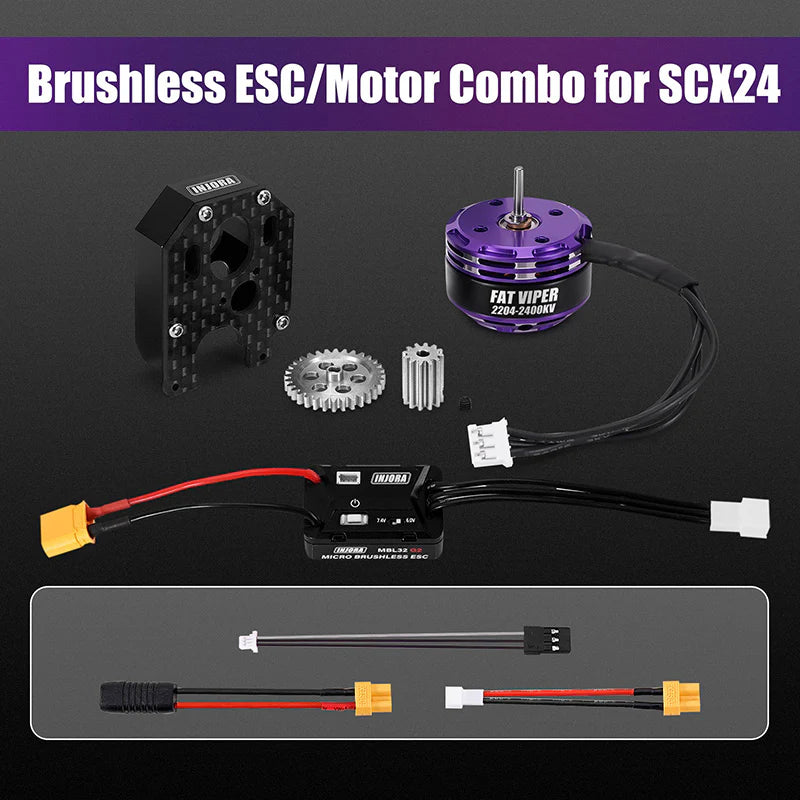

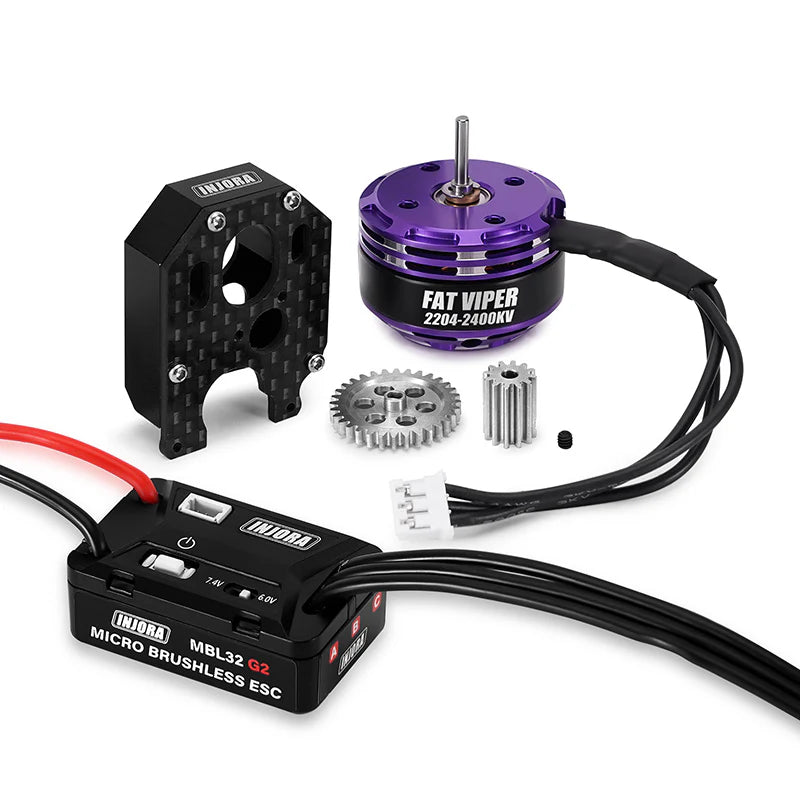

Package List:
1 * Micro Brushless ESC
1 * USB programmer Card
1 * 2204 Fat Viper Motor

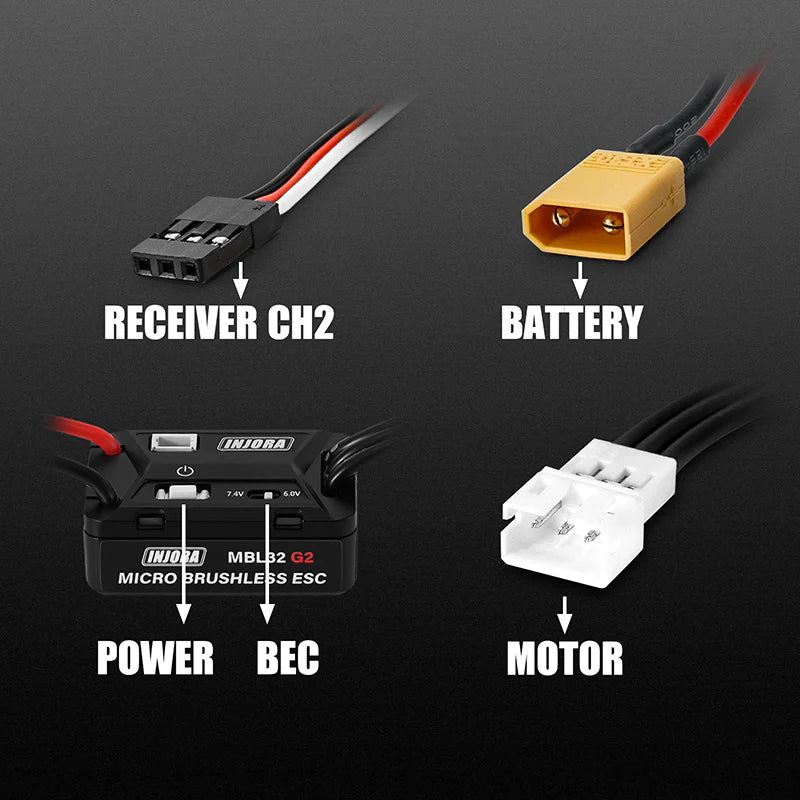

1 * Receiver Connector Cable
1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)
1 * Battery Adapter Cable (Female XT30 to Male JST-PH2.0)
1 * Instruction Manual
