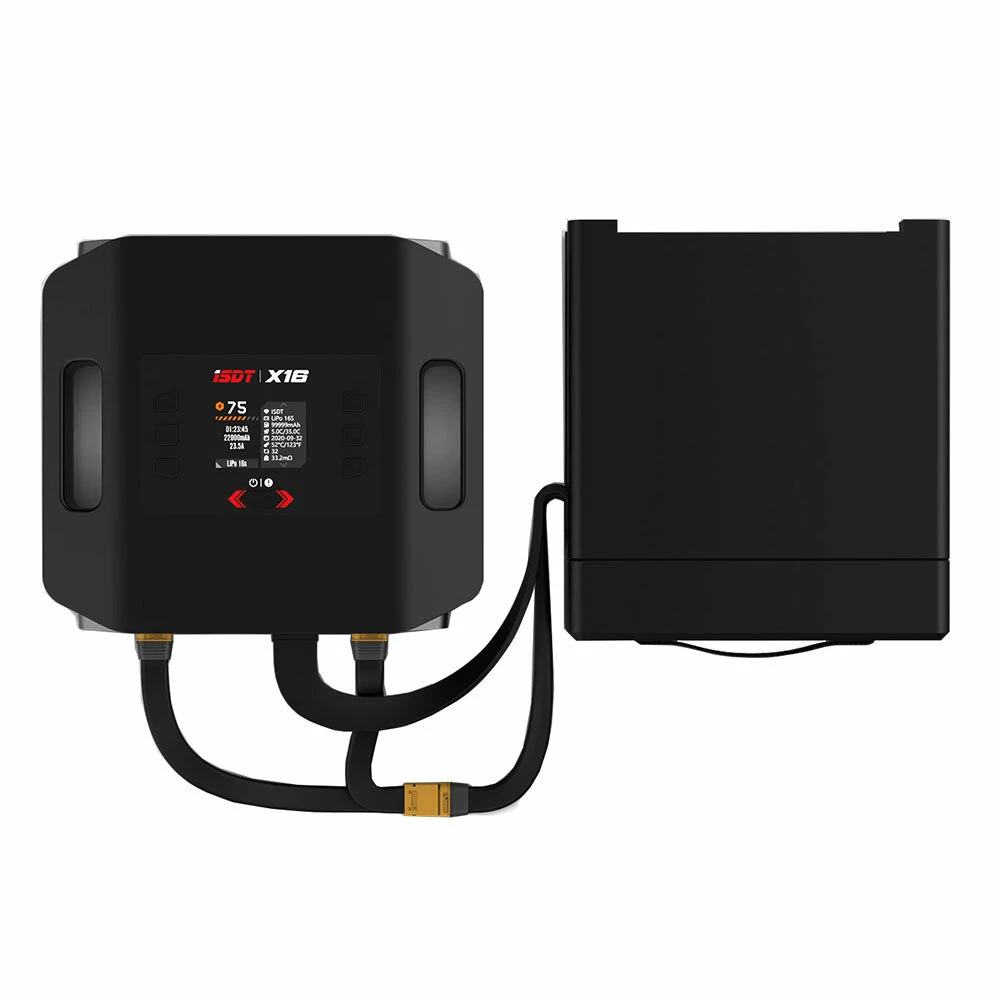

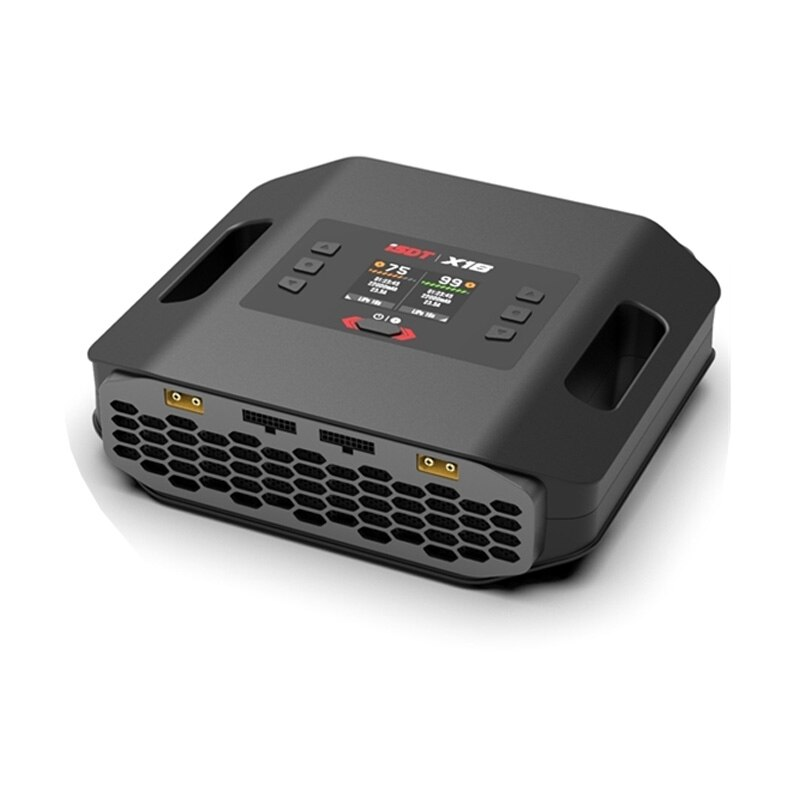

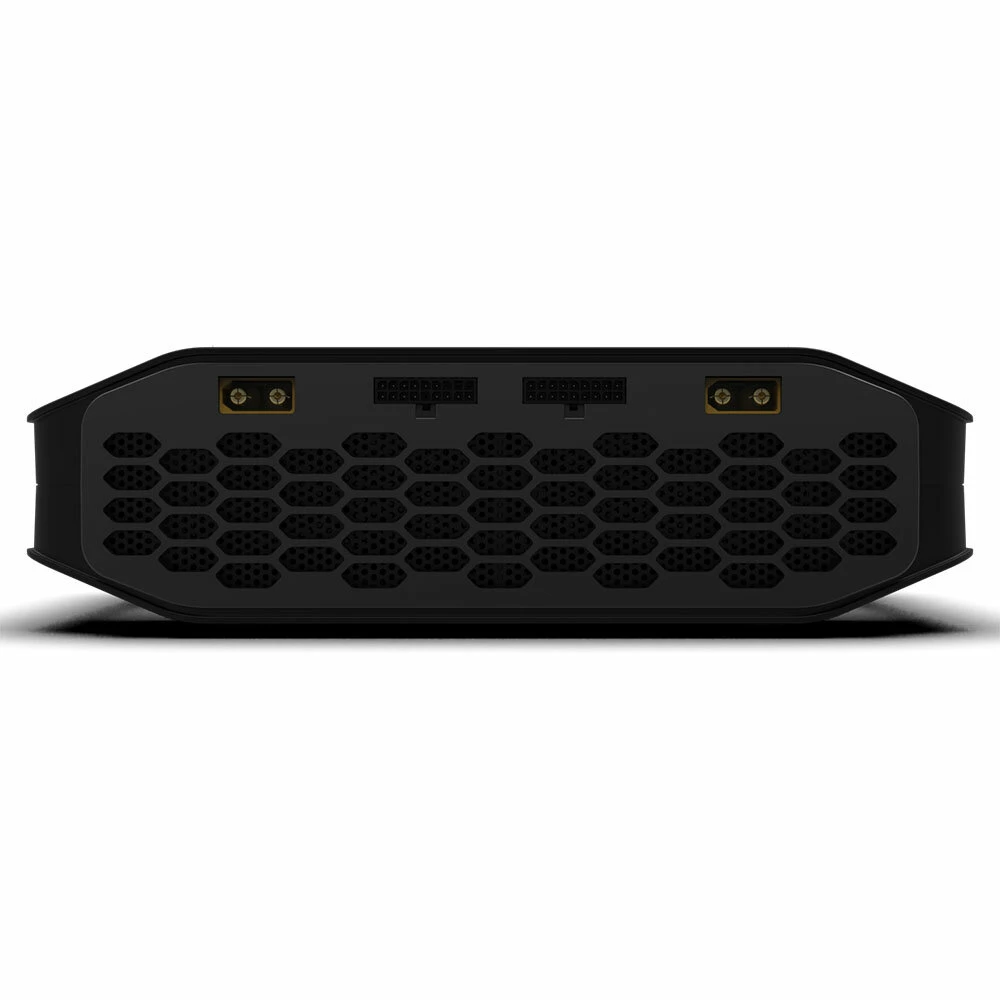

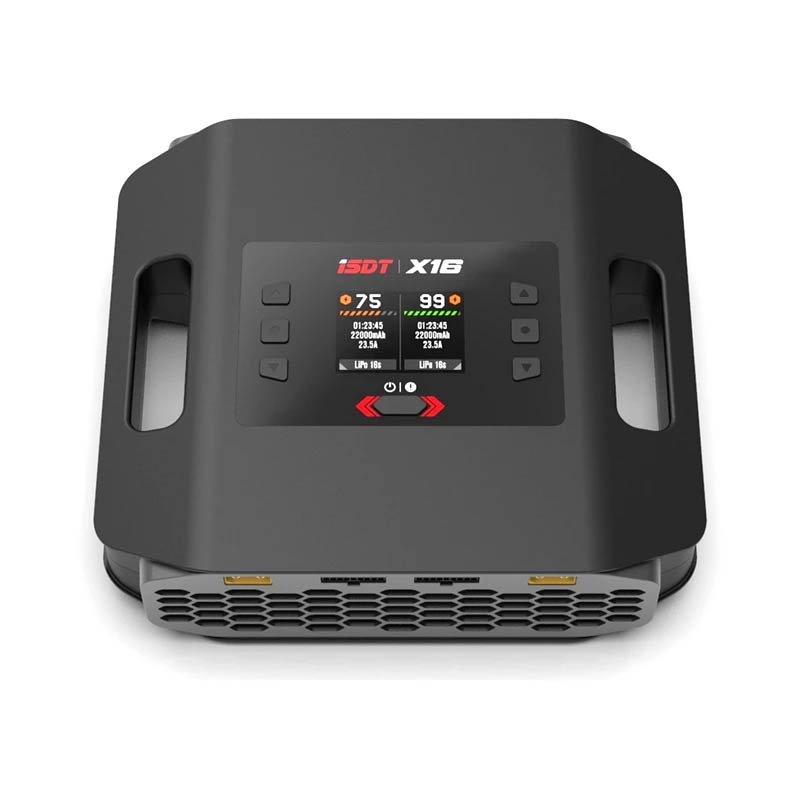

ISDT X16 Professional Dual Channel AC/DC Smart Charger - 1100W 20A 2-16S
The iSDT X16 is a Dual Channel AC/DC Smart Charger. This charger's maximum charging power is 1100W (AC@220V) and 800W (AC@110V), with a discharge power of 50W. The X16 has an independent high-power dual-channel, with a 2.8" IPS LCD Screen and 178-degree viewing angle. The X16 adopts an 18PIN balance port, and both channels can independently support 2~16S lithium batteries.
The X16 has multiple operation modes and can connect to mobile devices via Bluetooth, and control the charger running tasks or view detailed parameters of each channel in the "isdGO" App.
VIDEO: iSDT X16 - 2200 WATT Dual Port 2-16s AC Smart Charger
Features
- Supports 2-16S LiFe, LiPo, LiHv, ULiHv, and ultra-high voltage lithium batteries
- Independent dual AC channels
- Multiple Operation Modes
- Two-way USB interface
- 2.8'' IPS LCD screen
- Dual Fast Charging
- Parallel Charging
MULTIPLE OPERATION MODES - GET RID OF THE SHACKLES OF BEING WIRED!
X16 can connect to mobile devices via Bluetooth, and control the charger running tasks or view detailed parameters of each channel in the "isdGO" App. You can also preset charging tasks in the App to replace tedious charging steps with one-button charging. OTA upgrades are on the verge of launching.
STRONG PERFORMANCE, HIGH-POWER DUAL-CHANNEL
High-power dual-channel, the two channels are independent and do not interfere with each other. The maximum charging power of a single channel is up to 500W. A two-pronged approach, one step faster.
ALL-AROUND, SUSTAINED HIGH ENERGY
It supports 2~16S LiFe, LiPo, LiHv, ULiHv batteries, ultra-high voltage lithium batteries with 4.45V battery cell voltage. The maximum total output power is 2200W (@220V AC), continuous, high-energy output.
SUPPORTS 2-16S BATTERIES
X16 adopts an 18PIN balance port, and both channels can independently support 2~16S lithium batteries.
POWER FROM THE HEART

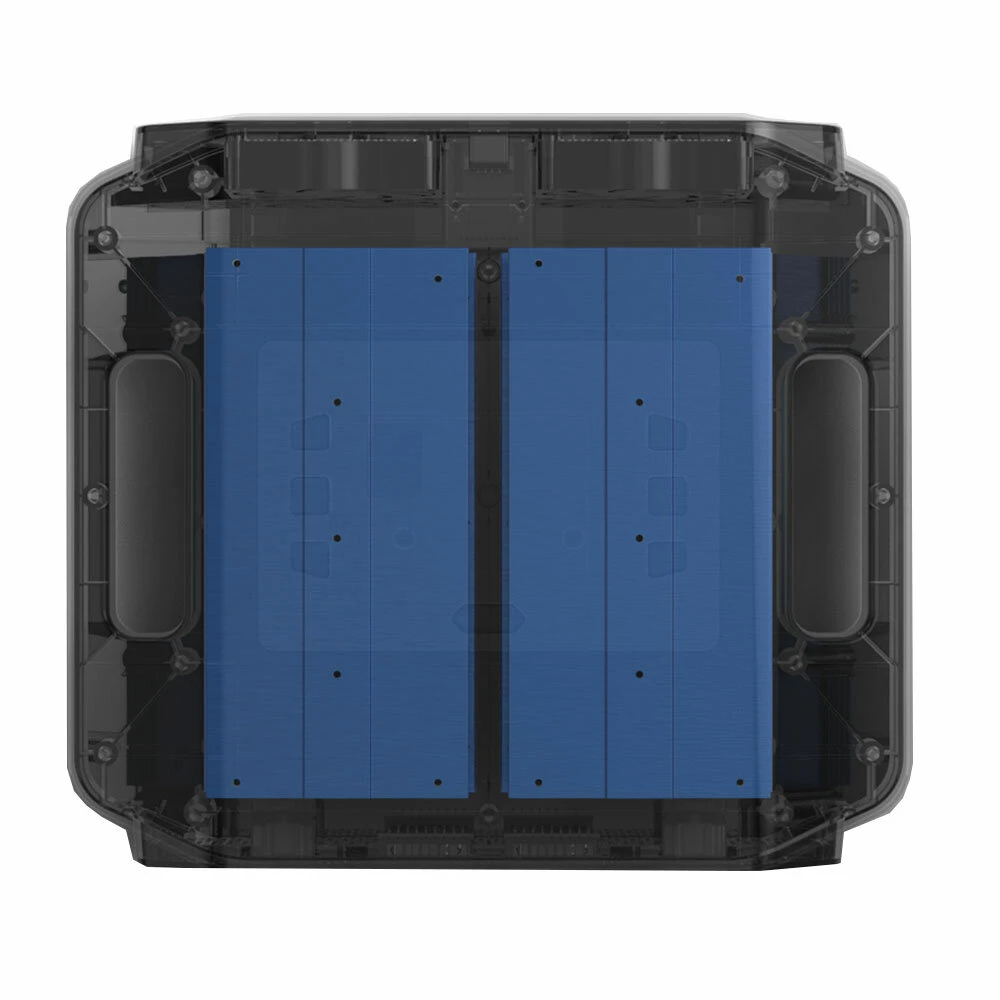

Built-in independent dual 1100W high-power AC power supply, with short-circuit protection, overload protection, under-voltage protection, over-voltage protection, over-temperature protection, support AC 120V & AC 220V voltage input. Dual channels work independently and stably, which can be independent or combined. Provide a continuous source of power for the stability of X16.
PARALLEL CHARGING
X16 can concentrate the output power of two channels on one battery, the maximum parallel charging power can reach 1800W (@220V AC), and the parallel charging current can be set in the range of 21~35A.
2.8'' IPS LCD SCREEN
Low-power 2.8-inch IPS sunlight screen, 178° viewing angle, without fear of the field environment and tricky angles, the display effect is still clear and delicate under the sun.
Specifications
- Support battery type and number of strings: LiFe,LiPo,LiHv,ULiHv (2~16S)
- Maximum charging power: 1100W ×2(@220V AC)
- Set the number of strings error alarm: stand by
- Abnormal battery voltage alarm: stand by
- Size: 276×246×82mm (11x10x3 inches)
- Maximum discharge power: 50W ×2
- Input voltage range: AC 100 ~ 240V
- Output voltage range: DC 10~72V
- Operating temperature: 0℃~40℃
- storage temperature: -20℃~60℃
- recharging current: 1.0~20.0A ×2
- Discharge current: 0.5~3.0A ×2
- Balance current: 1.5A/Cell
- 800W x2(@110V AC)
- Weight: About 3.5kg
Includes
- 1x iSDT X16 Professional Dual-Channel AC/DC Smart Charger - 1100W 20A 2-16S
