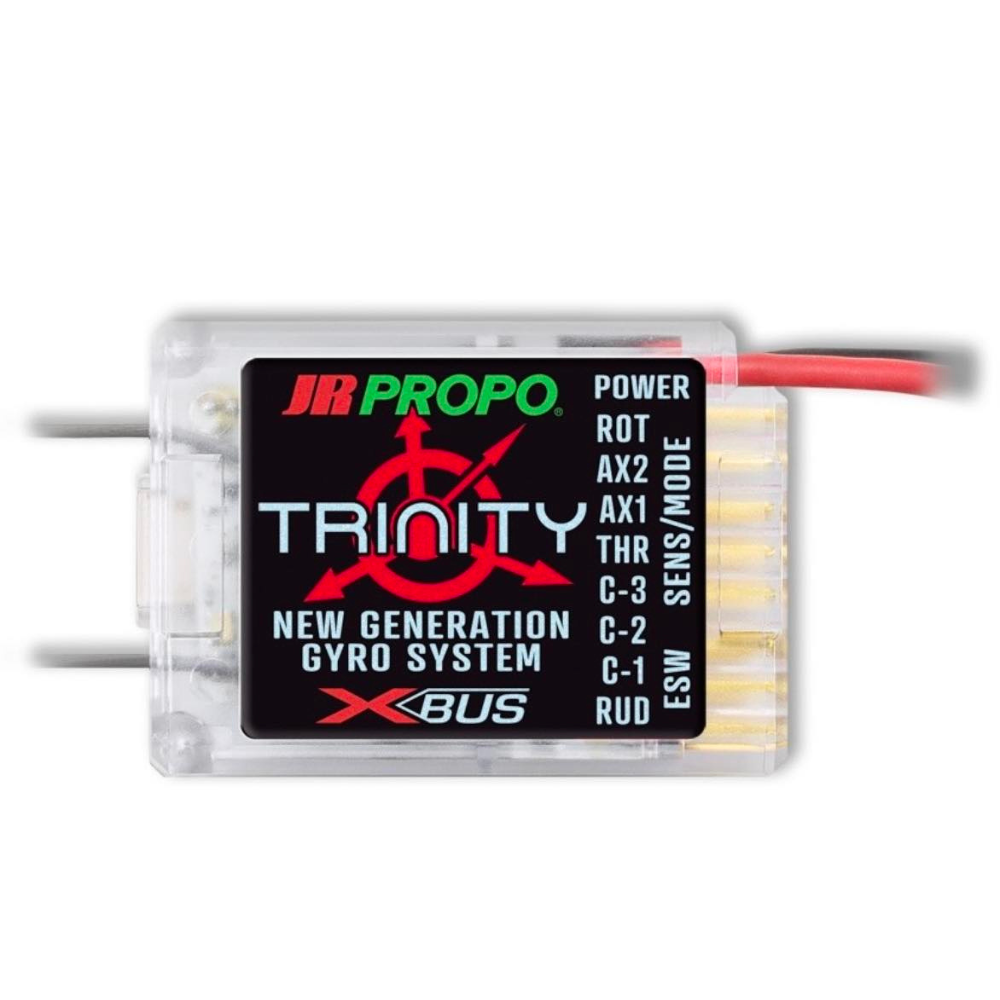

JR Propo - NMP Trinity Flybarless System w/ Built-in Receiver

JR Propo has teamed up with Nick Maxwell Products to create a complete, end-to-end flight control eco-system. From the pilot's input to the servo arms, every component communicates seamlessly through JR Propo's proprietary XBUS serial protocol. The system features advanced flight control algorithms designed for every skill level, offering easy set-up for beginners and advanced menus for pro pilots to precisely tailor the flight feel for top-level 3D and F3C competition.

At its core, the NMP flight control software is passionately designed and maintained by fellow helicopter flyers, with a commitment to providing the latest in performance. Software updates will be FREE of charge

Key Features:

• JR XBUS MODE "A" high speed receiver built in (optional gyro only)

• STM H7- ARM M7 processor with RTOS to manage flight control operations

• Bosch high performance sensor and dynamic filtering for ultra smooth control

• Built in headspeed governor for nitro (IC)/electric powered helicopters

• Gyro stored configuration for easy to share set-ups

• Plug in optional fail on switch harness for easy system power

• Telemetry data logging application and real time telemetry displays

• Works with JR Propo telemetry sensor suite: altitude, tempurature, ext. voltage

• Select JR Propo transmitters feature full wireless set-up and flight adjustment

• Model based set-up wizard ensures successful test flights

• Control linearization algorithm adapts to each helicopters control geometry

• Automatic swashplate interaction reduction algorithm

• Advanced pirouette control theory for advanced 3D and F3C hovering

Specifications:

• System: DMSS 2.4GHz 3-Axis Gyro System

• Dimensions: 14 x 31 x 42.5mm (.55 x 1.22 x 1.67in)

• Weight: 18.5g (0.65oz)

• Operating Voltage: 4.5V - 8.5V

• Universal servo command: 50hz:333hz (1500us)/570hz (760us)/XBUS (1khz)
• 2 Auxillary channels: PWM or XBUS

Included:

1 * JR Deeforce Propo Trinity Gyro

Download Manual
