Junsi S1200 Power Supply

iCharger
|
JS1200
You will earn 299.99 points for buying this product
Price Match Guarantee
$299.99 $0.00( / )

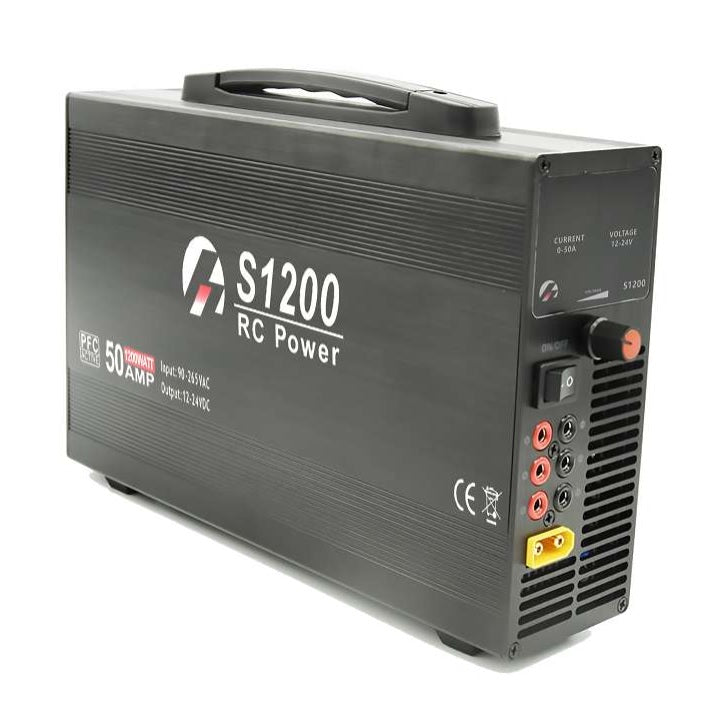

This is the Junsi S1200 Adjustable Output Power Supply. The S1200 is one of the most advanced hobby grade power supplies available. 1200W of output is ideal for a variety of high powered chargers, and three outputs allows you to simultaneously operate a variety of 12V equipment. Plus, an input...

This is the Junsi S1200 Adjustable Output Power Supply. The S1200 is one of the most advanced hobby grade power supplies available. 1200W of output is ideal for a variety of high powered chargers, and three outputs allows you to simultaneously operate a variety of 12V equipment. Plus, an input voltage range of 95 - 265V delivers worldwide compatibility with no modification required. The DC output voltage is adjustable using the adjustment knob on the front, and the output voltage and current are displayed on the digital readouts on the front, allowing you to identify the voltage and current at a glance.

Features:

  • Active PFC, AC 90-265V worldwide use
  • Programming output voltage from 11.5 to 24V
  • Digital display output voltage and current on time
  • 4 outputs can do more chargers simultaneously (4mm Banana Jack x 3 + XT-90 x 1)
  • 2 Intelligent cooling fans controlled by temperature
  • Over current ,over voltage, over load, over temperature and short circuit protection
Specifications:
Input Voltage Range: 90 - 265V AC
Output Voltage Range: 11.5 - 24V DC
Input Frequency: 50/60Hz
Output Current: 0 - 50A (Max 55A)
Output Jack Range: 30A ea (do not exceed 30A per output)
Power: 1200W
Efficiency: 94% (@60% load and 220V input)
Operating Temperature: 14 - 113°F (-10 - 45°C)
Storage Temperature: -4 - 158°F (-20 - 70°C)
Over Protection: Voltage, Current, Load, Temperature
Cooling Method: Forced Air Cooling by Built-In DC Fan
Dimension (LxWxH): 286x170x68mm
Weight: 2.9kg w/o Input Cable
EMC Standards: EN55022, EN61000-3-2, EN61000-3-3, EN55024
Safety Standards: EN60950-1

Manual: Download





Type:

Chargers

Vendor:

iCharger

SKU:

JS1200

Weight:

7.0 lb


Product Spare Parts

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Stephen W.
Awesome adaptable charging

Purchased to work with (2) Q8max units.
Charges 8s on each Q8 without flinching.
Cant wait to work with testing out the capability to push the Q8's even further with this unit.

A
Anonymous
S1200 Power Supply

This is my second S1200 power supply. Its just the ticket for high volume charging and with the three output connections it's versatile as well. I recommend this power supply for any DC charger especially if you have high capacity batteries.

T
Tom M.
Junsi S1200 Power Supply

Great Power supply. I attached 3 Hyperion EOS 0720i Super DUO charges this power supply and was easily able to charge 3 ea 5000mAh, 6 cell, LiPo batteries with 3 ea, 2200mAh, 3 cell, LiPobattereis all at once. The PS did them all without breaking a sweat.

D
David J.
Chargery S1200

WOW! If you are going to fly electrics, this power supply is the way to go. The ICharger 406 Duo and the Chargery S1200 is a great combination.

m
mark w.

Very good quality and a beast for power, I run the 4010 duo with no issues

J
Johnathan W.

I LOVE THIS POWER SUPPLY IT IS VERY WELL BUILT

R
Ricky C.

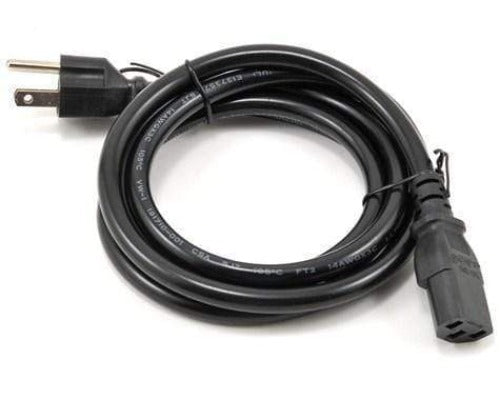

Great power supply, should of bought it a long time ago. Very easy to use and a good match to my iCharger Duo. But get yourself a heavy duty power cord as this doesn't come with one. Over all a great buy and worth every penny.

J
Jordan J.

Super juice

J
Josh

I've been running the S1200 with my 4010 Duo and it's worked flawlessly since day one. I really enjoy the variable output knobs and digital displays. I've run it from a standard 120 outlet in my home, and even at the field via a generator. Great buy for lots of charging juice!
