ToolkitRC M8P 600W 20A 1-8S Multi Function Balance DC Charger

The ToolkitRC M8P is much more than just another charger! With a 600w 20A Charger at its heart, the M8P also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control.

Specification

Charging

• Input 7-35V: @MAX25A
• Battery Type: LiPo LiHV LiFe Lion LTO @ 1-8S NiMh @1-20S Pb @1-10S
• Charging Power: 0.1-20A@600W
• Discharging Power: 0.1-20A @ 600W Recycle External

• Discharging Power: 0.1-3A @ 20W Normal mode
• Balance current: 1000mA@4.2V
• USB: 5.0V @ 2.1A upgrade

Measuring

• PWM: 880us-2200us @20-400Hz
• PPM: 880us-2200us*8Ch @20-50hz
• SBUS: 880us-2200us*16ch @20-100Hz
• Voltage: 1.0V-5.0V @1-8S
• IR: 1-99mR @1-8S
• ESC: 1-20A@1-35V MAX600W

Output

• PWM: 500us-2500us @20-1000Hz
• PPM: 880us-2200us*8ch @50hz
• SBUS: 880us-2200us*16ch @74Hz
• Power: 1-20A @ 1-35V Mode: CC+CV

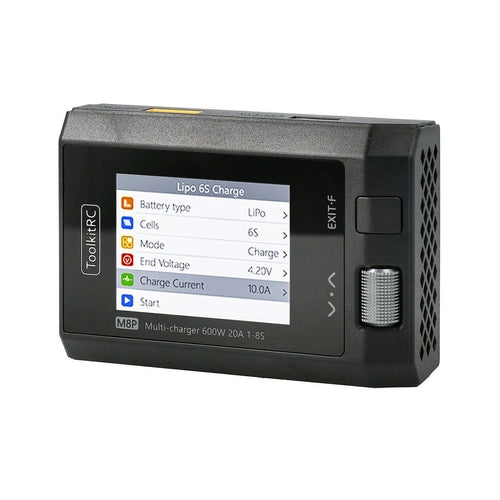

• LCD Display: 2.4 IPS RGB 320x240 pixel

Dimensions

• Product size 100x71x34mm

• Product weight 200g

Includes

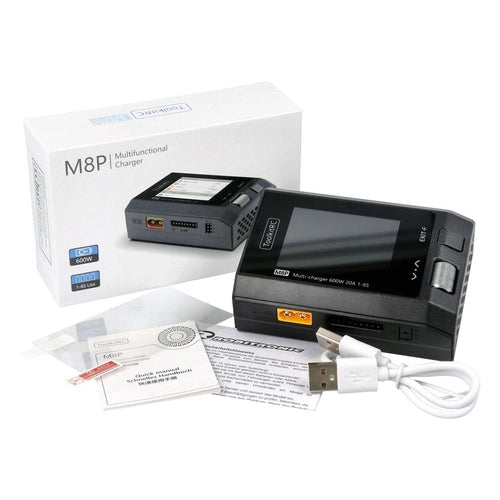

• 1x ToolKitRC M8P
