ToolkitRC Q4AC 1-4S 100W AC / 200W DC 4CH Smart Charger - XT60

ToolkitRC
|
HP0110-0020-US
You will earn 76.49 points for buying this product
Price Match Guarantee
$76.49 $0.00( / )

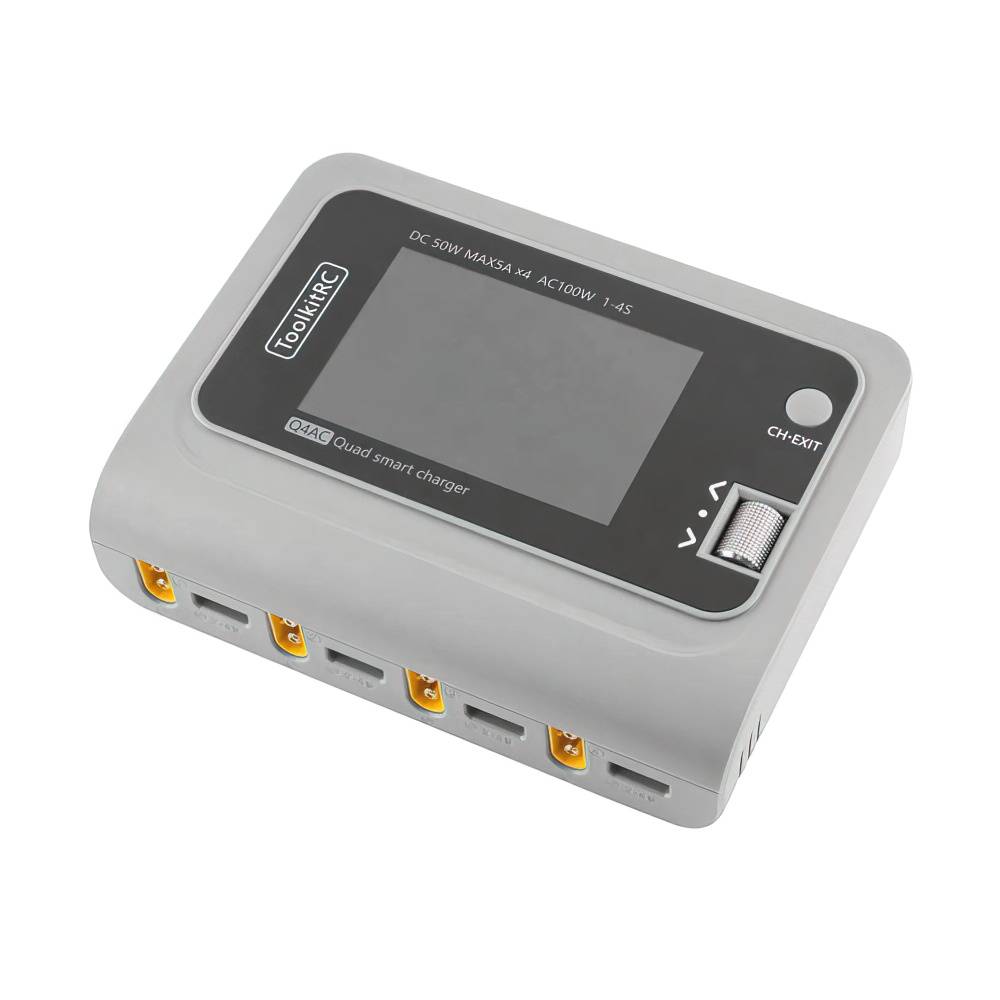

The ToolkitRC Q4AC is an updated version of the M4Q with a faster processor, upgraded charging power, and a new casing. This is a Quad Channel AC/DC smart charger featuring four independently operated charging outputs. This charger comes with a 32-bit ARM Processor, IPS wide-angle display, XT60 ports, and 10 language options. Features AC/DC...

The ToolkitRC Q4AC is an updated version of the M4Q with a faster processor, upgraded charging power, and a new casing. This is a Quad Channel AC/DC smart charger featuring four independently operated charging outputs. This charger comes with a 32-bit ARM Processor, IPS wide-angle display, XT60 ports, and 10 language options.

Features

  • AC/DC Charging - Power Supply Modes: AC100-240Vmax 100W; DC 10-18V max 200W
  • Record 3 Groups of Commonly Used Power
  • Update Firmware by Connecting to PC
  • Max 5A @MAX50W Charging Current
  • Record 5 Commonly Used Batteries
  • 3.5" IPS 480x320p LCD Screen
  • USB2.0 MicroUSB Upgrade
  • 240mA Balancing Current
  • IPS Wide-Angle Display
  • 32-bit ARM Processor
  • 10 Language Options
  • 4 Output Channels





Specifications

  • Internal resistance: 1-100mR @1-4S
  • Type of Battery:
    • LiPo LiHV LiFe Lion@1-4S
    • NiMh @1-10S Pb @1-8S
  • Voltage Range: 0.2V-5.0V @1-4S
  • Input Voltage:
    • AC100-240V@MAX1.5A
    • DC10-18V@MAX20A
  • Balance Current: 240mA @2-4S
  • LCD: IPS 3.5inch 480x320pixel
  • Dimensions: 150x112x36.5mm
  • MicroUSB: Upgrade@USB2.0
  • Balance Accuracy: < 0.005V
  • Charge Power:
    • 0.1-5A@50W*4 DC
    • 0.1-5A@50W*2 AC
  • Weight: 460g (1.02lb)

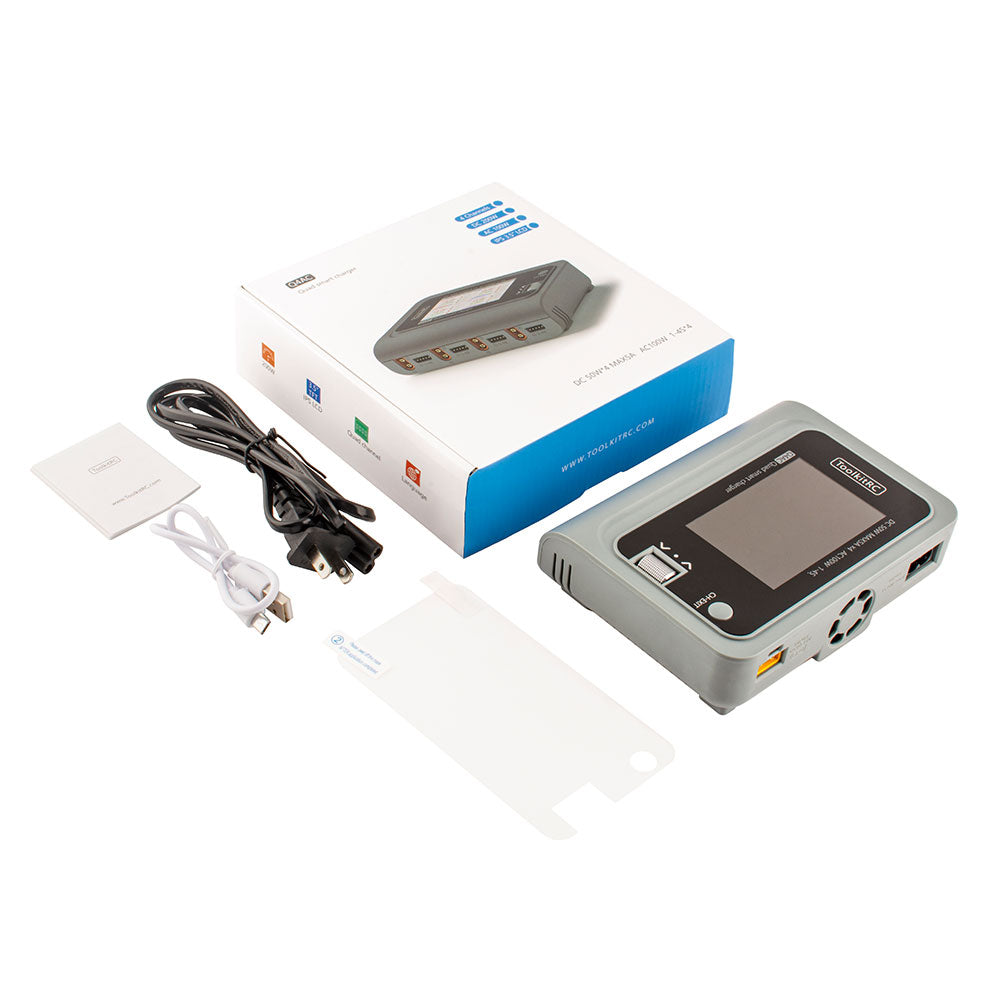

Includes

  • 1x ToolkitRC Q4AC Quad Channel Charger
  • 1x Screen Protector
  • 1x USB-C Cable
  • 1x AC Cable



ToolkitRC Q4AC Firmware
ToolkitRC Q4AC Manual
Type:

Chargers

Vendor:

ToolkitRC

SKU:

HP0110-0020-US

Weight:

1.5 lb


Product Spare Parts

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Andrey R.
Great little charger

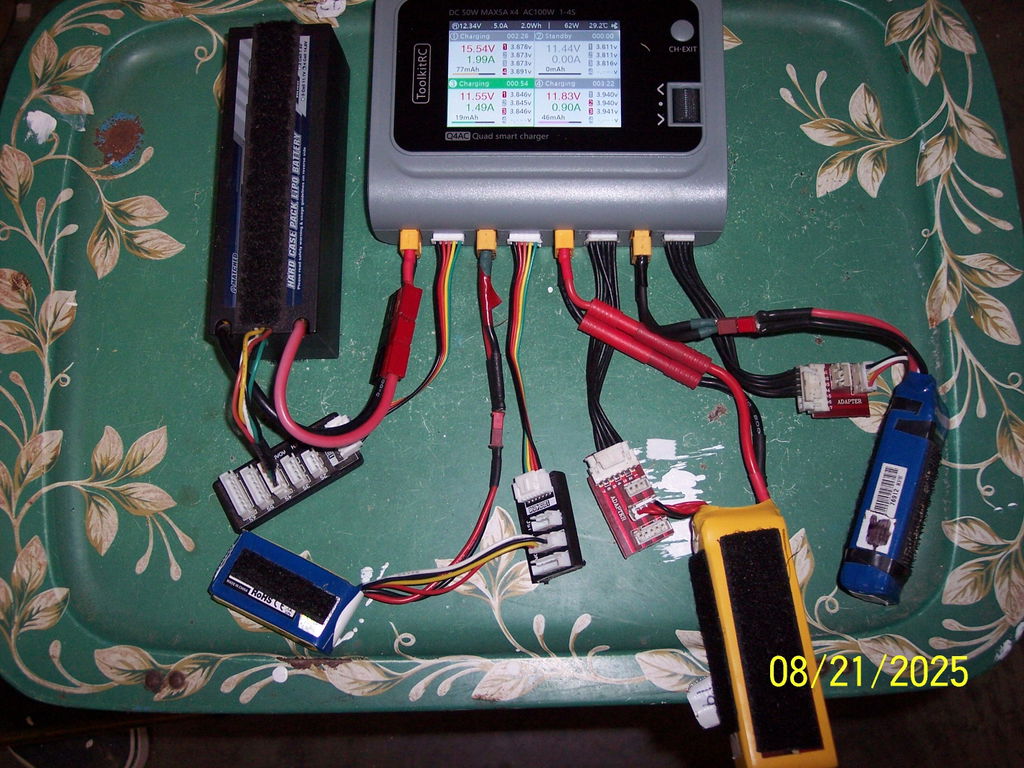

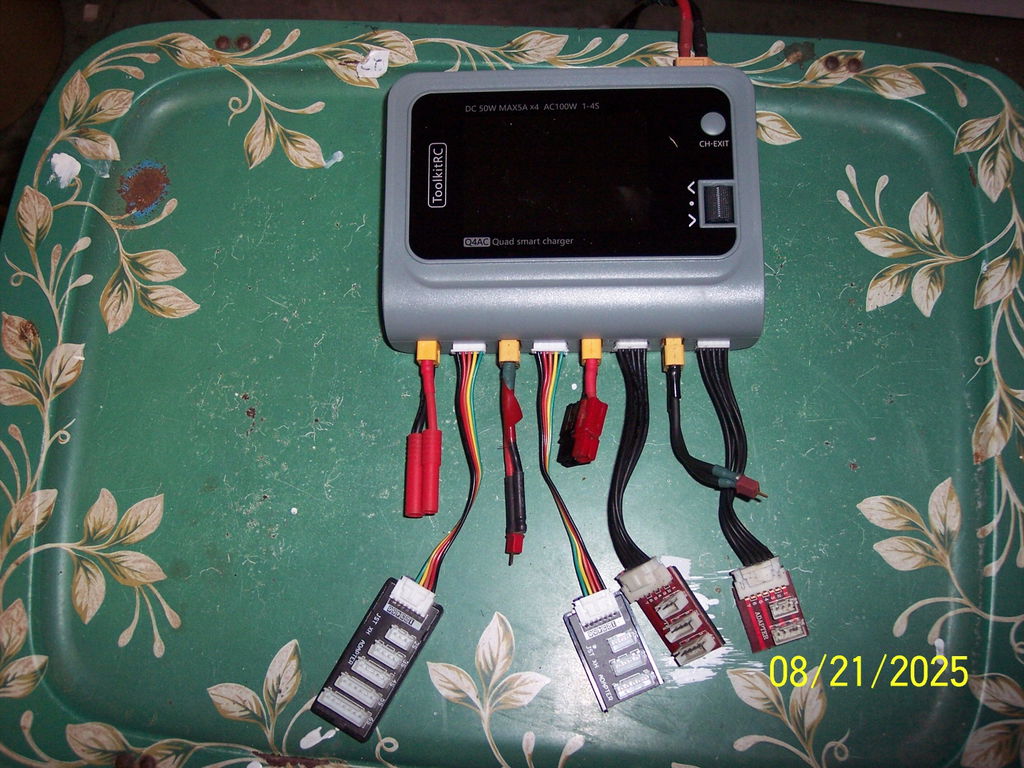

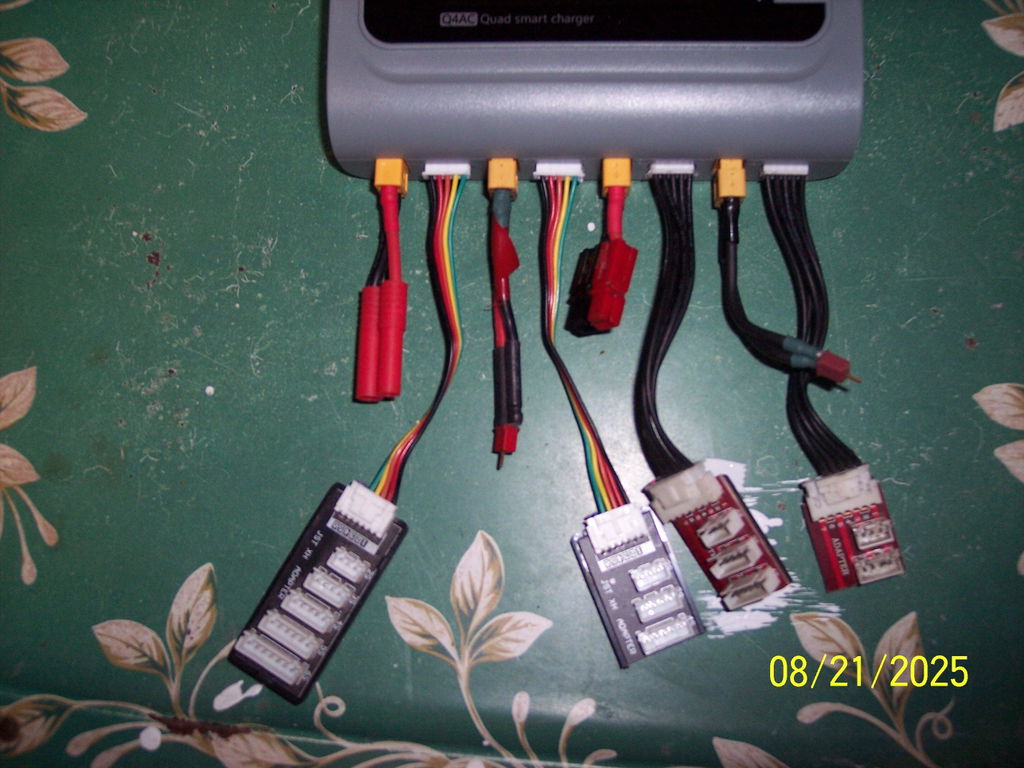

Very nice compact charger. Works as expected, very easy to use. The scroll wheel on mine doesn't scroll reliably to the left but that's not a big deal. 4 charging ports are amazing if you have got many batteries. Measures internal resistance too which was a surprise. Thanks HD and ToolkitRC!

R
Robert

Works perfectly.
