Description

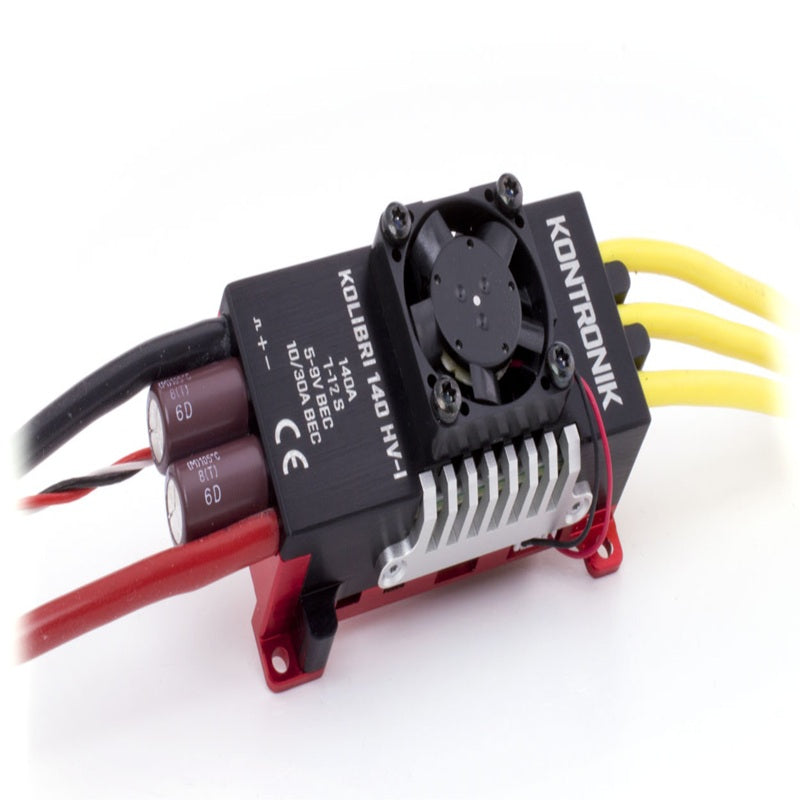

The KOLIBRI is available in two HV variants and three LV variants.
All variants are characterized by high and stable performance. As always with KONTRONIK, these controllers also have reliable protective functions. The software is based on that of the premium KOSMIK controller, so that the KOLIBRI has optimum control behavior. The well-known soft start and the versatile mode programming are also familiar from the premium segment.
All variants also feature a powerful BEC up to 9 V and 10 A continuous current.
Another highlight is the integrated telemetry function. Without additional Telme module, telemetry data is output for Powerbox, FrSky, Futaba, Multiplex, Graupner, Mikado and Jeti brands.
Technical data
| Weight approx. | 170 g |
|---|---|
| Continuous current | 140 A |
| Voltage range | 18 - 50 V |
| Number of cells | 6 - 12 S LiPo |
| BEC voltage range | 5 - 9 V |
| BEC continuous current | 10 A |
| BEC peak current | 30 A |
| With integrated telemetry | ✔ |
Downloads
| Vendor: | KONTRONIK |
| SKU: | KON-4360 |
| Barcode: | KON-4360 |
| Availability: | Out Of Stock |
| Product Type: | Electronics |
| Weight: | 5.9 oz |
Easy to setup and performs flawlessly!
Nothing less than the best coming from Kontronic like and work beautiful on my Goblin Raw 700. Very Lite and can handle 200 plus amps on my 700 I’m not a hard 3D pilot it’s perfect very pleased.
I install Kolibri 140HV I. it is very small and compacted size.

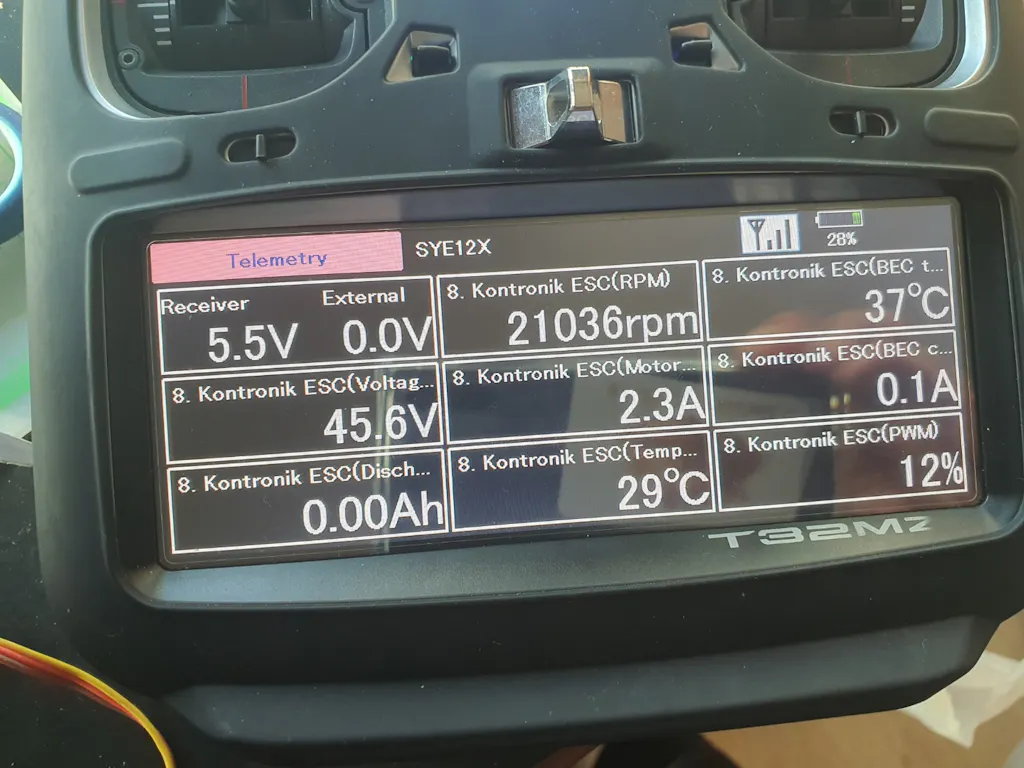

It shown all benefit information by futaba TELLME.
amazing telemetry
This is without a doubt, the best ESC available for a 500-690 size heli. The peak amp rating is at least 280A (per Kontronik) and it's very compact and lightweight. Unlike other ESC's, it also comes with a fan. I highly recommend it.
Thanks Helidirect!
