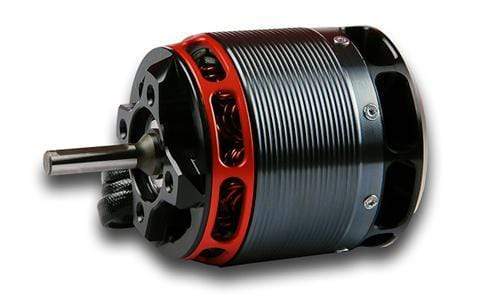

Kontronik Pyro 650-62 Competition Brushless Motor
$536.90
$0.00( / )
Special Order: Process 3 - 5 business days The PYRO 650 perfectly fits into the PYRO family and is almost as strong as the PYRO 700. It is the perfect motor for 550 / 600 sized helicopters. The PYRO 650 can handle up to 3 kW continuous power for ultimate...
Special Order: Process 3 - 5 business days
The PYRO 650 perfectly fits into the PYRO family and is almost as strong as the PYRO 700.
It is the perfect motor for 550 / 600 sized helicopters.
The PYRO 650 can handle up to 3 kW continuous power for ultimate 3D flight ability. The available RPM types fit perfectly to applications up to 12S.
PYRO 650 in short:
- Neodym magnets, heat resistent up to 150 degree C
- Dedicated enameled wire, heat resistent up to 300 degree C
- Optimized metal sheets
- Optimized ventilation
- Radial fan
- Optimized magnet circuit
Specs:
- Winding hand made
- Incredible low resistance
- Higher power capability
- Individual engraving
- Competition design
- 620 RPM/V
- Max. 30,000 RPM
- 6 mm shaft
- 10 poles
- 23.5 mm free shaft length
- 310 g / 10.9 oz
- 3.5 kW
- 19 mΩ Ri
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
PYRO-650-62-C |
| Weight: |
1.4 lb |
