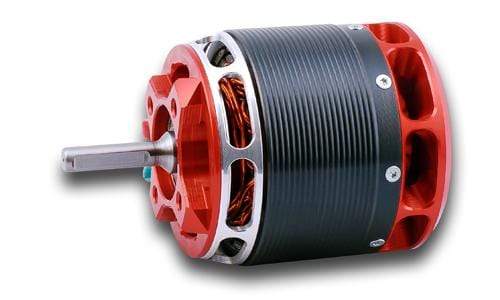

Kontronik Pyro 750-56L Brushless Motor Long Shaft

KONTRONIK
|
PYRO-750-56L
You will earn 449.90 points for buying this product
Price Match Guarantee
$449.90 $0.00( / )
Special Order: Process 3 - 5 business days The Pyro 750-56L brushless outrunner motor from Kontronik is an excellent long shaft motor. Part of Kontronik's premium line, the 750-56L has been developed in cooperation with leading manufacturers of electric RC helicopters to take the performance of electric drives to a...

Special Order: Process 3 - 5 business days

The Pyro 750-56L brushless outrunner motor from Kontronik is an excellent long shaft motor. Part of Kontronik's premium line, the 750-56L has been developed in cooperation with leading manufacturers of electric RC helicopters to take the performance of electric drives to a new level. The individually-calculated metal sheets in this motor are optimised for the magnetic flux of the motor jacket. With its optimised ventilation, high-performance radial fan and up to 300 degrees Celsius heat-resistant coil, this Pyro brushless outrunner can easily handle high-input voltage.

Furthermore, the Pyro motor also features neodym magnets which are heat-resistant up to 150 degrees Celsius. The Pyro 750-56L is compact, powerful and has an output of 4.5KW. Its unique design offers a shaft with two sizes. The internal shaft is 8mm, facilitating for 8mm bearings for a longer motor life. It also has an external shaft of 6mm that can accomodate most RC helicopters. If you need serious power for your 700-class RC helicopter; this is the motor for you. Order the brilliant Kontronik Pyro 750-56L now.

Features:

  • Compact size
  • Designed for 700-class RC helis
  • Power output of 4.5Kw
  • Shaft with two sizes (8mm internal and 6mm external)
  • Neodym magnets heat-resistant up to 150°C
  • Specailised wire heat-resistant up to 300°C
  • Optimised metal sheets and ventilation
Specifications:

RPM/V : 560
Shaft diameter: 6mm
Free shaft length: 38.5mm
Weight: 453 grams
Continuous: >4 kW
Max RPM/Min: 25,000
Poles: 14
Outside Diameter: 55.6mm
Motor Length: 61.5mm
Bolt Spacing: 30mm
Screw: 4xM4
Max Efficiency: >90%
Type:

Heli Motors

Vendor:

KONTRONIK

SKU:

PYRO-750-56L

Weight:

0.1 lb
