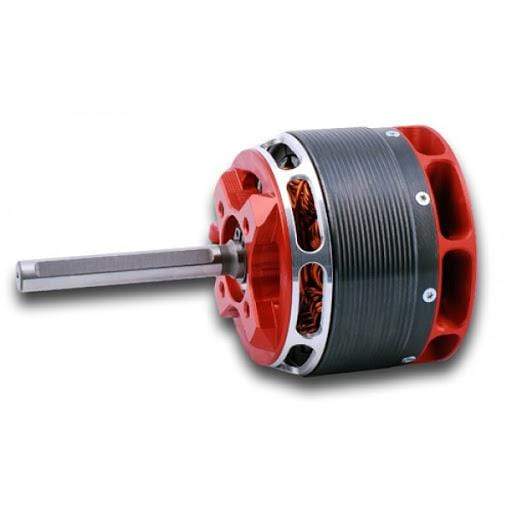

Kontronik Pyro 800-48 Brushless Motor

Already its size makes the PYRO 800 impressive: an outside diameter of 63 mm and a shaft diameter of 8 mm suggest the enormous power of this KONTRONIK motor.

The PYRO 800 convinces with a sophisticated design, bigger bearings and a screw-fixed motor can.

This allows power transition of more than 5 kW continuous power.

The PYRO 800 fits perfect for the big helicopters of the 770 / 800 class, and also for Scale and 3D helicopters.

The PYRO-800 in short:

• Neodym magnets, heat resistent up to 150 degree C
• Dedicated enameled wire, heat resistent up to 300 degree C
• Optimized metal sheets
• Optimized ventilation
• Radial fan
• Optimized magnet circuit

Specs:

• 480 RPM/V
• Max. 30,000 RPM
• 8 mm shaft
• 14 poles

• 32 mm free shaft length
• 490 g / 17.2 oz
• 5 kW
• 14 mΩ R_i
