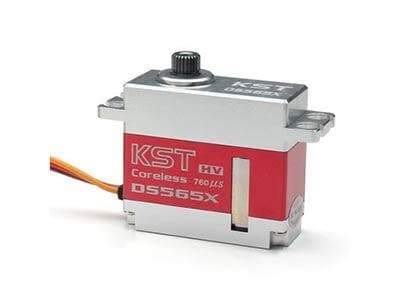

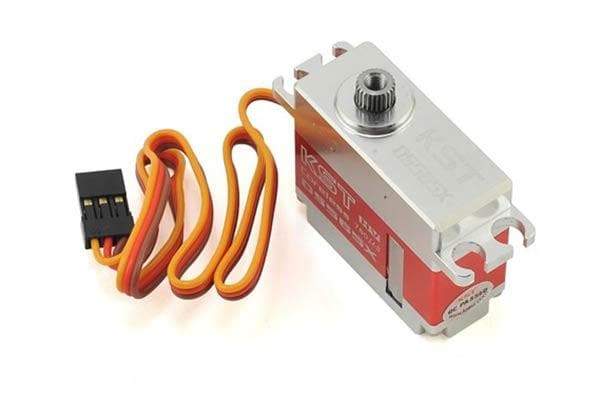

KST DS565X Mini HV Tail Servo For 450-500 Helicopters

KST Servo
|
DS565X
You will earn 65 points for buying this product
Price Match Guarantee
$65.00 $0.00( / )
KST DS565X Mini Size Digital Servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos on the tail rotor! It's critical to ensure your gyro has the capability to operate 760uS Tail Servos, ensuring that the KST 565X operates correctly.    Features: Mini size aluminum...

KST DS565X Mini Size Digital Servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos on the tail rotor! It's critical to ensure your gyro has the capability to operate 760uS Tail Servos, ensuring that the KST 565X operates correctly.

Features:

  • Mini size aluminum case
  • Full metal gears
  • Dual ball bearings
  • HV compatible
  • Lightning fast
  • Coreless motor
  • Narrow Pulse - 760uS - Helicopter Tail

Specifications:

Operating Voltage: 6-8.4V
Size: 35.5x15x32.7mm
Pulse Width: 760uS
Torque: 4.0kg.cm @ 6.0V; 6.0kg.cm @ 8.4V
Speed: 0.06sec/60° @ 6.0V; 0.04sec/60° @ 8.4V
Weight: 40g
Working Frequency: 760us/560Hz
Motor: Coreless
Ball Bearing: 2BB

Type:

Heli Servo

Vendor:

KST Servo

SKU:

DS565X

Weight:

0.31 lb


Product Spare Parts


Electronics

Customer Reviews

Based on 17 reviews
94%
(16)
6%
(1)
0%
(0)
0%
(0)
0%
(0)
G
Gary K.
great little servo

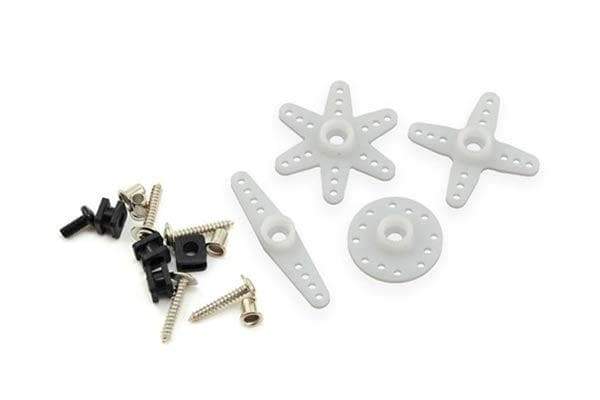

I bought this servo to replace the tail servo on My Trex500 heli. Everything is included for mounting and also servo arms are included.
The servo has metal gears so stripping them will be difficult.

T
Tien S.
Solid choice for Goblin 380 tail

Seems to work well so far...

a
angel s.
KST DS565X Mini HV Tail Servo For 450-500 Helicopters

A nice servo its a good replacement for the align servos

s
sunson29
I like it

Thanks

F
Furio F.
KST

Beautiful servo...work super..I racomand x t rex 450 and 500

S
Stephen C.
KST DS565x Tail Servo

This servo improved the tail stability of my T-Rex 470L. It is faster and more powerful than the micro servo that came with the super combo kit. Great fit and easy installation.

B
Brad A.
Good fit for a Align 470L

Bought to replace an old Align tail servo on my 470LP helicopter. Fits well with the trex 450 metal tail servo mount. Setup was quick and easy and this change solved my tail wag issues. Tail holds nice and strong now!

N
Neal J.

Great performance

A
Andres y.
Servo runs perfect

Very good Service an servo I got to get another one

D
David D.
KST DS565X

I purchased this KST DS565X for the Tail of my Oxy4 Max. It is working great, as it has plenty of torque and speed for that heli. I purchased from HeliDirect with 3 cyclic servos and got a great bundle deal. Fast shipping as always.
