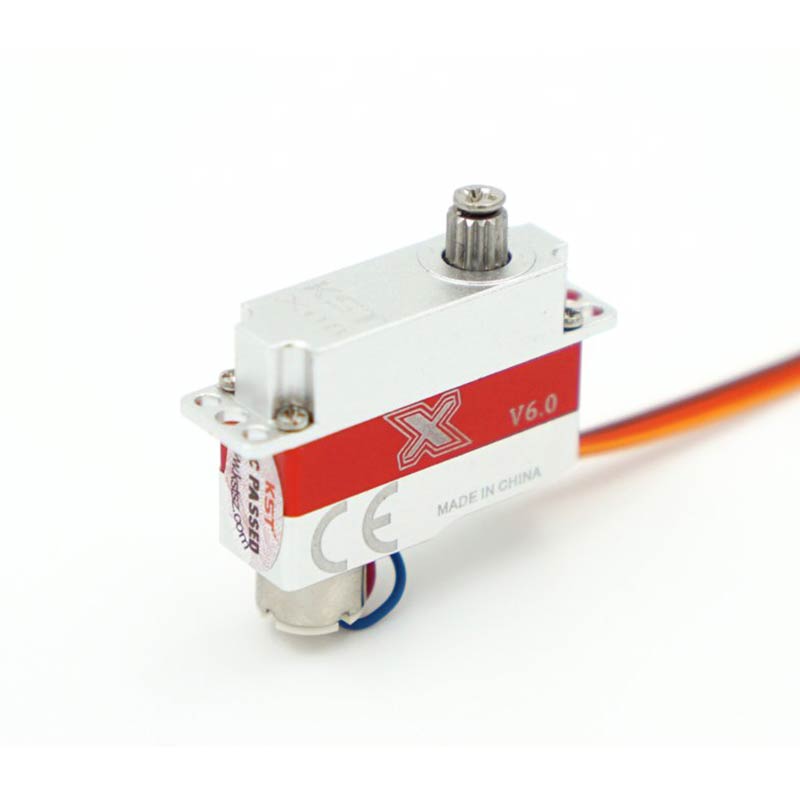

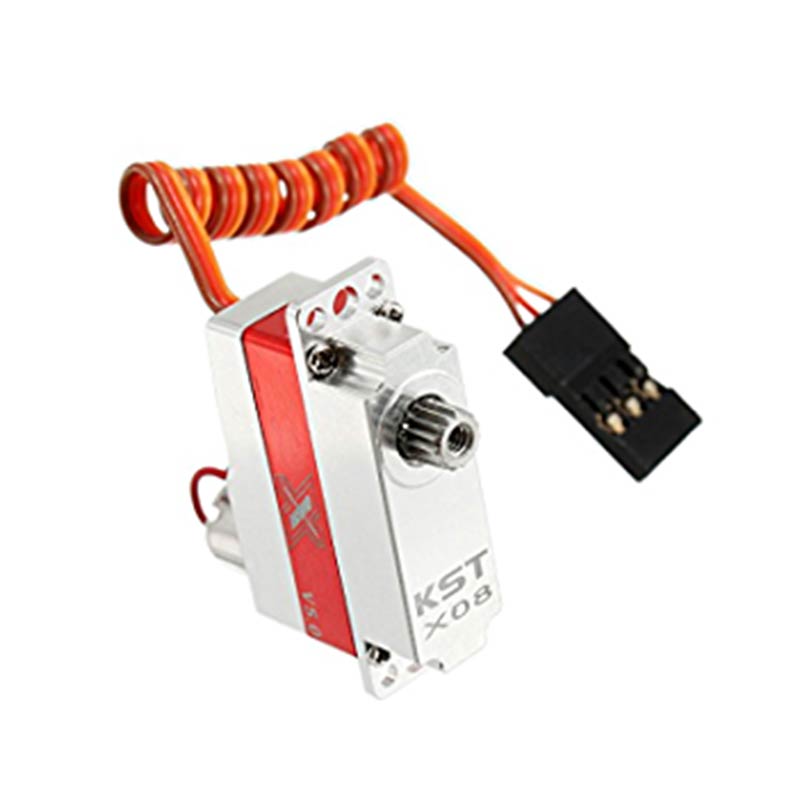

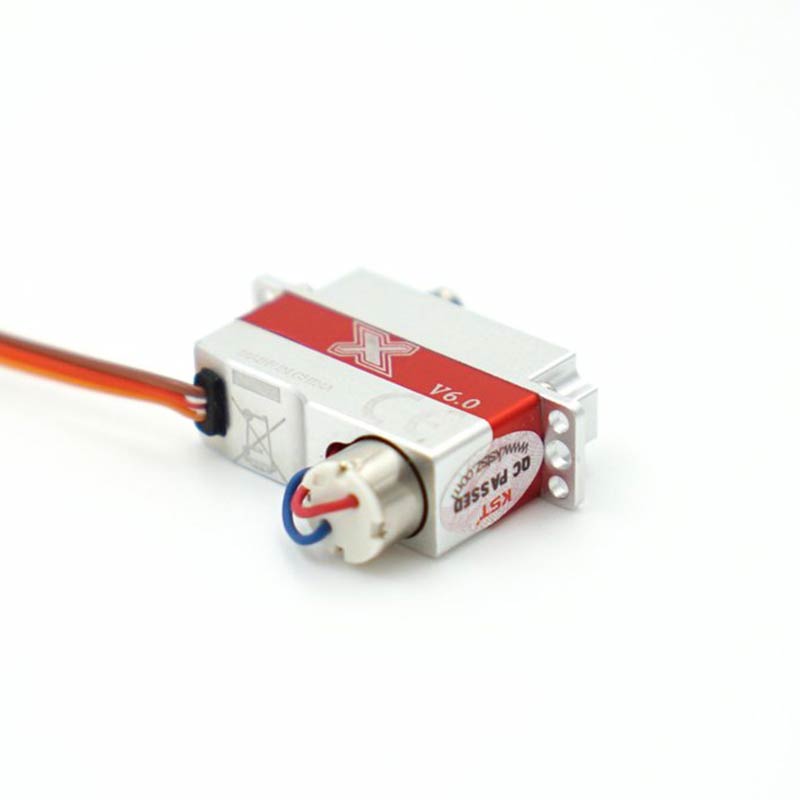

KST X08 V6.0 HV Servo

KST Servo
|
X08-V6
You will earn 45 points for buying this product
Price Match Guarantee
$45.00 $0.00( / )
KST X08-V6 reinforced (gear output gear made of steel; now with programmed soft start)  from KST in an aluminum housing with a robust metal gear . The KST-X08-V6 is characterized by its robustness, high resetting accuracy and a positioning force of up to 28 Ncm at a good positioning speed. The KST X08 / H / "reinforced"...

KST X08-V6 reinforced (gear output gear made of steel; now with programmed soft start)  from KST in an aluminum housing with a robust metal gear . The KST-X08-V6 is characterized by its robustness, high resetting accuracy and a positioning force of up to 28 Ncm at a good positioning speed.

The KST X08 / H / "reinforced" servos are recommended for models up to 1.5 kg take-off weight.

Due to the low height of 8 mm, the KST-X08-V6 is ideally suited for HLG, DLG, F5B and F5D models. The X08 servo can be operated with a 1-cell or 2-cell Lipo. The high-quality full aluminum housing can be fitted precisely and ensures good heat dissipation. Please note the servo recommendation of the respective model manufacturer when selecting your servos

Accessories included: 3 plastic servo arms, 1 servo arm screw, 4 fastening screws

Technical specifications:

Operating voltage:3.8 - 8.4 volts (HV)
Case Thickness:8 mm
Housing width:23.5 mm
Housing height:16.6 mm
Weight:8 g
Housing material:CNC-milled aluminum
Servo motor:Coreless bell anchor
Position sensor:Potentiometer
Positioning force at 3.8 volts:14 Ncm
Actuating force at 6.0 volts:22 Ncm
Positioning force at 8.4 volts:28 Ncm
Adjustment time at 3.8 volts:0.18 sec / 60 °
Adjustment time at 6.0 volts:0.15 sec. / 60 °
Positioning time at 8.4 volts:0.09 sec. / 60 °
Fastening straps:default
Servo gear:Phosphor bronze + steel
Camp:ball-bearing
Connection cable plug system:approx. 15 cm Graupner connector



Type:

Heli Servo

Vendor:

KST Servo

SKU:

X08-V6

Weight:

0.25 lb


Product Spare Parts

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
p
paul g.
A well built servo.

I'm not sure it is the best choice for the oxy 2 but with limited availability of HV sub micros I decided to give them a try. They center perfectly, have 0 slop so far and appear to be up to the task for a 200 ish size micro heli cyclic. Also, they fit really easily in the oxy2 which is a big plus
