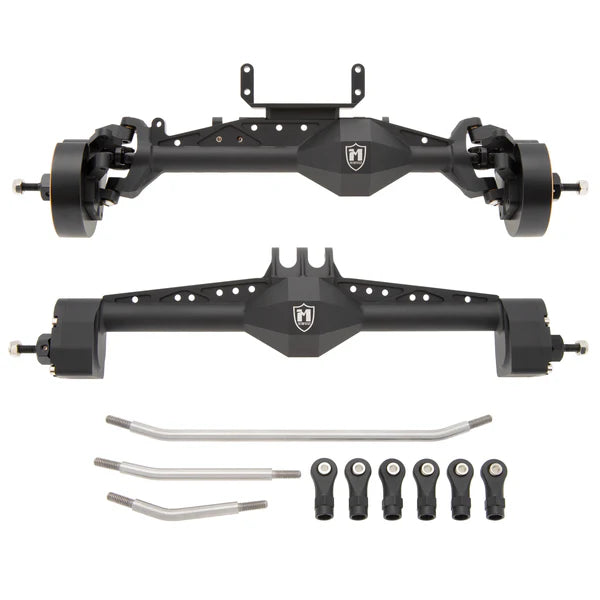

MEUS Racing Capra 1.9 UTB Isokinetic 3-Section CVDs Portal Front Rear Axles for 1/10 Axial Capra 1.9 UTB DIY SCX10 SCX10 II

MEUS Racing Capra 1.9 Portal Axles Kit with Isokinetic 3-Section CVDs, Ackerman Steering Structure, and 2 Servo Mounts Output shaft 6mm-M4 for 1/10 Axial Capra 1.9 UTB AXI03004 LCG Chassis and DIY SCX10 SCX10 II Upgrades Parts.

Key Features:

• 1. Suitable for Axial 1/10 Capra, DIY SCX10 and SCX10 II chassis. It is also suitable for 1/10 Vanquish VRD Carbon and Vanquish H10 Rock Crawlers.

• 2. Capra front and rear metal axles are made of high-quality aluminum alloy, and the output shaft is 40CR material.
• 3. Equipped with 8/30T 20CR gears, it is sturdy and durable.
• 4. Isokinetic 3-Section CVD structure ensures no shaking at high speed and large angles.
• 5. The default steering angle is 48°. The steering angle can be increased to 55° by grinding the limit structure of the steering cup and using the widened ET kit(not included in the package) to increase the axle track.
• 6. The front axle optimizes the C-HUB structure, and the smaller C-HUB can obtain better rocky road passability.

• 7. The front axle is equipped with two servo mounting structures, which allow you to flexibly choose a better installation solution, and add a thrust rod mounting hole to obtain more adjustment space.
• 8. The front axle has a 96G brass portal gear cover on one side. Get a better center of gravity offset.

• 9. US patented (Patent No..: US D1,052,393 S) Isokinetic 3-section CVD ensures that there are no jerks when turning at large angles, 52° max. steering angle.

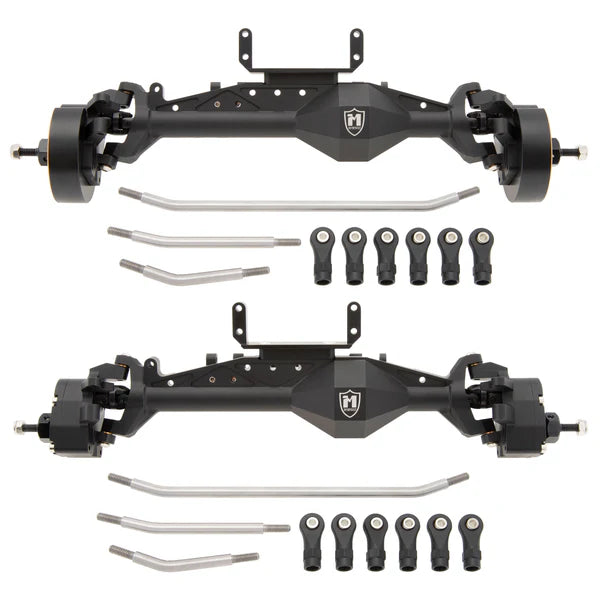

4WS axles key features:

1. When this 4WS axle is installed on the car, the pumpkins are not on the same side. If you want the pumpkins on the same side, please choose another version

2. Two front axles diff gears are 8-30 T. If you want to install 8-24T in one axle, please take a note on your shopping cart.

Specifications:

• Axle material: aluminum alloy

• Gear Cover: Brass
• Gear material: 20Cr Alloy Steel

• CVD shaft material: 40Cr Alloy Steel

• Gear ratio: 8/30T

• Front axle total length: 219mm(8.62in)

• Rear axle total length: 219mm(8.62in)

• Front axle weight: 476.3g

• Rear axle weight: 250g
• 2 Front axles weight: 742.6g
• Front axle weight - no the weights: 265.7g
• Portal steering knuckle bearing size: 5x11x4 mm
• Wheel hex adapter size: 6mm
• The rear axle portal gear ratio is 23T/12T

Note: The ET Kit is to increase the width of the wheels on both sides to prevent the wheels from hitting the body or connecting rod when turning at a large angle. This kit needs to be prepared by the user.

Packing list:

1 × Front and rear axle
3 × Connecting rod

First servo mounting method:

Second servo mounting method:

Ackerman Steering
