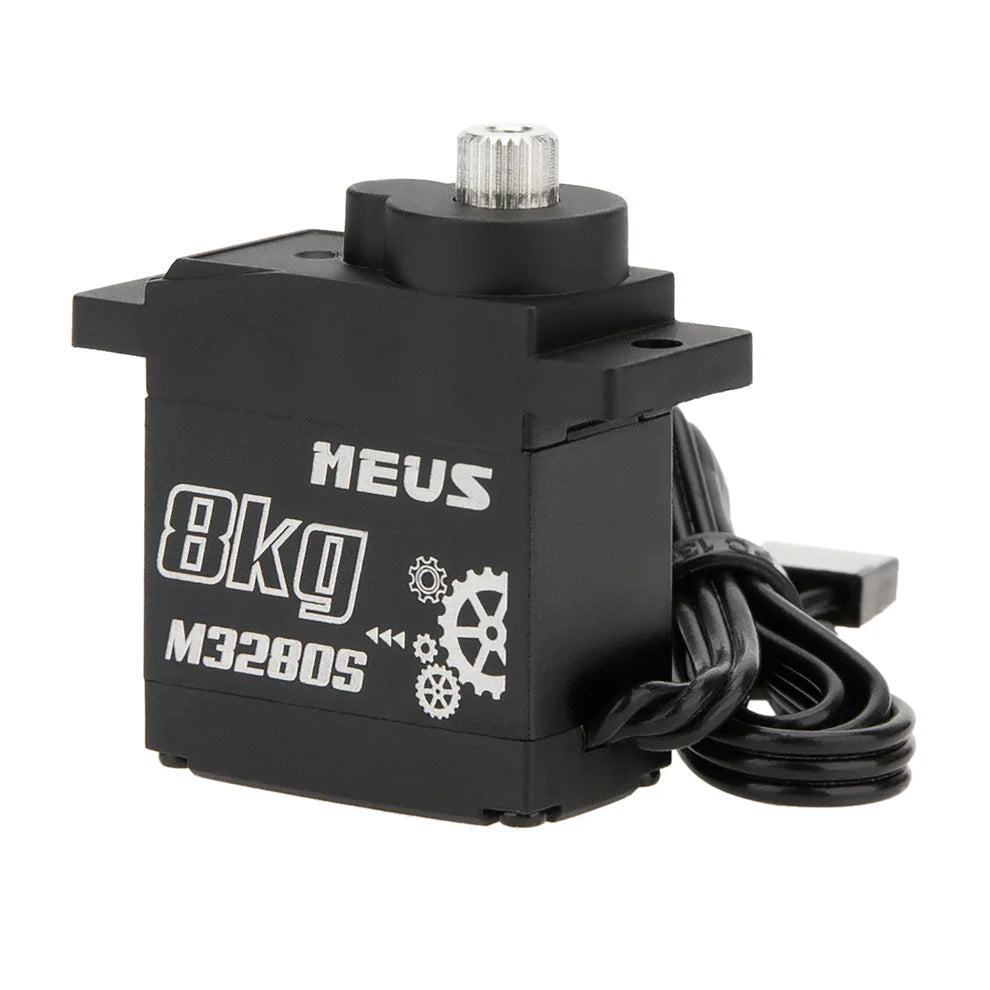

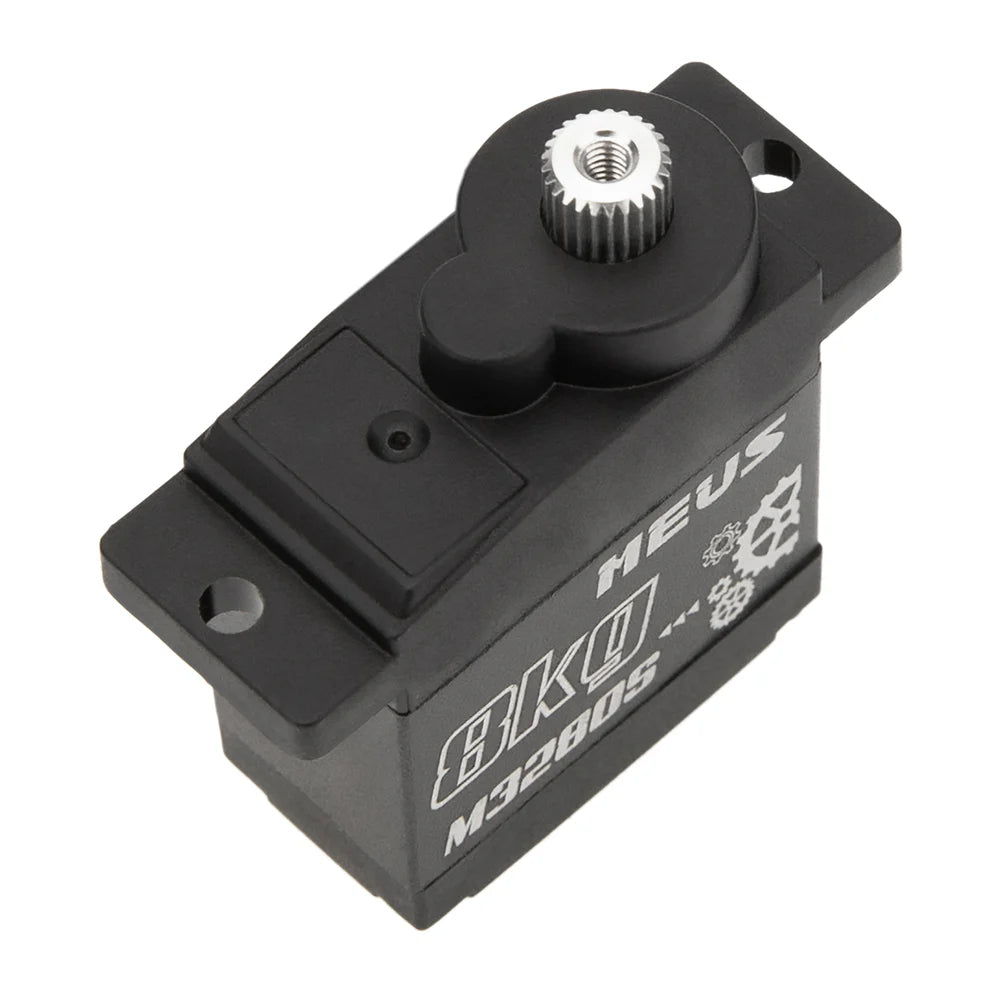

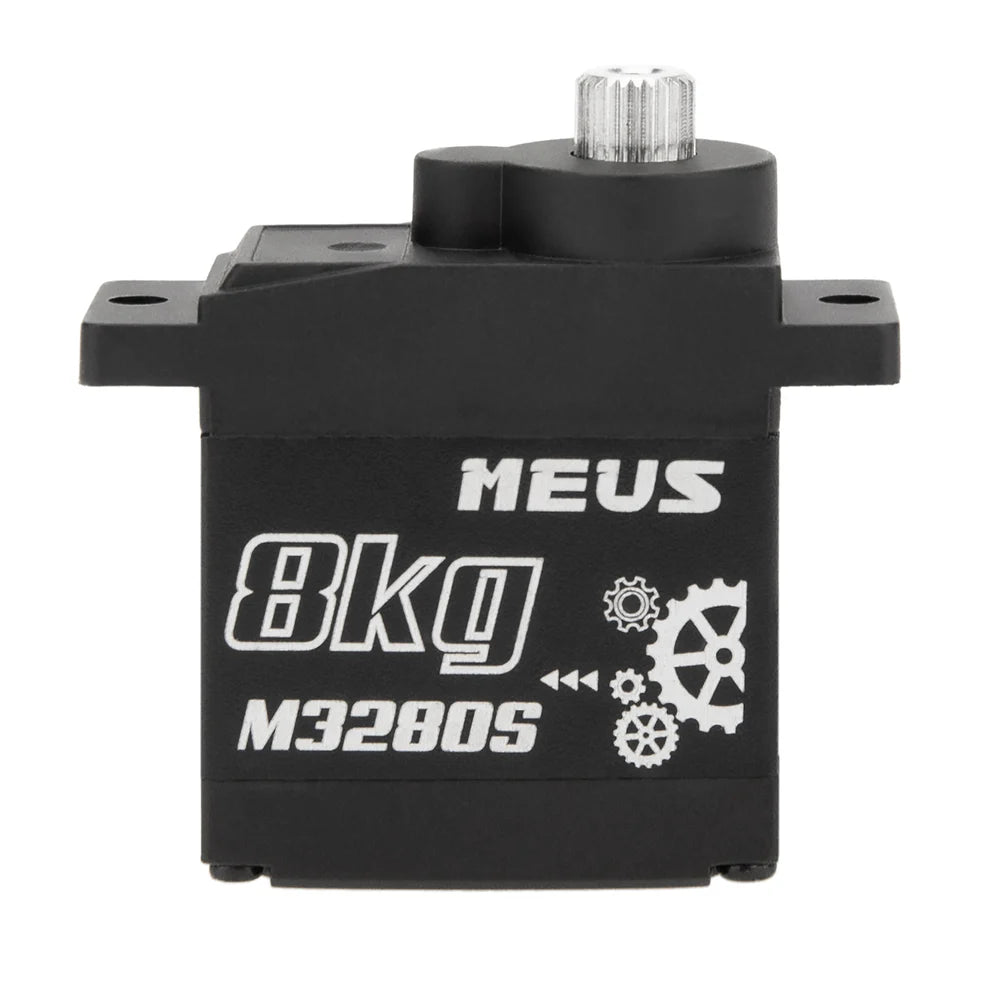

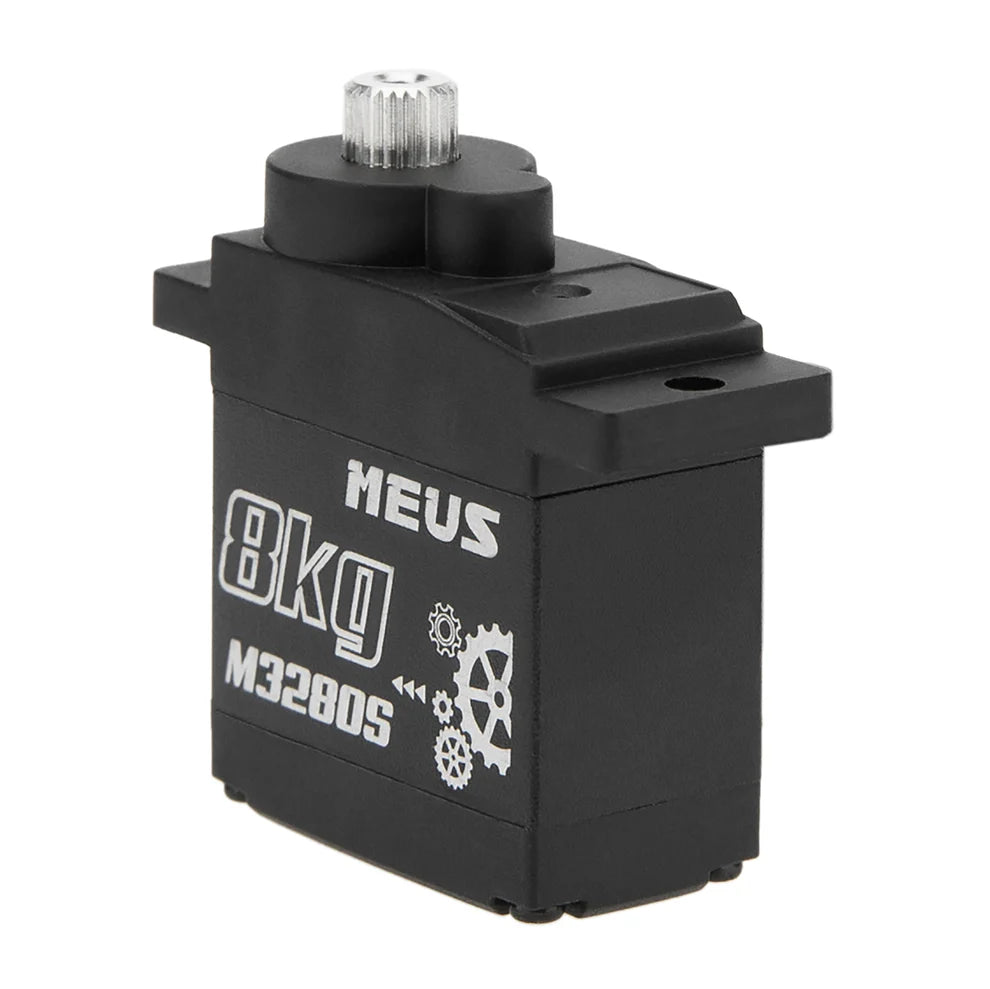

MEUS Racing M3280S 8KG Digital Micro Servo for 1/24 SCX24 1/18 TRX4M Redcat Ascent-18

MEUS Racing M3280S 8KG Digital Micro Servo for 1/24 SCX24 1/18 TRX4M Redcat Ascent-18.

Key Features:

• 1. The 8KG servo is ideal as a steering servo for micro crawler, e.g, SCX24, TRX4M, Ascent-18 1/1,8 1/24 RC crawlers, and also can work as a shift servo for 1/10 scale crawlers such as TRX4 and SCX10 III.

• 2. High-quality metal gears with greater wear resistance and enhanced durability

• 3. Supports voltage range of 4.8-8.4V, providing 8KG stall torque,

• 4. Compatible with 25T servo arms from MEUS Racing.

• 5. The package includes one 8 kg servo and one set of servo horns.

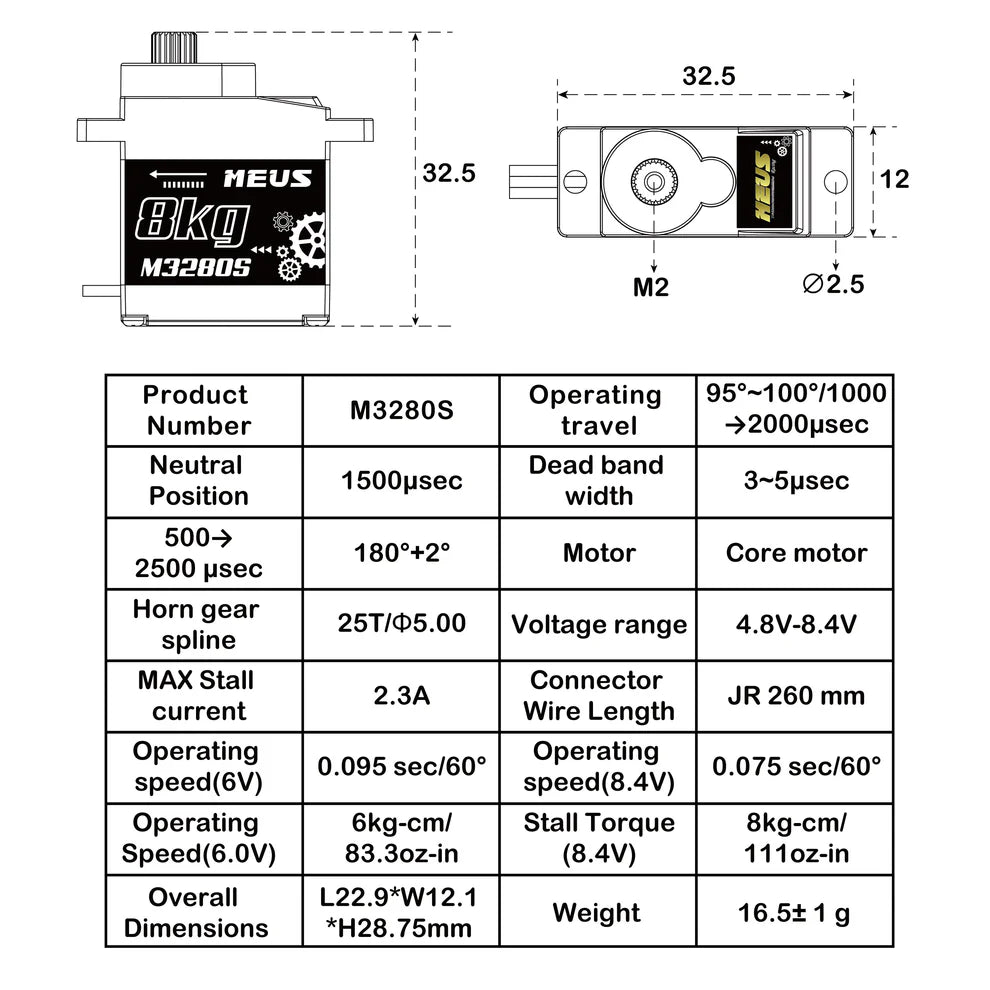

Specifications:

• Part Number: M3280S

• Operating Voltage: 4.8V-8.4V

• MAX Stall current: 2.3A

• Operating travel: 95°~100°/1000->2000usec

• Neutral Position: 1500usec

• Dead band width: 3~5usec

• 500→2500 usec: 180°+2°

• Motor: Core motor

• Horn gear spline: 25T/Ф5.00

• Connector Wire Length: JR 260 mm

• speed(6V): 0.095 sec/60°

•  speed(8.4V): 0.075 sec/60°

• Speed(6.0V): 6kg-cm/83.3oz-in

• Torque (8.4V): 8kg-cm/111oz-in

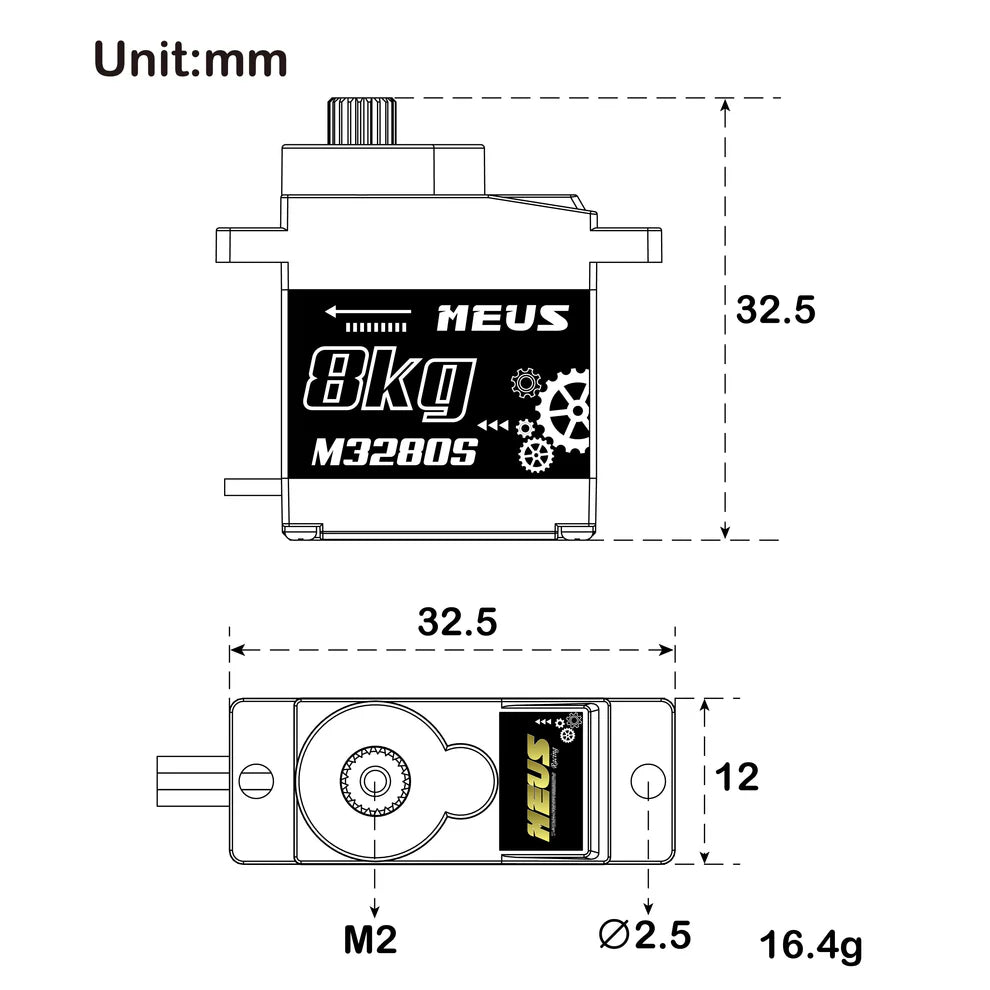

• Overall Dimensions: L22.9*W12.1*H28.75mm

• Weight: 16.5+1g

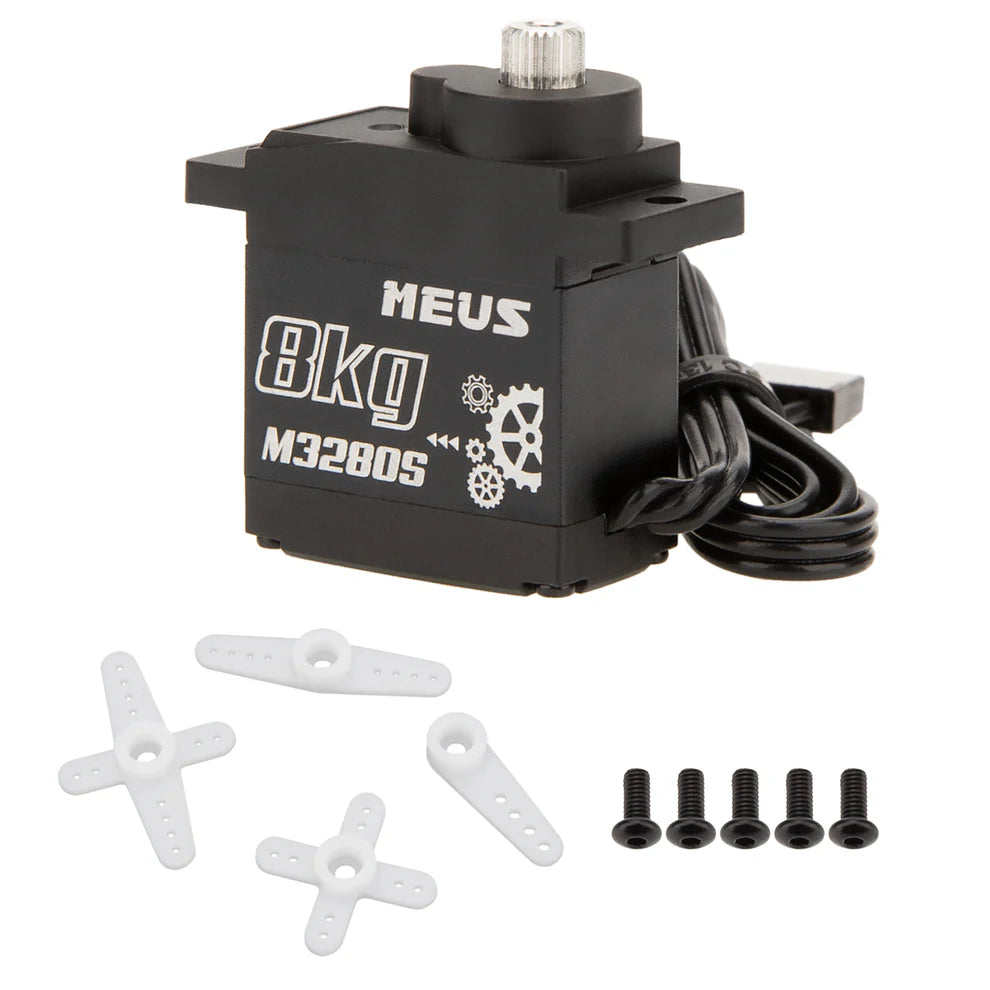

Package List:

• 1 × 8KG servo

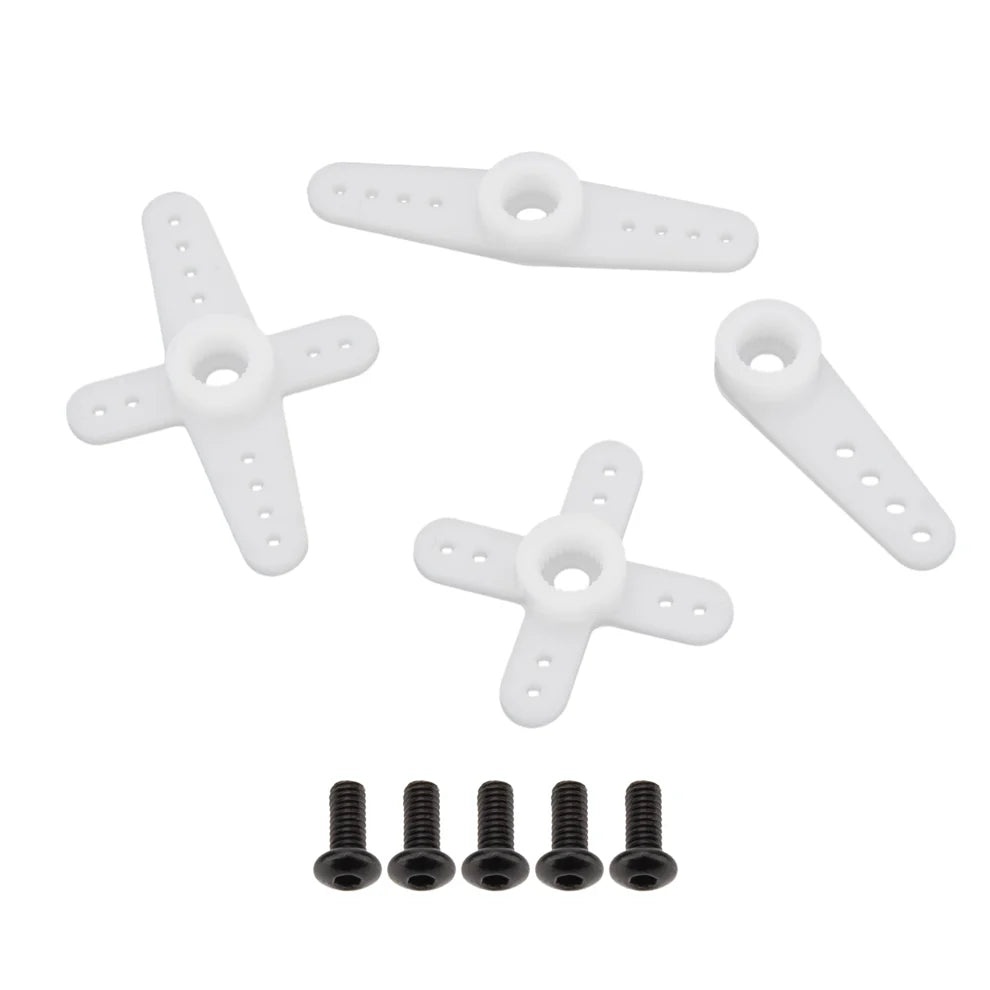

• 1 × Servo horn set
