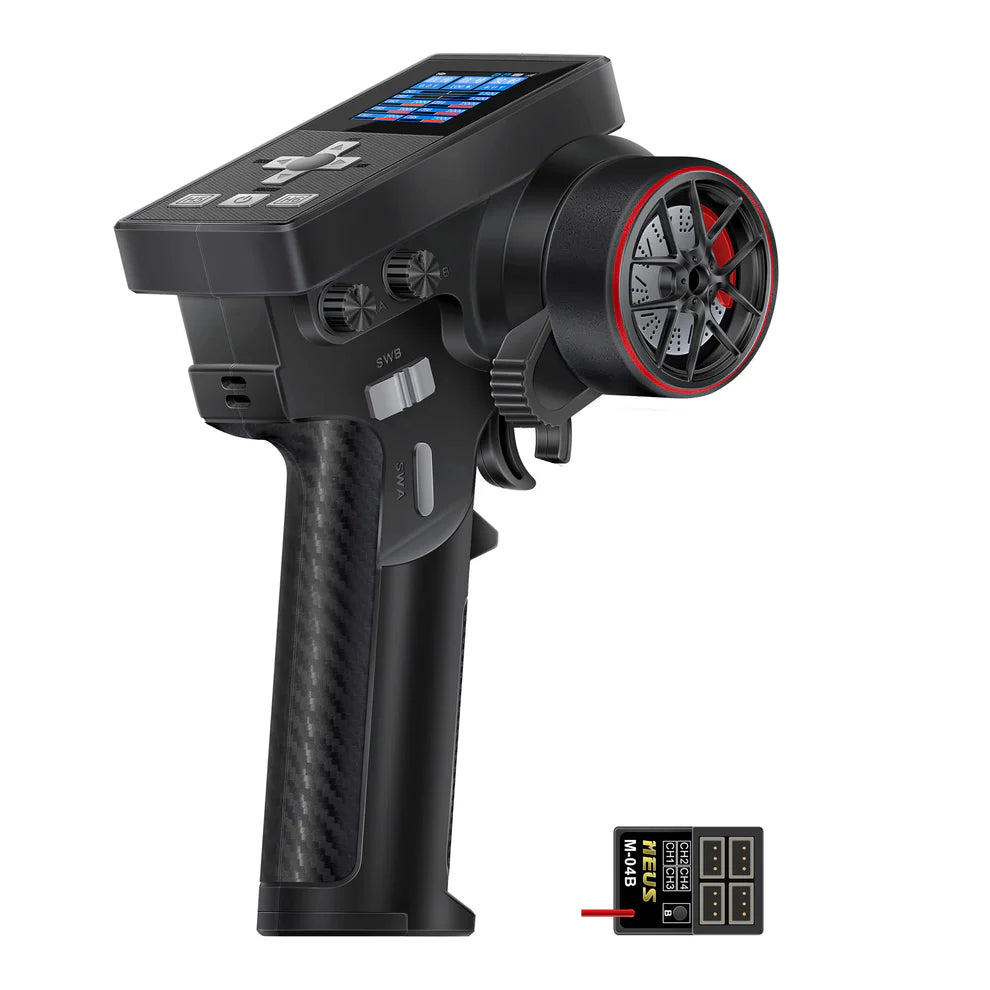

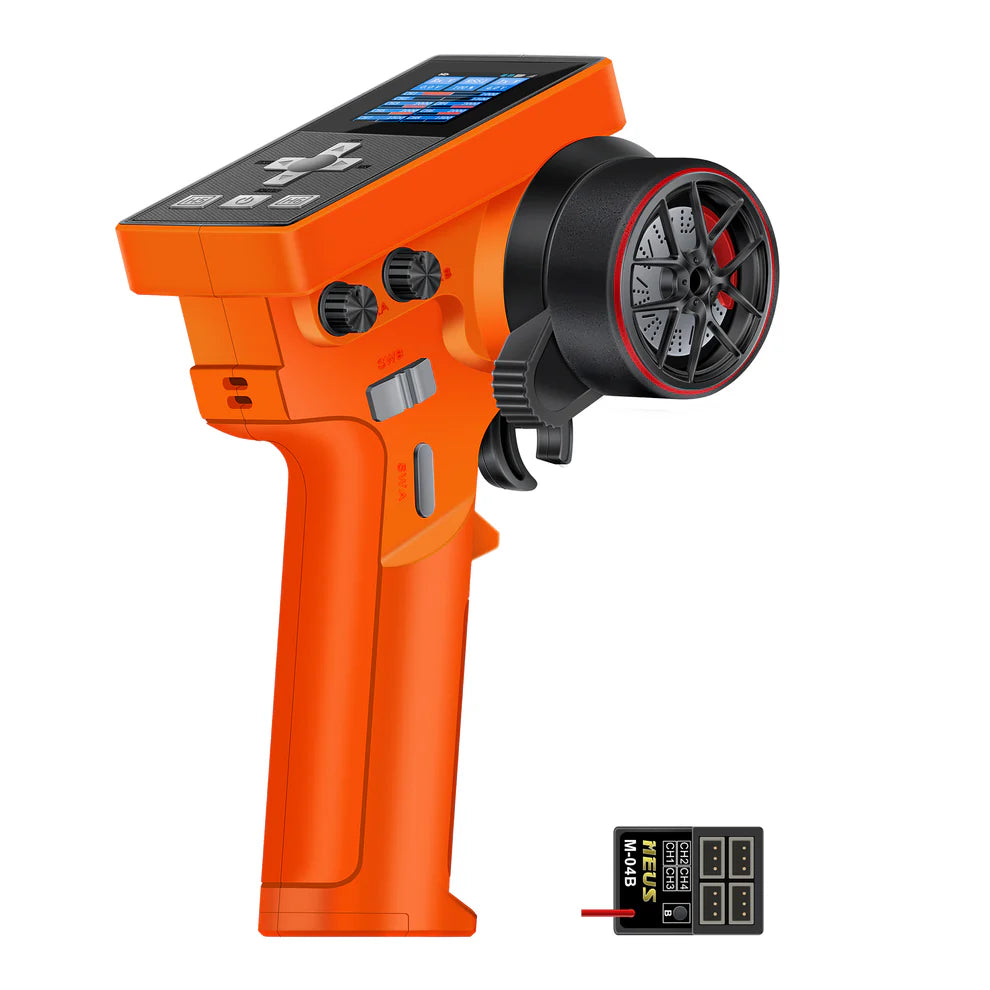

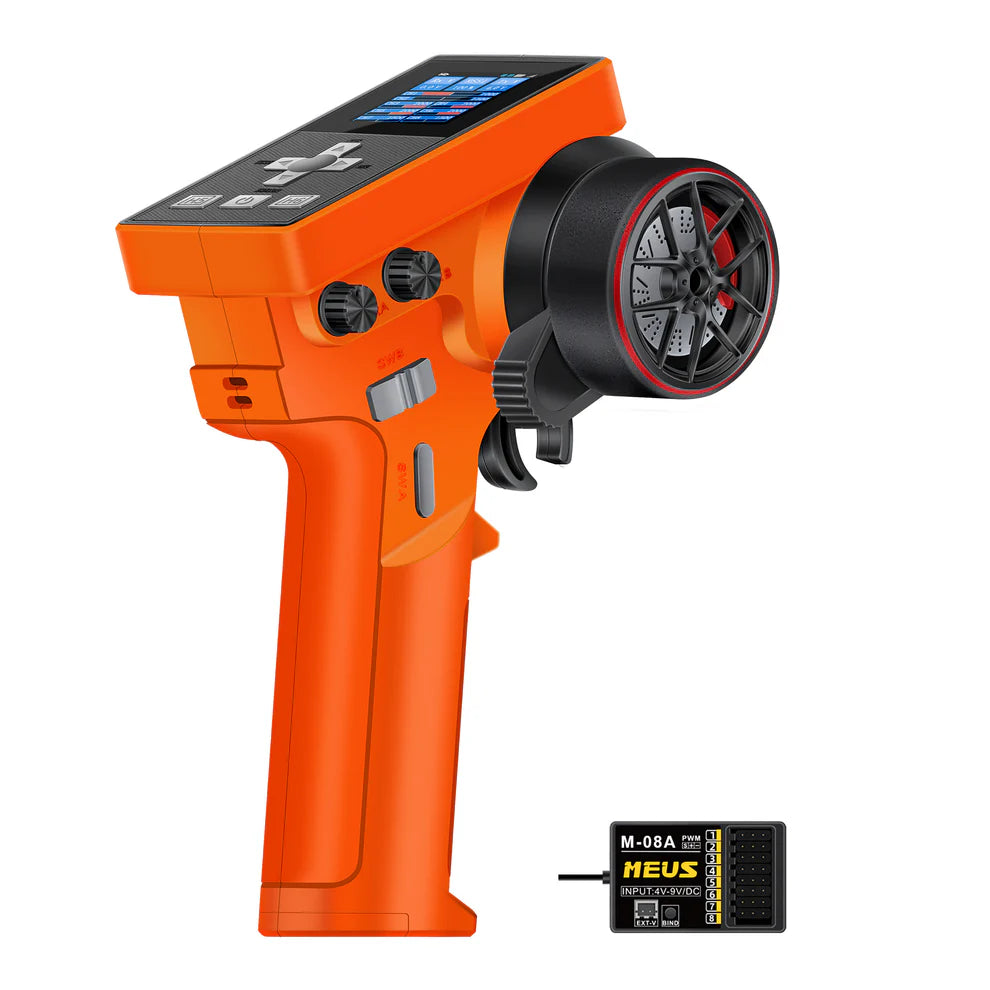

MEUS Racing ME-8B RC Transmitter 8CH 2.4GHz & Receiver for 1/8 TRX4 1/10 SCX10 1/18 TRX4M 1/24 SCX24 RC Models

MEUS Racing ME-8B RC Transmitter 8 Channels 2.4GHz and M-08A Receiver for 1/8, 1/10, 1/18, 1/24 RC Crawler Car Boat TRX4 TRX4M SCX10 SCX24 Upgrades Parts.

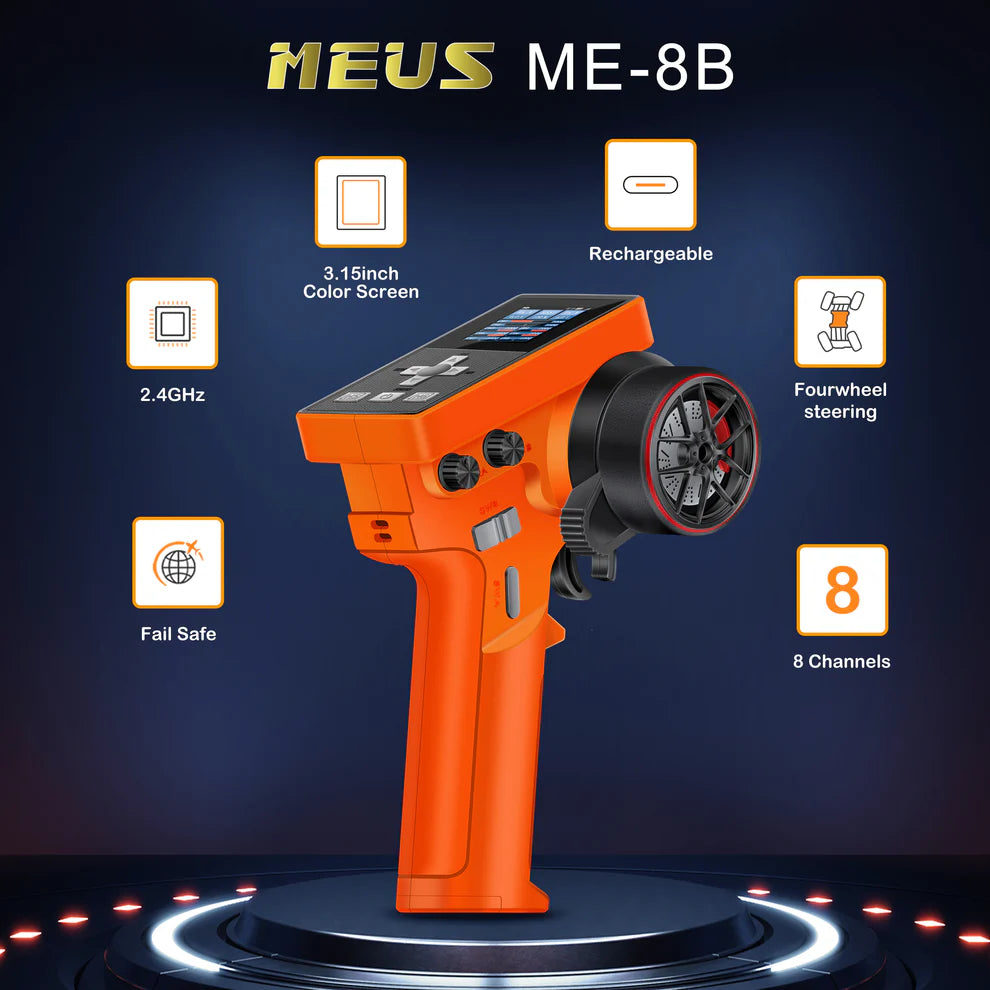

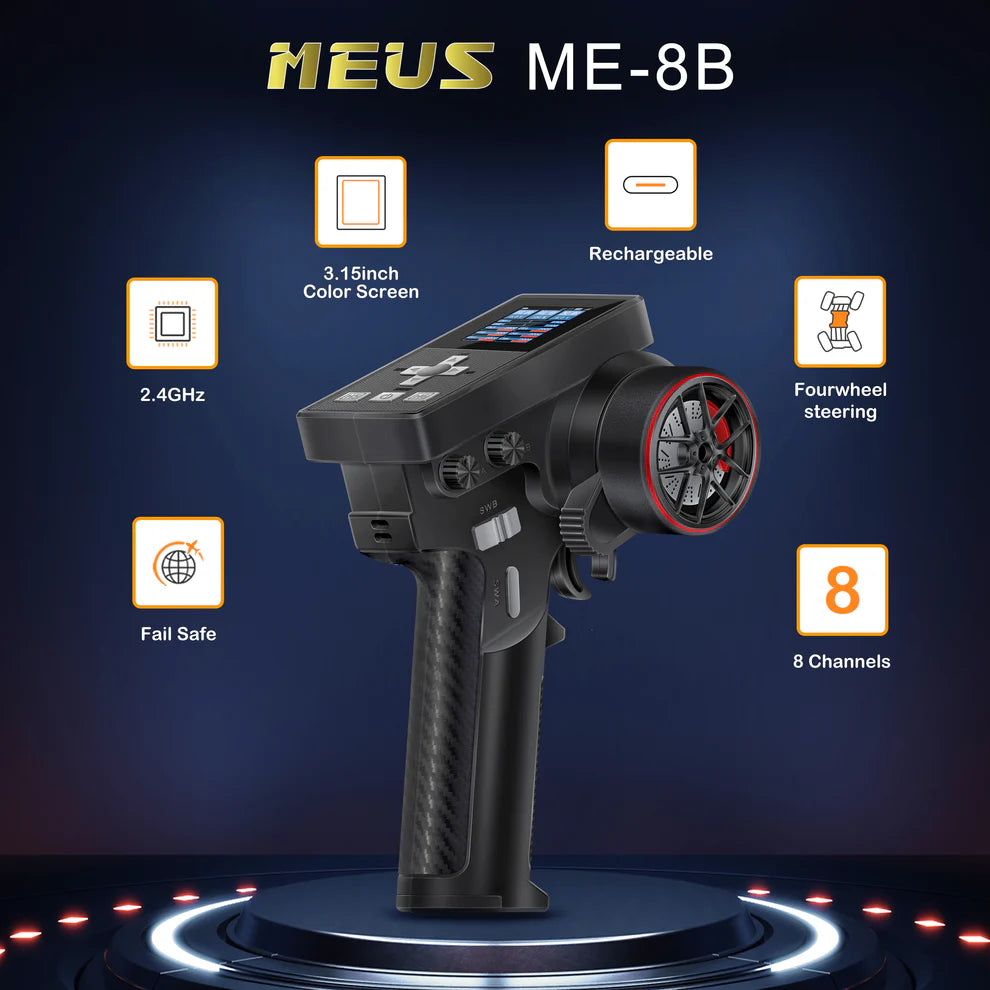

Key Features:

•  1. Self-developed 2.4GHz technology: Stable performance and greater anti-interference ability.

• 2. Within 3s response time: Comes with a power amplifier to extend the remote control distance to ground distance max.300 meters and air distance max.800 meters.

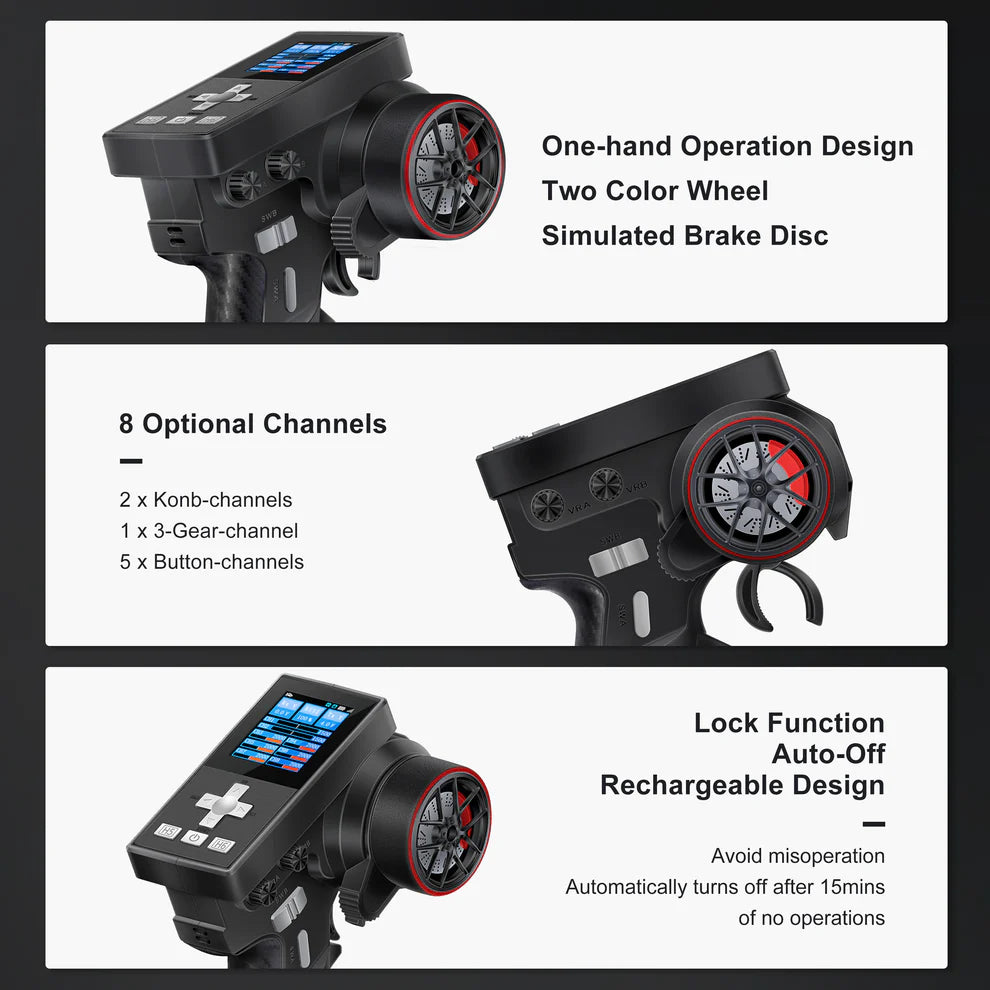

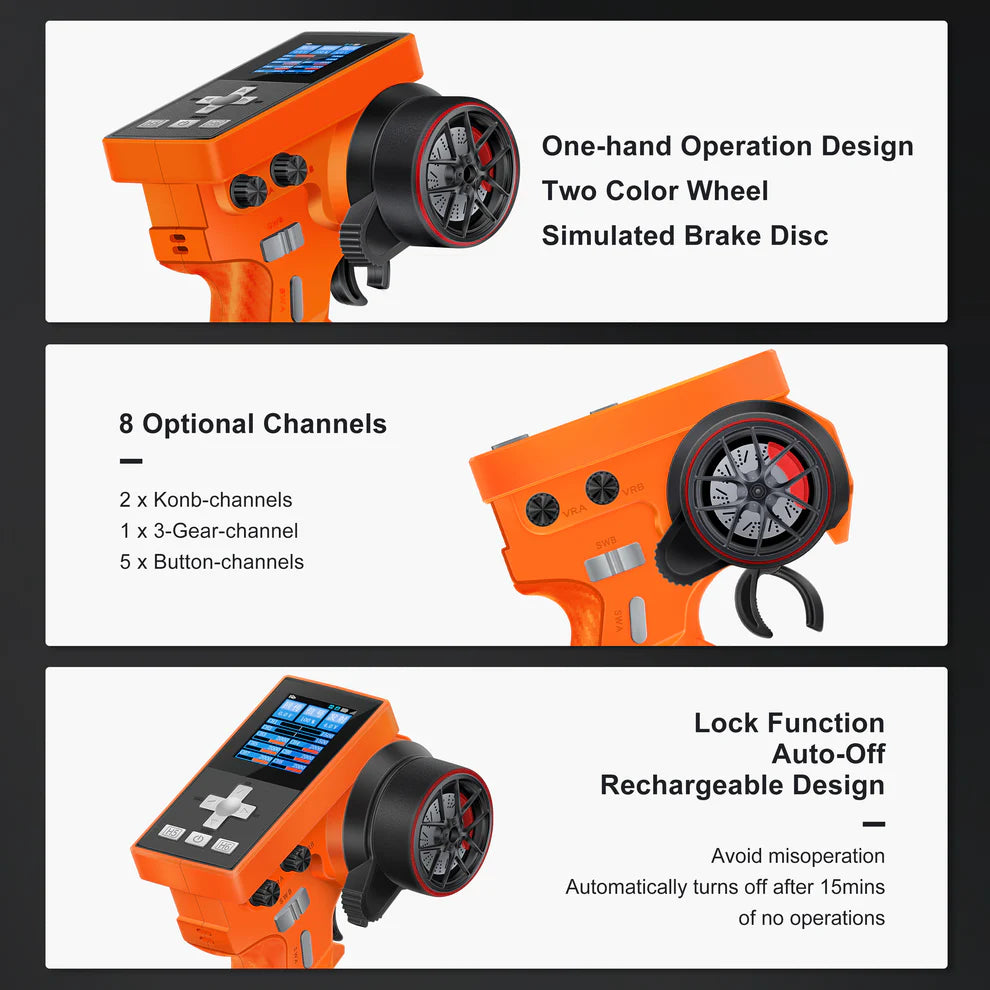

• 3. Up to 8 channels: Except for throttle and steering handwheel, this transmitter comes with one 3-gear channel, two knob-channels, and three button-channels, 8 channels in total for flexible operations.

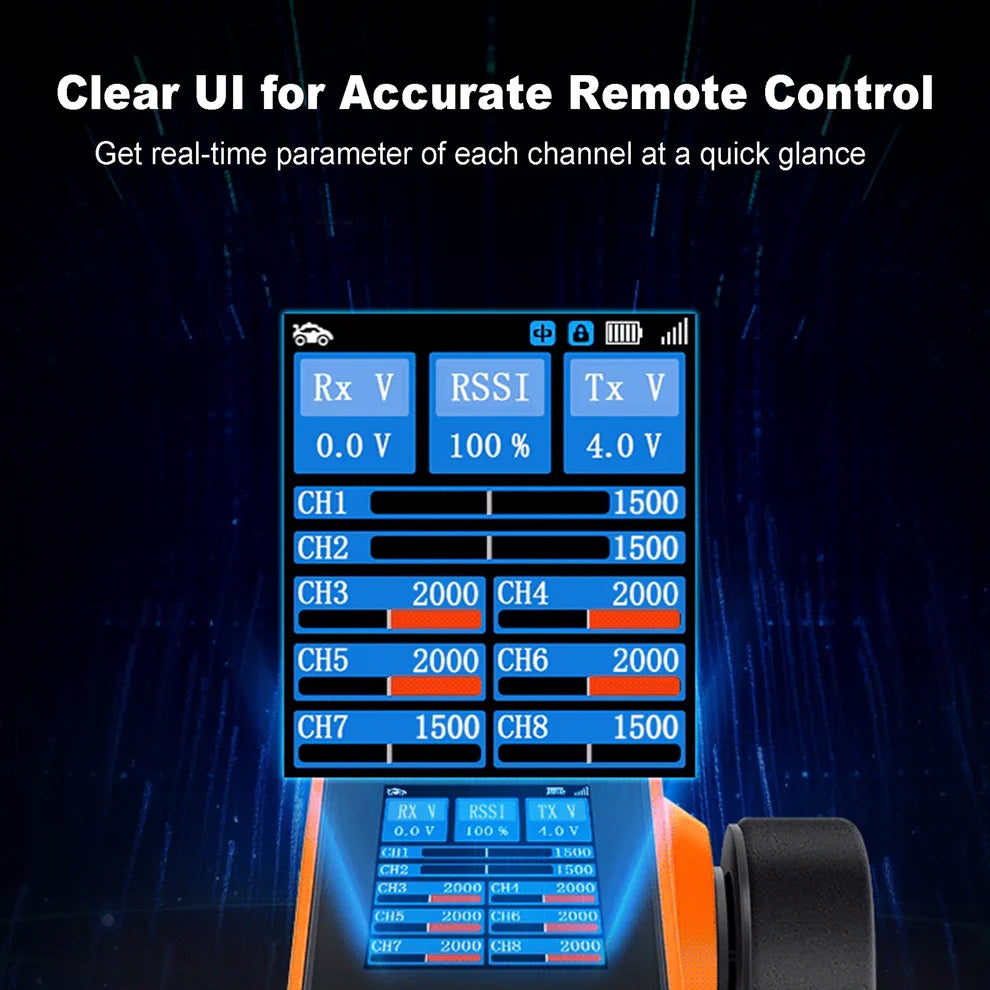

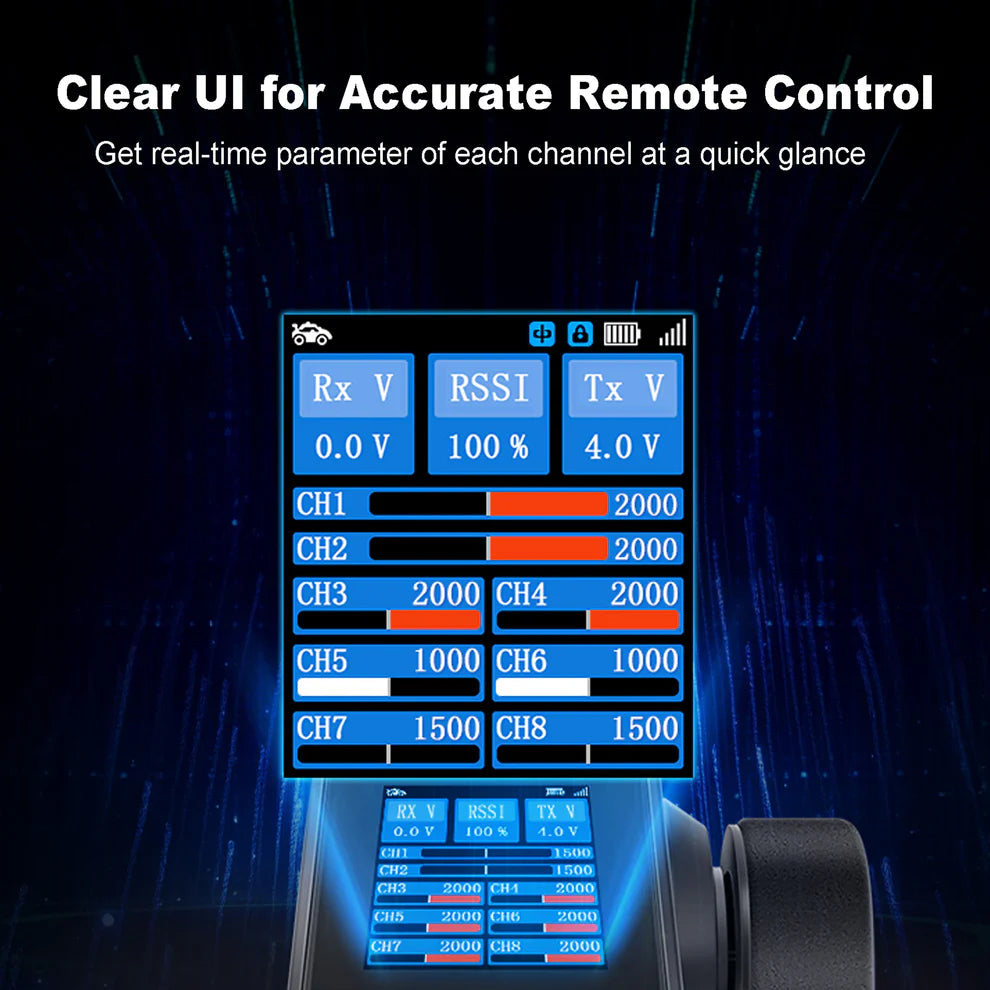

• 4. Clear UI and color screen: Allows you to get real-time parameters of each channel at a glance.

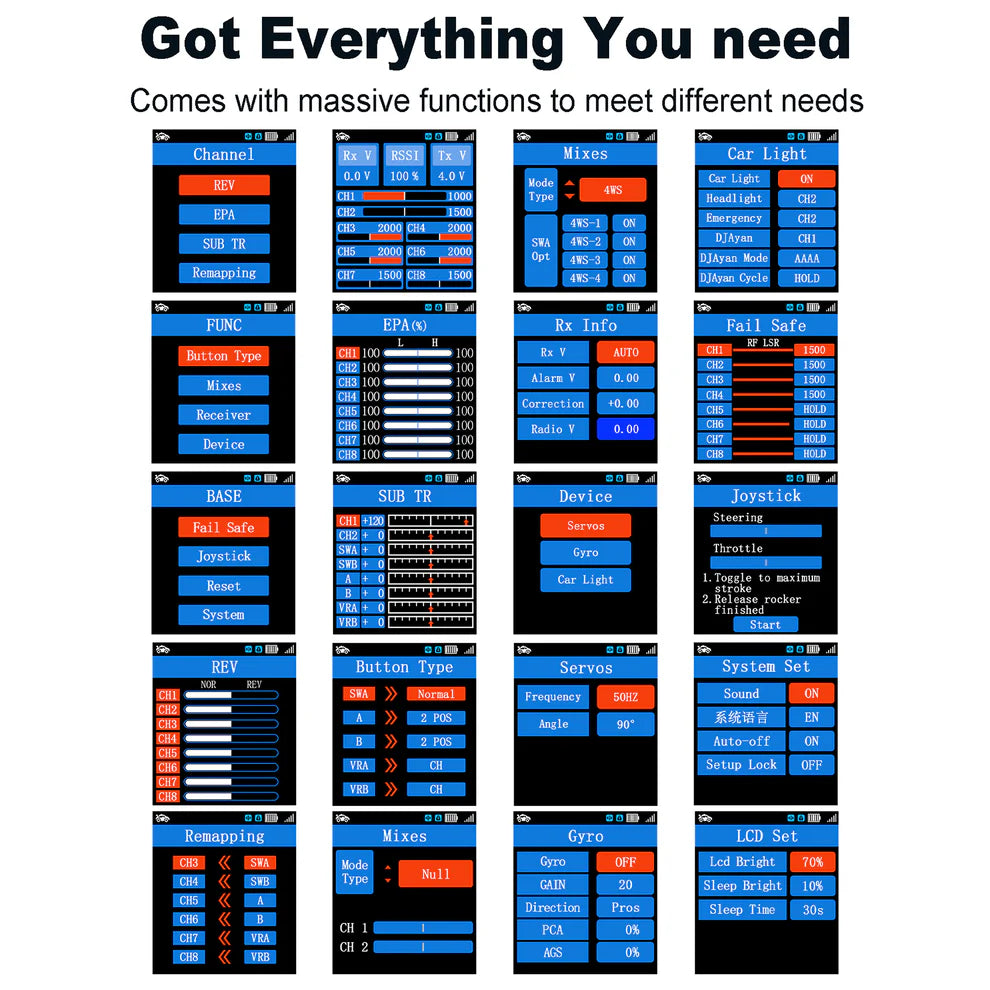

• 5. Great Functionality: This RC transmitter is equipped with fail-safe,  low-voltage warning, and integrated with massive functions to meet different customization needs, not only great for beginners but also ideal for pros.
• 6. User-friendly and Ergonomic Design
  • (1) Comes with a lock function to avoid misoperation, a 15s auto-off function, and it's rechargeable;
  • (2) The 4-bearing structure wheel and the anti-slip trigger with adjustable force and position ensure smoother and accurate operation.
• 7. All Terrains Available: This RC transmitter and receiver kit can be used for off-road, on-road use, e.g,. RC crawler, RC short course car, RC boat, RC motorcycle, etc., and various scale models, e.g., 1/5, 1/8, 1/10, 1/18, 1/24 scales.

Note: The ME-8B transmitter can be used with one model car and store one model car.

Manual>>ME-8B RC Transmitter Manual

Update tool>>MEUS Transmitter Update Tool

Note: If you want to update the transmitter, please also download the update tool.

Specifications of Transmitter:

• Suitable for Model Type: RC cars, RC boats, RC tanks, etc.
• Channels: 8
• Frequency range: 2.4GHz ISM
• RF Power: About 120MA
• Response Time: PWM≤5MS
• Modulation: GFSK
• Spread Spectrum: FHSS
• Receiving sensitivity: -96dbm

• Channel Resolution: 4096
• Battery: 18650 (Rechargeable)
• Power supply: DC 3.7V-9V
• Gross Weight: 176g
• Control Distance: about 300m on the ground, 800 on the air.

M-08A Receiver's Specifications(comes with transmitter):

• Model Number: M-08A

• Channels: 8
• Frequency range: 2.4GHz
• Working current: 35mA
• Receiving distance: 300-800m
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V (300m)
• Dimensions: 38*24*13mm
• Gyro: No
• Weight: 7.8g
• Application: RC cars, RC boats, RC tanks, etc.

Package List:

• 1 × ME-08B RC Transmitter
• 1 × M-08A Receiver
• 1 × 18650 Rechargeable Battery
• 1 × User Manual
• 1 × Type-C data cable
