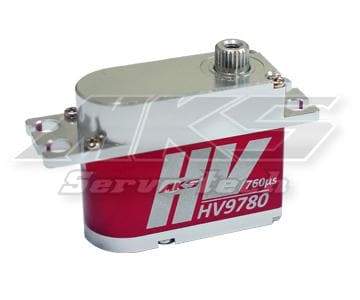

MKS Mini Tail Servo HV9780

MKS
|
MKS-HV9780
You will earn 100.50 points for buying this product
Price Match Guarantee
$100.50 $0.00( / )
  Torque: 3.3 kg-cm (6.0V)  / 4.0 kg-cm  (7.4V)  / 4.5 kg-cm (8.2V) Speed: 0.055 s (6.0V)  /  0.045 s (7.4V)  /  0.040 s (8.2V) Weight:  38.01 g Dimension:35.5 x 15 x 28.5 mm   Working  Voltage:5.5 ~ 8.4 V DC Volts  (2S Lipo un-regulated)Working  frequency:760μs / 560hzDead Band:0.001 ms (Default)Bearing:2BB  Motor:Coreless MotorGear:Chrome-Titanium alloy gearElectric current draw: 2.6A max.(8.2V)   │   2.4A...



Torque: 3.3 kg-cm (6.0V)  / 4.0 kg-cm  (7.4V)  / 4.5 kg-cm (8.2V)

Speed: 0.055 s (6.0V)  /  0.045 s (7.4V)  /  0.040 s (8.2V)

Weight:  38.01 g

Dimension:35.5 x 15 x 28.5 mm
Working  Voltage:5.5 ~ 8.4 V DC Volts  (2S Lipo un-regulated)
Working  frequency:760μs / 560hz
Dead Band:0.001 ms (Default)
Bearing:2BB
Motor:Coreless Motor
Gear:Chrome-Titanium alloy gear
Electric current draw: 2.6A max.(8.2V)   │   2.4A max.(7.4V)   │  2.0A max (6.0V)

Wire Length:29.5 cm

HV9780, mini, 500, helicopter, coreless, 3D, all-aluminium, F3N, narrow, gyro, tail, rudder, 760us, 560hz

Type:

Heli Servo

Vendor:

MKS

SKU:

MKS-HV9780

Weight:

0.38 lb


Product Spare Parts


Electronics

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Michal W.
Best ever

Best servo for a mini servo, I've tried all of them and this one holds the best and the response time is hands down THE BEST, it won't disappoint!

S
Scott S.
MKS HV9780

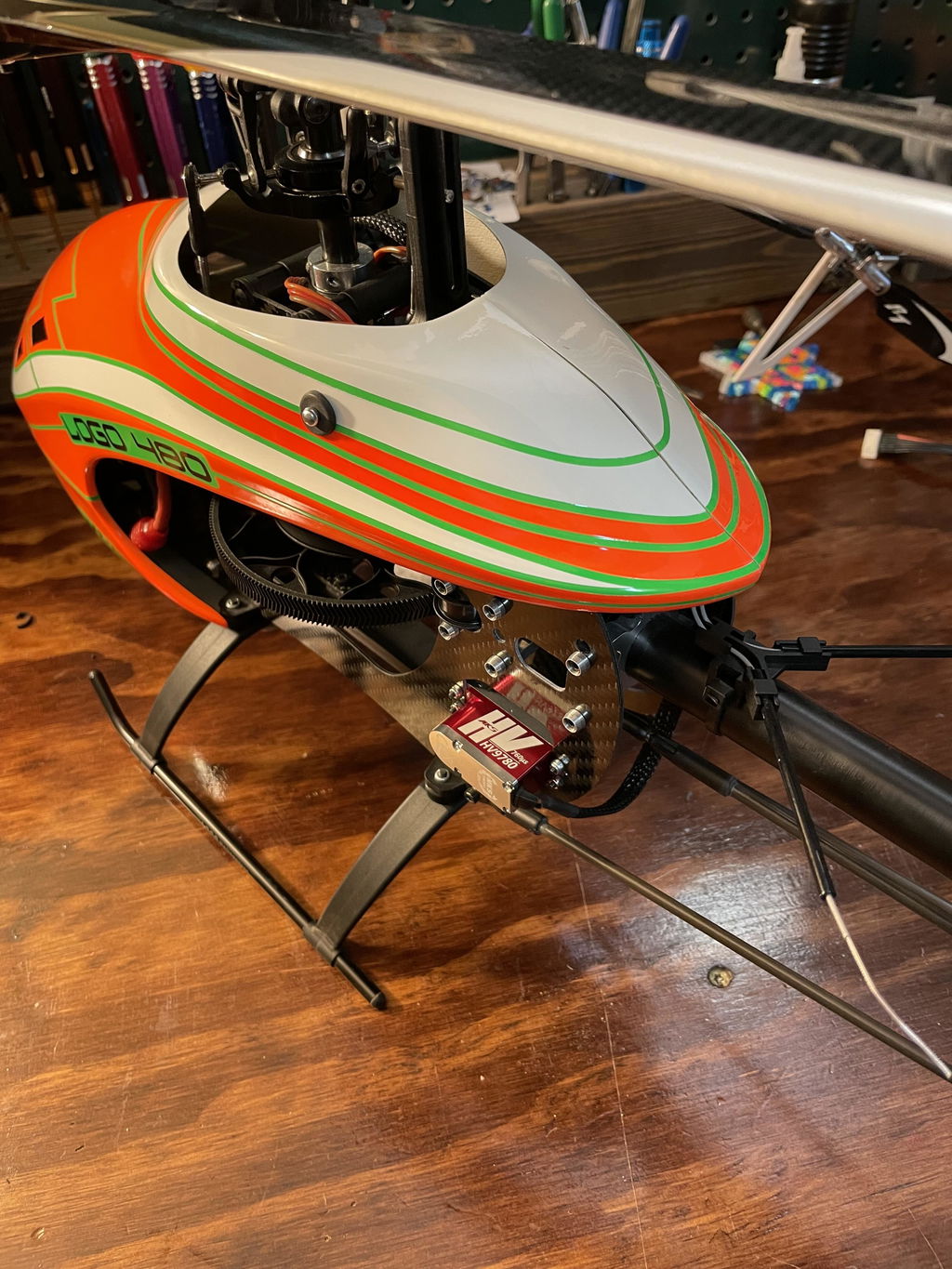

I use this servo on my Logo 480 tail. It’s a great servo for 3D flight. It has a beautiful case and is very reliable. Buy with confidence!!

S
Scott S.

MKS Mini Tail Servo HV9780

M
M.
Great tail servo for trex470

Was having trouble with tail wag on a trex470 using stock align servo, even after getting the tail as smooth as possible. Upgraded to this servo and the tail is rock solid. Great servo!

p
peter m.
Nice Tail Servo

Construction and quality are top shelf. Extremely fast and accurate. Have it installed on SAB Goblin Buddy 380. Not the cheapest but you get what you pay for.

p
park k.

I am the servo is the second purchase. (goblin500. chase360)
Performance is superior to any of the servo.

Performance is not compared to the tail.
I do not have to think.
Make purchases do not worry. The best of the best!

S
Scott

Great deal
