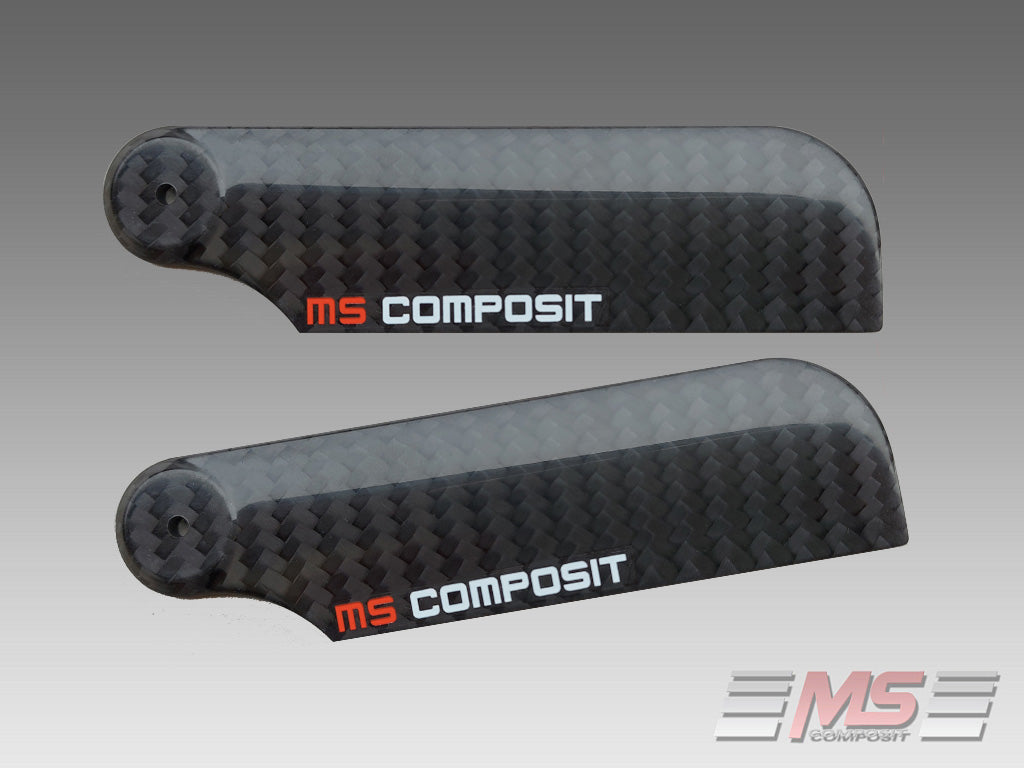

MS Composit CFC Tail Blades 105 mm/5/3 FC

MS Composit manufactures a broad line of carbon composite tail rotor blades. The tail rotor blades manufacturing technology is derived from the main rotor blades, and ensures high blade performance in all situations. All MS Composits tail rotor blades are dynamically balanced and tested for overload. The security factor (blade dynamic overload) is 2.1 for all types of tail blades.

These new versions are made from carbon fiber prepreg with foam core, using hot press method

Specifications:

• Lenght: 105mm
• Chord: 29.5mm
• Profile thickness: 4mm
• Root: 5mm
• Hole dia.: 3mm
• Weight: 7g
