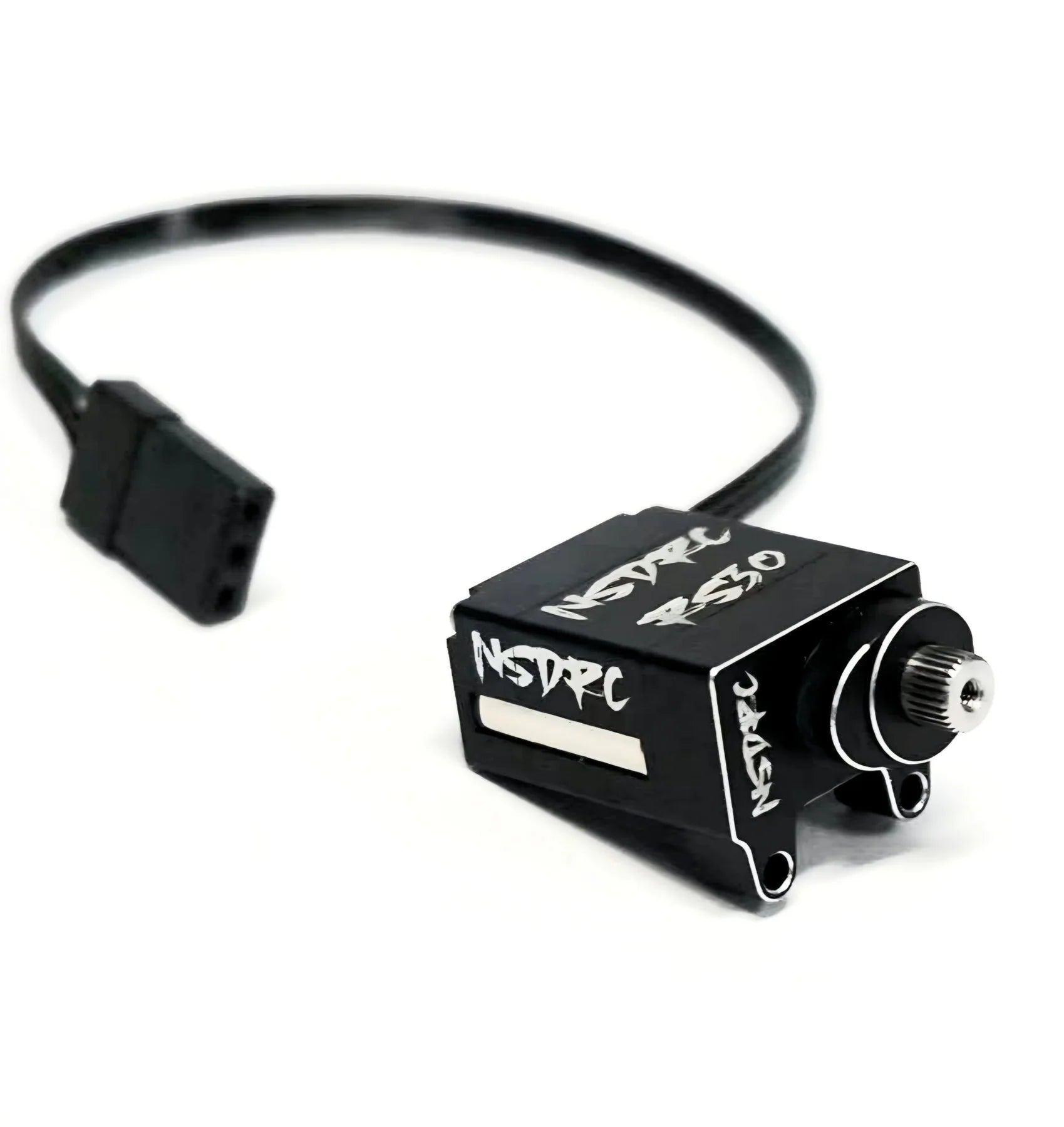

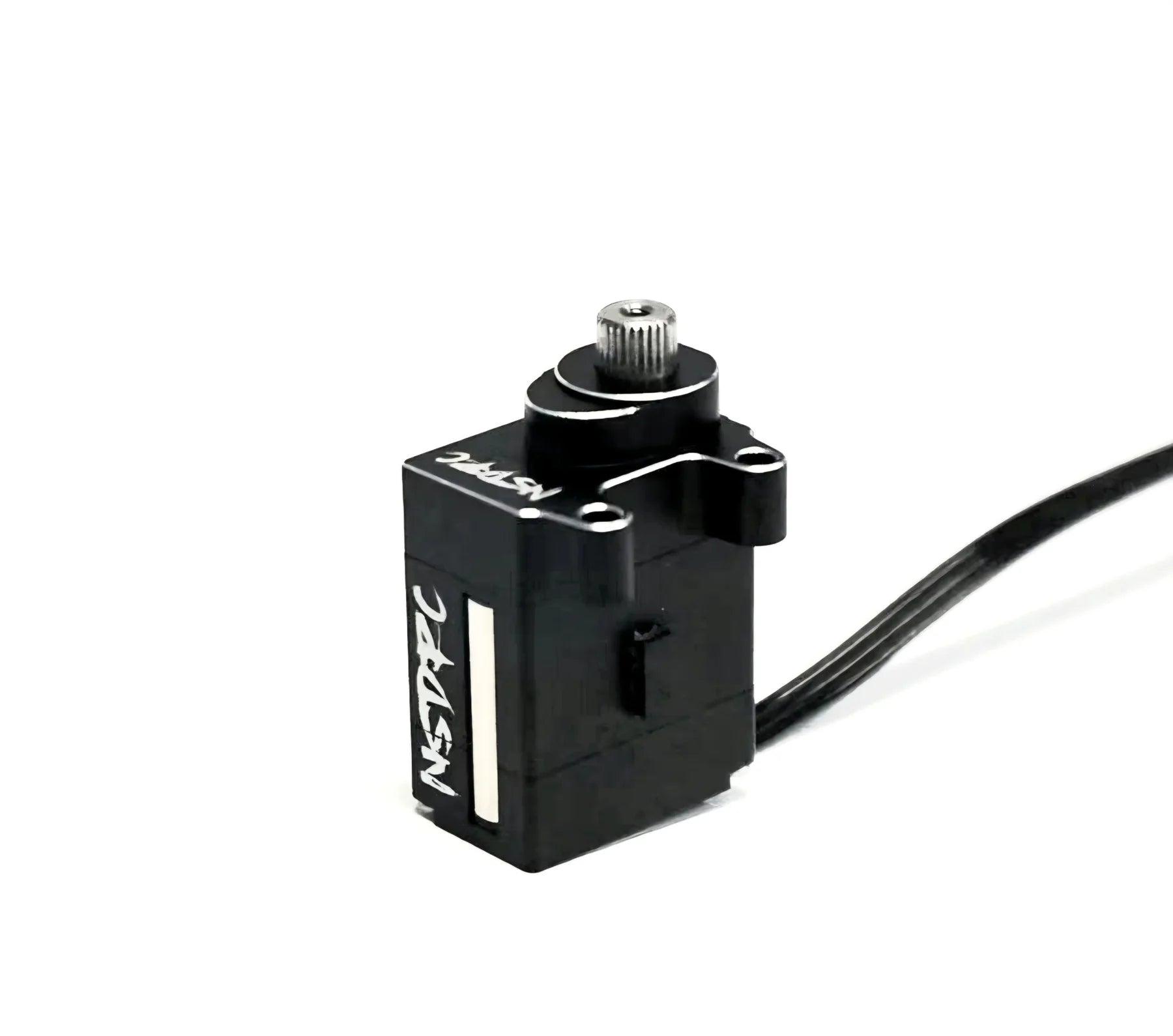

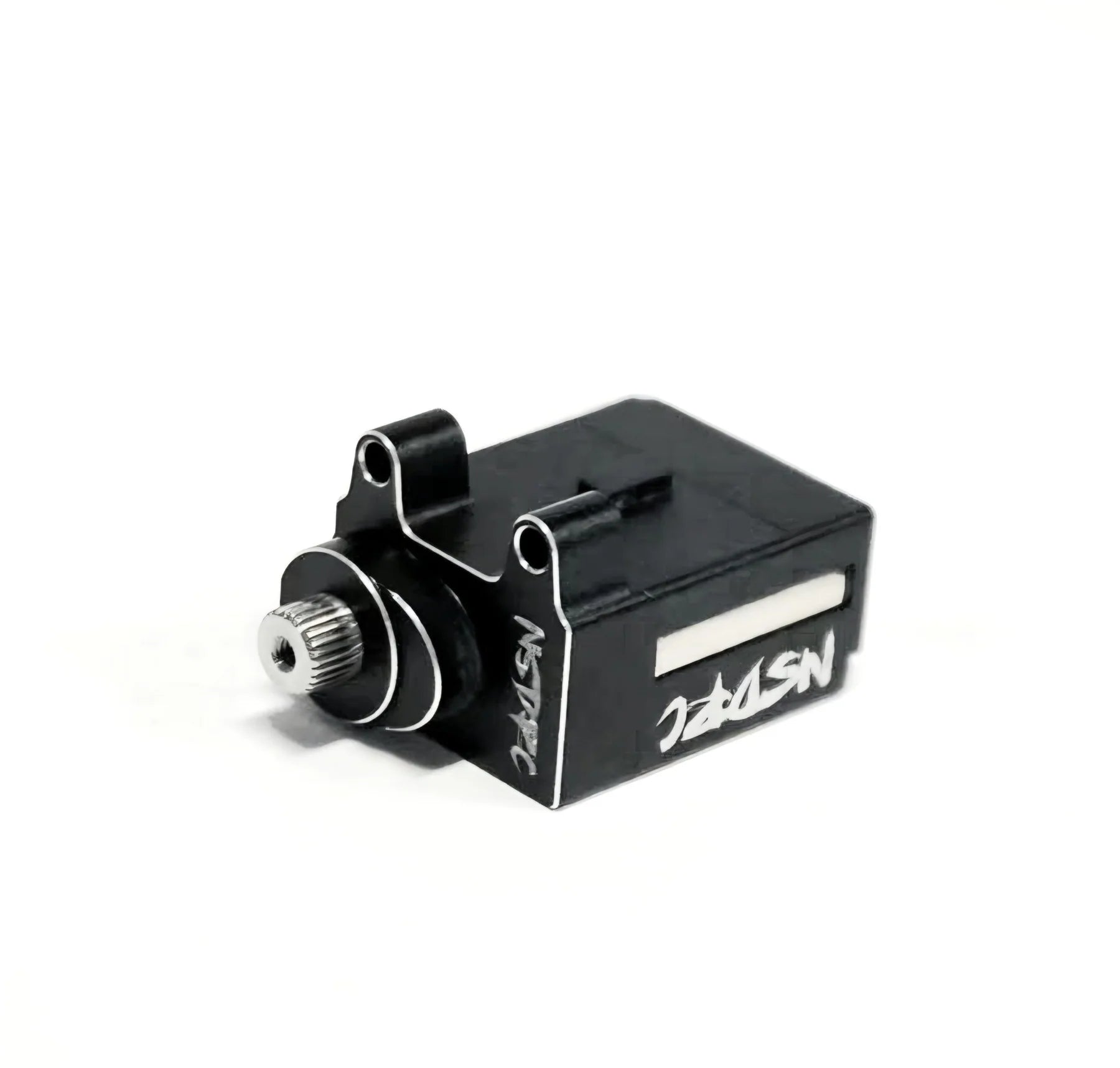

NSDRC RS30 Nano Servo
Designed from the ground up in-house specifically for the SCX30, the RS30 sets a new standard for nano servo performance. Featuring a full CNC-machined aluminum case, durable metal gear train, conformal coated electronics, custom coreless motor, and premium angle sensor circuitry, the RS30 is built for maximum precision, reliability, and power.
Fully compatible up to 8.4V, the RS30 delivers an impressive 5.5 kg-cm (75 oz-in) of torque and 0.06 sec transit speed, making it the most powerful SCX30 servo currently available.
An aluminum servo horn is included and is designed to be used with the stock SCX30 ball-end screw.
Features:
• Designed and engineered in-house by NSDRC
• Purpose-built for the SCX30 platform
• Full 8.4V operation
• Includes CNC aluminum servo horn
• Uses stock SCX30 ball-end screw
• CNC aluminum case
• Full metal gears
• Conformal coated electronics
• Custom high-performance coreless motor
• Premium angle sensor and control circuitry
Specifications:
Torque:
• 55 oz-in (4.0 kg-cm) @ 6.0V
• 66 oz-in (4.8 kg-cm) @ 7.4V
• 75 oz-in (5.5 kg-cm) @ 8.4V
Speed:
• 0.08 sec @ 6.0V
• 0.07 sec @ 7.4V
• 0.06 sec @ 8.4V
Built for enthusiasts who demand maximum steering performance, precision, and reliability from their SCX30.
Bec not required, but recommended for best performance .
