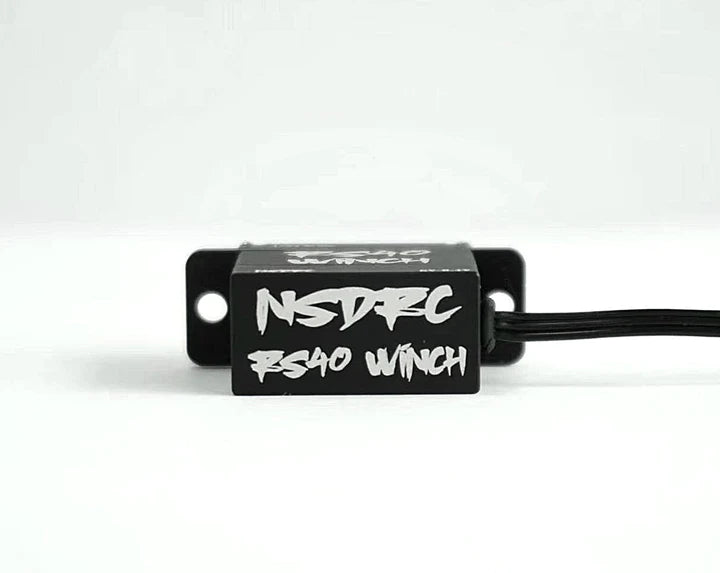

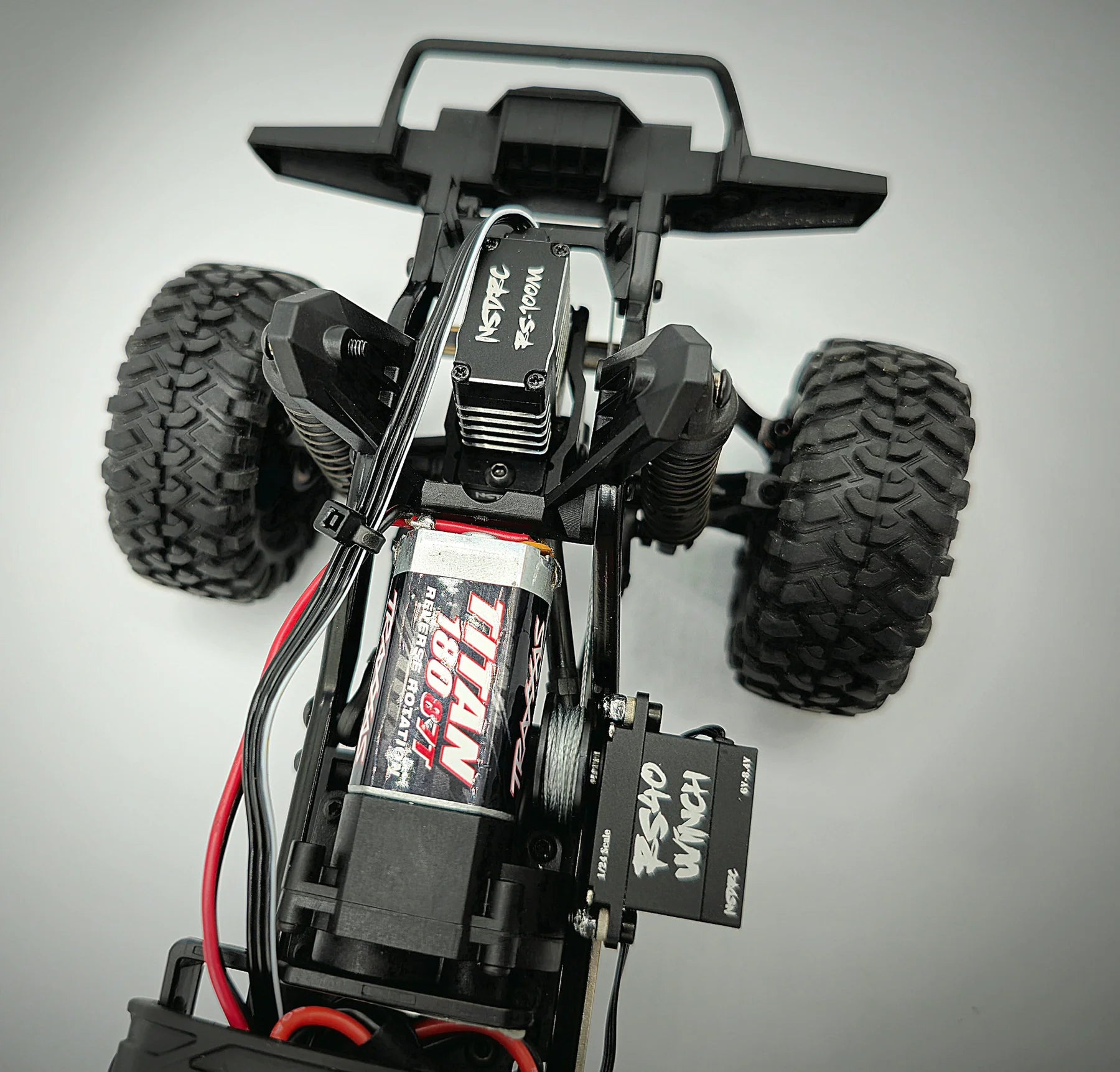

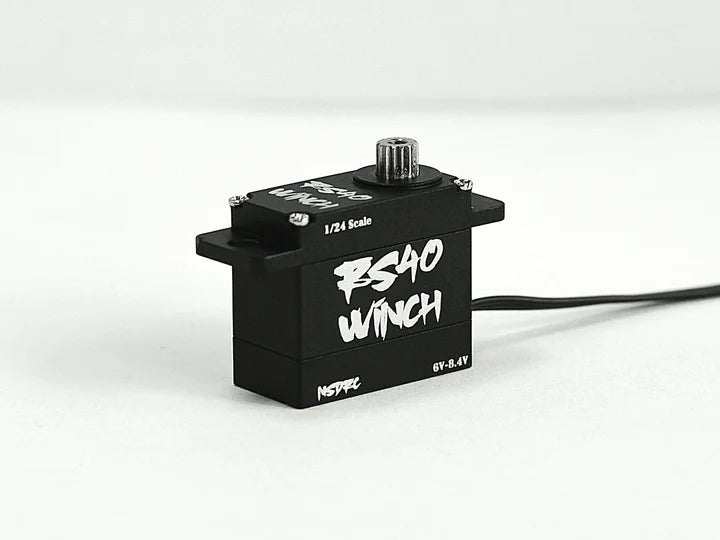

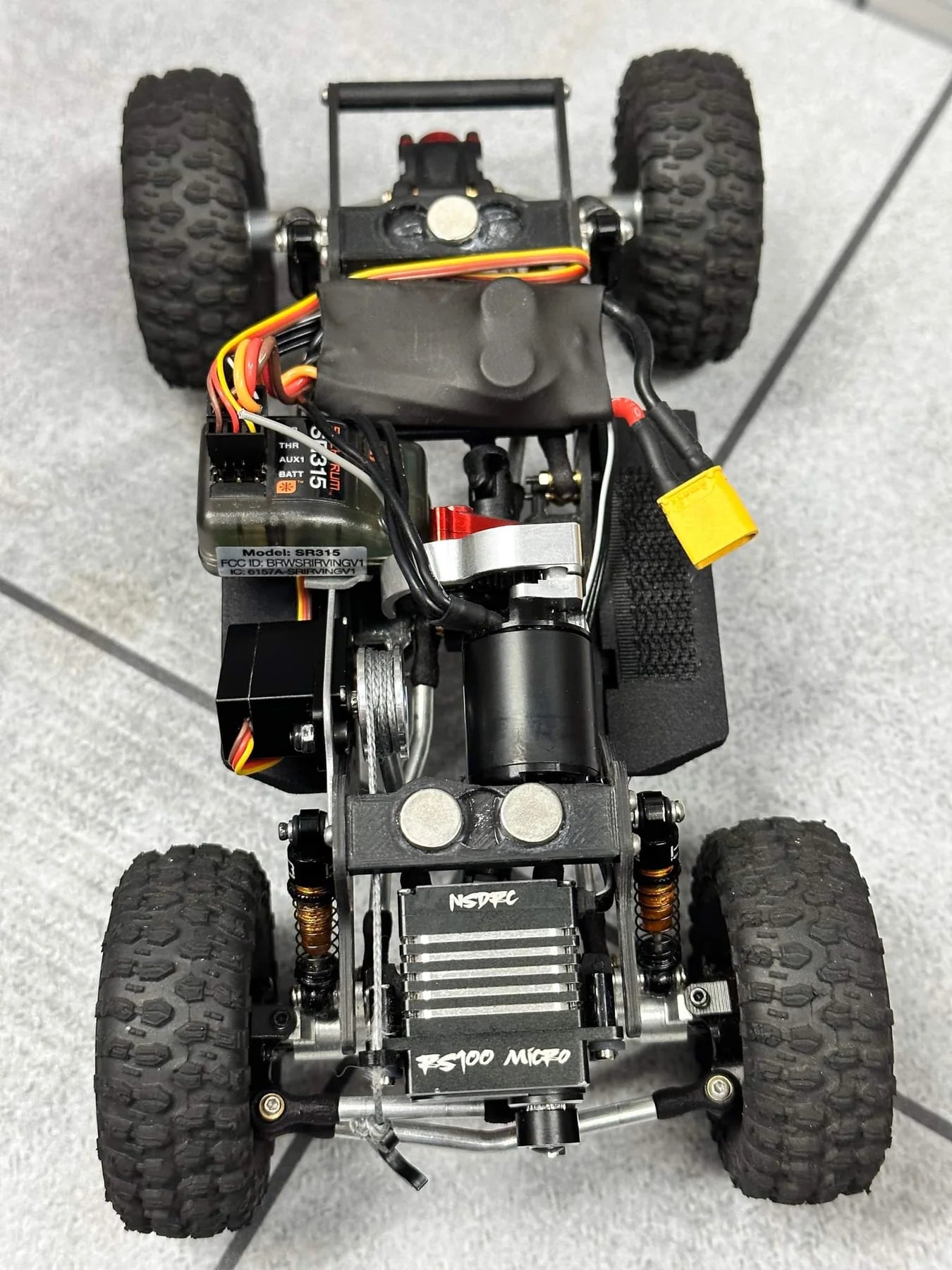

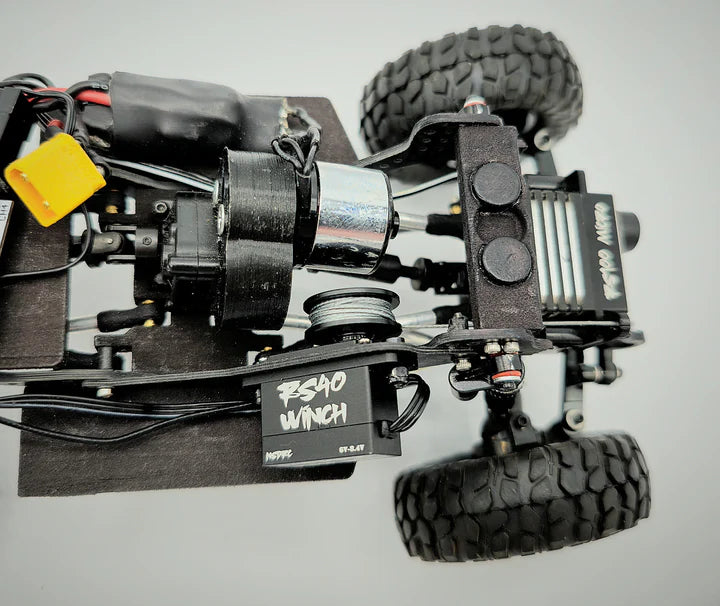

Designed in-house, the RS40 is the only nano servo winch on the market! Built for all 1/24 and 1/18 crawlers like the SCX24, Enduro24, TRX4M, RC4WD Gelande, and more! This nano winch is tiny, but packs plenty of power, speed, and excellent holding capabilities!
Operating Voltage: 6v - 8.4v
Torque: Speed:
25 oz @ 6v 0.09 @ 6v
34 oz @ 7.4v 0.07 @ 7.4v
41 oz @ 8.4v 0.06 @ 8.4v
Spooling Speed:
8.4v - 2.7 seconds per foot
7.4v - 3.3 seconds per foot
Full Cnc Aluminum Case
High Quality Angle Sensor
Spline: 15T 3.8mm Nano
Voltage: 6v-8.4v
Wire Length: 180mm
Weight: 10 Grams
Dimensions: 17mm x 10mm x 20mm

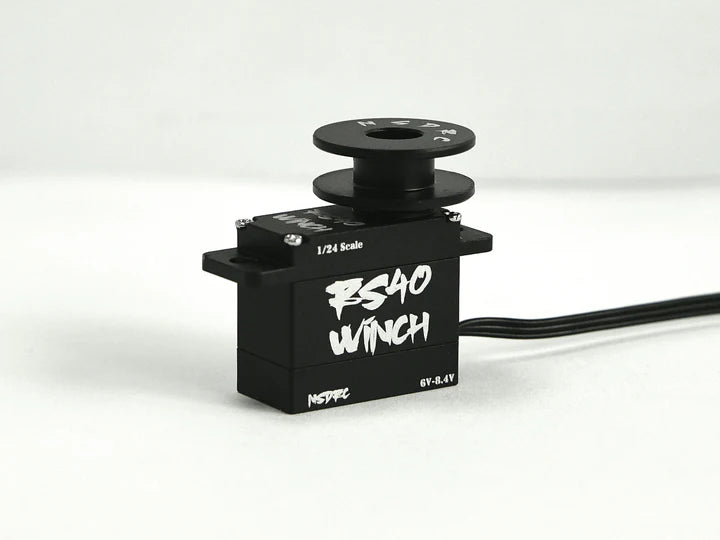

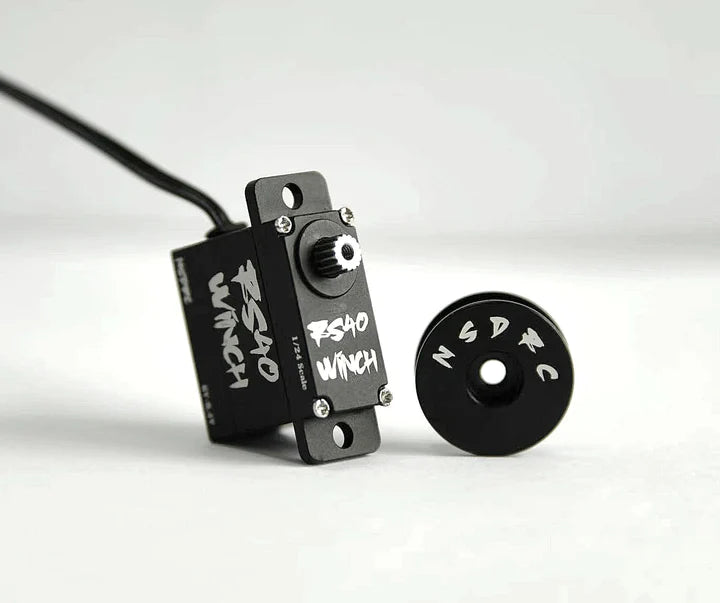

• Comes with our custom Cnc aluminum nano spool capable of holding 3 ft of line
• Winch controller built-in ( requires remote and receiver with 3rd channel momentary or 3 position switch )
• Water Resistant, Not Submersible
*Does not work as steering servo
* Winch Line, Hook, and Mounts Sold separately
Warranty: 6 Month
