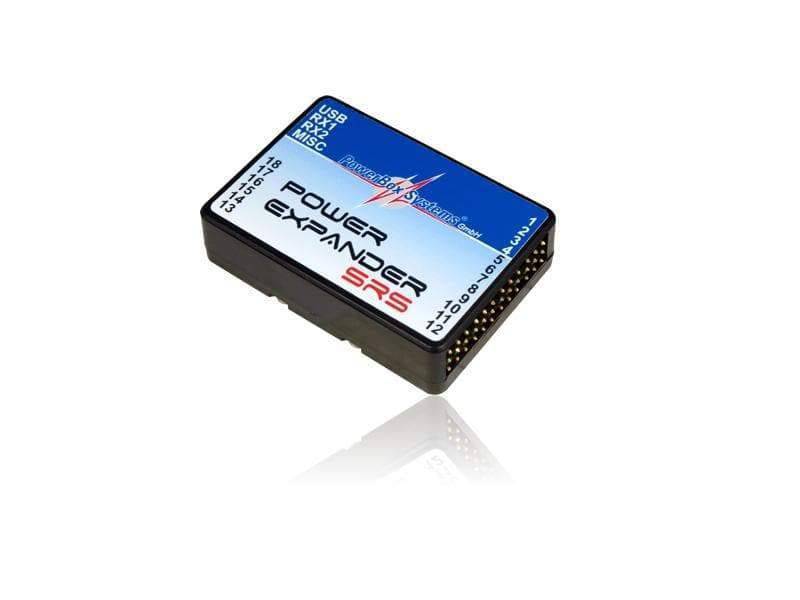

PowerBox PowerExpander SRS with MPX Connector - PBS3430

PowerBox
|
PBS3430
You will earn 140.49 points for buying this product
Price Match Guarantee
$140.49 $0.00( / )
The PowerExpander SRS makes it possible to exploit all the channels provided by your radio control system when using small but highly-specified receivers. Product Description: The PowerExpander SRS makes it possible to exploit all the channels provided by your radio control system when using small but highly-specified receivers. Safety is also significantly...

The PowerExpander SRS makes it possible to exploit all the channels provided by your radio control system when using small but highly-specified receivers.

Product Description:

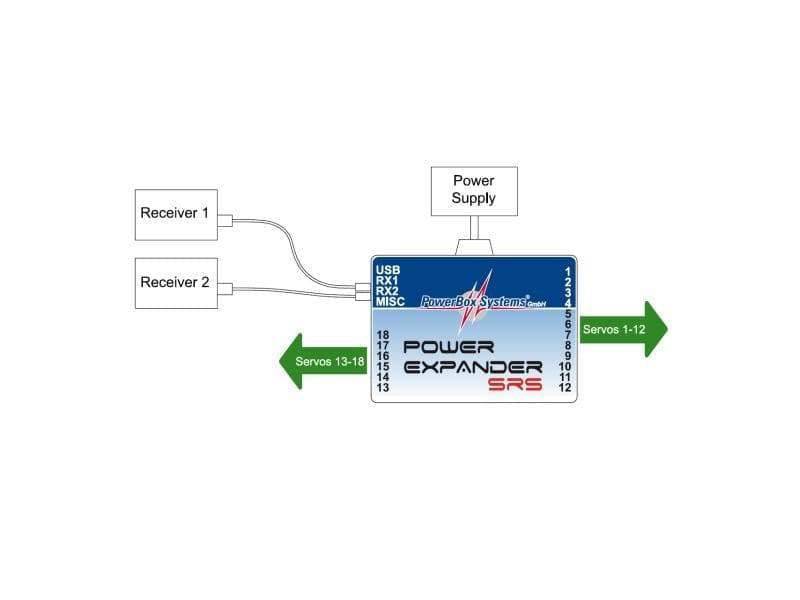

The PowerExpander SRS makes it possible to exploit all the channels provided by your radio control system when using small but highly-specified receivers. Safety is also significantly enhanced, because two receivers can be connected to the PowerExpander SRS. The integral Serial Receiver System selects any receiver, and - if an error should occur - switches over automatically to the receiver which is still operating.

This represents a simple method of doubling the number of receiver aerials. The unit is fitted with a high-current socket to ensure that the power supply can cope with the large number of channels which it makes available. It also features an output carrying the S-BUS signal, which makes it possible to use any radio control system in conjunction with an S-BUS wiring arrangement.

As power supply we recommend the PowerBox BaseLog or the PowerBox Gemini II.

Features:

  • Access to a maximum of eighteen channels
  • Simple wiring: the receivers are connected using a serial link
  • Integral SRS, allowing the use of two receivers
  • Compatible with: Futaba, Spektrum, Graupner, Jeti, Multiplex and JR
  • High-current power socket MPX or Deans
  • S-BUS output for use in a BUS system
  • Hold/Failsafe option for each output individual
  • User-variable frame rate
  • Can be updated using the PowerBox USB Interface

Technical Data:

Operating voltage4.0V - 9.0V
Power supply2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state25mA
Maximum load currentPeak 30A
Signal inputserial
Supported RC systemsFutaba, Spektrum, Jeti, Graupner, JR, Multiplex
Receiver redundancySRS
Channels18
Servo sockets18
Servo signal resolution0.5µs
Signal frame rate12ms, 15ms, 18ms, 21ms
Dimensions55 x 40 x 14 mm
Weight25g
Temperature range-30°C to +75°C



Download Instruction Manual
