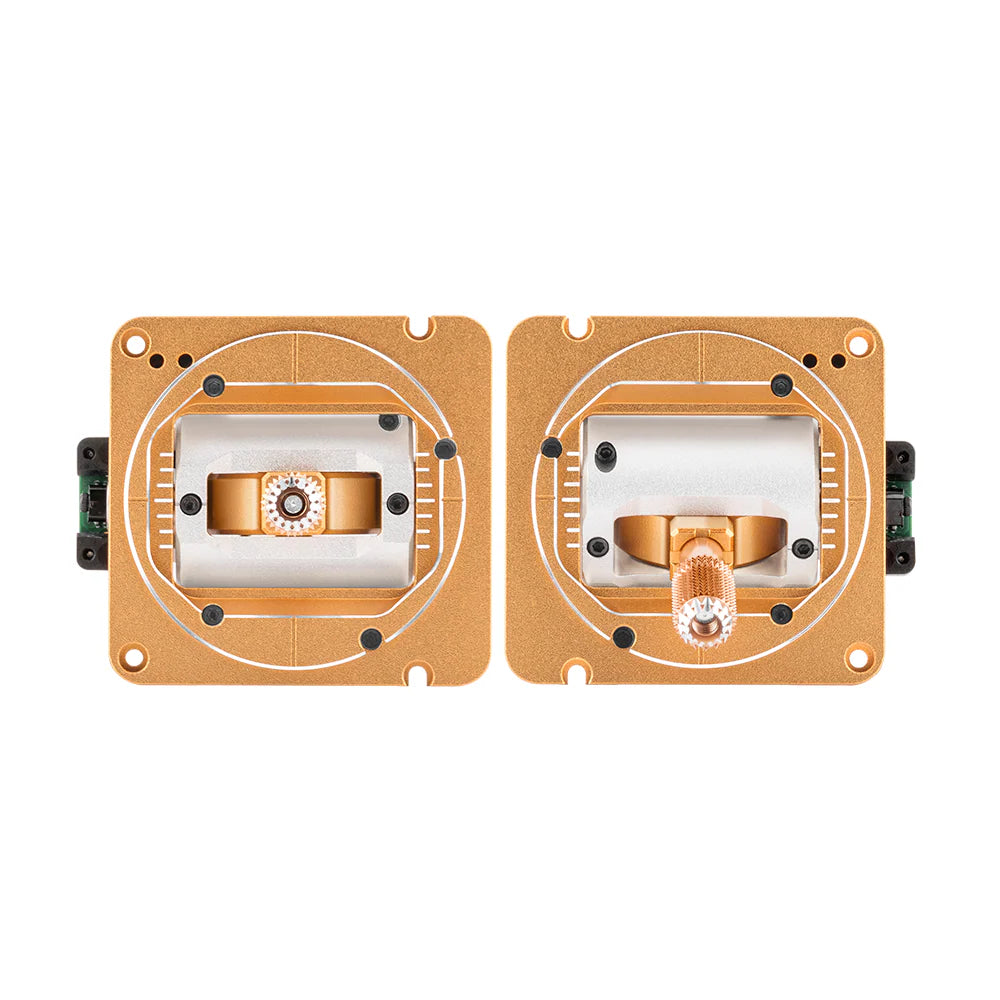

RadioMaster AG02 CNC Hall Gimbals Set For TX15 & TX16S & Boxer Radio - Gold

The AG02 gimbals are precision-engineered from machined aluminum, offering adjustable travel on both vertical and horizontal axis for highly responsive, customizable control. A redesigned, lightweight structure reduces rotational inertia by 21.6% compared to the previous generation, delivering smoother, faster stick input for improved response.

Equipped with advanced Hall effect sensors, the AG02 provides low-noise, rapid response, and exceptional accuracy. The anodized aluminum finish—available in Black, Red, Blue, Green or Gold—offers durability with a refined, professional look. Mounting is fully compatible with AG01 gimbals, ensuring an easy upgrade path.

Features

• Full Aluminum Construction: Key structural areas are optimized to reduce rotational inertia by over 20% while maintaining rigidity, delivering smoother and more responsive control.
• Next-Generation Low-Noise Hall Sensors: Offer ultra-fast response without compromising accuracy or stability.
• Adjustable Travel:  Vertical and horizontal Travel adjustment for the perfect feel for any pilot.
• Quad precision bearings: For unparalleled stick feel.
• 100% Mounting Compatibility with Previous Generations: If you already use full-size RadioMaster gimbals, the AG02 can be directly installed as an upgrade—no modifications required.

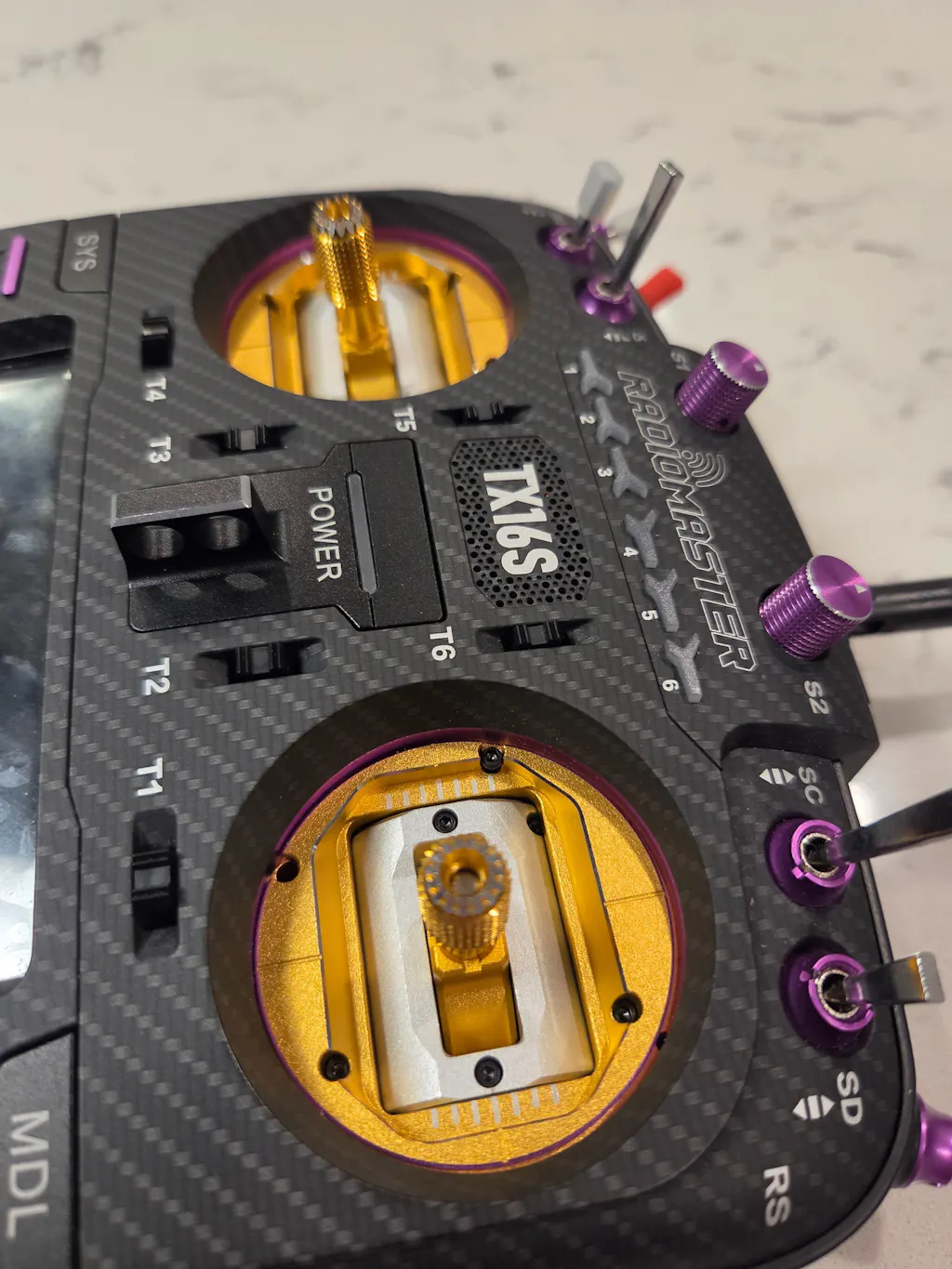

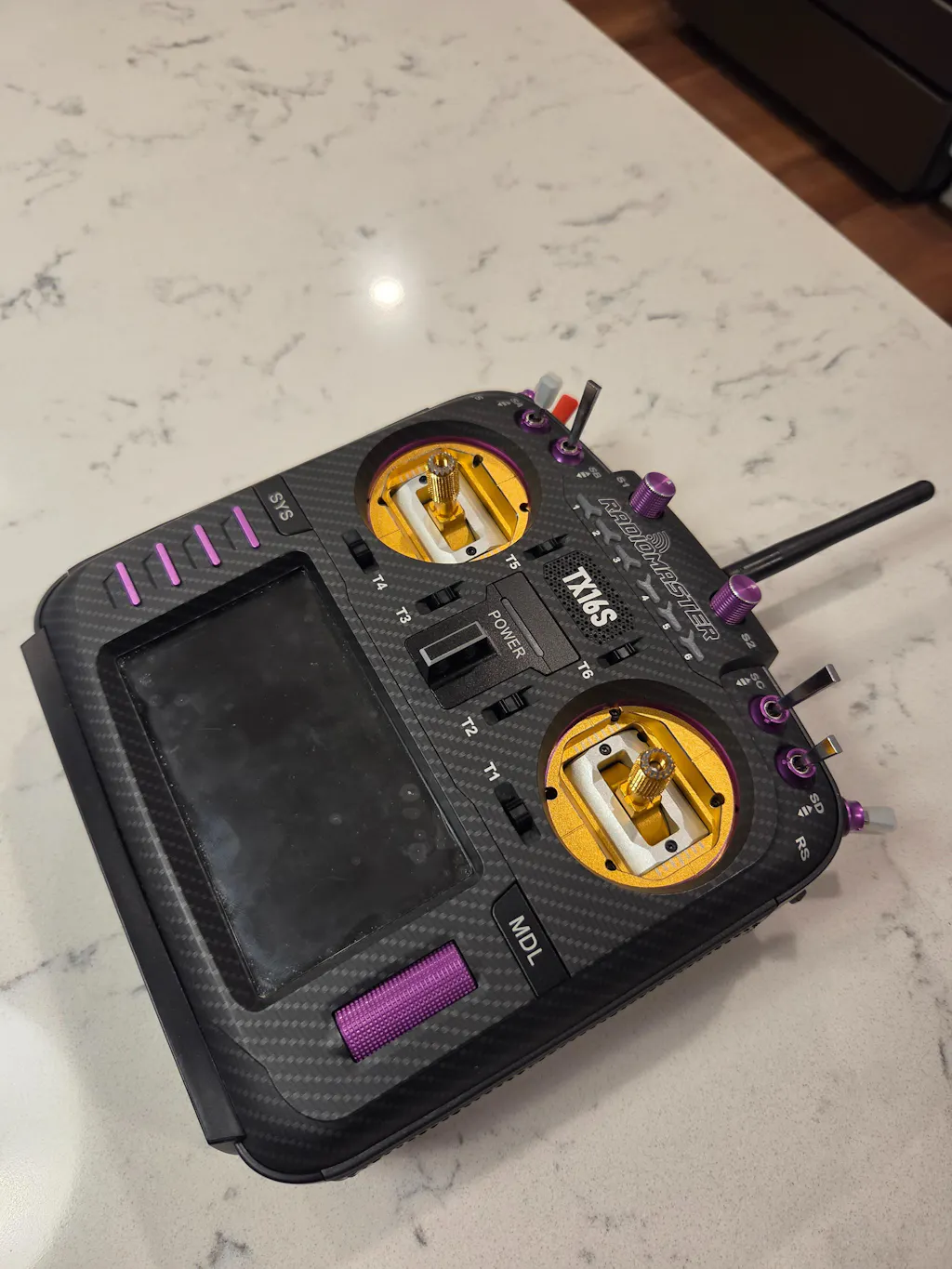

• Designed for RadioMaster TX16, TX15,  Boxer Radio Controllers

Specifications

• Item: AG02 CNC Hall Gimbals Set
• Sensor Type: Hall Analog
• Operating Voltage: DC 3.3V
• X-Axis Travel Adjustment Range: 30° – 56°
• Y-Axis Travel Adjustment Range: 38° – 54°
• Throttle Mode Switch (Mode 1/2) Without Disassembly: Supported
• Spring Tension Adjustment Without Disassembly: Supported
• Quad Ball Bearings: Yes
• Operating Temperature Range: -20°C to +85°C
• Dimensions (Excluding Stick Ends): 53 × 53 × 33.3 mm
• Weight: 73 g ± 1 g (per unit)
• Gimbal Sticks: M4

Dimensions

Package Includes

• 1 Pair of AG02 CNC Hall Sensor Gimbals
• 2 * High Tension Springs
• 1 * GH1.25-SH1.25 adapter board (Boxer/TX16sMKII)
• 4 * PB2.3*10 Mounting Screws
• 1 * Hex Wrench
• 1 * User Manual
