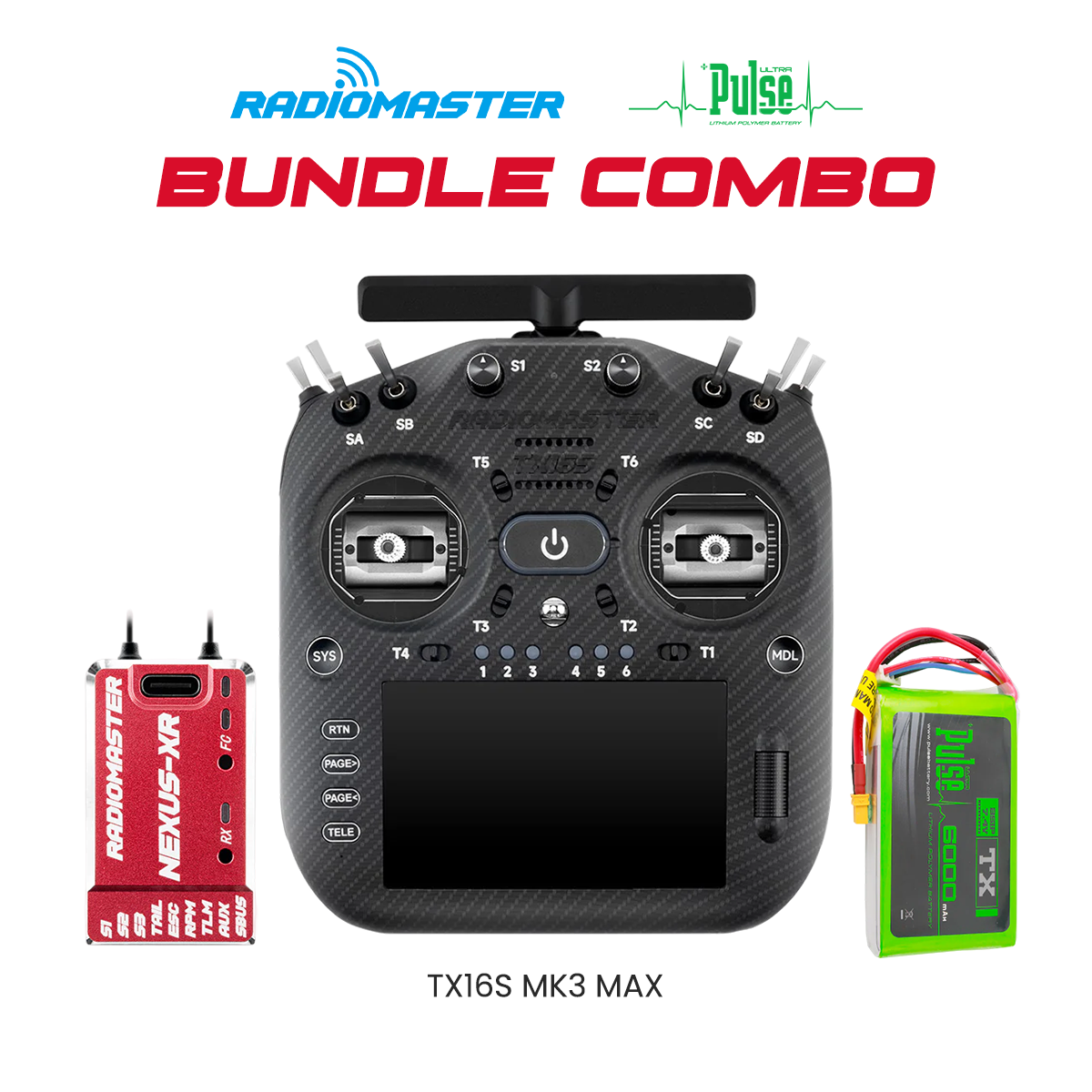

1* Pulse 6000mAh Transmitter 2S 7.4V LiPo Battery For RadioMaster Boxer and TX16S

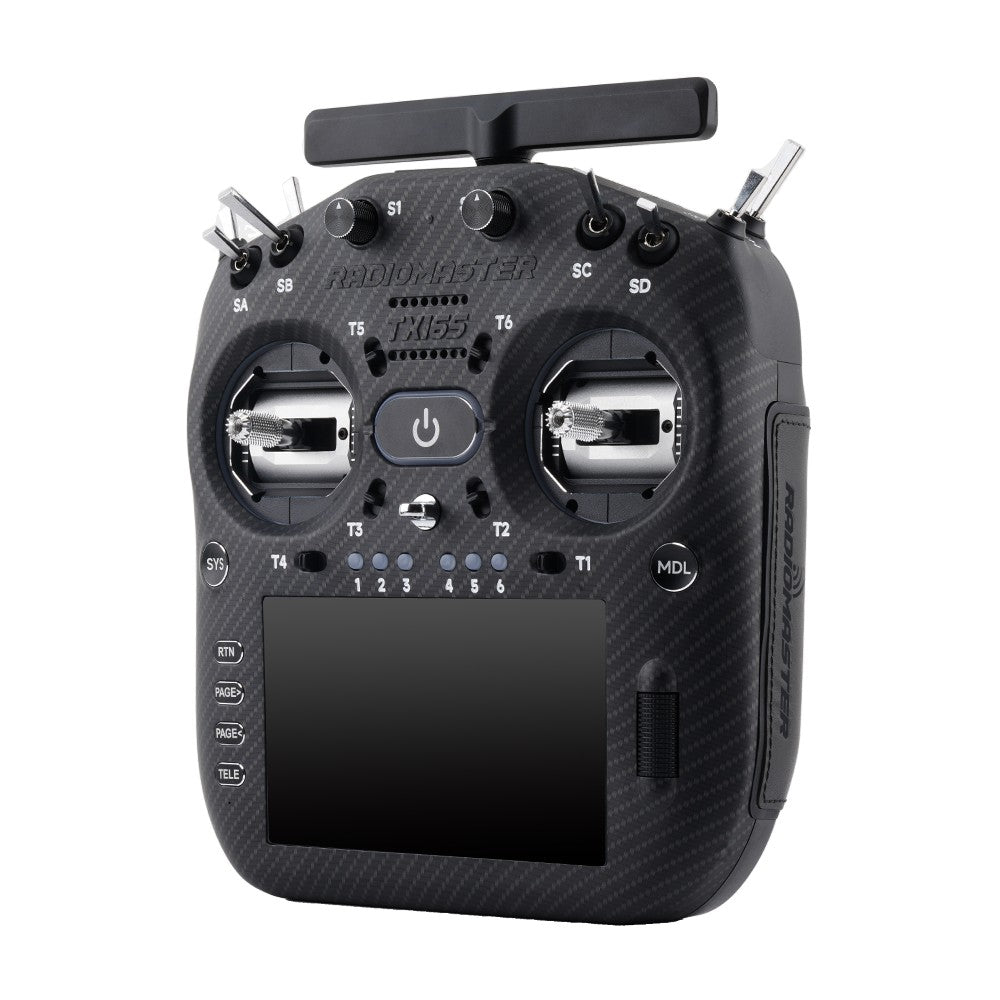

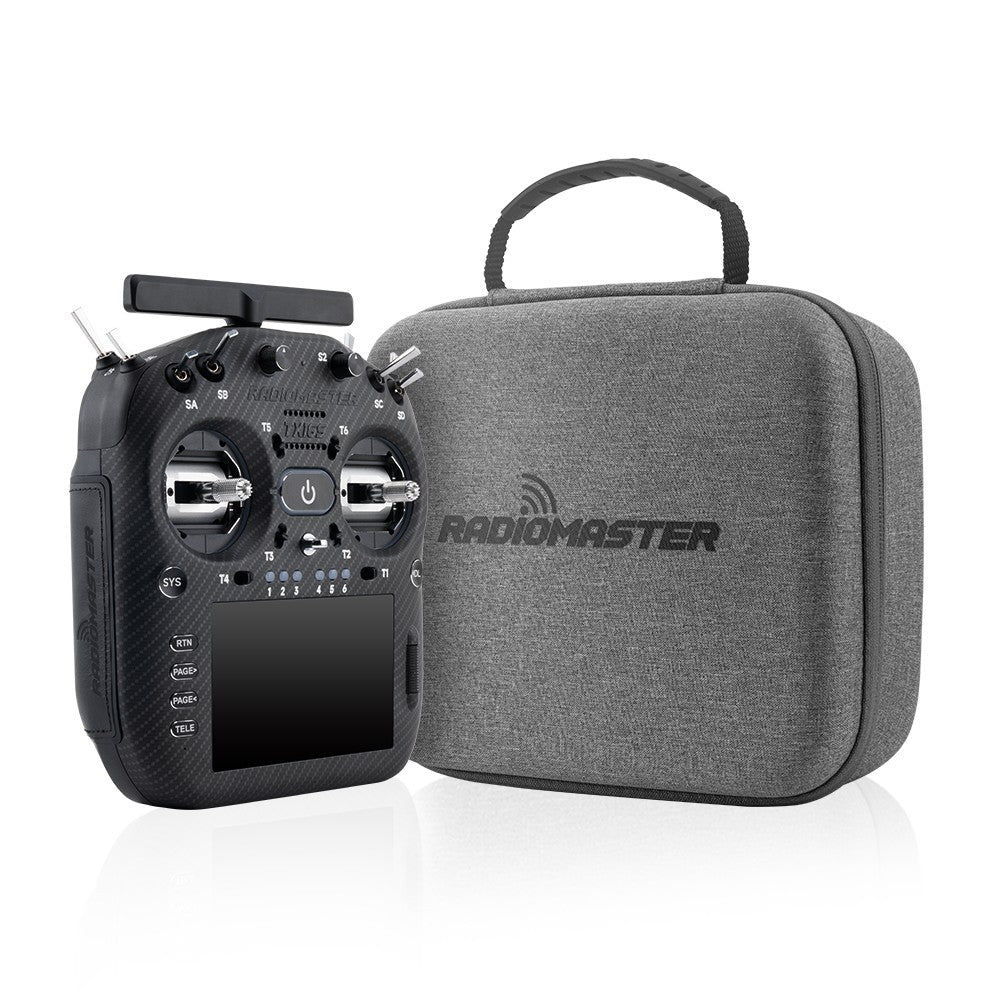

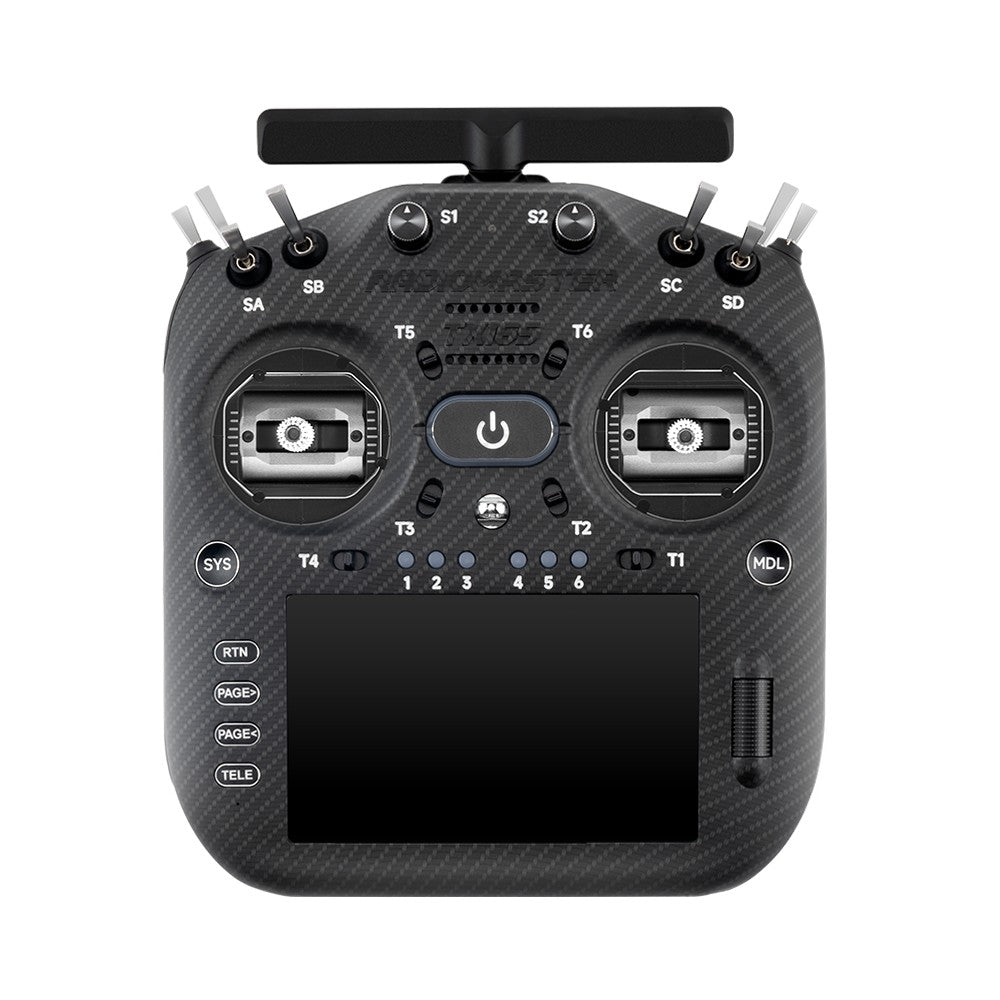

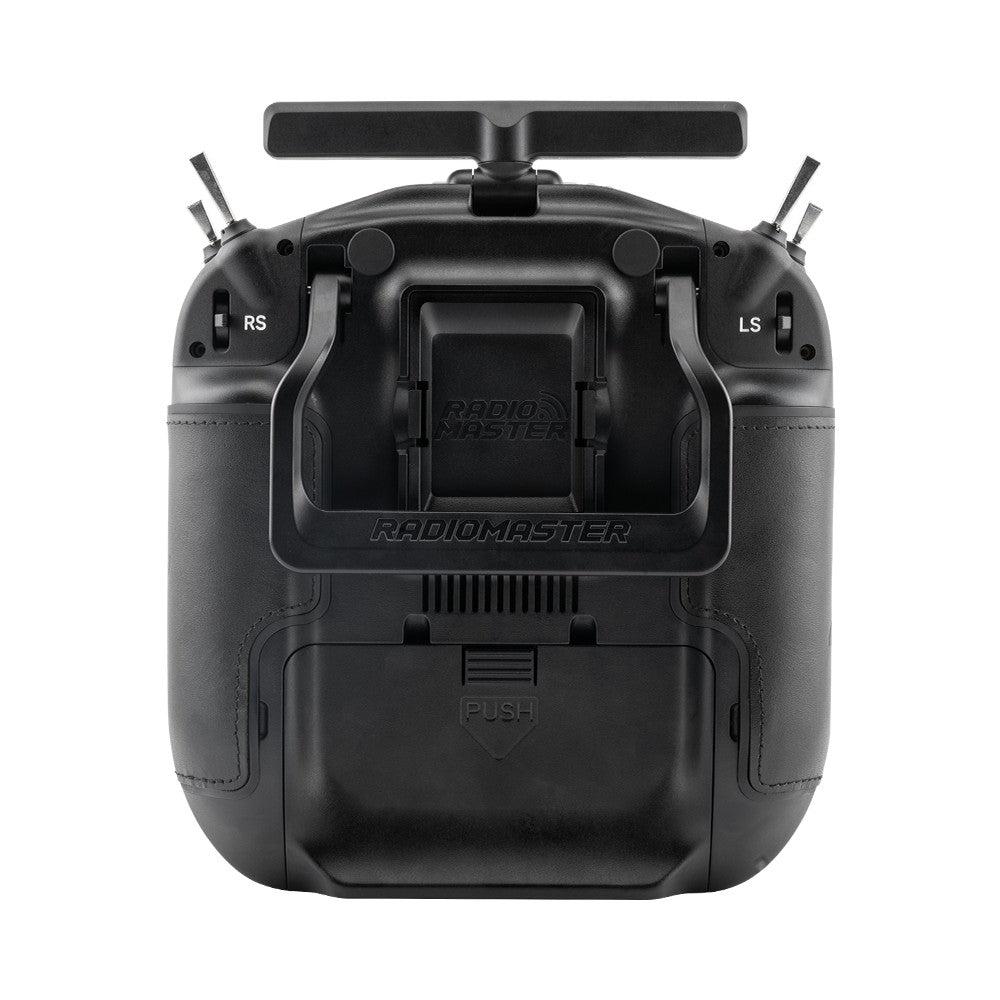

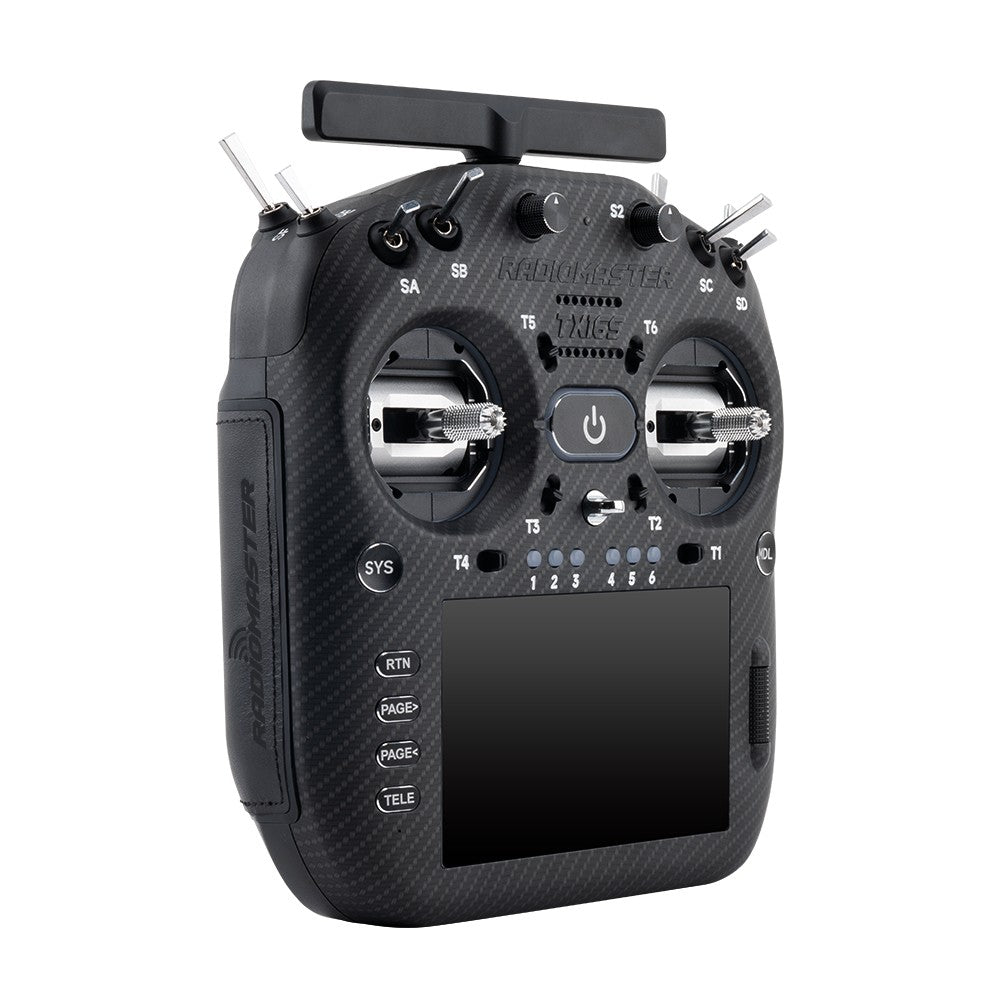

1. RadioMaster TX16S MK3 MAX Radio Controller (ELRS / M2 / 512MB) - Black
RadioMaster builds on the globally trusted TX16S legacy, continuing its commitment to open-source RC innovation. Built for pilots who expect more, the TX16S MK3 MAX represents the pinnacle of the TX16S platform—combining the proven full-size layout with premium materials, advanced controls, and uncompromising attention to detail.
The MAX edition is defined by materials, precision, and feel. For those who value performance over polish, theTX16S MK3Standard delivers the same power, speed, and precision in a clean, functional design with our new V6 Hall gimbals.
Features
High-Performance MCU:Powered by the STM32 H7 chip for maximum processing power.
Touchscreen Display:5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.

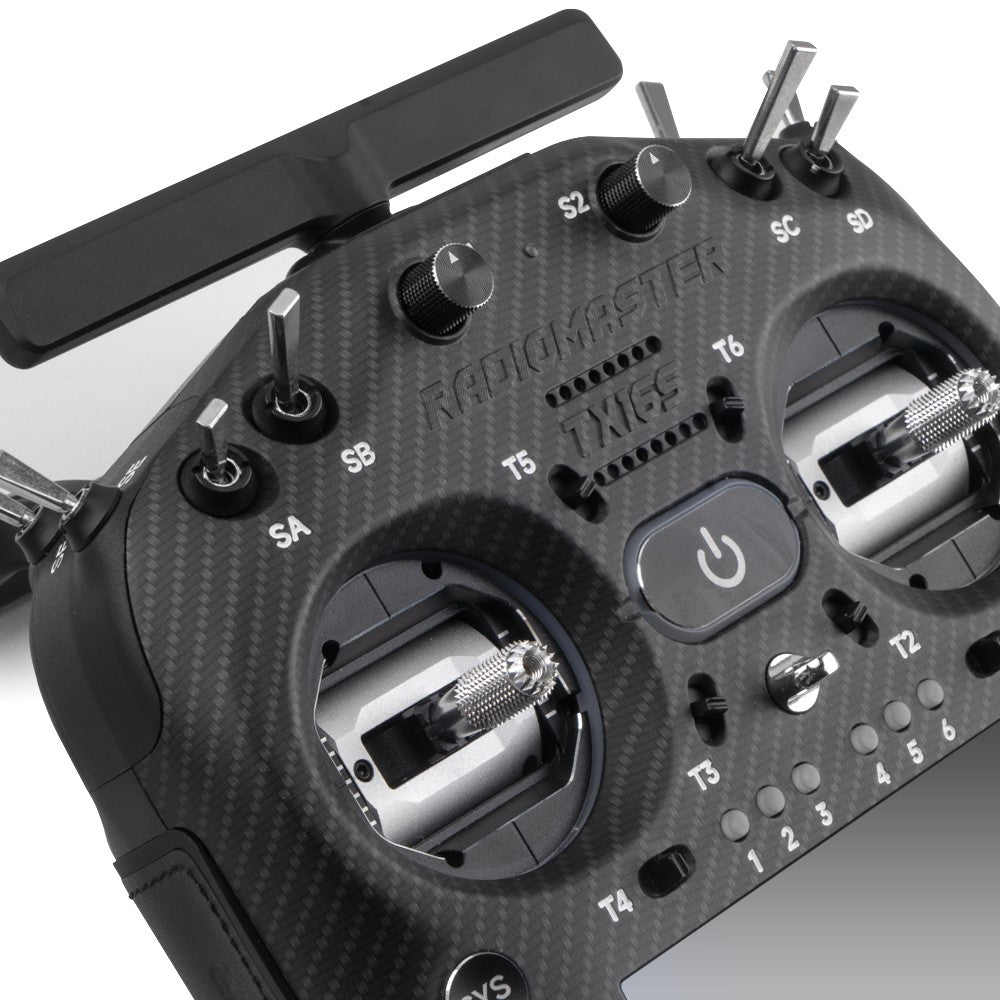

Precision Gimbals:AG02 Quad-Bearing, CNC Aluminum Hall sensor gimbals (Model dependent).
Internal RF Module:Dual-band Gemini 2.4GHz and Sub-G 900MHz
Smart Balance Battery Circuit:Maximizes battery efficiency and longevity for better battery life.
Powerful Cooling System:Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.
Digital audio:Greater sound quality and reduced interference.
Dual Foldable Antennas:Compact and easy to store without compromising signal strength.
Built-in Microphone:For future feature expansion.
Automatic back light adjustment:Makes the screen easier to read indoors and out.
Built-in Motion Sensor:Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
Memory:Integrated 512MB of onboard flash memory and external MicroSD card support.
Removable shoulder switch panels:Customize your setup with modular switch panels.
Specification
Item: TX16S MK3 MAX Radio Controller
Color: Black / Red / Blue / Gold
Voltage Range: 6.6 - 8.4V DC
Working Current: 1.10A (at max RF output power)
Radio Firmware: EdgeTX (require 3.0.0 or higher)
Built-in RF Module: ExpressLRS 2 x LR1121
Frequency: ISM 2.4GHz and Sub-G 900MHz
Number of Channels: Up to 16ch
Gimbal: AG02 CNC Hall sensor gimbals
MicroSD Card Slot: Yes (card not included)
Internal Storage: Integrated 512MB of onboard flash memory
Display: 5-inch IPS touchscreen (800 X 480 resolution)

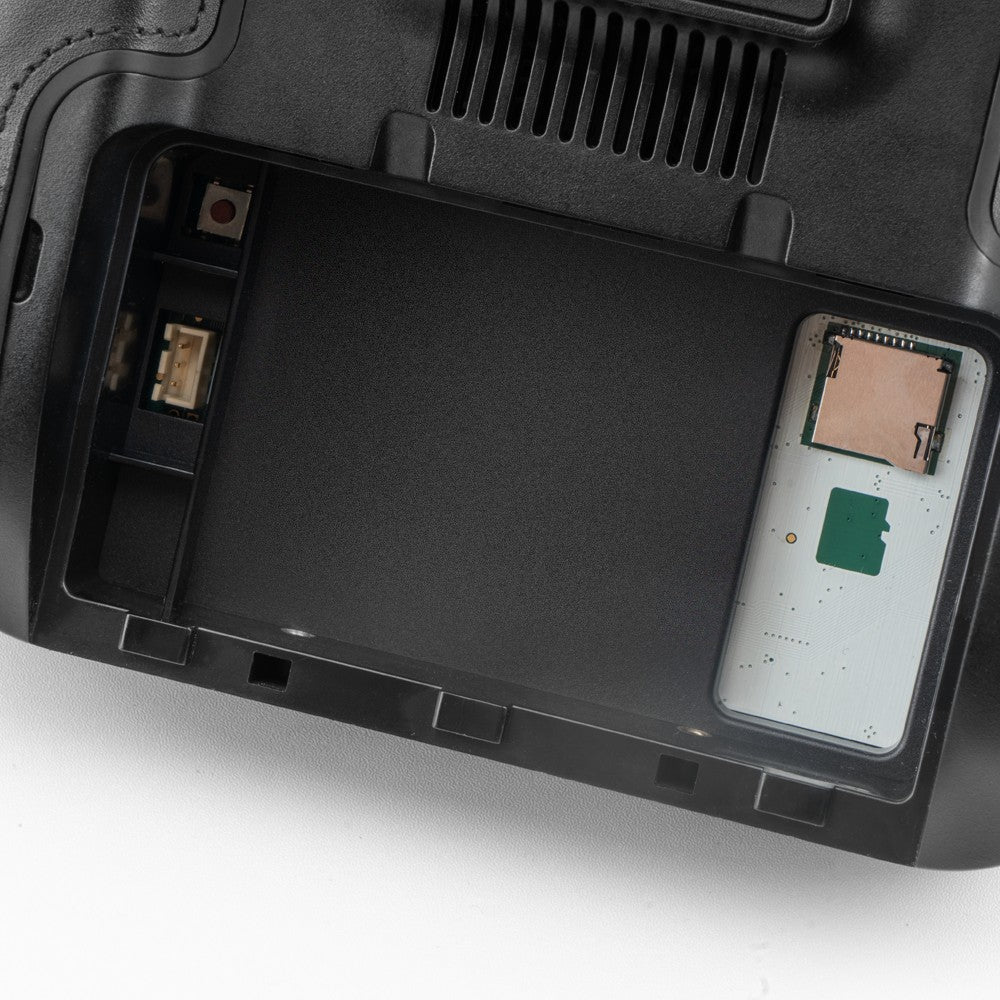

Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)
Upgrade Method: USB / EdgeTX Companion PC software
Module Bay: JR-compatible module bay for additional modules

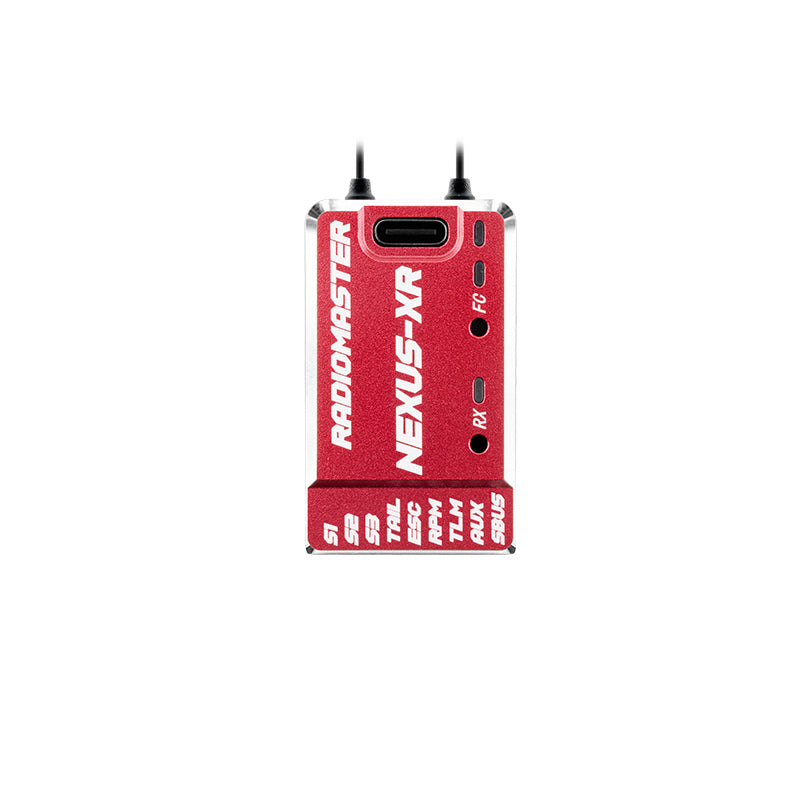

The Nexus-XR revolutionizes helicopter flight controllers by integrating a cutting-edge ExpressLRS receiver with dual Semtech SX1281 2.4GHz transceivers. This built-in receiver delivers exceptional RF performance, superior range, reliability, and effortless setup. It eliminates the need for external receivers, simplifying installation and reducing weight.
At the core of the Nexus-XR is the powerful STM32F722 MCU, paired with the ICM42688P 6-axis MEMS motion-tracking device. This device provides excellent vibration resistance and enhanced signal rejection, making it ideal for electric and nitro helicopters.
The Nexus-XR features several key upgrades. An improved BEC delivers more stable power to electronics, enhancing reliability, while the external voltage input now supports a range of 3.6V to 70V. Memory has been upgraded to 256MB, enabling longer flight logs. The CNC-machined aluminum case is sleeker yet still serves as a protective shield and heat sink, keeping the system cool during intense flights.
Designed for ultimate convenience, the Nexus-XR’s compact, rugged build fits a wide range of helicopter sizes, and delivers top performance in demanding conditions.
Launch Video
Features
Integrated ExpressLRS Receiver:Dual Semtech SX1281 2.4GHz transceivers for seamless RF performance, eliminating the need for an external receiver.
Optimized for Rotorflight 2.2:Engineered for peak performance and compatibility.
Precision Control:STM32F722 MCU and ICM42688P 6-axis gyroscope/accelerometer for superior flight dynamics.
Flight Logging:256MB onboard flash memory for detailed logging and tuning.
Dual Antenna Design:Two 65mm wire antennae for superior signal strength and range.
Versatile Connectivity:Multiple UART ports support CRSF, ELRS, S.BUS, and more.
More PWM Pins:Additional pins for expanded control in complex setups.
CNC-Machined Aluminum Case:Sleek, rugged design doubles as a heat sink to keep the system cool.
Tail Servo/ESC Support:Compatible with 760μs/1520μs tail servos and ESCs.
12V Servo Support:Capable of supporting 12-volt servos.
Wide Voltage Range:Supports 3.6V–70V external power input for flexible setups.
Improved BEC:Stable, reliable power delivery to electronics for enhanced performance.
Isolated Power Supplies:Dedicated 1.8V (gyro), 3.3V (MCU), and 5V (interfaces) to minimize noise.
USB-C Accessibility:Lightweight, flexible USB-C extender cable for easy access in tight builds.
Compact and Lightweight:Ideal for any helicopter builds.
Rotorflight Rescue:Standard feature for enhanced safety in emergencies.
Optional Case Color:Grey / Gold / Red / Blue / Purple.
Internal Receiver: RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver
MCU: ESP32
Type: ISM
RF Chip: SX1281 x 2
Antenna: 65mm 2.4GHz Wire Antenna x 2
Frequency Range: 2.4GHz
Maximum Refresh Rate: 500Hz / F1000Hz
Telemetry RF Power: Max 2 x 10mW
Wifi Updates: Yes
FW Target: RadioMaster RP4TD-M 2400 RX
Bus interface: CRSF
Demensions: 44.70 x 26.50 x 14.30mm
Weight: 24.1g

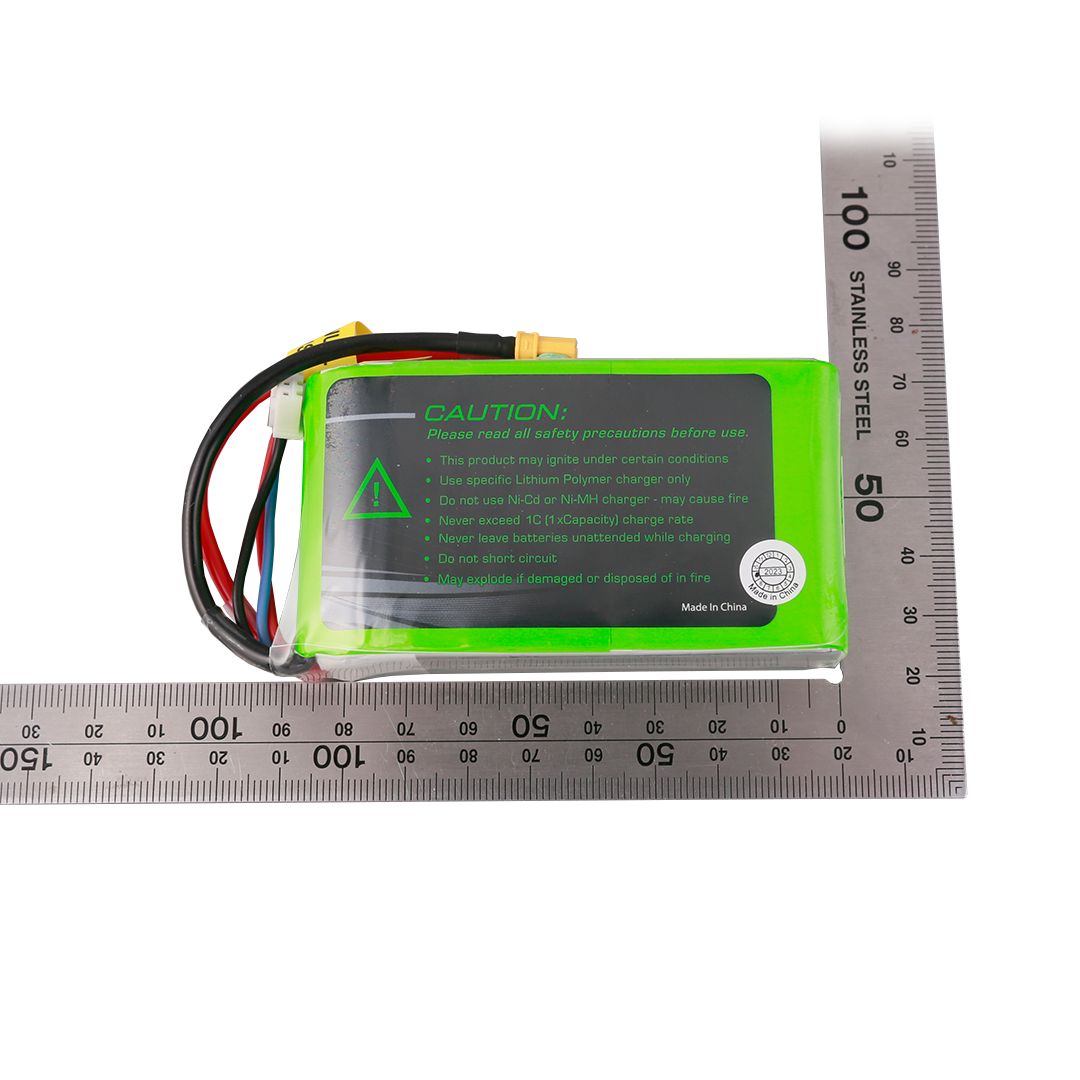

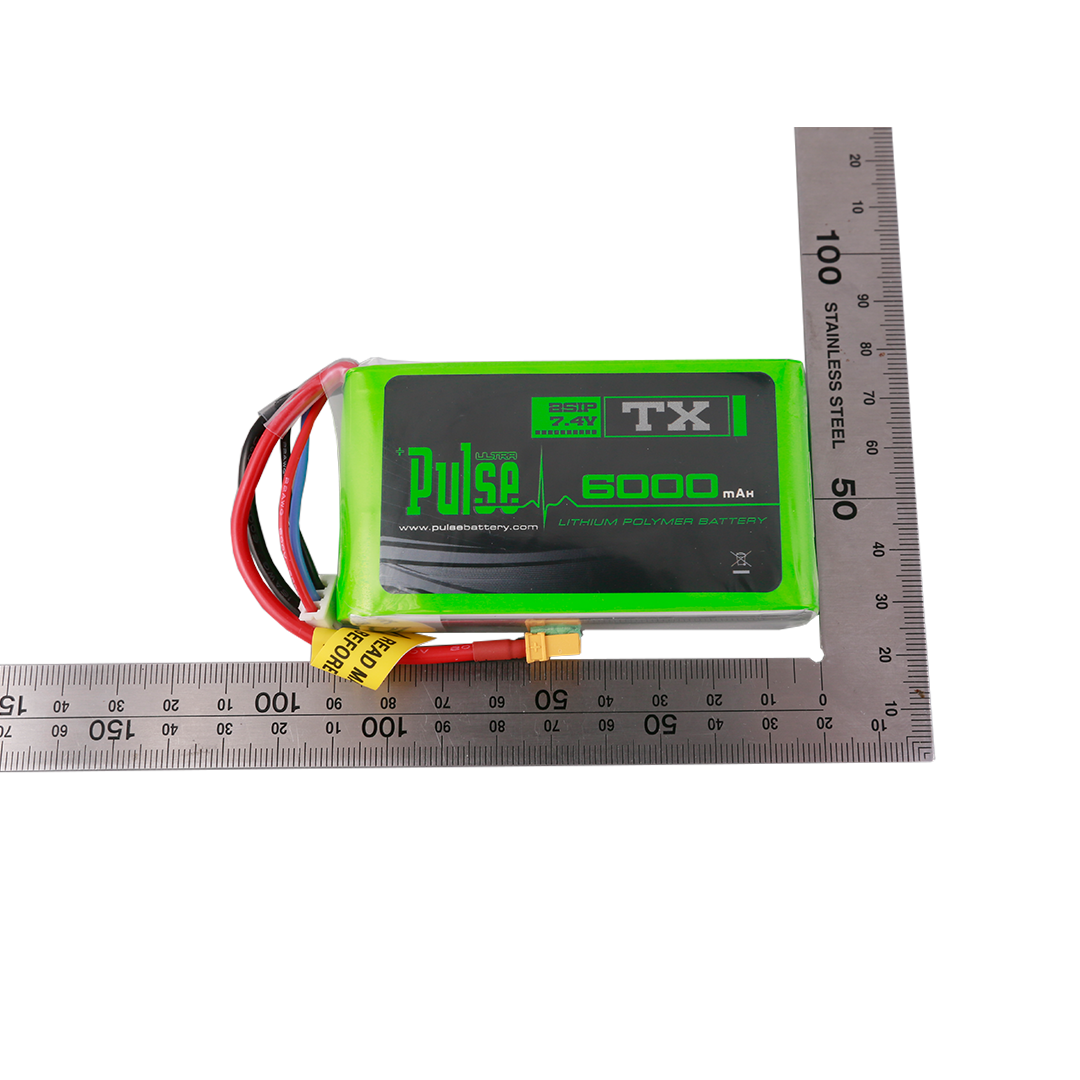

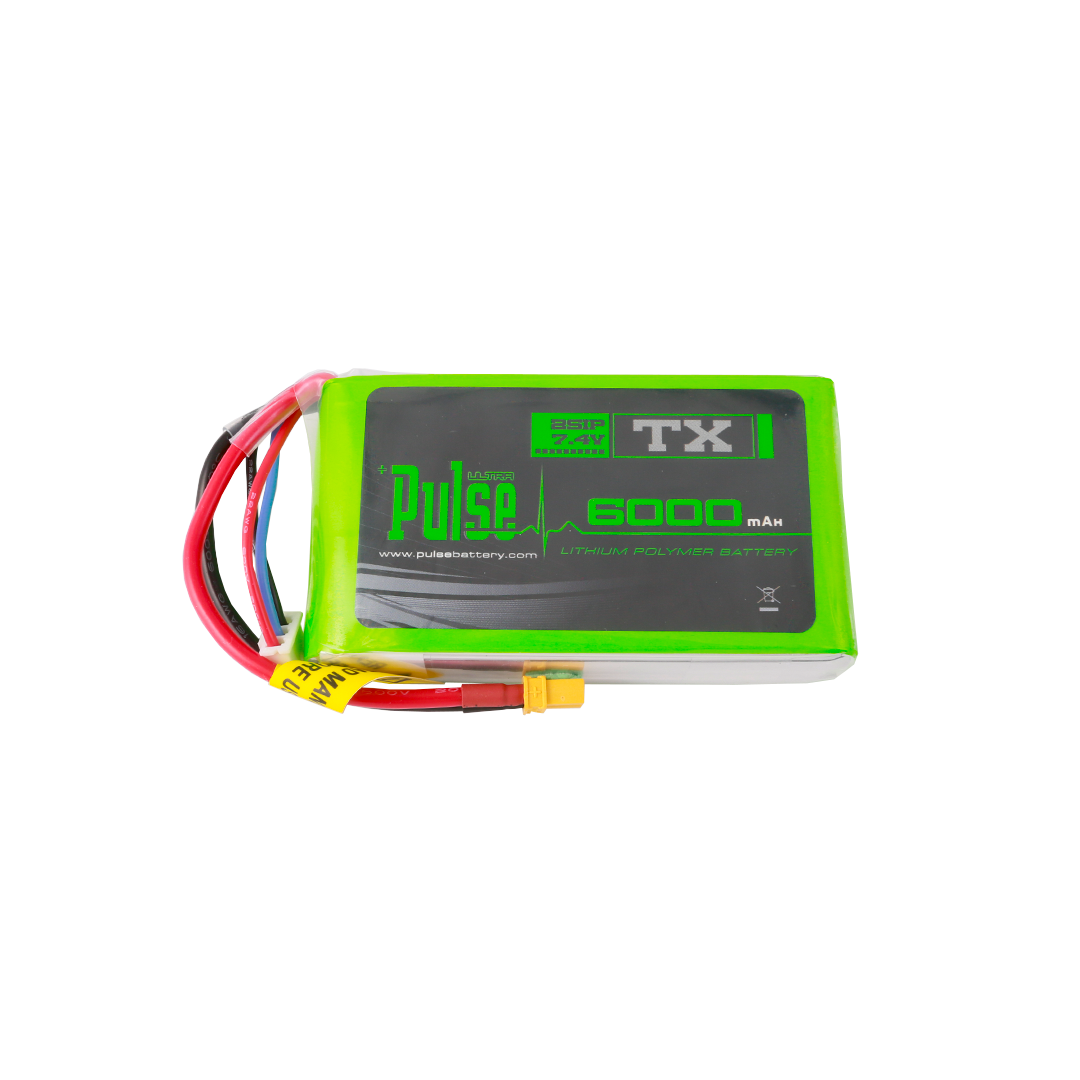

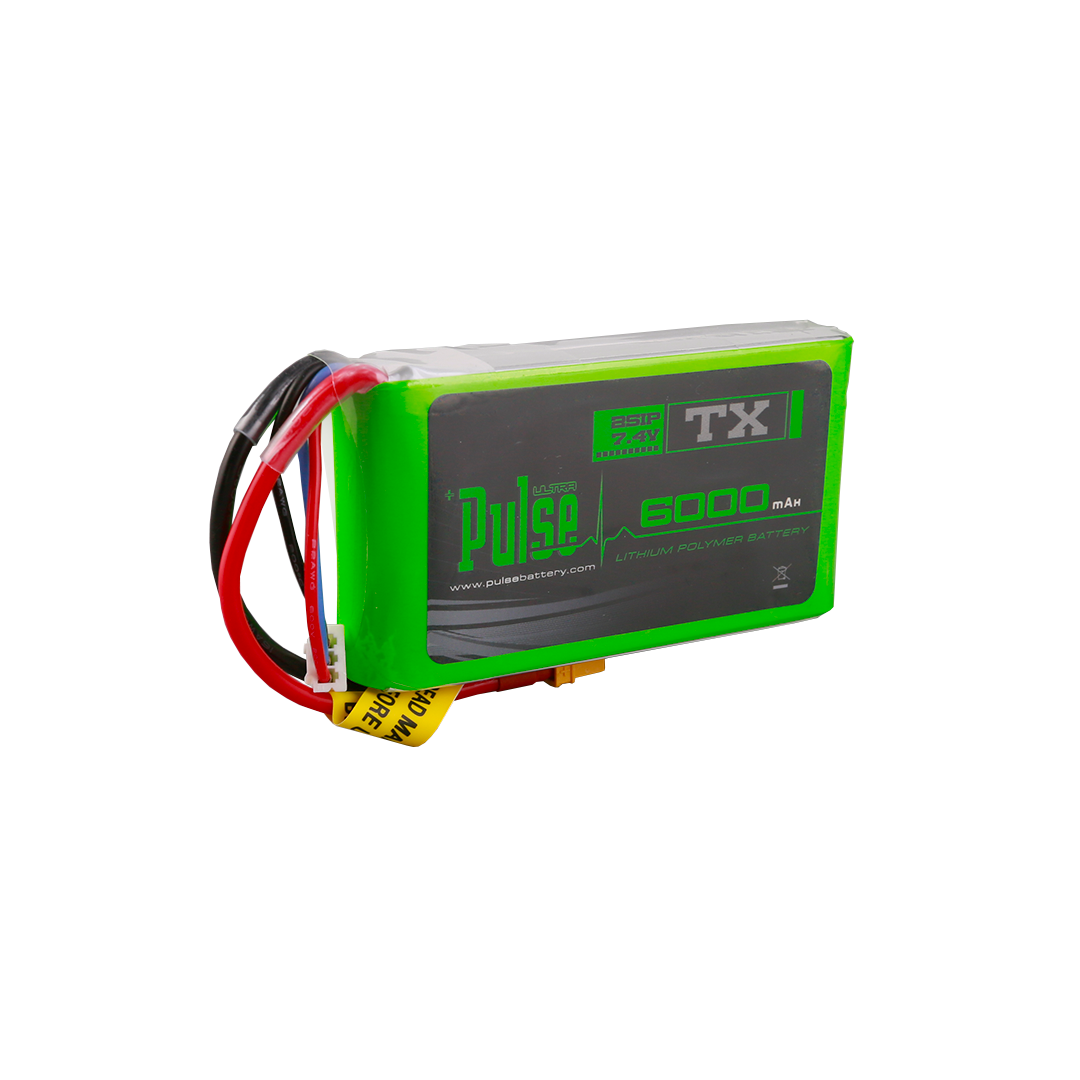

3. Pulse 6000mAh Transmitter 2S 7.4V LiPo Battery For RadioMaster Boxer and TX16S
Pulse Transmitter Pack - Incredible Run Time
Utilizing a 6000mah 2S 7.4V LiPo battery dedicated for the RadioMaster Boxer and RadioMaster TX16S, this battery will provide immense flight time with your transmitter, allowing you to simply enjoy flying.
Features:
Pulse 6000mAh Transmitter 2S 7.4V LiPo Battery For RadioMaster Boxer and RadioMaster TX16S
Dedicated High Performance Transmitter Lipo Battery
Large Array of Sizes & Voltages, Light Weight & Low Cost
Charge Rate: 1C - Do Not Attempt Higher Charge Rates
Applications: RC Transmitter RadioMaster Boxer and RadioMaster TX16s
Specifications:
Voltage | Cell Count : 7.4V 2S Lipo Battery
Capacity: 6000mAh Lipo Battery
Dimensions: 85*49.5*20mm(±2mm) (LxWxH)
Weight: 185g
Balance Tap: JST-XH Connector
Battery Connector: XT30 Connector
Warning: This LiPo transmitter battery is intended to power a transmitter only, and is in no way designed for use as a flight power system, such as powering a motor / ESC system. Due to the lower discharge rate and lighter gauge wiring, any use as a flight pack will immediately void the warranty of this LiPo battery, and very well may cause battery failure.
LiPo Safety, Warnings & Guidelines
Please be sure to read and fully understand the below safety guidelines associated with Pulse Ultra Lithium Polymer batteries, and also be sure to select the below hyperlink for a full / complete description of all necessary safety guidelines for all Pulse Ultra LiPo based batteries.
