RadioMaster Zorro 4-in-1
The new class leader in game control style radios is here! Meet the all new RadioMaster Zorro.
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
Specs:
Physical dimensions:170*159*108mm
Weight:350 grams
Operating frequency:2.400GHz-2.480GHz
Internal RF Options:4-in-1 multi-protocol
Supported protocols :Module dependent
RF power:4-in-1: 20dBm max.
Antenna gain:Folding 2db
Operational current:160mA@8.4V
Operational voltage:6.6-8.4v DC
Control distance:> 2km @ 20dbm
Operating system:OpenTX / EdgeTX Compatible (Ships with EdgeTX)
Control channels:Maximum 16 (Rx dependent)
Display :128*64 Monochrome LCD
Battery :2 x 18350 (Not included)
Charging :Built in USB-C Charging
Gimbal:Hall-effect
Module bay :Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade method:Via USB or SD card (SD included)
Type: | |
---|---|
Vendor: | |
SKU: |
HP157-ZOR-4IN1 |
Weight: |
3.0 lb |
Product Spare Parts
I love the way the radio fits my hands. I have Dupuytren contracture in my left hand and my normal sized radio's form factor has kept me from flying for a while now. The Zorro has made it possible for me to fly again. I am new to the Open/Edge TX programming world, but am getting used to it pretty quick. I love the switch placements- very easy to use all of them as they are ergonomically placed. Great Radio!
HeliDirect's Web page is easy to use, great service, and super fast shipping. I'll be back again!
Wonderful
Definitely worth the money.
HeliDirect made everything work out excellent
I wanted to try an open source radio for some time. I like a compact radio which is easy to hold ( I don't use neck straps), and has capabilities for multi aircraft.
With helicopters, and EDF Jets, location of various switches is an important issue. Ease of feeling the switch can make the difference between a successful flight or crash.
The Zorro met my criteria and then some. It feels good in the hands and I have medium size hands. When holding, all of the switches are easily at my fingertips, and separated enough that I don't select the wrong one.
There are 2 Three way switches, 2 Two way switches, 2 pushbutton switches, and two thumb wheel trims on top . All are easily accessible. There are two more pushbutton switches on the back which are in easy access to your fingers.
With the Edgetx already installed in my 4 in one, programming is very diverse, as you can program almost any configuration thought of. This can control 16 channels of receiver. There are a lot of Youtube videos on programming which are very helpful. If you don't like programming, this may not be the right fit for you. If you like to (Have it your way), you will love this radio.
Pro's
Large display. Up to 8 units of telemetry can be displayed.
Easily seen in bright sun
A lot of variables for voice (Alarms voltage , temp etc.)
Switches are easy to work with.
Has a great feel for thumbing the joysticks.
Range very good. Has Rssi and quality display and alarms.
Vario fo gliders ( One reason I bought the transmitter )
Battery life over 4 hrs per charge on internal 18350 batteries 4-in-One.
Made to use an external battery if needed.
Con's
Programming thumb wheel very sensitive, during programming when pressed will advance to the next setting. Have to watch closely during programming.
Gimbals are smaller, thus more sensitive. Use some expo to smooth them out.
Should have included batteries for the unit.
Overall,
A fantastic radio.
Some have reported the battery covers fall off easily, mine do not. But I did have to pay close attention installing them. Radiomaster must have made a change. I think they are listening to the customer!

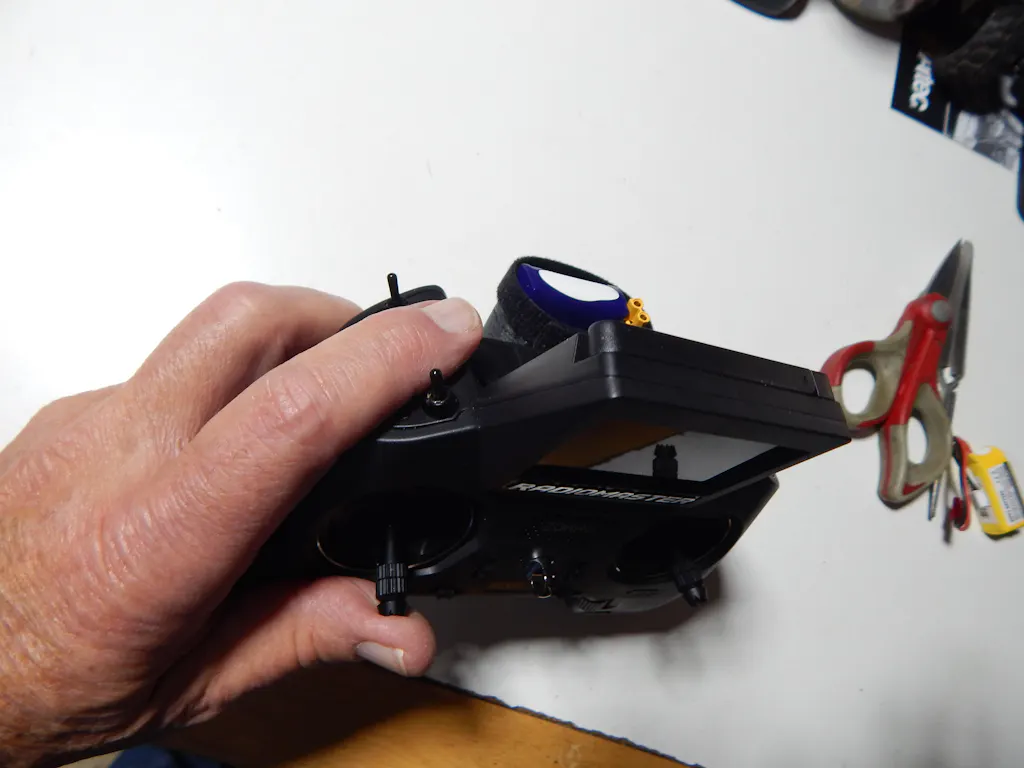

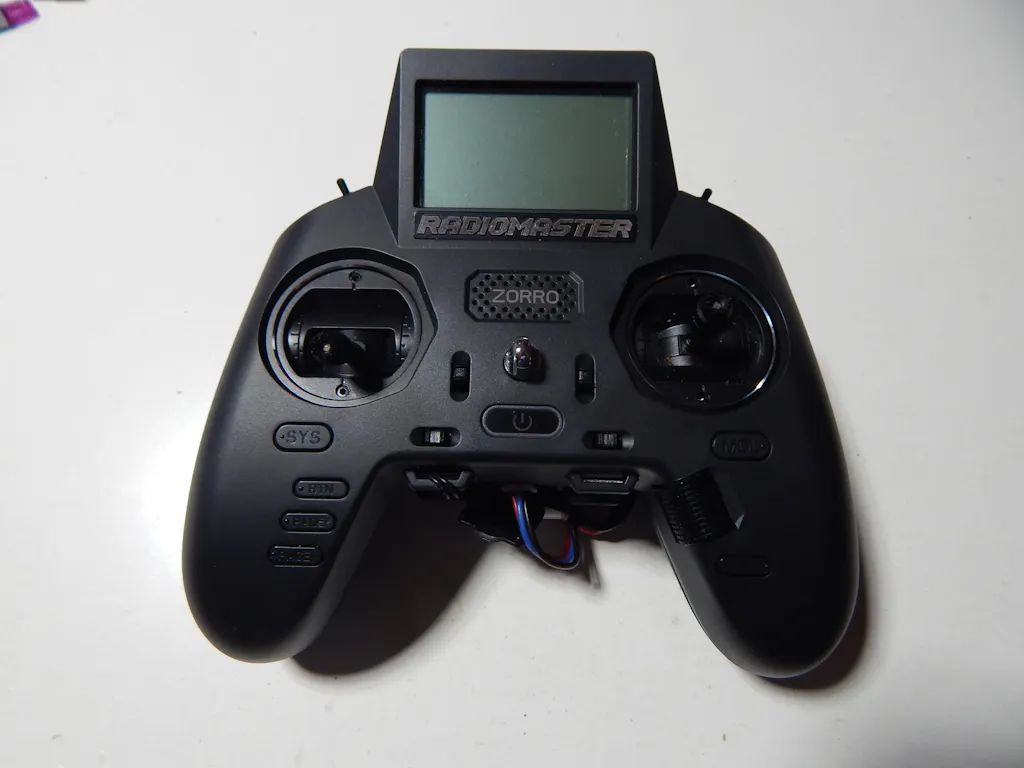

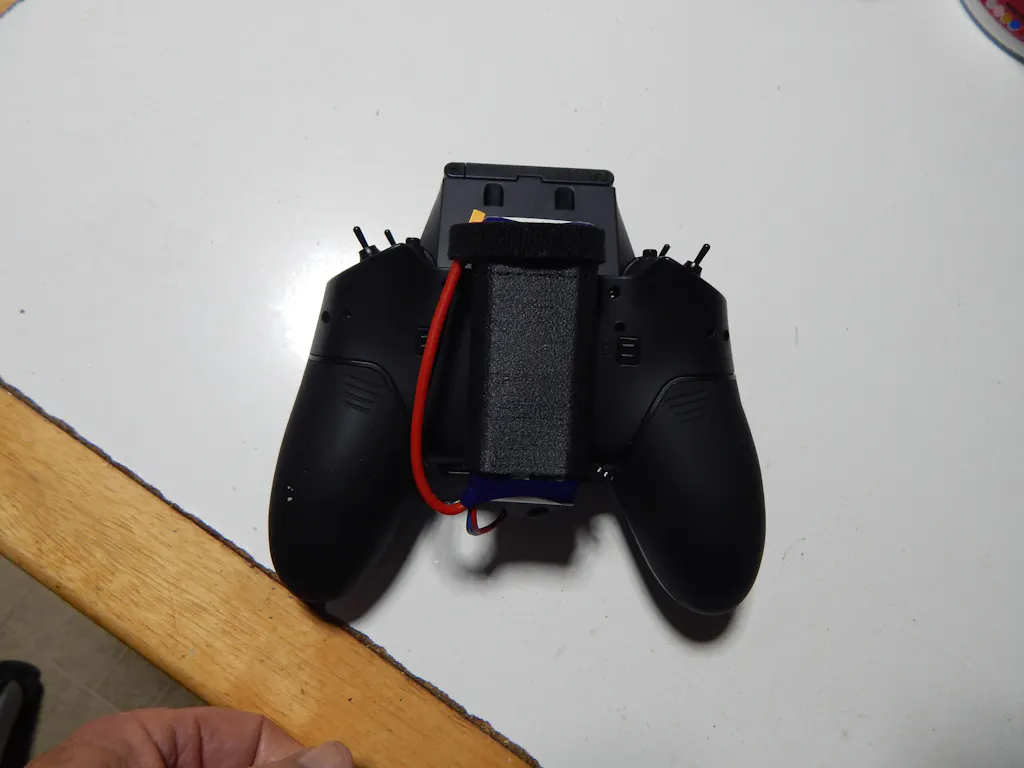

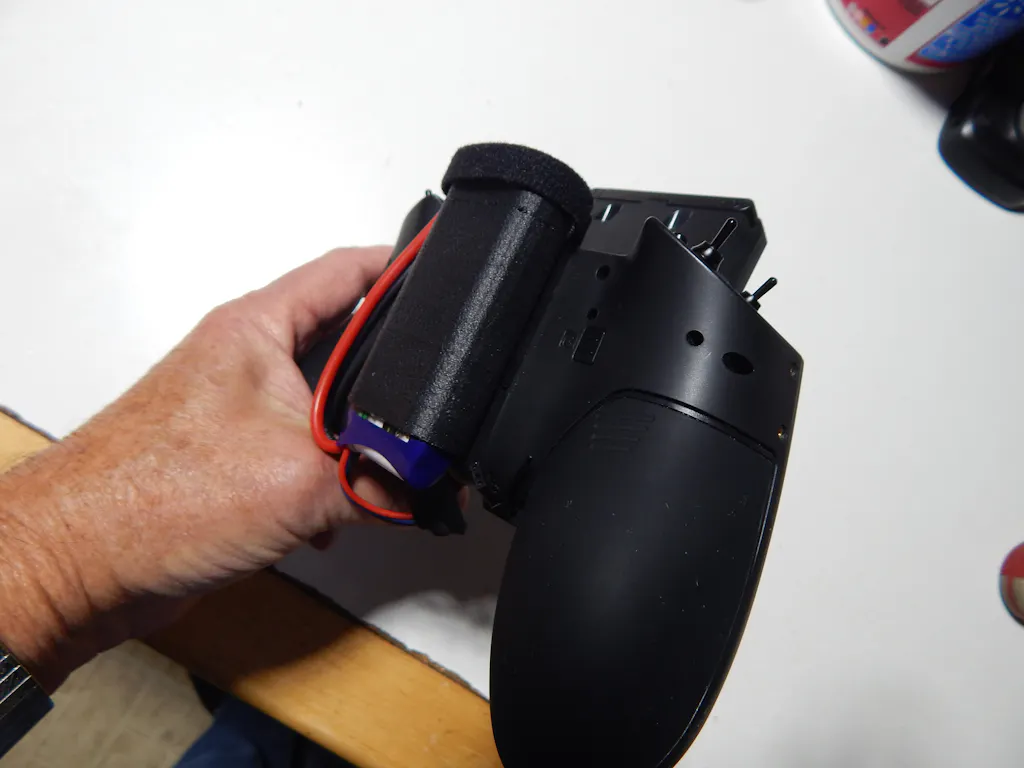

Coldblooded on thingiverse has a 3d printable battery holder (Radiomaster Zorro Nano Module 2s Li-ion Battery Pack Mount) which works great. This is the one pictured. I use it when programming ,as that takes some time. The suggested method of strapping the battery under the connector is too bulky for my preference.
With so many PNP kits and each one with their own radio protocol, This radio will fit most all of them. This way you don't have multiple transmitters, trying to keep the batteries maintained, and forgetting the one you need at home.
Range, Features, Comfort, this radio has everything I hoped for.
Considering getting a Zorro Max to go along with it.
As always, Helidirect has super fast shipping and Great customer support!
Thanks Helidirect!!
I purchase this radio for my M2 Evo. I have a basic radio for it but needed some extra settings and features the other radio don't have. It feels great in the hands and got a really nice weight to it. The screen is nice and crisp. Overall a great radio and worth the purchase.
Got the Zorro about 3 months ago. It quickly turned into my daily driver. My old Taranis Plus has served me well for many years and will continue to do so but like I said the Zorro is top dog now.
I put an ELRS module on it, I can fly any of my quads or planes with it.
I definitely recommend it and would buy again if I had a do over.
LOVE IT!
Everything is great, except for the thin, sheep, gimbals definitely need that updated gimbals
I ordered this radio yesterday at 330 pm using the Free economy shipping....I received it today at about 330 pm!....cudos to Heli direct!.... awesome getting it out the door Fast! As far as the Zorro goes...I love it... I'm an old school airplane and jet flyer and plan to put all my models in this radio...it feels great in my hands and I love open TX which my Taranis has.....great purchase
Compact and great features from a unit of this size. Good value for the money.
Im a senior,,was having trouble with open tx but you tube vids are great. I have Futaba Spektrum Radiomaster tx16 but this little radio really fits my needs. Very easy to program and a great feel in small hands. I love it
