RCPROPLUS 7mm Solderless Connector (8M&8F - Black&Red) REB7808STS7P8
%20REB7808STS7P8){kind=link}
RC Pro Plus has been at the forefront of battery connector development for years. Providing high quality, and high reliability, RCPP has quickly became a leader within the industry.
Meet the "REB 7808 S.T" aka S7 Solderless connetors! Solderless? Absolutely! Solderless connections are more commonly found in applications outside the R/C industry, and inherently provide lower point of fatigue within the connection.

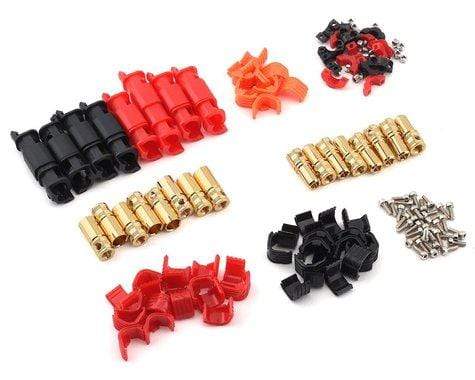

The RCPP Solderless connectors are built with the ability to install the connectors to each application in minutes. With the bare wires exposed, each bullet connector utilizes 2 setscrews (180 degrees apart), to create a secure mechanical connection.
Features:
- Use with batteries, speed controllers and chargers
- Solderless - Full mechanical connection
- Large, low resistance contact patch
- 'Click' connection
- Hassle free assembly
Specifications:
Peak Current: 270A
Continue Current: 230A
Applicable Wire: 8~10AWG
Finish Type: 24K Gold Plated 5u"
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
REB7808STS7P8 |
| Weight: |
0.31 lb |
Product Spare Parts
Customer Reviews
high quality, best connectors available.
Works well and easy tpinstall
Great product , super fast shipping, great customer service!
Easy to use and reliable, a must for larger batteries/esc.
Hi,
I've been using the soldered version and decided to treat myself to a much easier and less danger involving process of Soldering.
I connected these to a new 12s Pulse Stick and within minutes I was done. I put the 12s Stick in the Helicopter but honestly was a little nervous if there would be any issues during the flight. After several flights I'm convinced now that these connectors are a total game changer. Will only be using these Solderless Connectors going forward.
Thank You RC Pro Plus and Heli Direct!
These are all I use and I like them a lot. Easy to install.
produto de excelente qualidade recomendo
Product very good

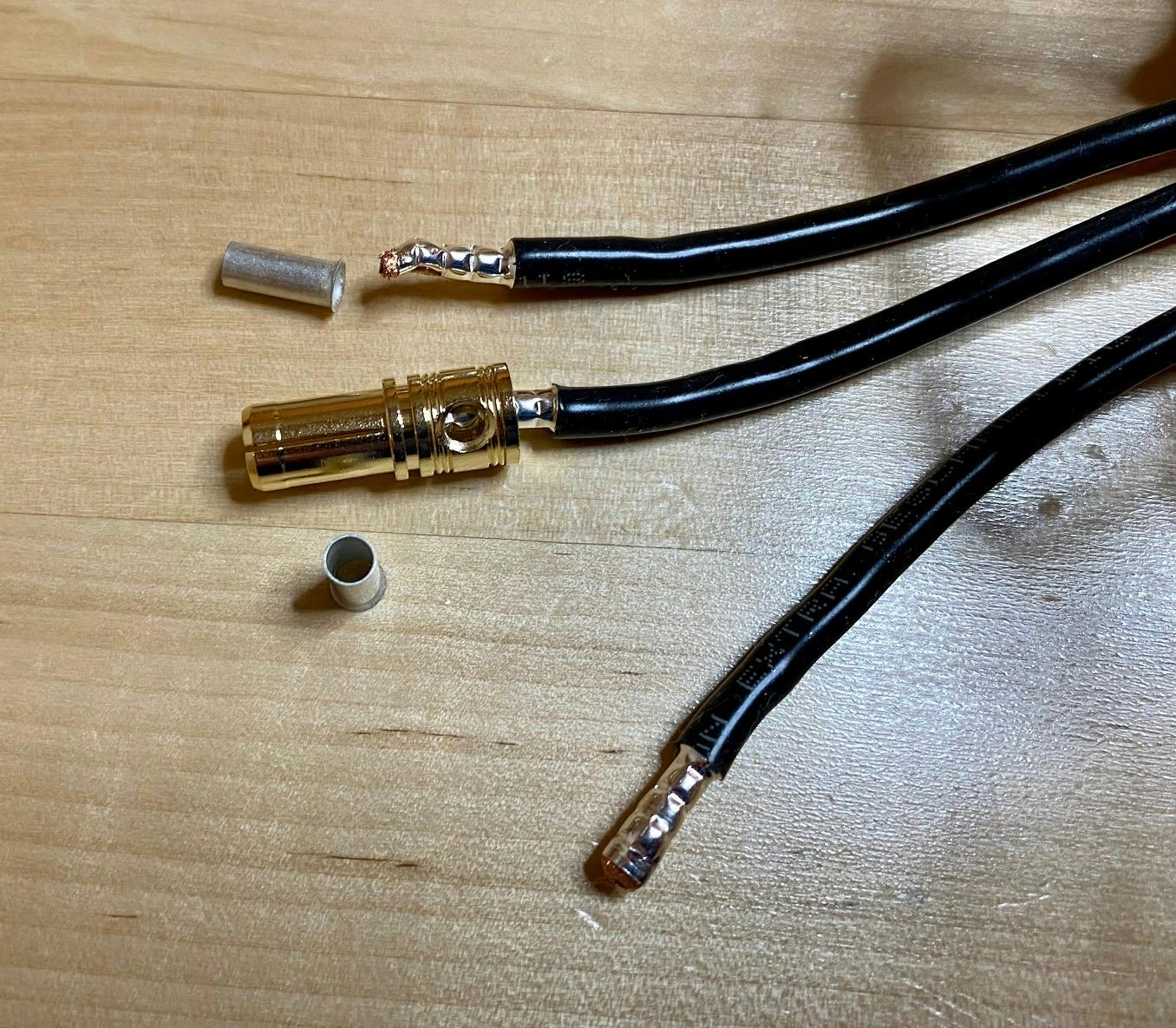

I switched all my larger batteries and ESCs to these connectors. I believe these solderless connectors offer a less frustrating compared to traditional soldering. As much as I like these connectors, I feel there is plenty of room for improvement. First, it is not a good idea to crush bare stranded wires with grub screws. A better option is to crimp a ferrule on the stranded wire, then insert the crimped ferrule onto the connector. That way the grub screw retains the ferrule instead of crushing bare stranded wires. I also do not like how the plastic case of the connectors uses one-time-use retaining clips. If you need to remove the plastic case off the connector, those plastic retaining clips will break, and RCPROPLUS does not sell those retaining clips individually. So the connectors are reusable, but the plastic case will most likely not survive intact during removal.
they are great no worries connectors fit extremely well
