Ascent-18 Brushless - User Manual

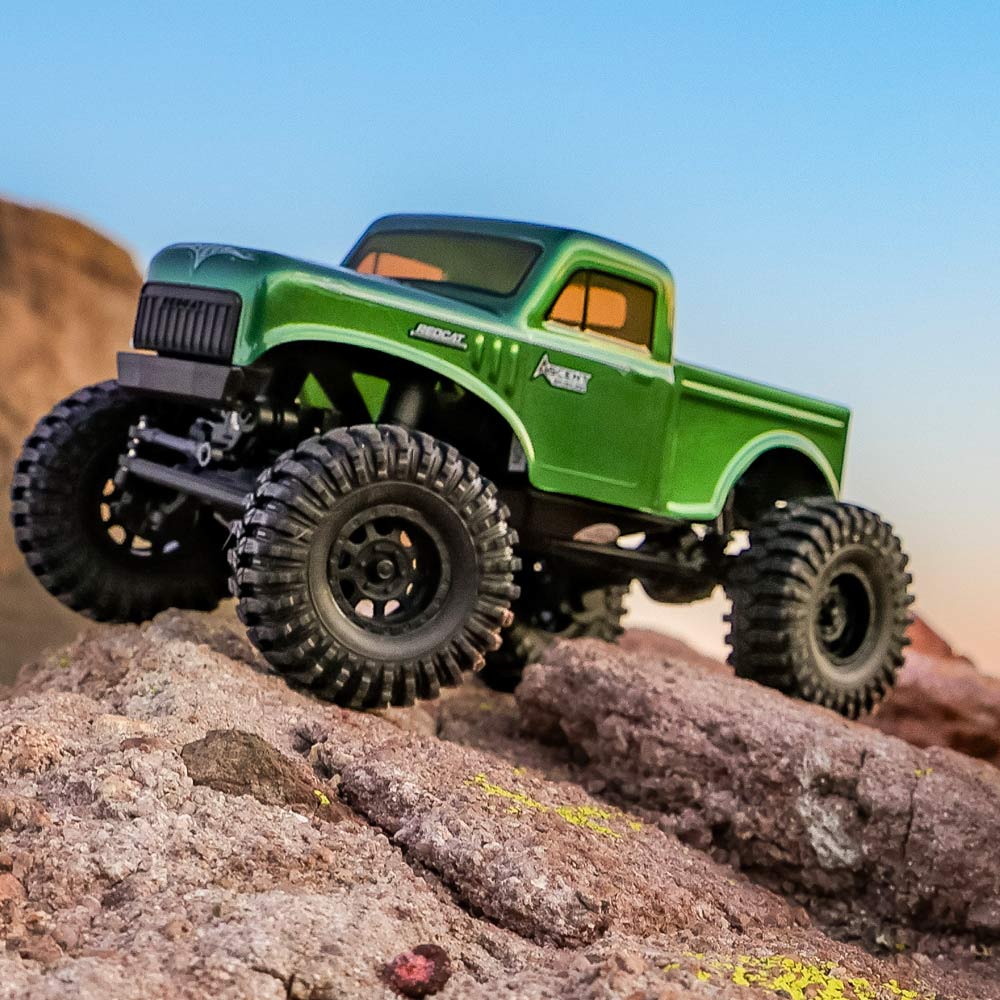

Ascent-18 BRUSHLESS Rock Crawler
The Redcat Ascent-18 Brushless takes compact crawling to the next level. Powered by a 3450kv brushless motor and 3-channel ESC, this 1:18 scale ready-to-run crawler delivers big performance in a small package—perfect for both indoor courses and outdoor adventures.
Built on a durable aluminum chassis with portal axles, machined aluminum spools, and metal gears throughout, the Ascent-18 offers impressive ground clearance, torque, and reliability. New High Steer (HS) geometry improves steering angle and clearance at the C-Hub, while aluminum-capped oil-filled shocks and full ball bearings ensure smooth, consistent trail performance.
To achieve the High Steer geometry we were looking for, we’ve redesigned the front axle housing, front portal, steering links, and added front portal universal shafts. This new “HIGH STEER” (HS) design provides increased steering and more ground clearance at the C-Hub and gives this mini crawler even more steering than its predecessors.
This RTR package includes a 2.4GHz radio system, 4kg metal-gear micro servo, 750mAh 2S LiPo battery, and charger. The front tilt body makes maintenance a breeze with its quick-release design—no body clips needed.
Key Features:
- 3450kv Brushless Motor & 3-Channel ESC
- Metal Portal Axles, Gears & Machined Aluminum Spools
- High Steer Geometry for Better Angle & Clearance
- Aluminum Chassis Rails & Oil-Filled Shocks
- Full Ball Bearings & Hex Hardware
- 2.4GHz Radio + 750mAh LiPo + Charger Included
- Front Tilt Body with Quick-Release Lock
- Compatible with Redcat Scout-18 & MT-18 Parts
- Wide Range of Brass, Aluminum & Steel Hop-Ups Available
Requires:
- 4 AA batteries for transmitter
Tech Specs:
Vehicle Scale: 1/18
Engine / Motor: FS-MD1212 3450KV Outrunner
Transmission: Forward & Reverse
Drive System: 4 Wheel Drive
Length: 265mm
Width: 126mm
Height: 125mm
Servo Type: 4kg Metal Gear Waterproof Servo
Wheelbase: 155mm
Ground Clearance: 38mm
Chassis Type: 2mm Flat Rail Aluminum
Wheel Width: 15mm
Wheel Diameter: 25mm
Suspension: Aluminum Capped Oil Filled Shocks
Speed Control Type: R3C-BL 2in1 ESC/Receiver Brushless (5v/1Amp BEC) 2S-LiPo ONLY
Radio System: 2.4GHz Radio System
Battery: 7.4v 750mAh LiPo with USB Charger Included
Needed to Run: 4 AA Batteries for Radio

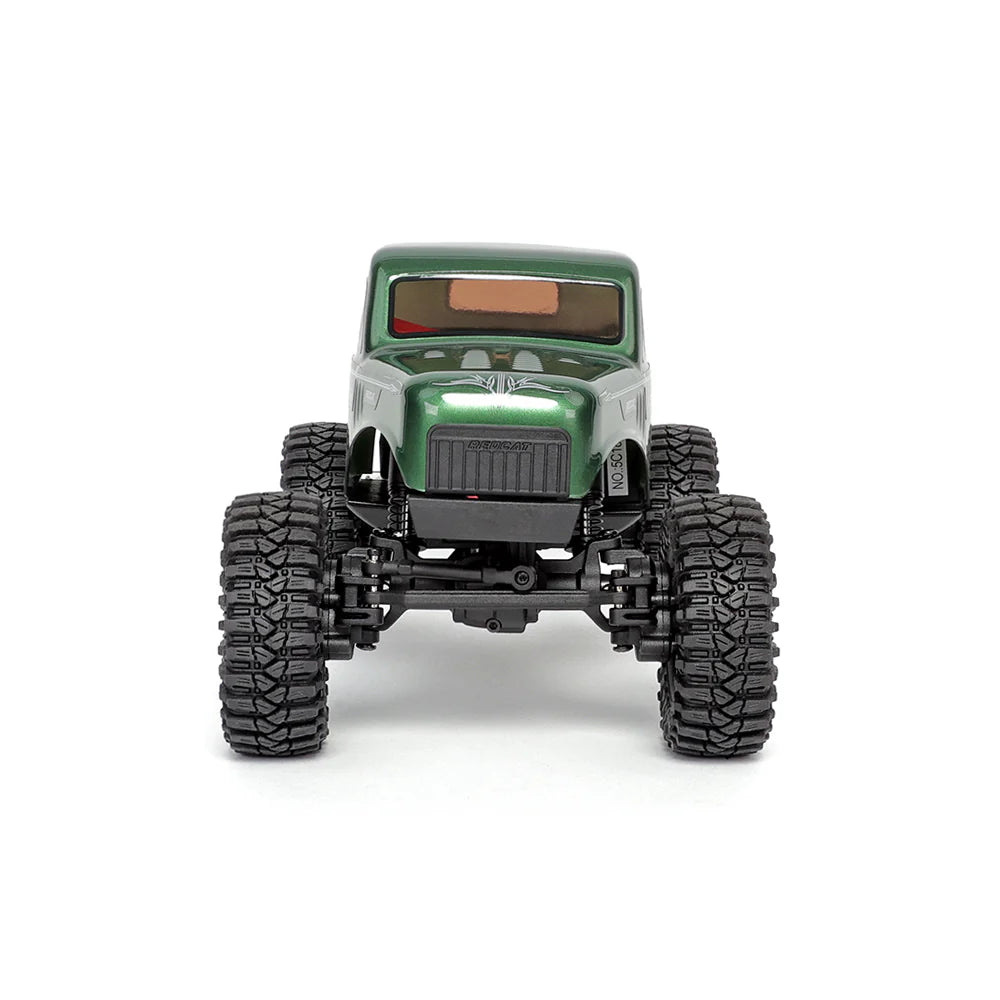

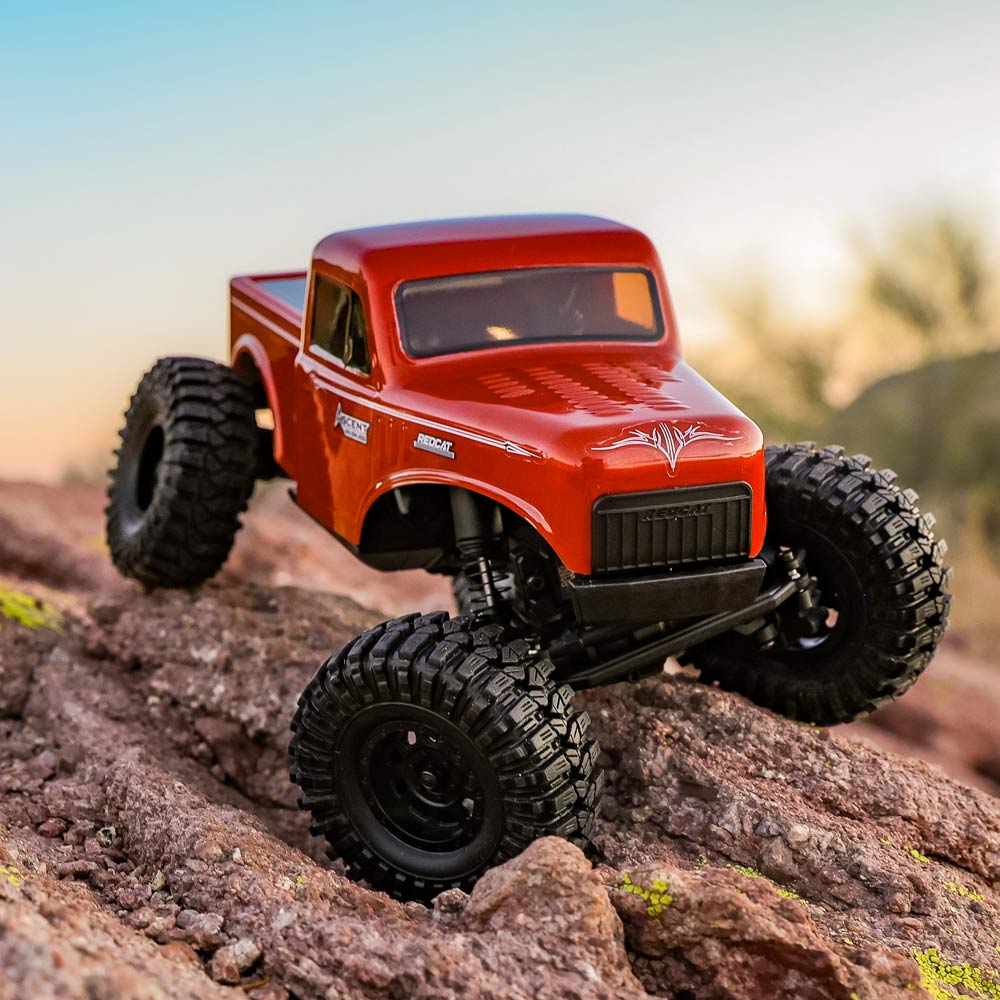

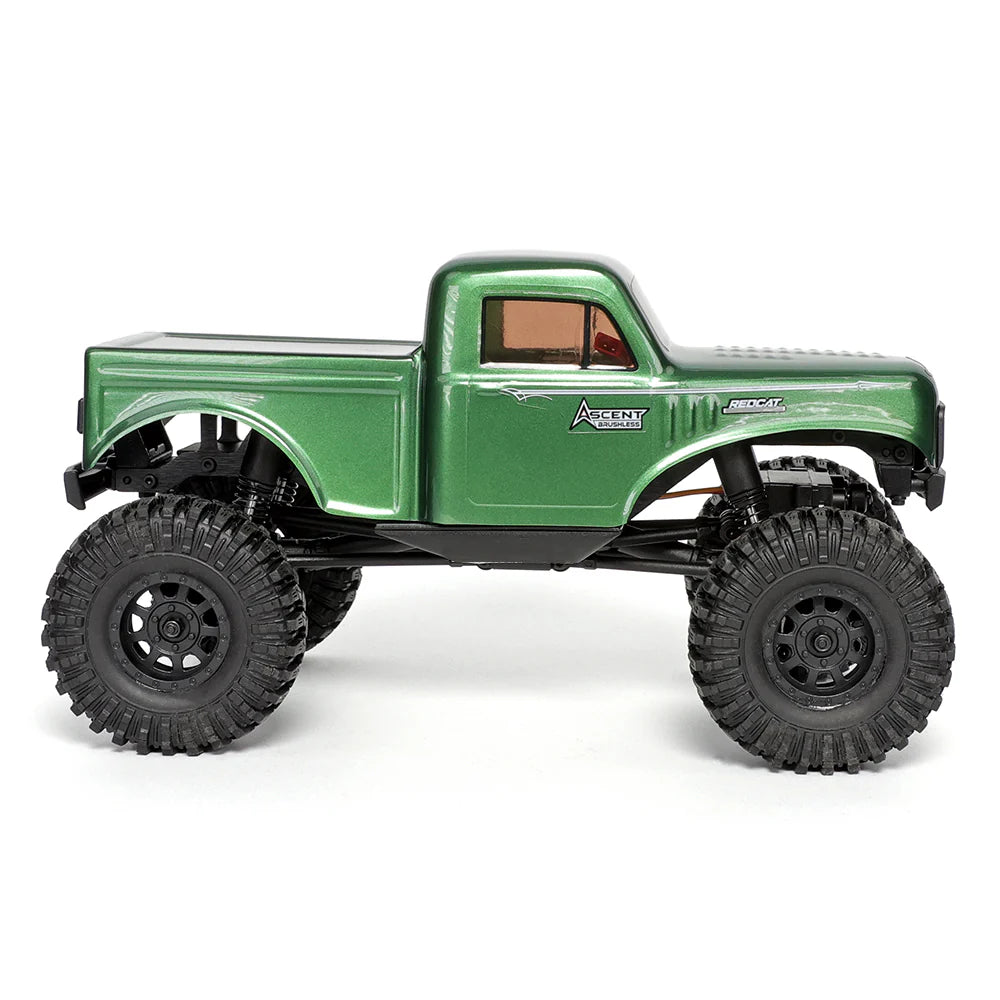

ASCENT-18 BRUSHLESS ROCK CRAWLER

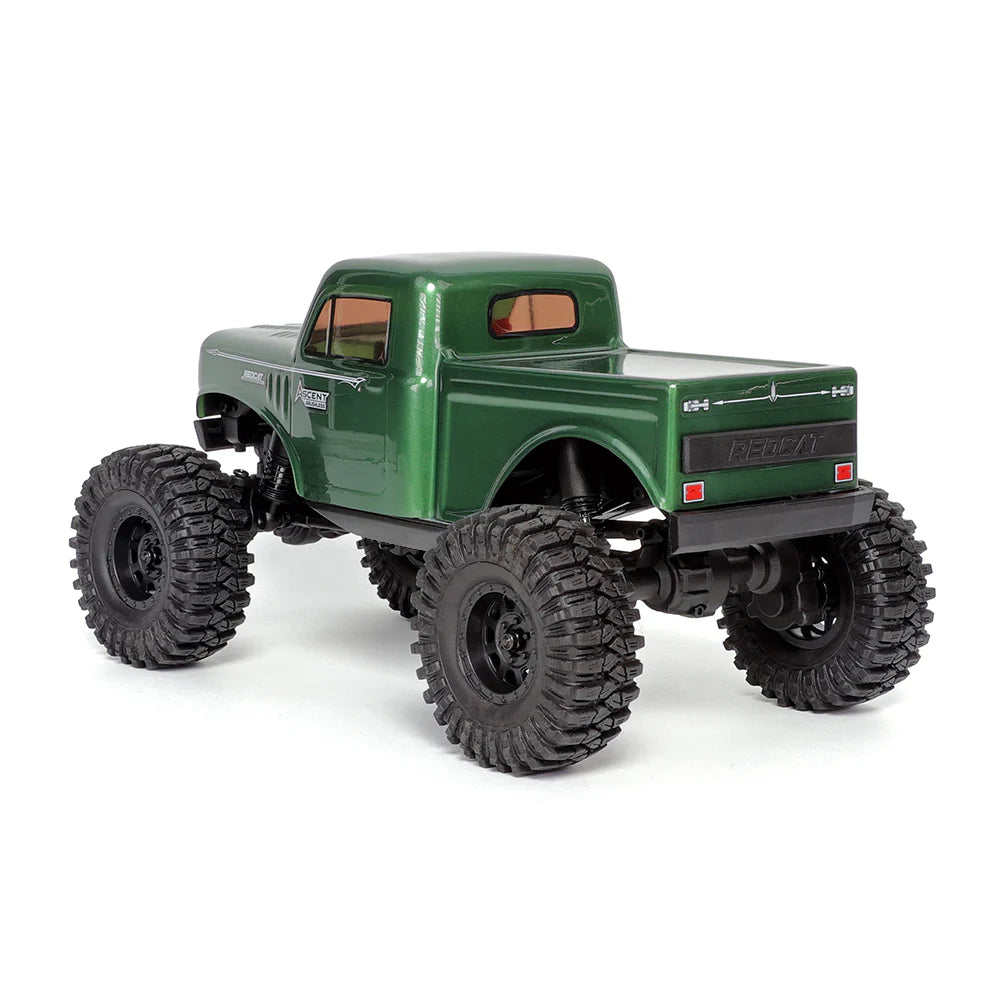

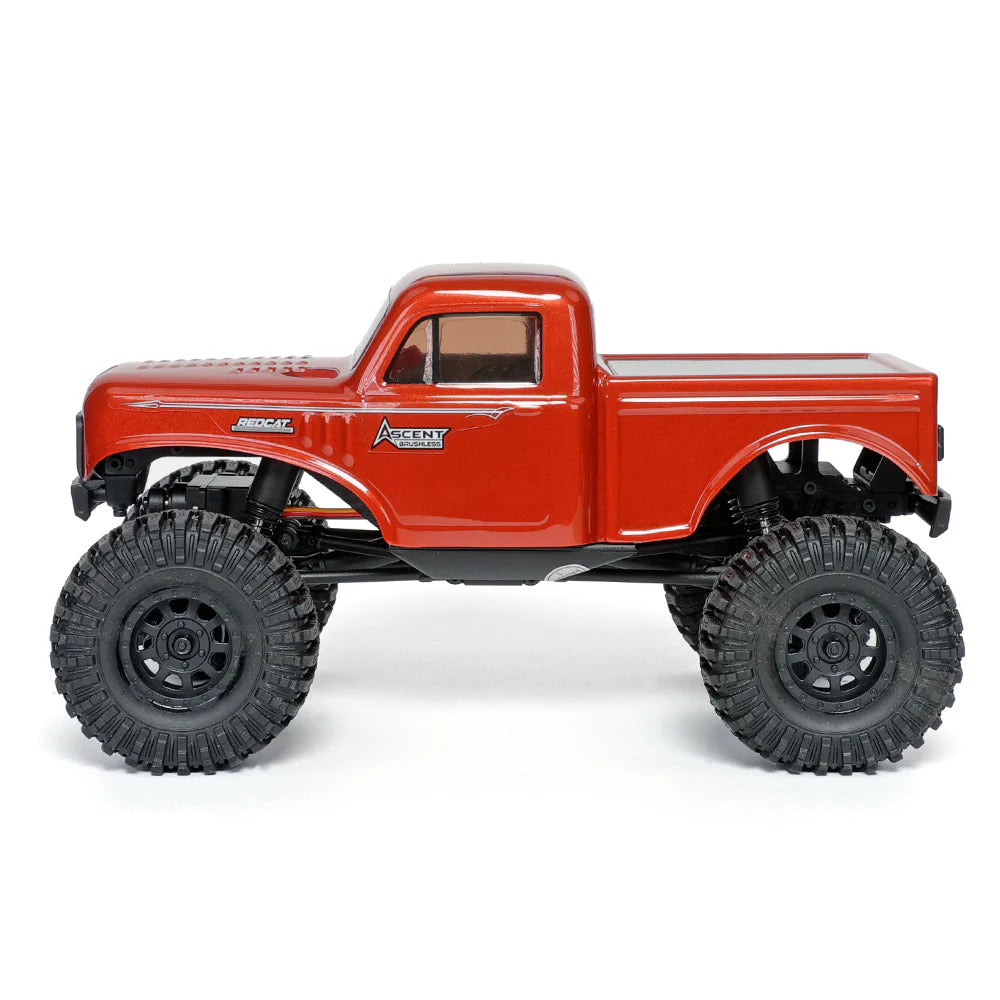

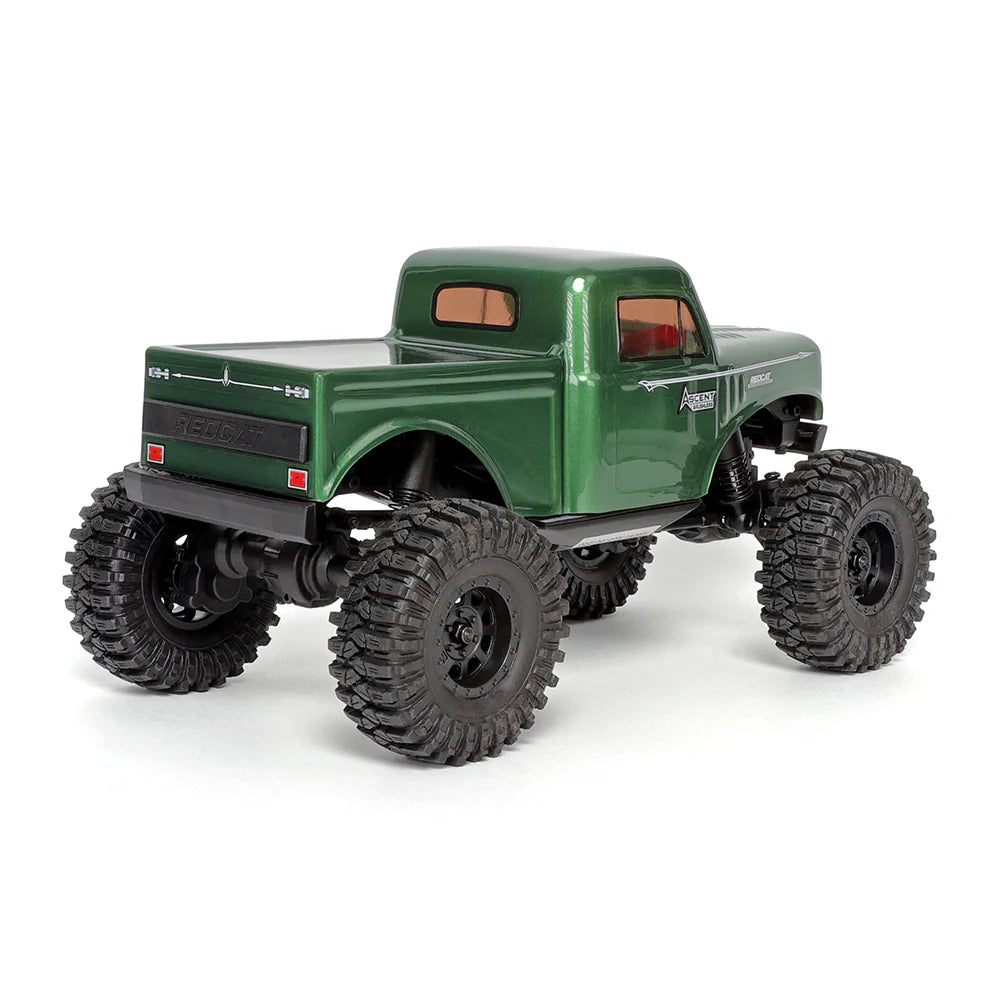

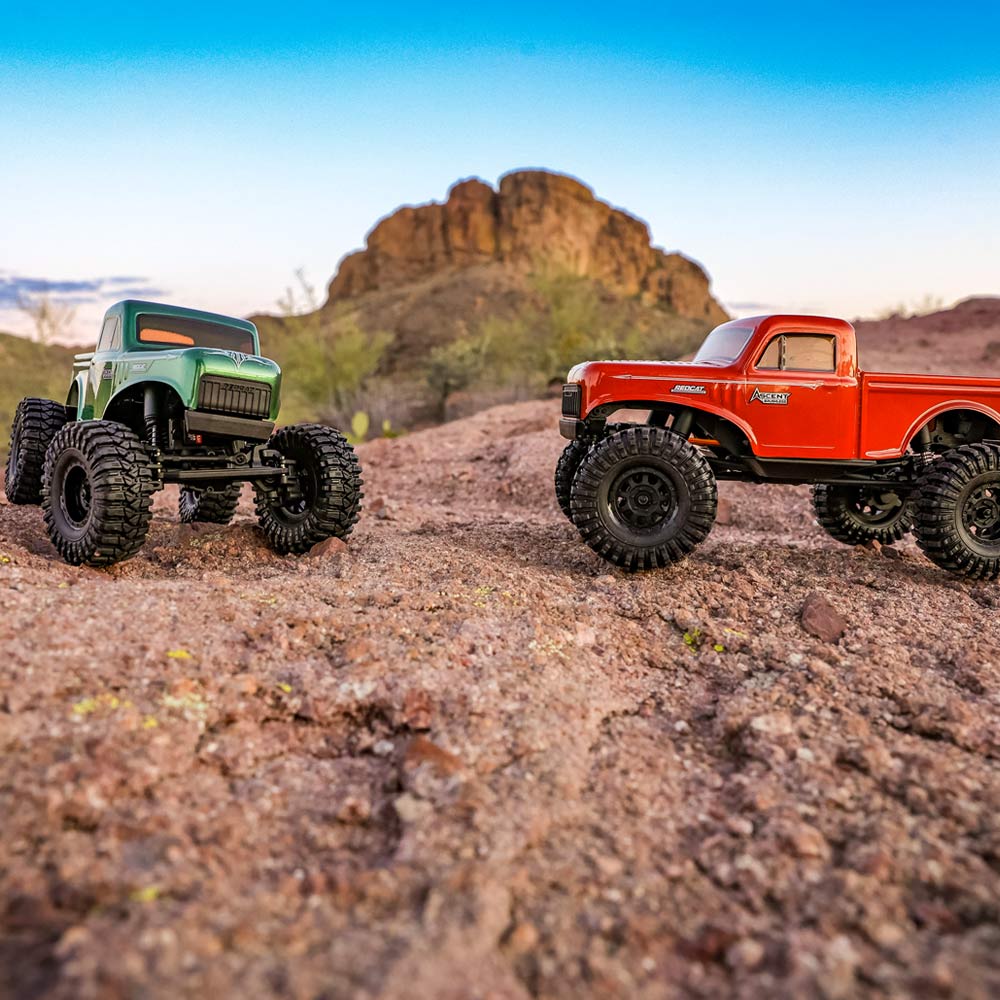

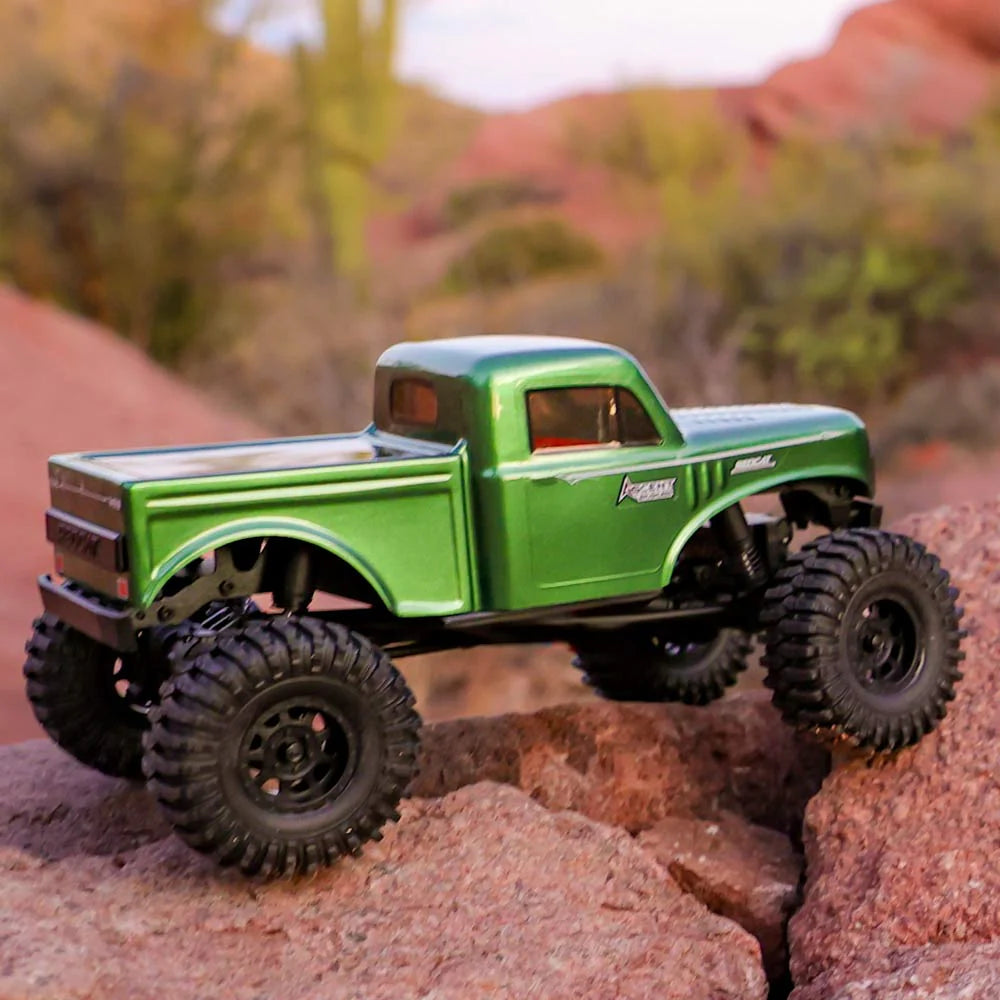

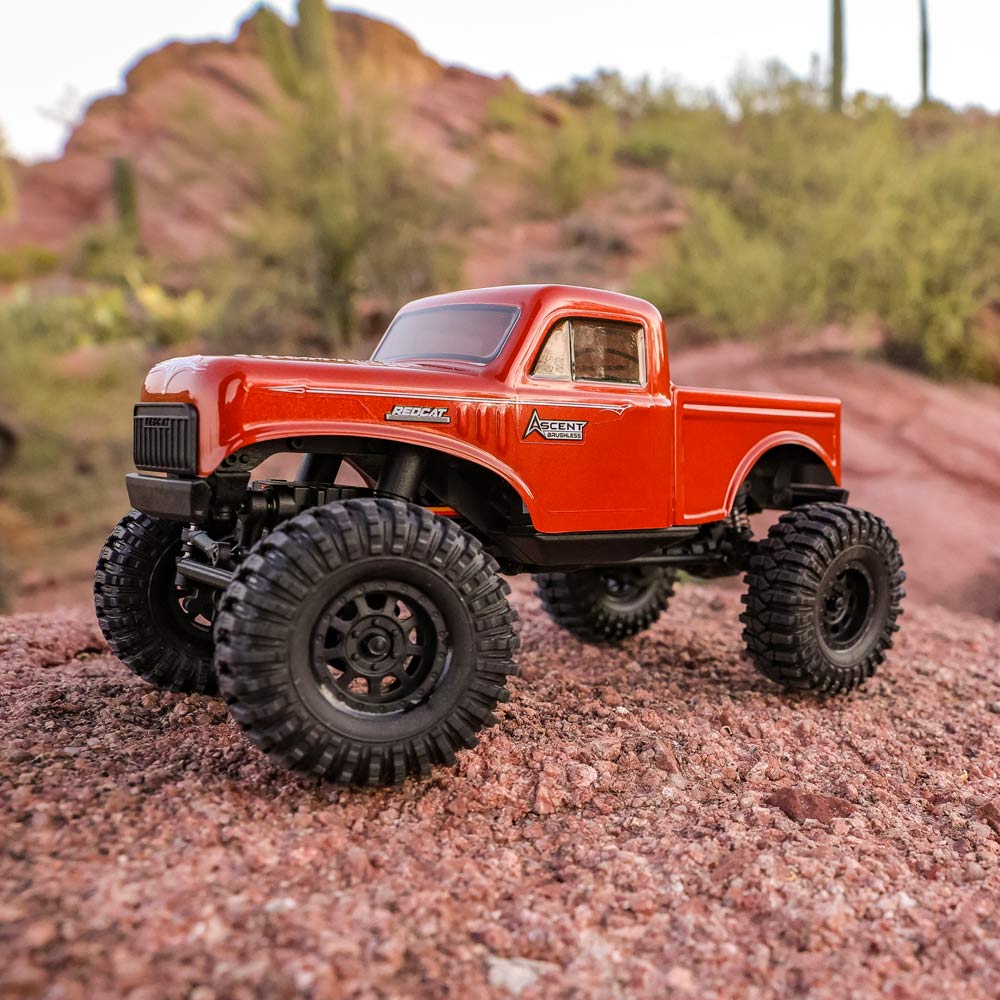

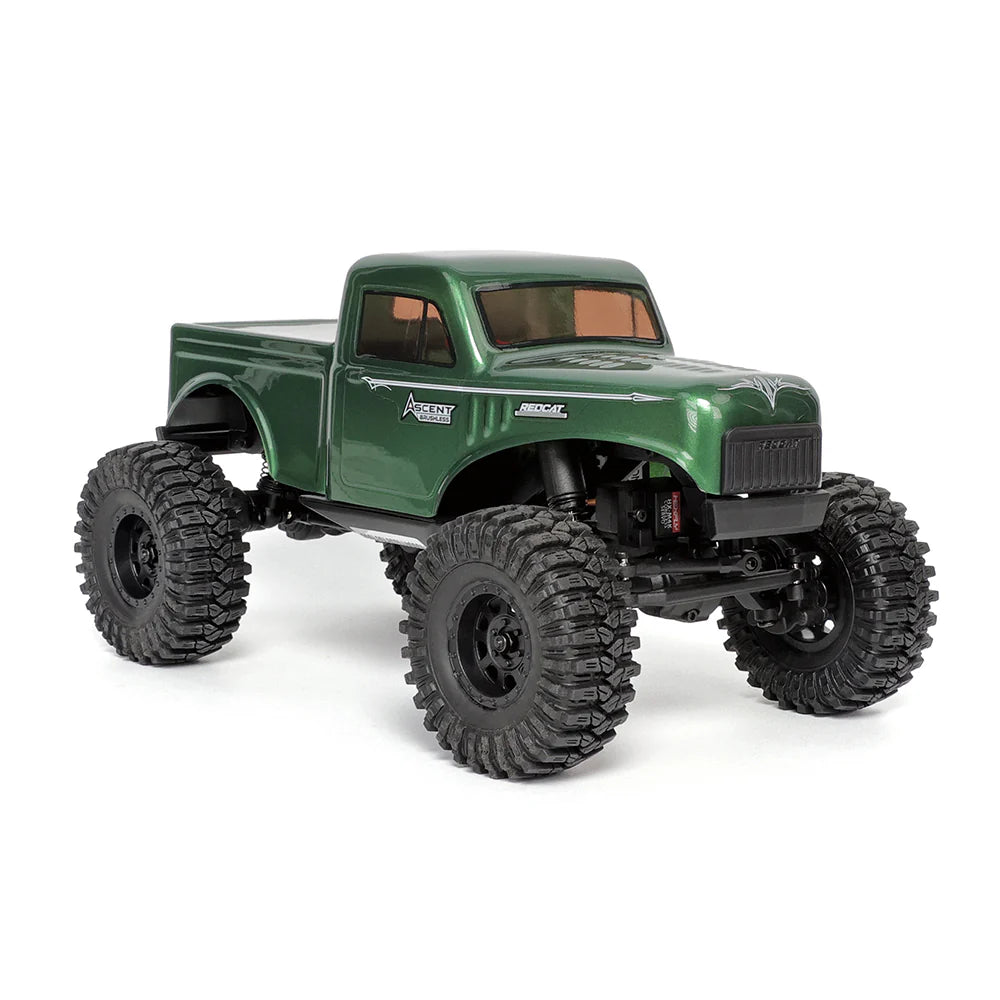

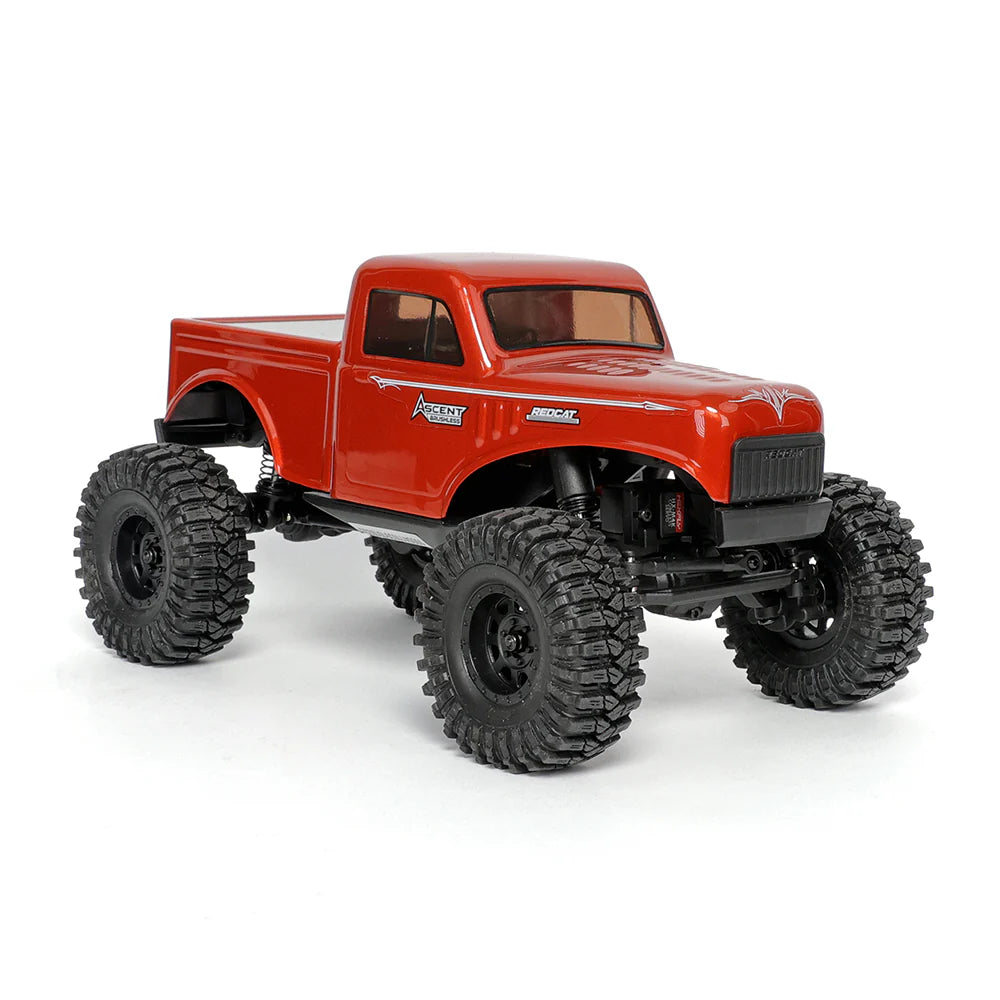

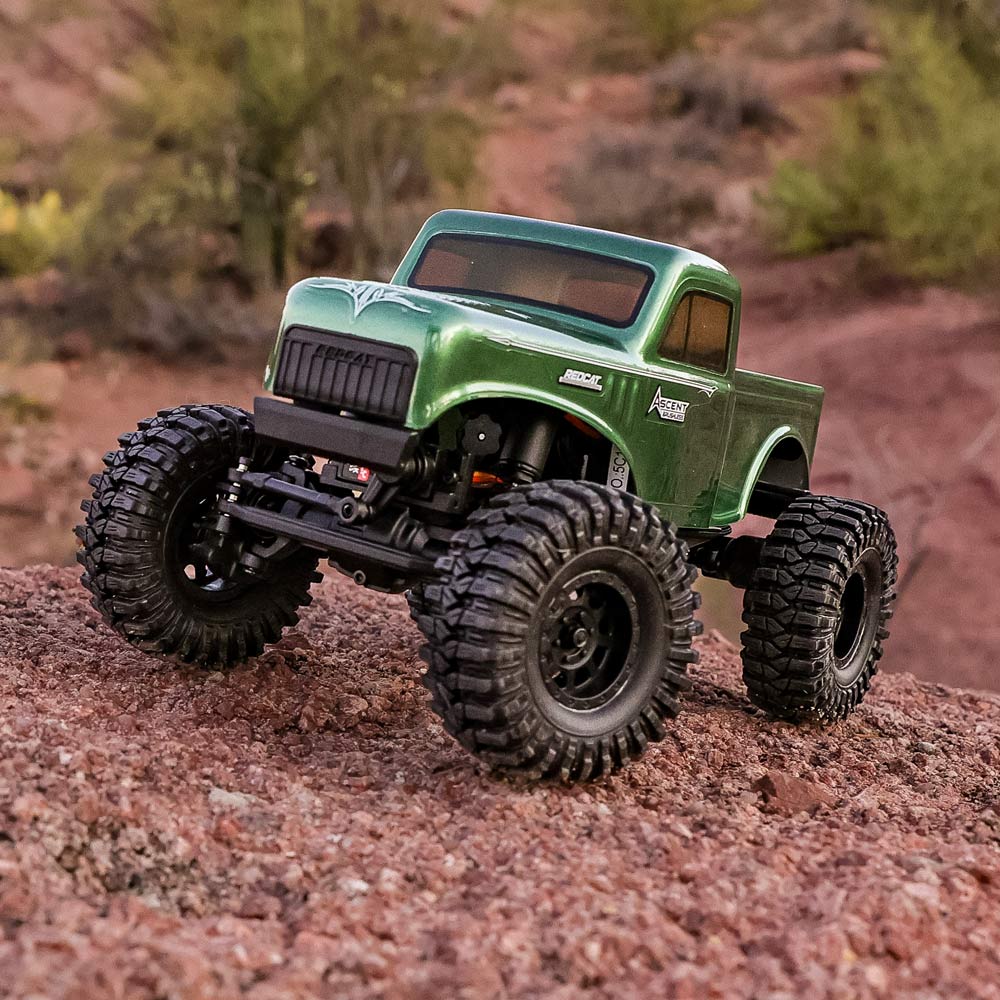

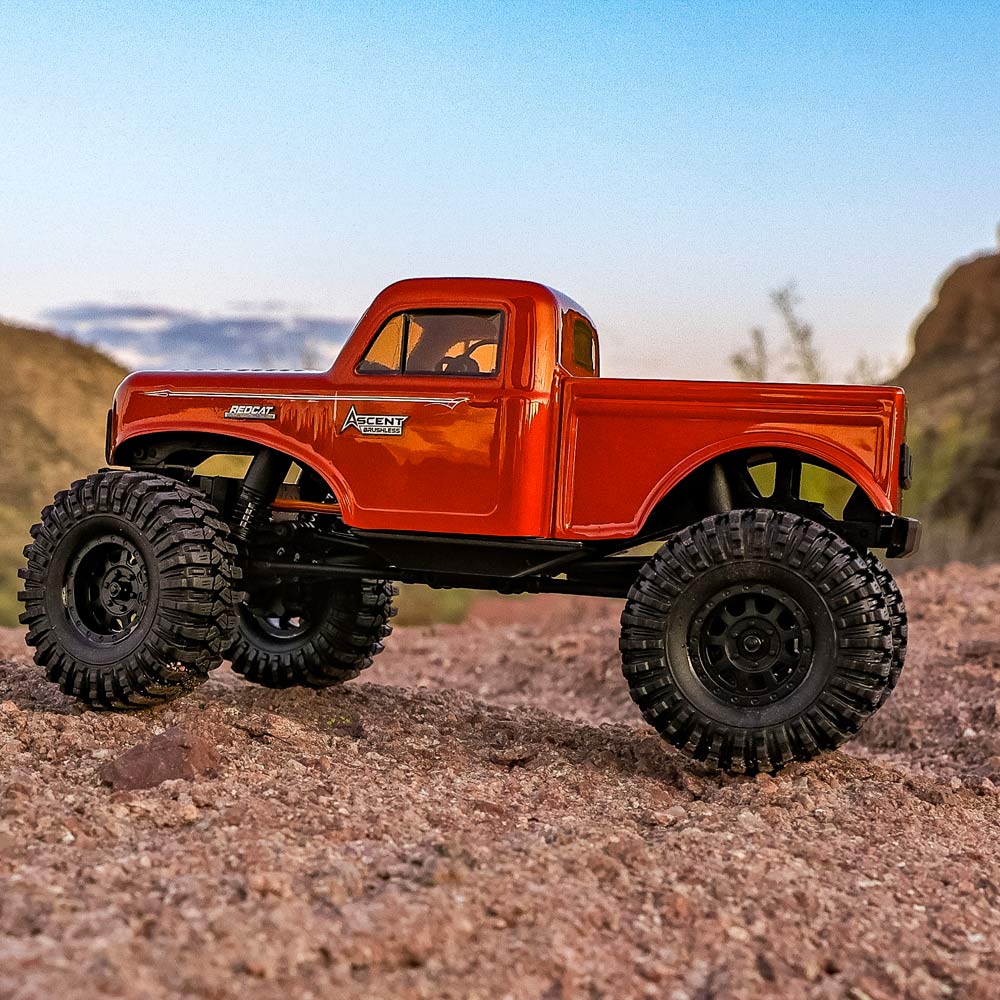

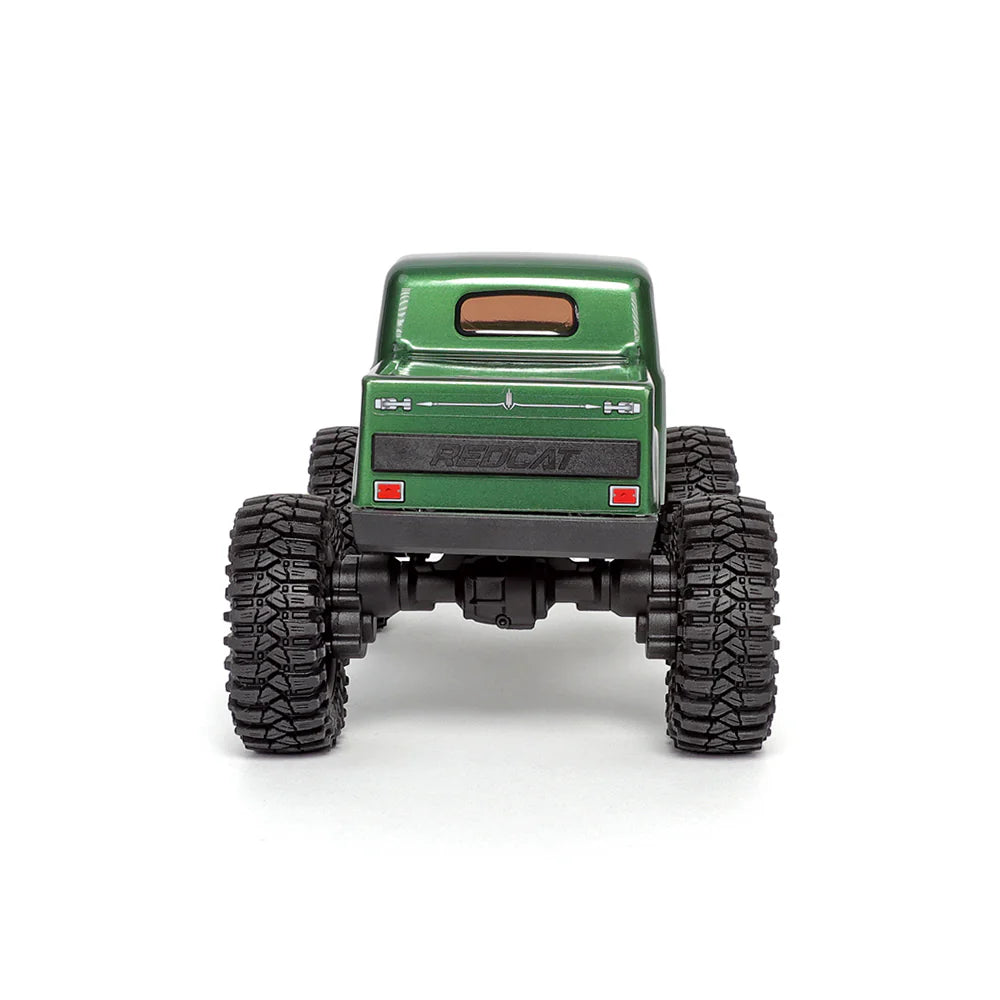

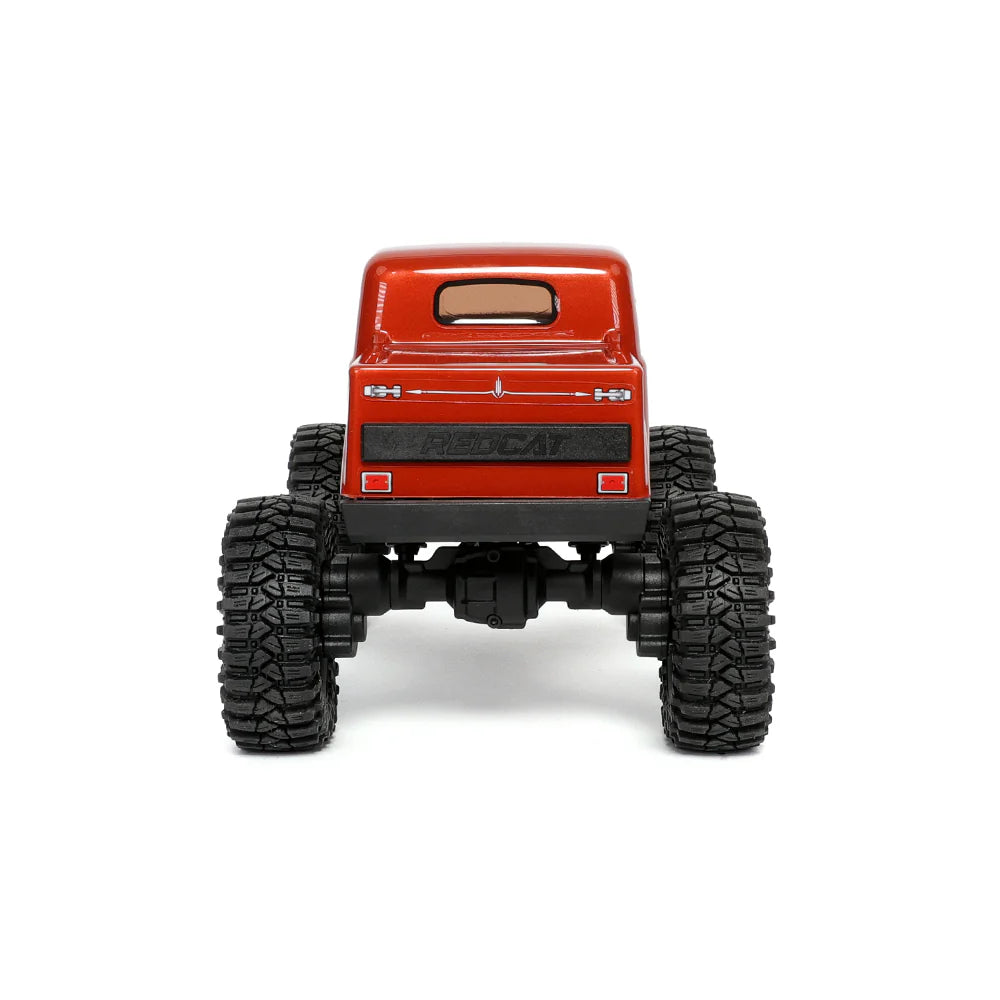

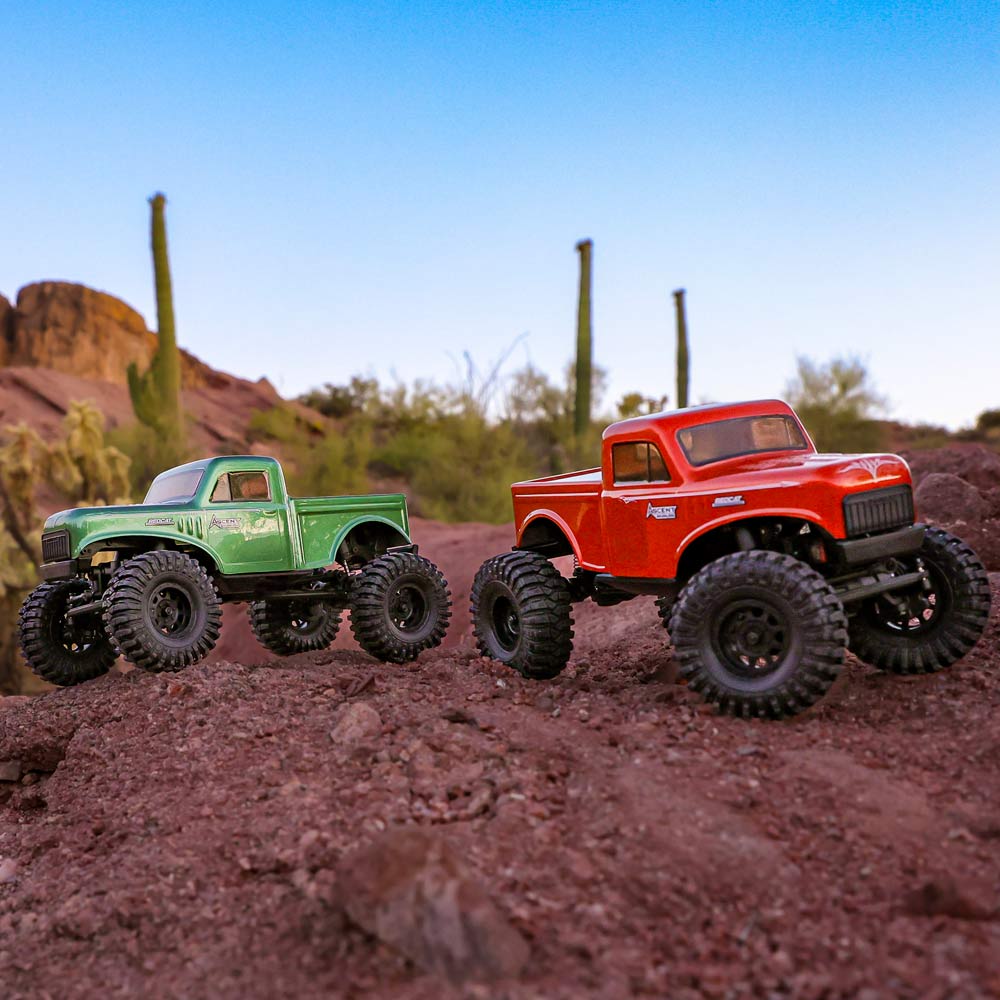

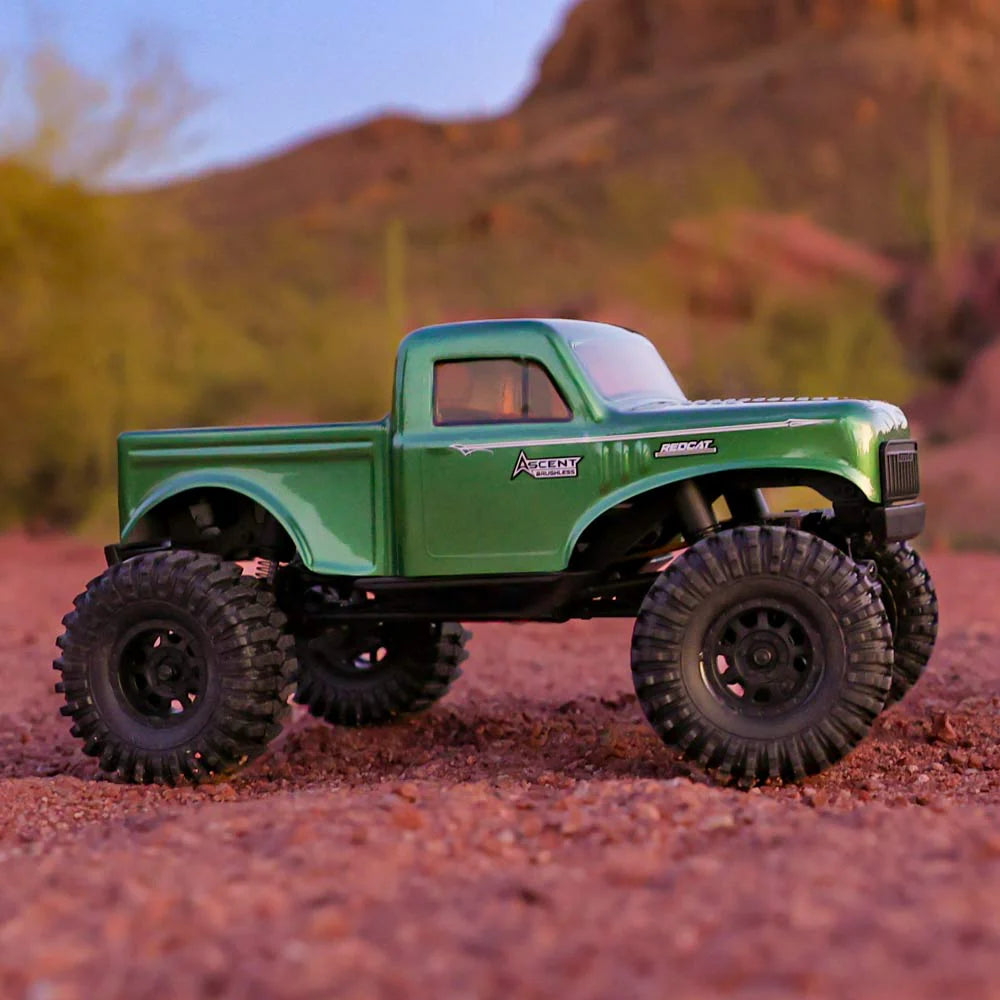

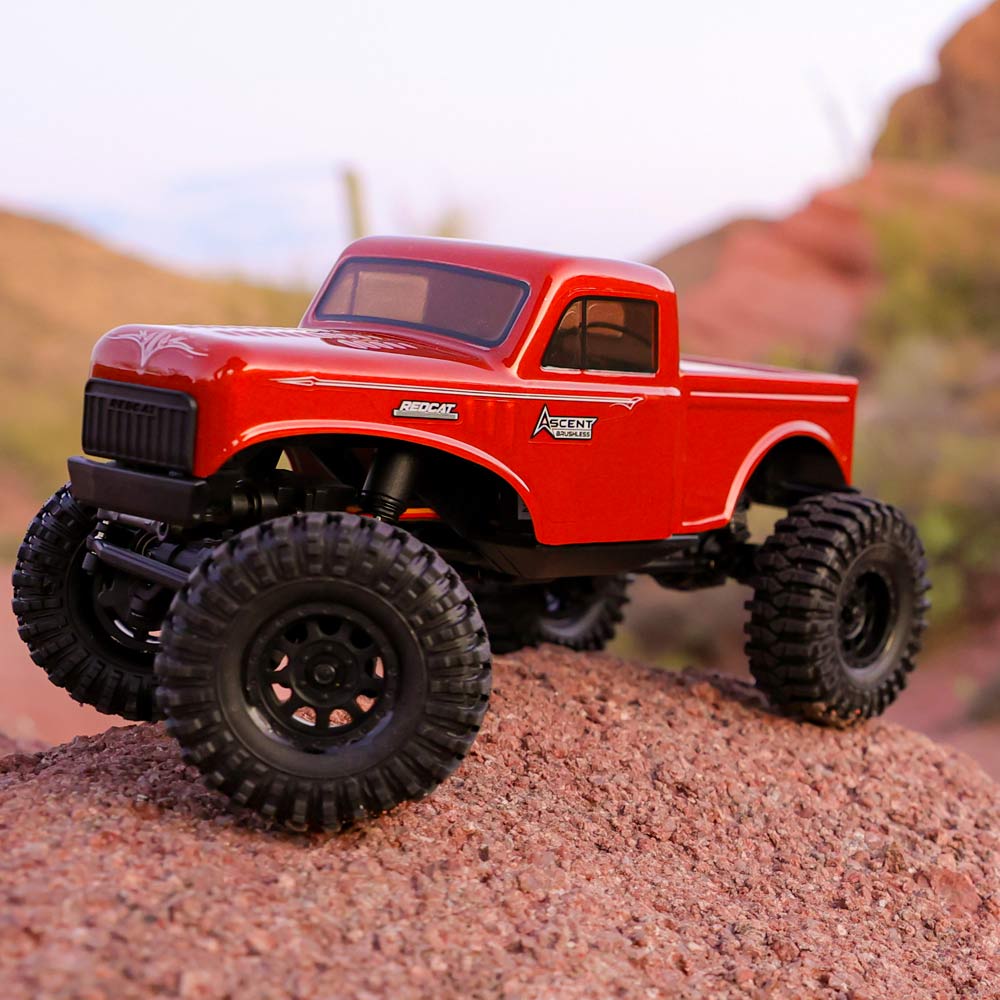

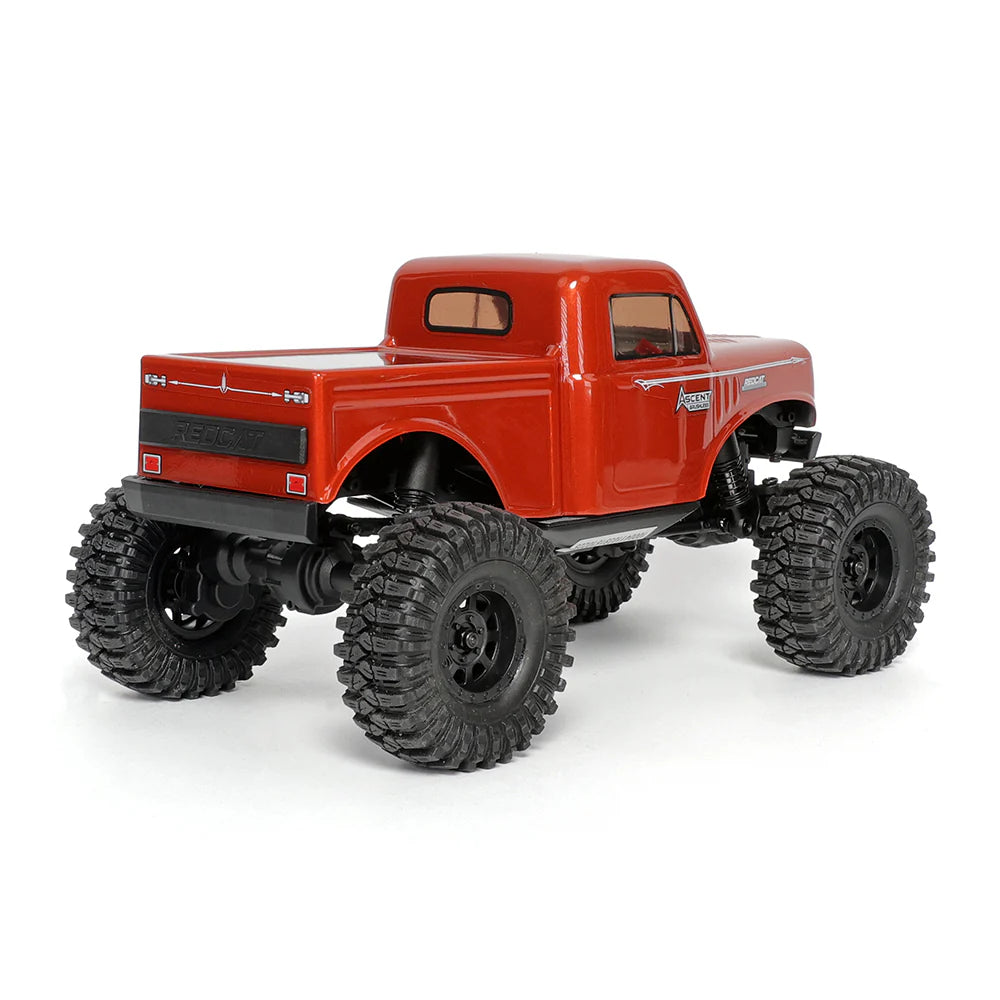

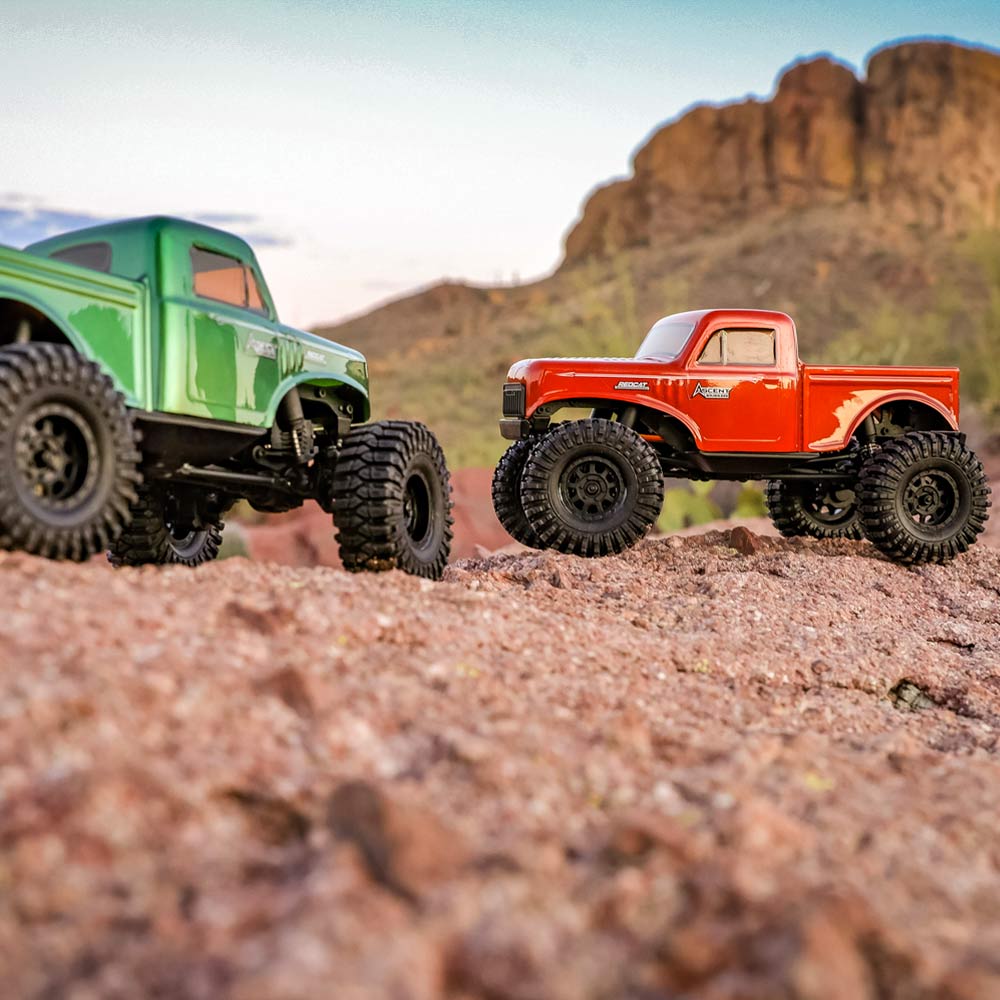

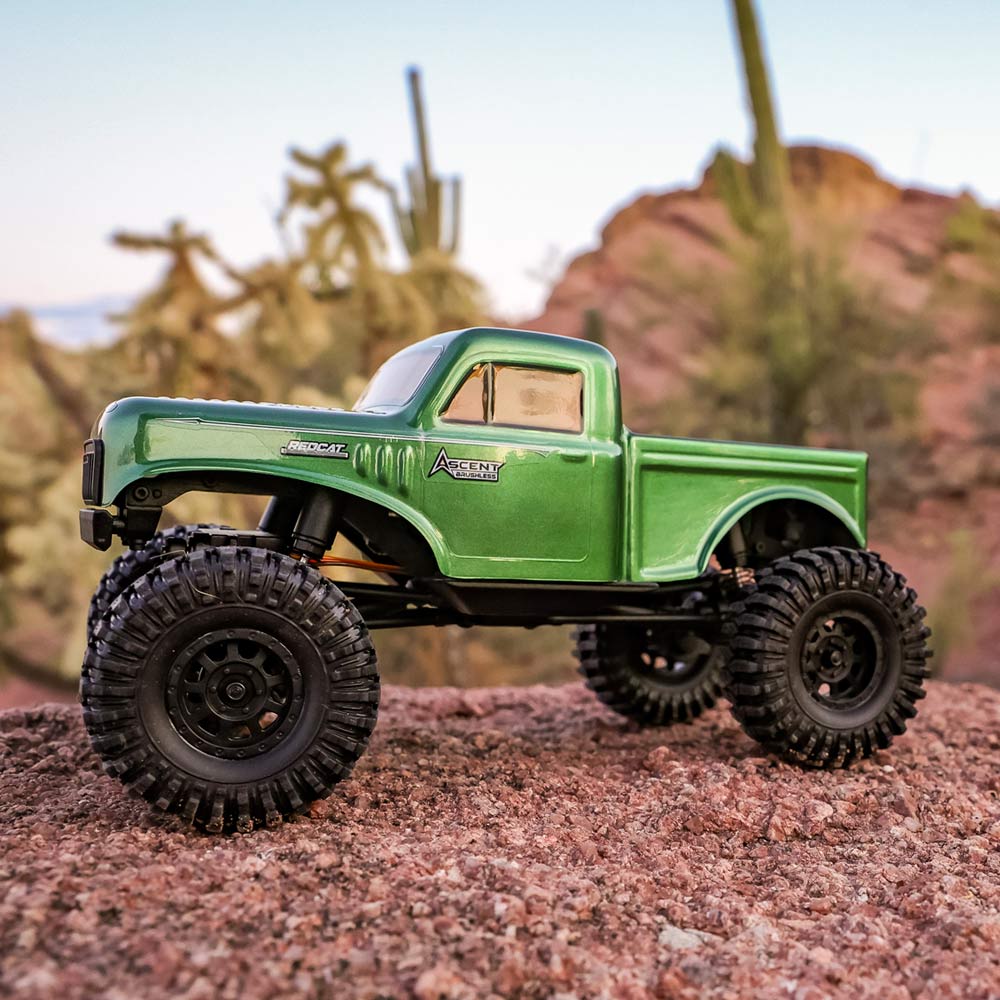

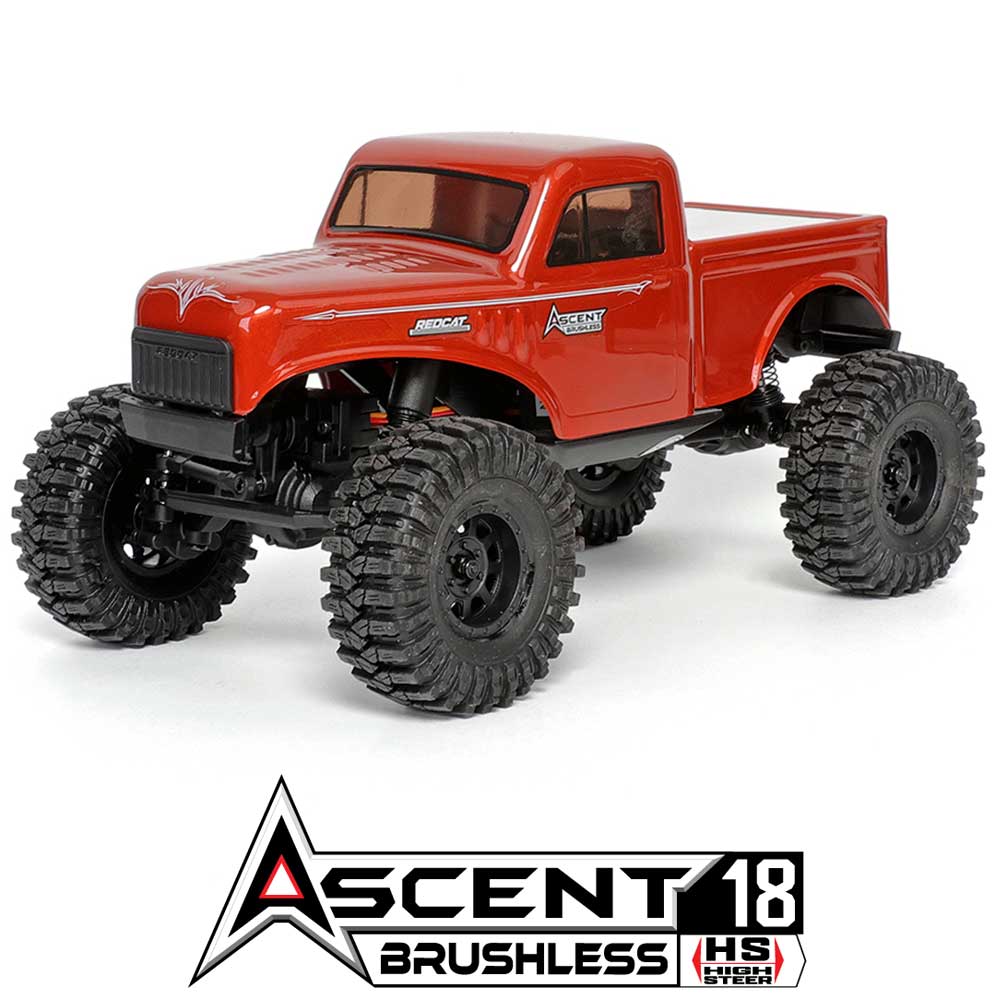

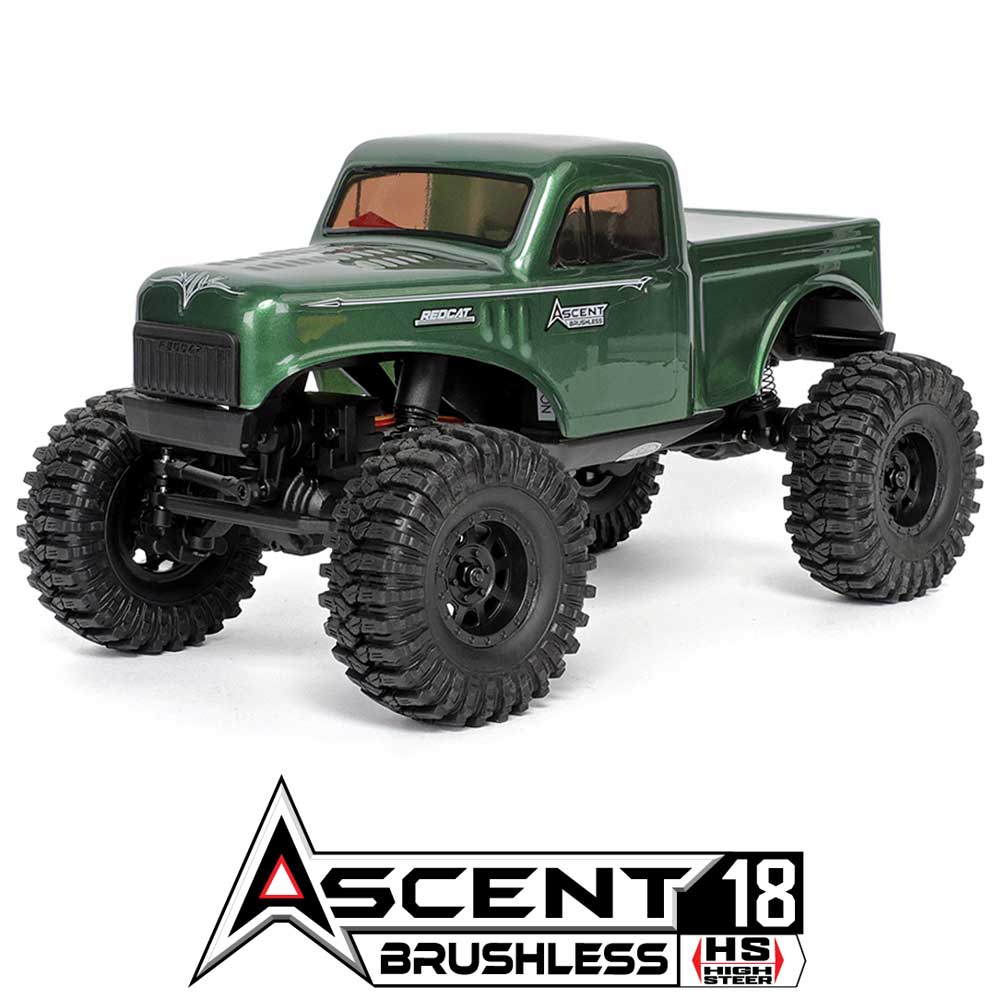

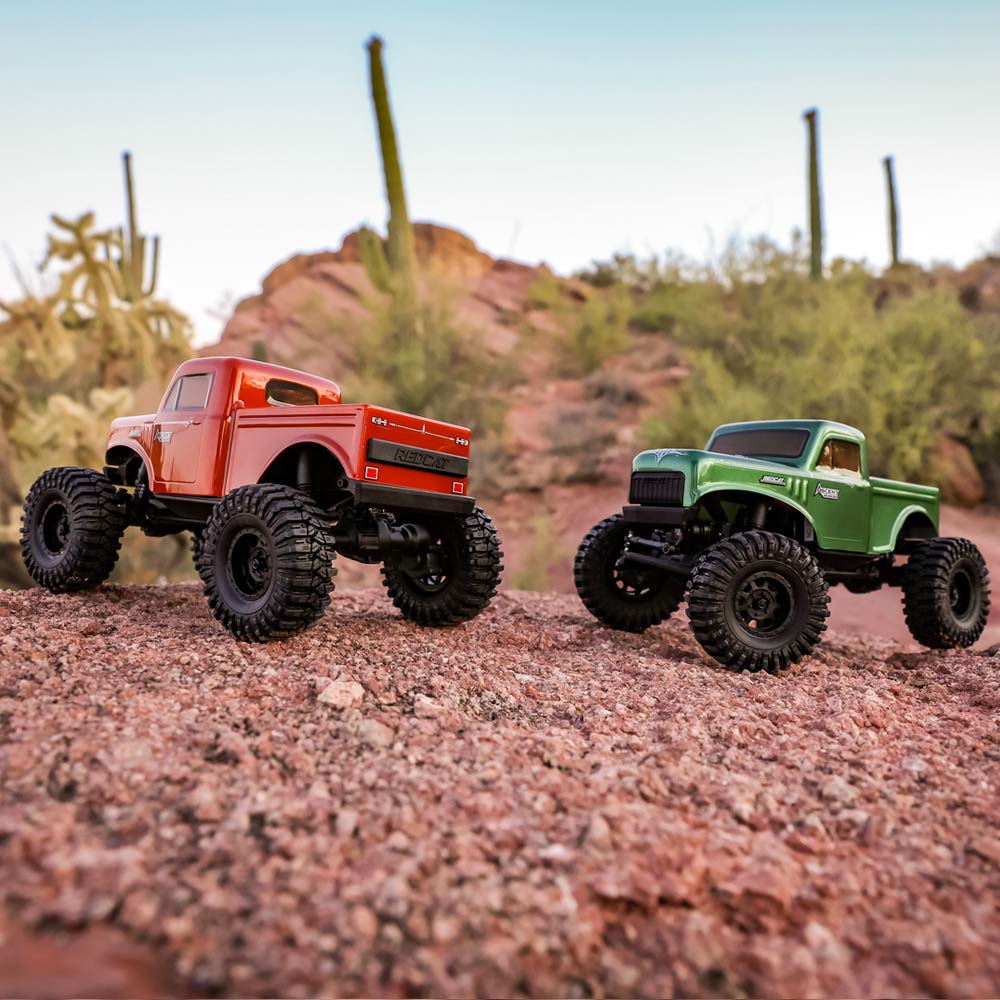

The Ascent-18 BRUSHLESS comes in two body color options - GREEN or ORANGE
FRONT TILT BODY MOUNTING SYSTEM
The body is hinged at the front for a clean look and provides quick access to the electronics
HIGH STEER (HS) PORTAL AXLES
BEARING SUPPORTED METAL AXLE GEARS

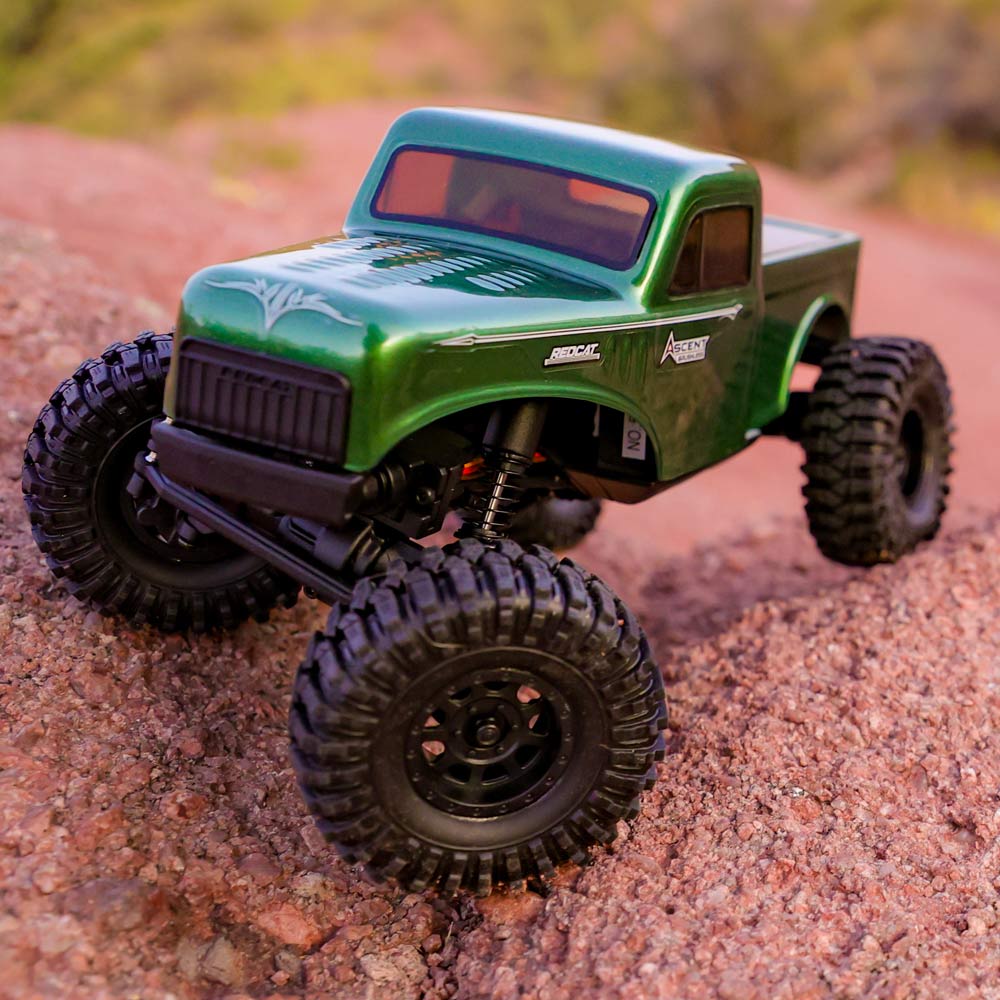

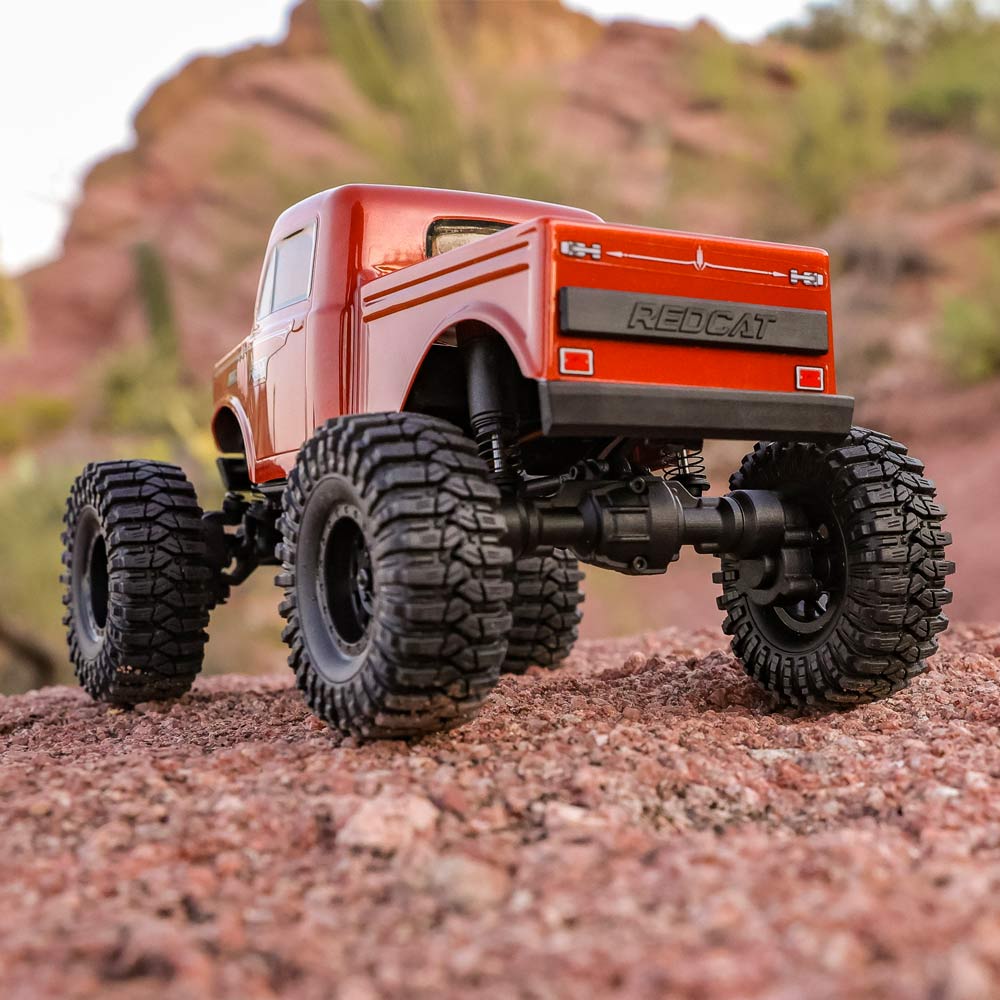

SMALL PACKAGE BIG PERFORMANCE
Built for fun - Built to perform - Built to last
REDCAT CLASSIC WHEELS
Classically styled off road wheels wrapped with aggressive 60mm open lug soft compound rubber tires
PERFORMANCE TUNED SHOCKS
Aluminum cap oil filled coilover shocks

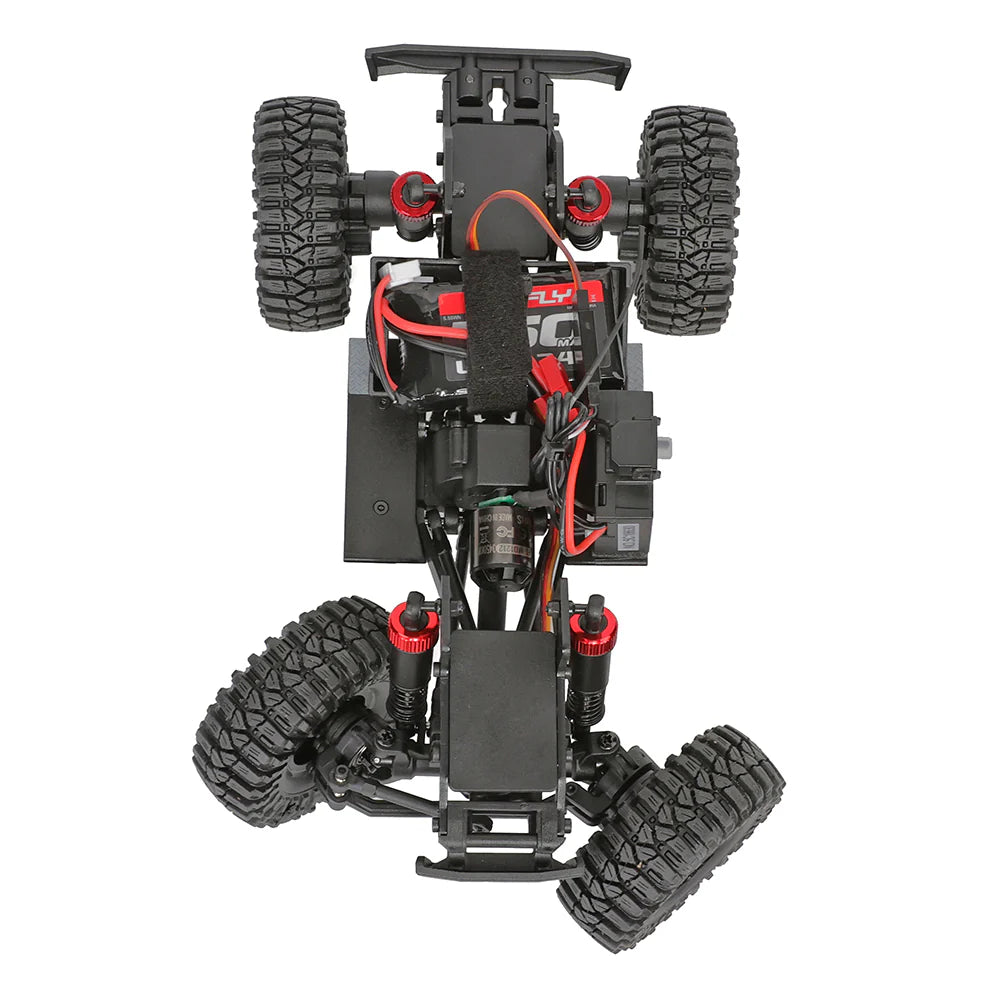

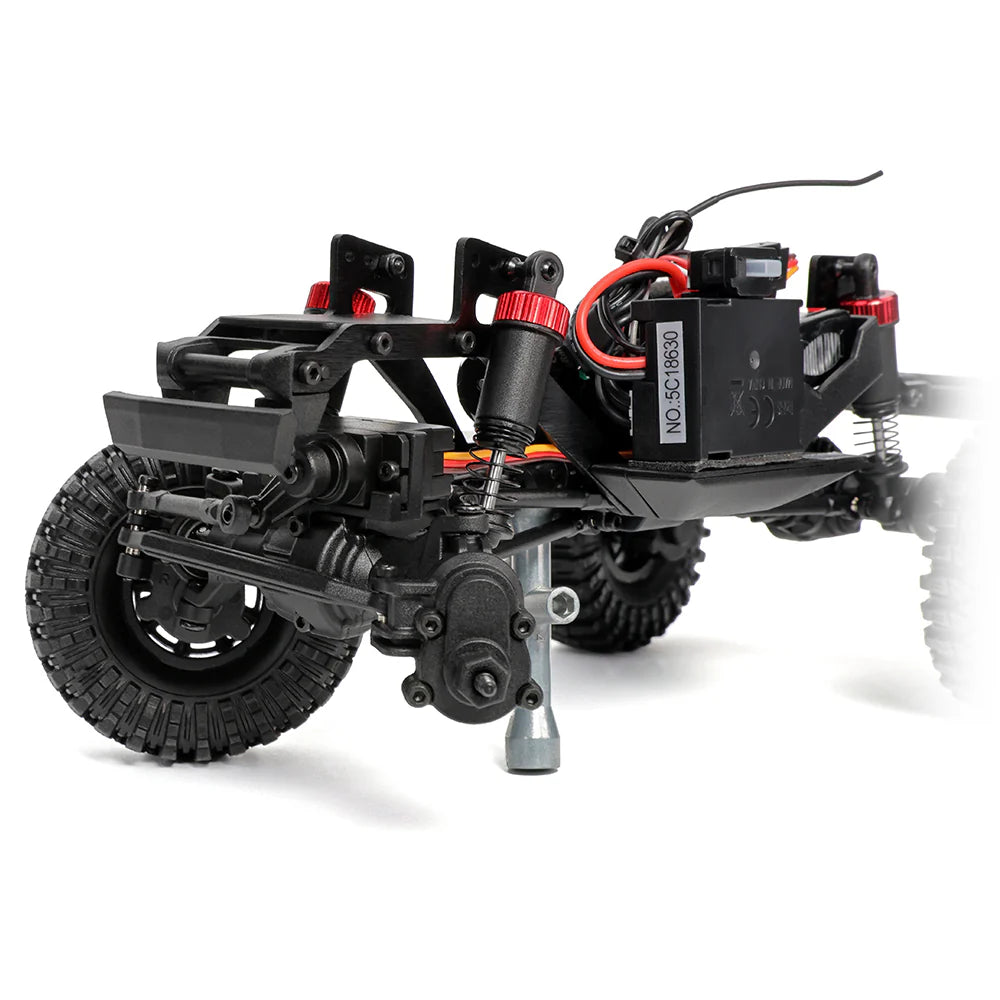

4-LINK SUSPENSION & METAL CHASSIS FRAME
REDCAT MULTI-CHANNEL RADIO & RECEIVER

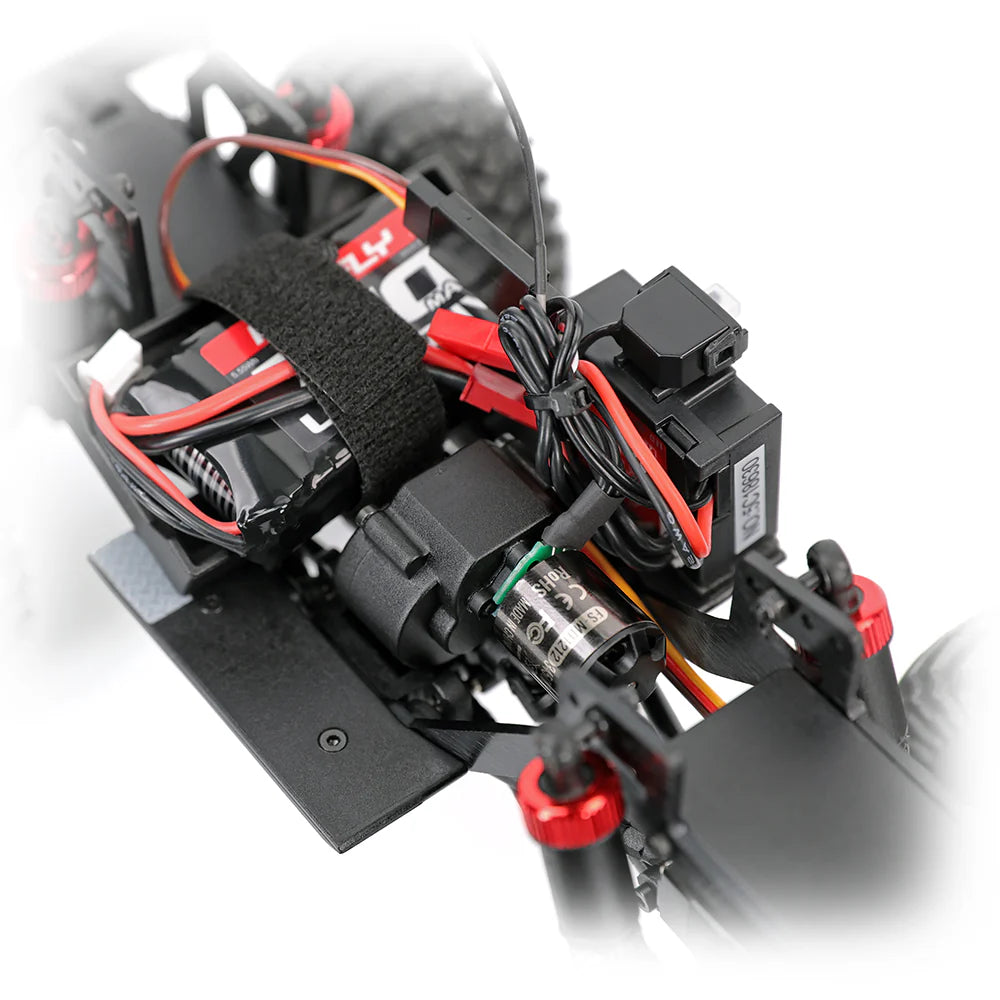

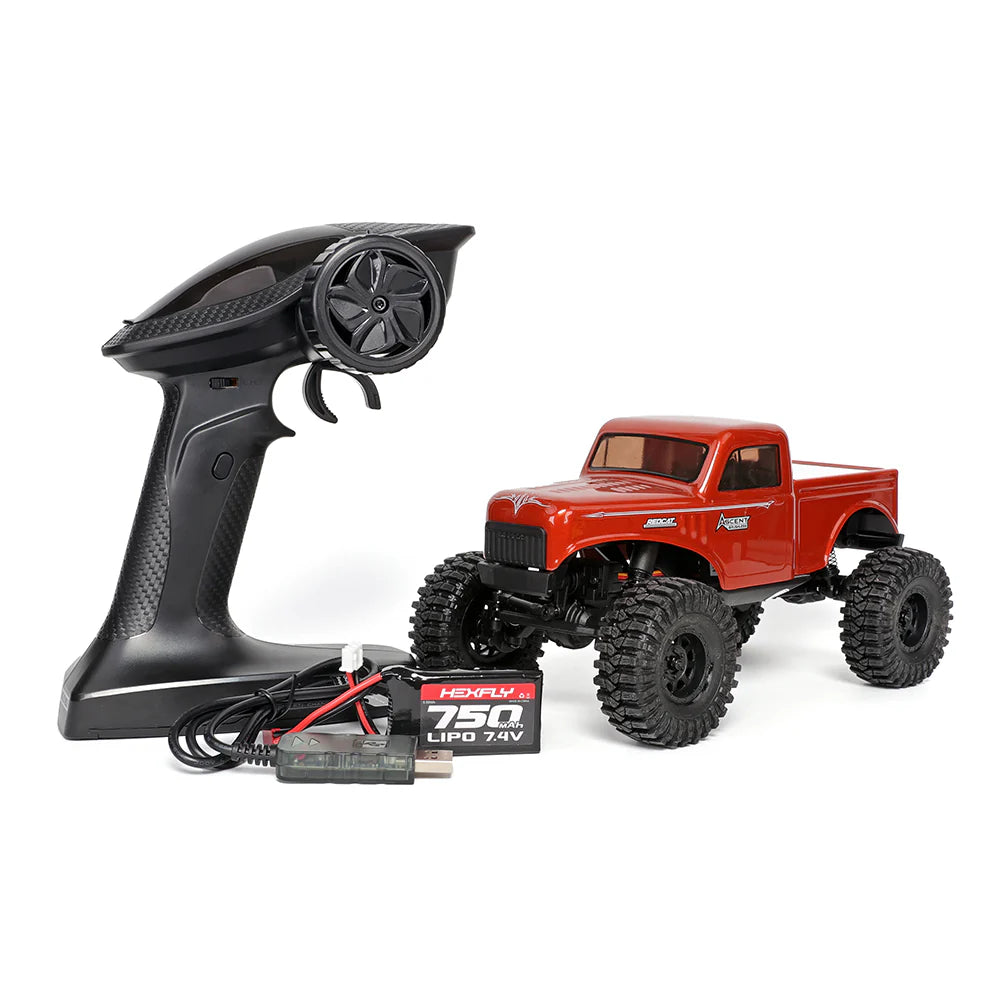

The Ascent-18 Brushless comes with a 750mAh LiPo battery, USB charger, multi-channel radio and 2-in1 ESC / Receiver
| Vendor: | REDCAT |
| SKU: | RER39151 |
| Barcode: | 843335122005 |
| Availability: | In Stock |
| Product Type: | Car Kits |
| Weight: | 3.5 lb |
